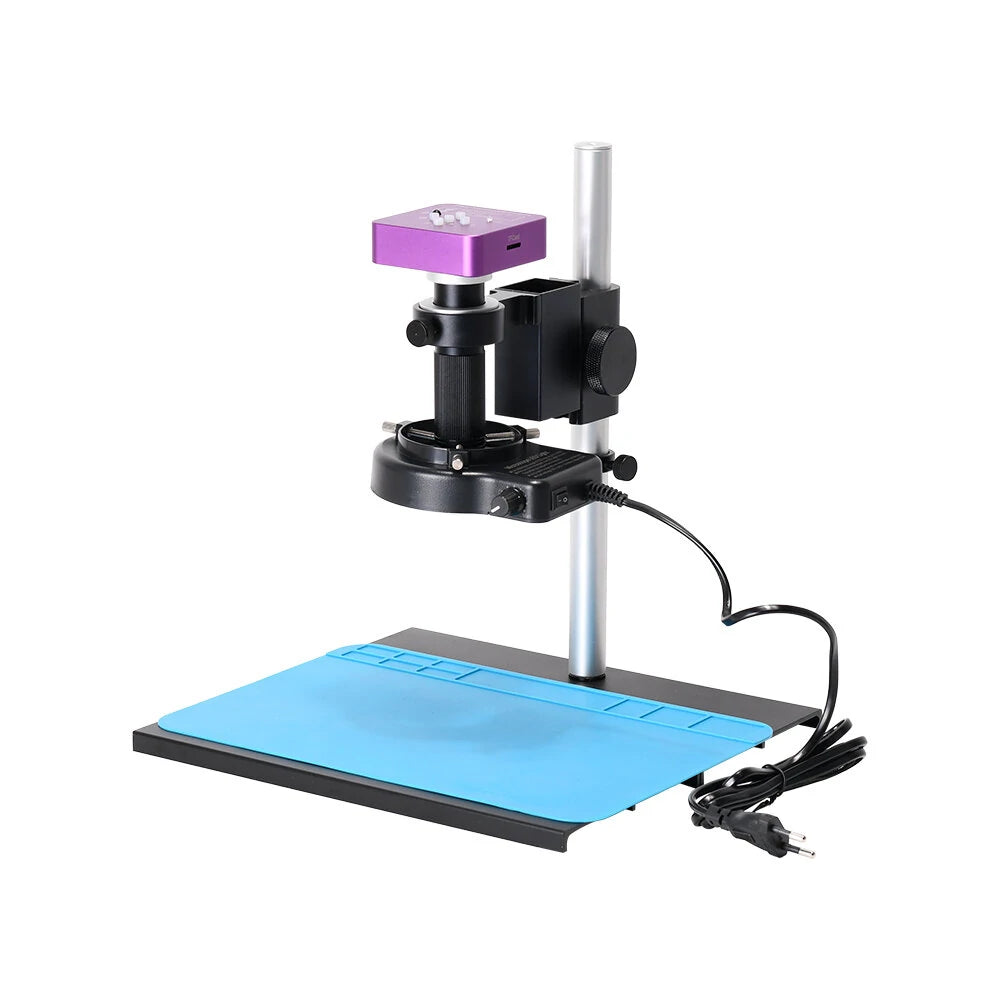

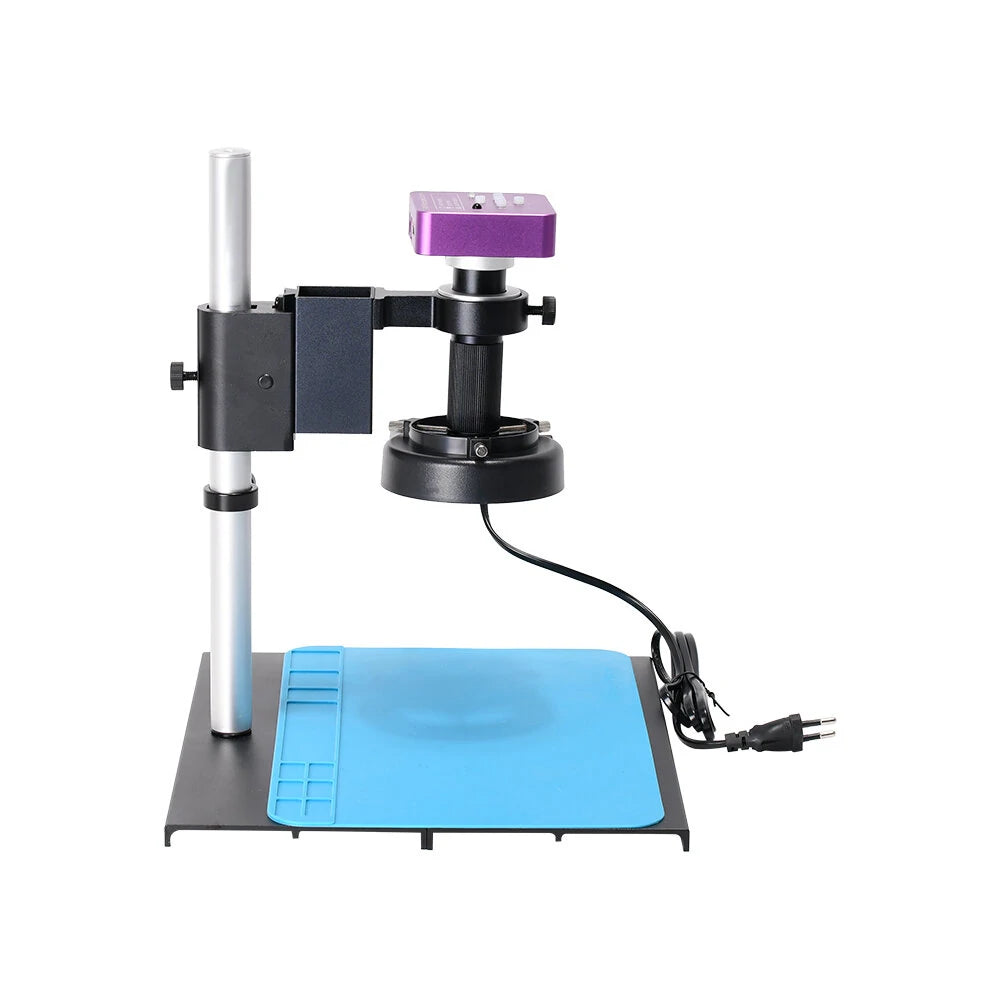

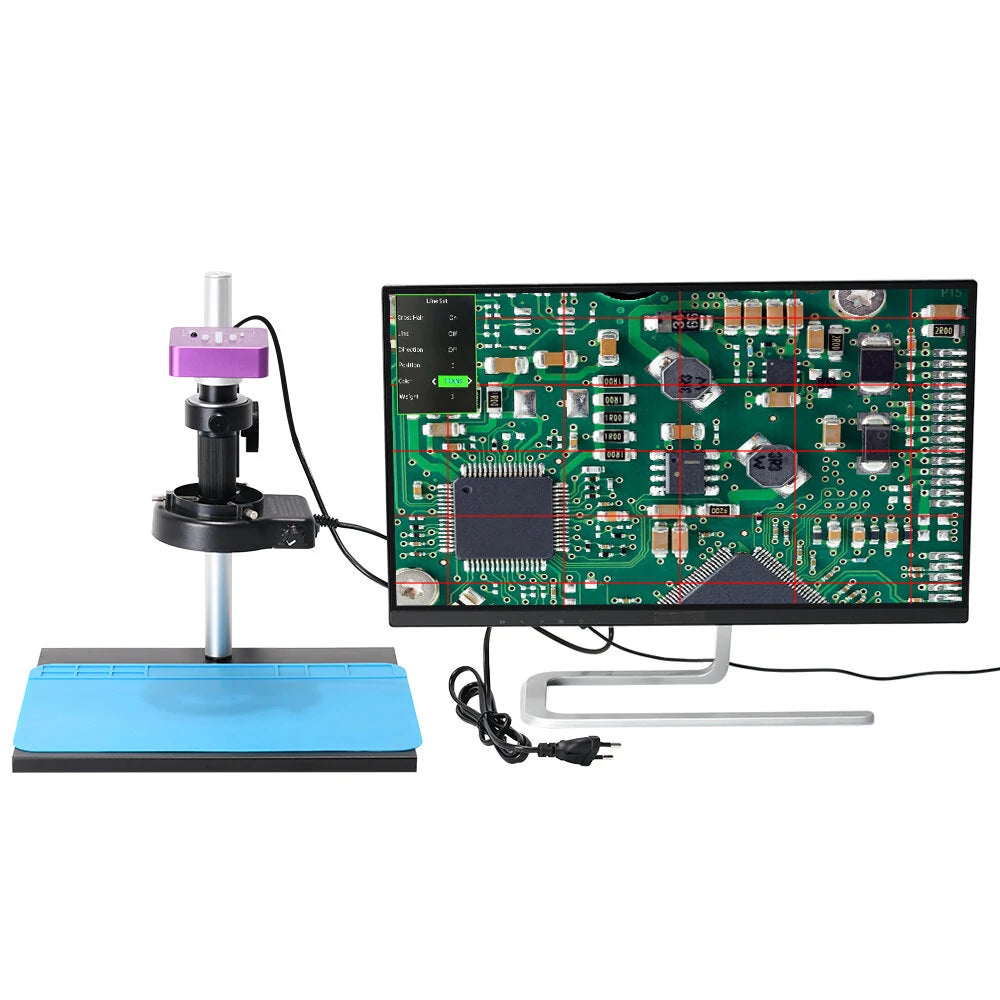

51MP Digital Microscope Camera with 130X C-Mount Lens & 56 LED Ring Light for PCB Repair - Includes Stand

Download the Software

Features:

• Compatible with multiple PC systems, including Windows XP/7/8/10.
• Equipped with a 130X C-mount zoom lens, suitable for industrial microscope cameras.
• Designed for the repair industry with a 51MP industrial microscope camera.
• Constructed with high-quality metallic housing for durability and a long lifespan.
• Offers high resolution and dual output for increased usability.

Specifications:

• Condition: 100% Brand New
• Item Type: Microscope Camera
• Model: High Definition Multimedia Interface USB2.0 Dual Output Camera
• Image Format: JPG
• Image Resolution: 51MP
• Video Format: MP4 (for Memory Card)
• Video Recorder: 1080P at 60FPS
• HDMI Video Resolution: 1920 x 1080 at 60FPS (For HDMI)
• USB Video Resolution: 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; 640 x 480 at 30FPS; 320x240 at 30FPS
• White Balance: Automatic / Manual
• Light Control: Automatic / Manual
• Exposure: Automatic / Manual, Value Adjustable
• Control Direction: Left / Right, Up / Down
• Freeze Function: Supported
• OSD Languages: English / Chinese / French / Spanish / Japanese / German
• Image Sensor: 51MP CMOS Sensor 1/2.33 Inches
• Effective Pixels: 51MP
• Pixels Size: 1.335μm x 1.335μm
• Frame Rate: 60fps
• Definition: Full High Definition
• Housing: Metal
• Lens Type: C/CS Mount
• Digital Zoom: Supported
• Brightness Control: Automatic / Manual
• Color Adjustment: R / G / B Adjustable
• Film and Records: Supported
• Horizontal and Vertical Lines: Support multi-color, adjustable size
• Memory Card Interface: up to 128G (Not Included)
• HDMI Output: Standard High Definition Multimedia Interface Output (Type A)
• USB Interface: Standard USB2.0 Interface (Type B)
• Input Voltage: DC 12V

130X C-MOUNT Lens:

• Working Distance: 50mm - 250mm
• Zoom Ratios: 10:1
• Objective Magnification: 0.1-1.3X (approximately 10-130X on display)
• Size: 130mm (L) x 40mm (Diameter)

56 LED Adjustable Compact Microscope Ring Light:

• Provides intense and focused shadow-free illumination
• 56 bright white LED bulbs
• Lighting direction is changeable
• Variable intensity control
• 100,000 hours of life
• Power Input: 100-240V, 50-60HZ, auto-switching
• Inside Diameter: 1.0" (27mm)
• Overall Outside Diameter: 1.77" (45mm)
• Working Distance: 27mm - 45mm

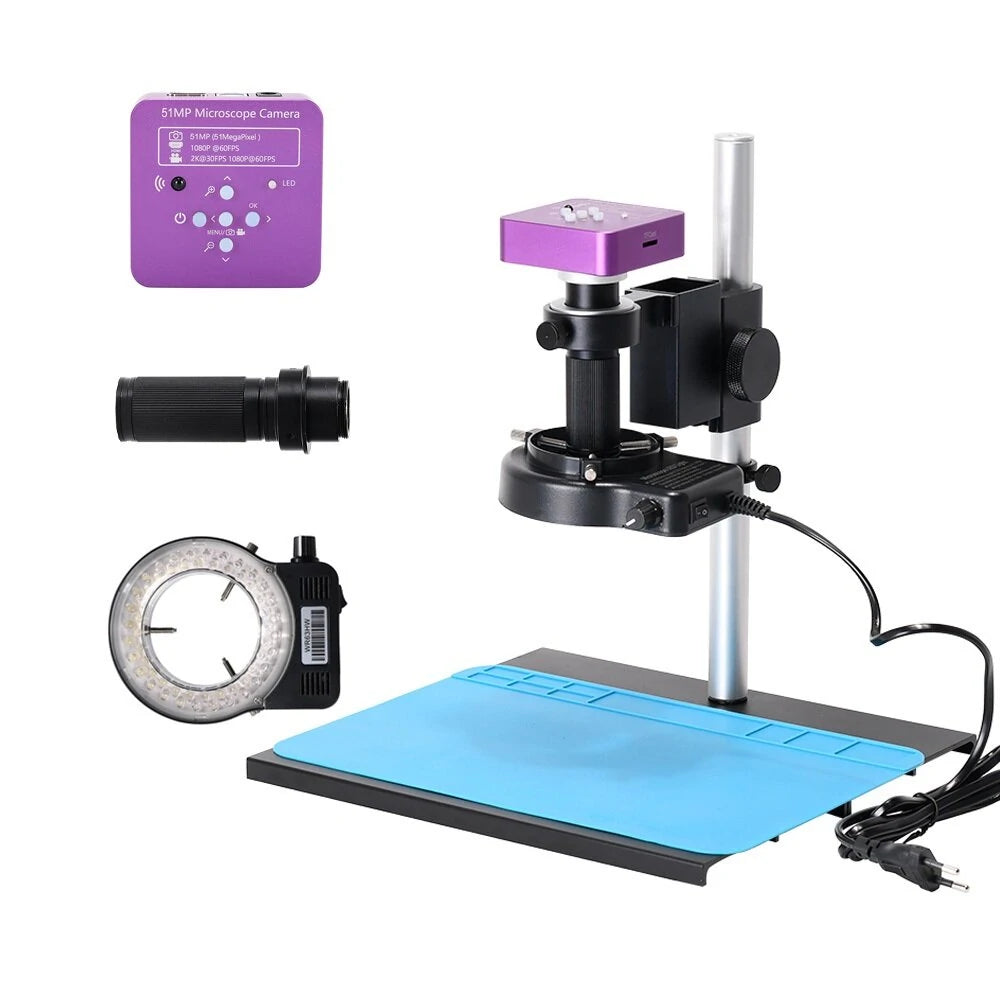

Package Includes:

• 1 x 51MP Microscope Camera
• 1 x Power Supply Adapter
• 1 x USB Cable
• 1 x HDMI Cable
• 1 x Software CD
• 1 x Remote Control
• 1 x 130X Lens
• 1 x Microscope Light Source
• 1 x Camera Stand
• 1 x High Temperature Resistant Working Pad

Note:

1. PC Support: Compatible with Windows XP/7/8/10.
2. For USB output, software-controlled white balance, exposure, and color adjustment are available. (Camera keys and remote control cannot operate).
3. For HDMI output, adjustments can be made when connected to a monitor. (Camera keys and remote control are operable).
4. Ensure no memory card is in the camera when using a USB connection; memory card storage is for HDMI output only. USB output will be stored on the PC.
5. When connecting the camera to a computer, simply plug in the USB cable (no external power needed).
