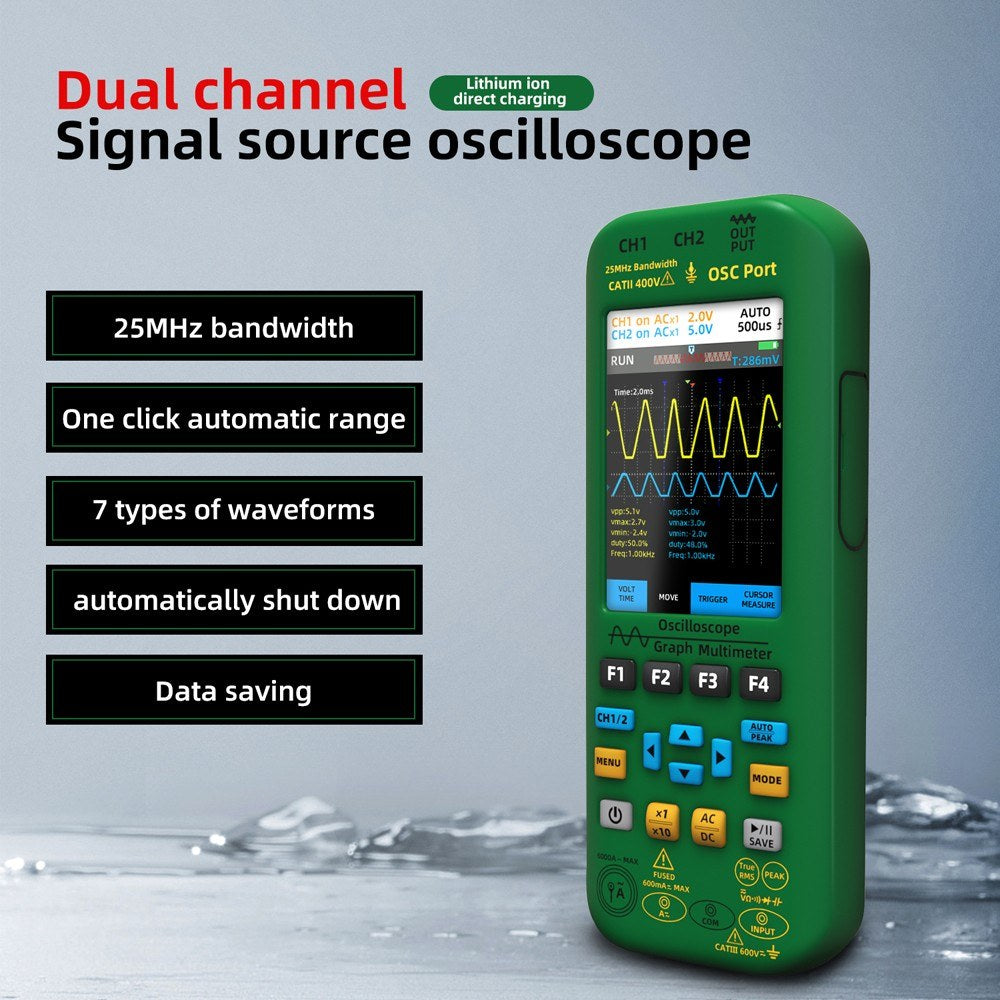

BSIDE Handheld 3-in-1 Graph Multimeter, Oscilloscope & Signal Source with 3.98-inch TFT IPS Display

This innovative device combines the functionalities of an oscilloscope, a signal generator, and an autorange multimeter, all in one. It measures various electrical parameters and captures waveforms simultaneously, making it an essential tool for electronics testing and repair.

Key Features

• 3-in-1 Design & Comprehensive Measurement: Integrates a 25MHz bandwidth oscilloscope, 6000 count multimeter, and single-channel signal generator. The 3.98-inch TFT IPS display allows for precise electronic signal detection and analysis.

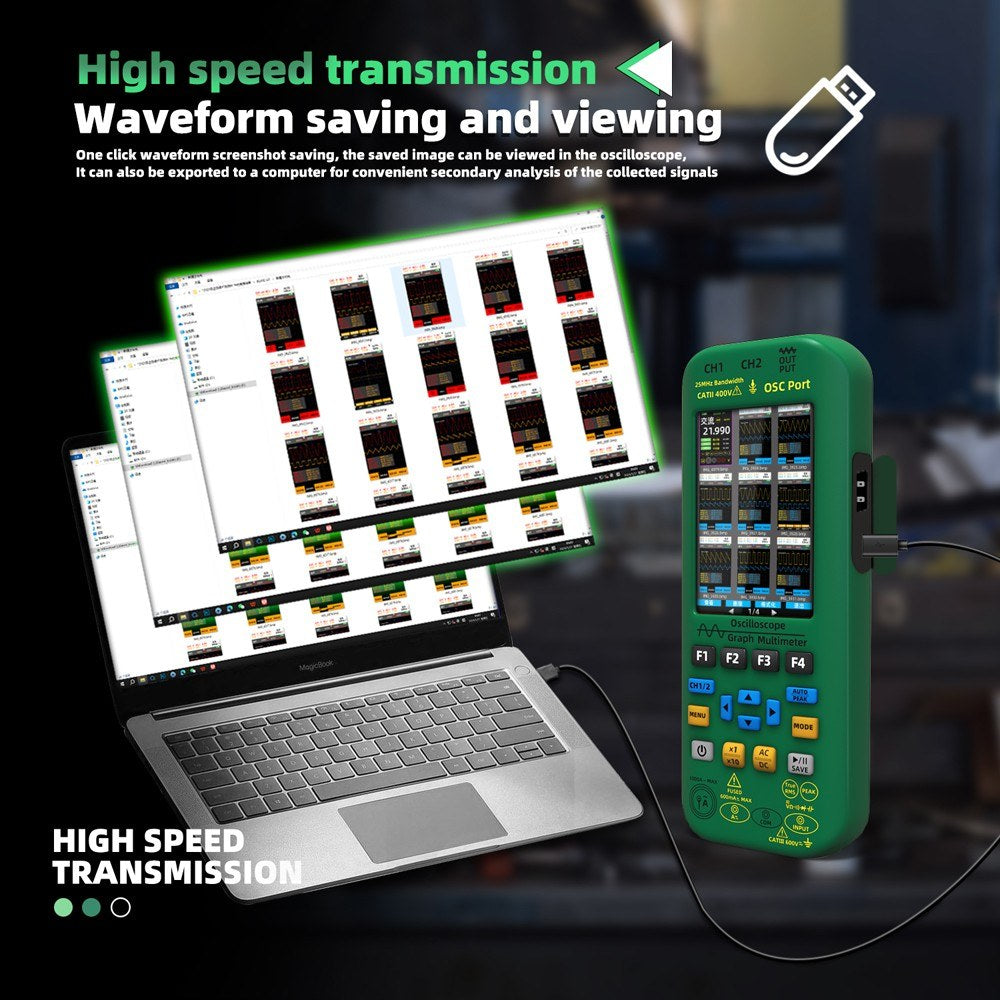

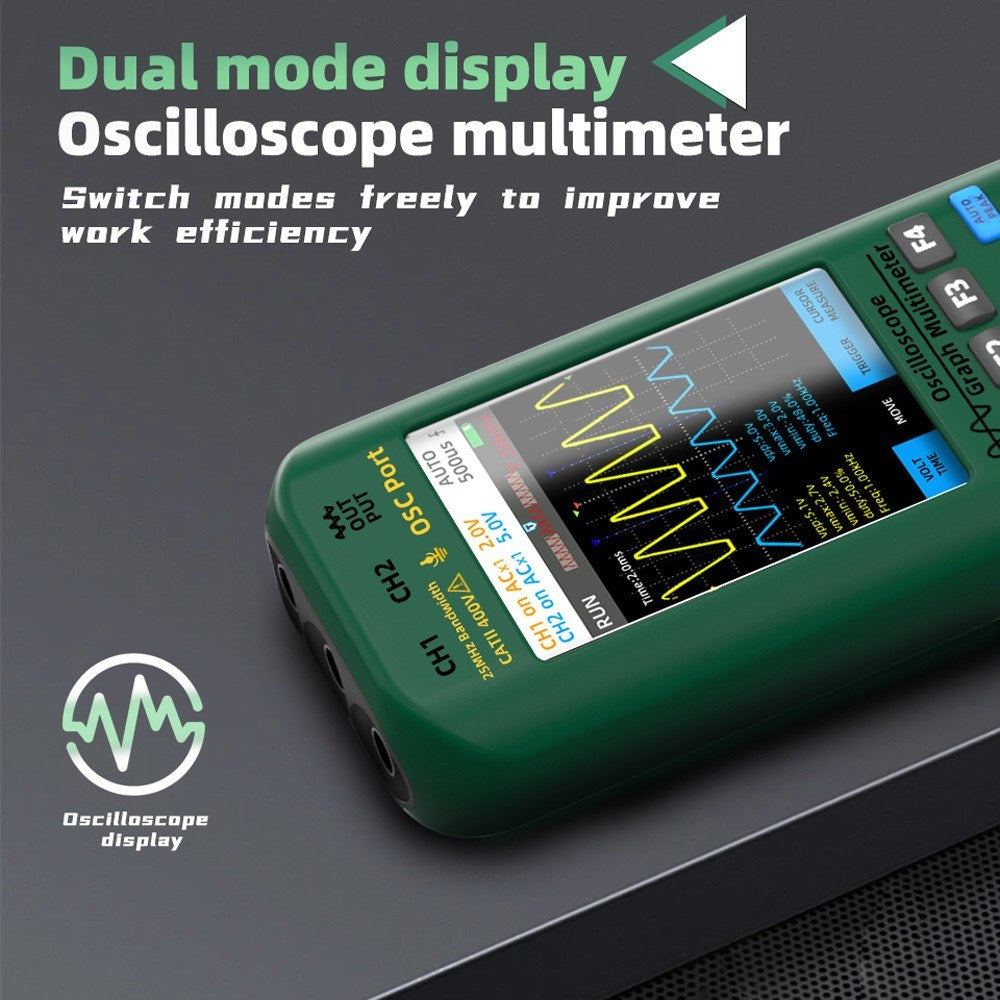

• Oscilloscope Functionality: With its 25MHz bandwidth, 208MSa/s sampling rate, and three waveform trigger modes (Auto, Normal, Single), this oscilloscope accurately detects signals. It supports cursor measurement, manual waveform settings, baseline calibration, and can connect to computers for advanced analysis.
• Signal Generator: Measures arbitrary signal waveforms such as sinewave, squarewave, and sawtoothwave, offering high flexibility for various applications.
• Multimeter Functions: Supports DC/AC voltage and current, resistance, capacitance, temperature, diode, and continuity tests. Features V-alert and buzzer functions for efficient troubleshooting.
• Premium Material & Digital Display: Compact and lightweight with a protective silicone coating. The 480x320 display shows real-time measurement data in a clear, intuitive format.

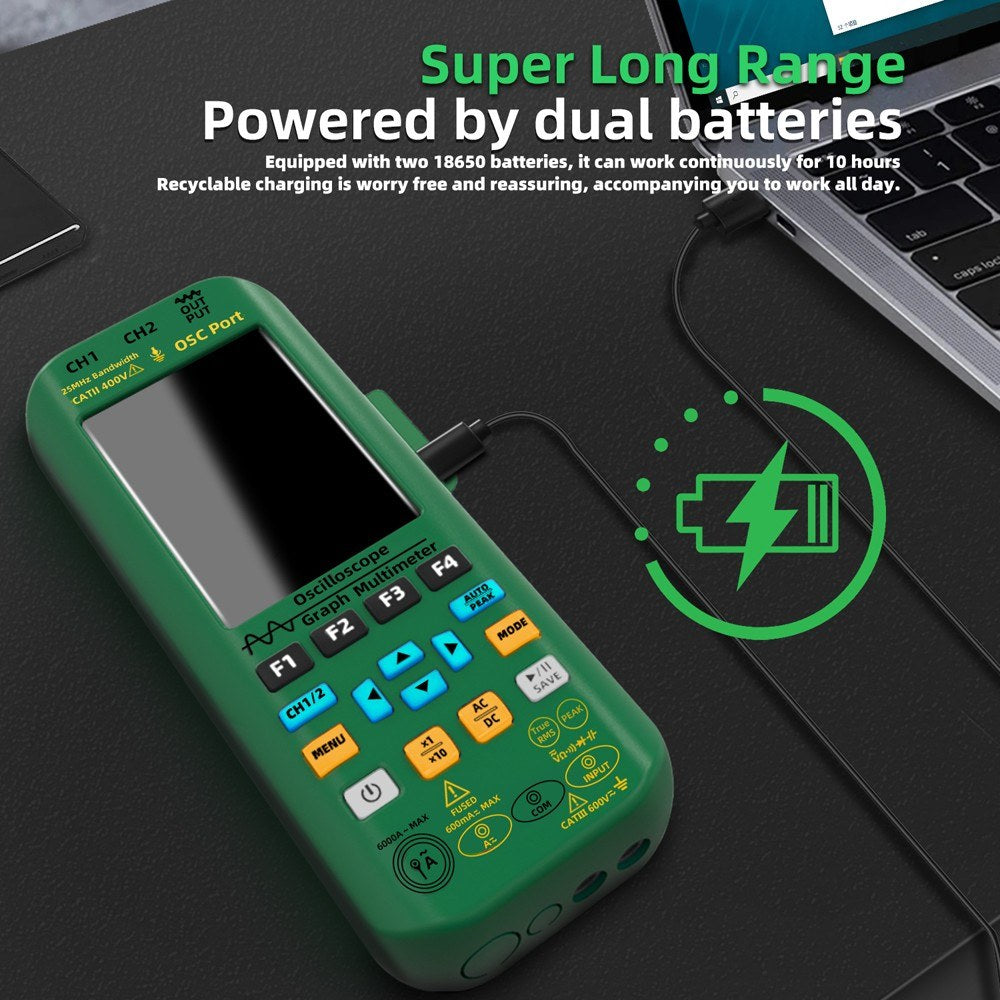

• Rechargeable Battery & Versatile Applications: Equipped with two high-capacity lithium batteries, making it ideal for laboratory research, teaching, and DIY maintenance projects.

Specifications

• Material: Plastic, silicone, glass
• Battery: 2 built-in 6000mAh batteries
• Screen Size & Resolution: 3.98 Inch (480x272 pixels) IPS display
• True RMS Measurement: 6000 count
• Automatic Shutdown: Yes
• Operating Environment: 0-40°C, <75%RH
• Storage Environment: -20°C to 60°C, <80%RH
• Dimensions: 216.6 x 84.5 x 36mm
• Weight: 477g

Multimeter Measurement Ranges

• DC Voltage: Up to 1000V

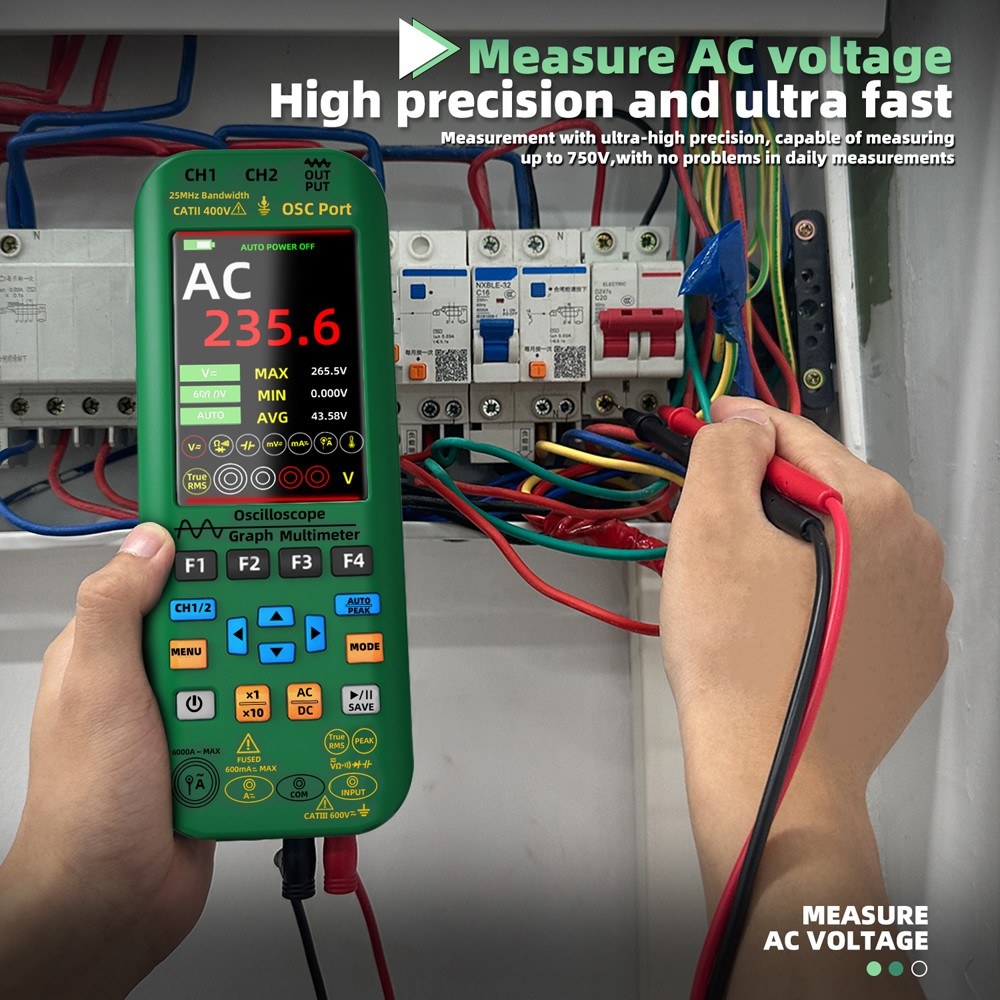

• AC Voltage: Up to 750V
• DC/AC Current: Up to 600mA
• Resistance: Up to 60MΩ
• Capacitance: 999.9nF to 99.99mF
• Temperature: (-20~1000°C) / (-4~1832°F)

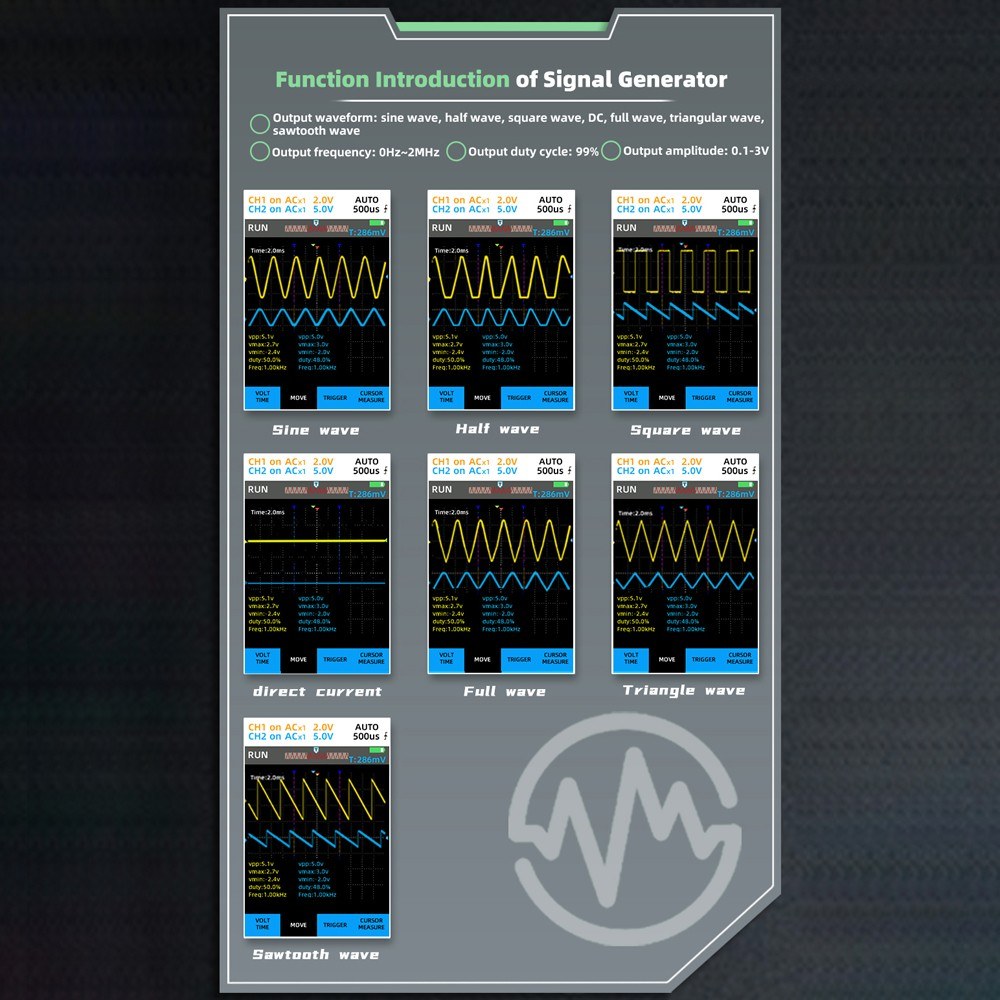

Signal Generator

• Channel: Single channel
• Frequency: 0-2MHz
• Amplitude: 0.1V-3.0V
• Signal Types: Sinewave, squarewave, sawtoothwave, etc.

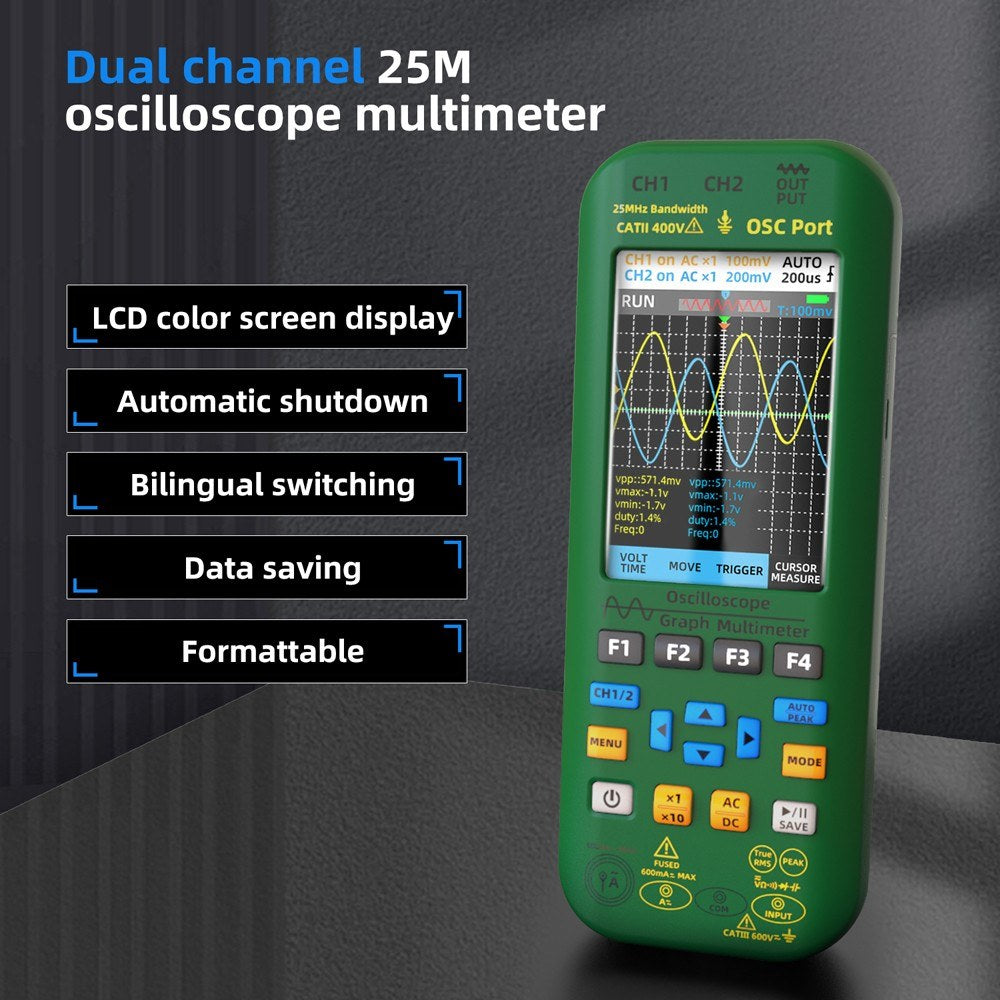

Oscilloscope

• Channels: Dual channel
• Bandwidth: 25MHz
• Real-time Sample Rate: 208MSa/s
• Input Coupling: DC/AC
• Storage Depth: Max 64kByte

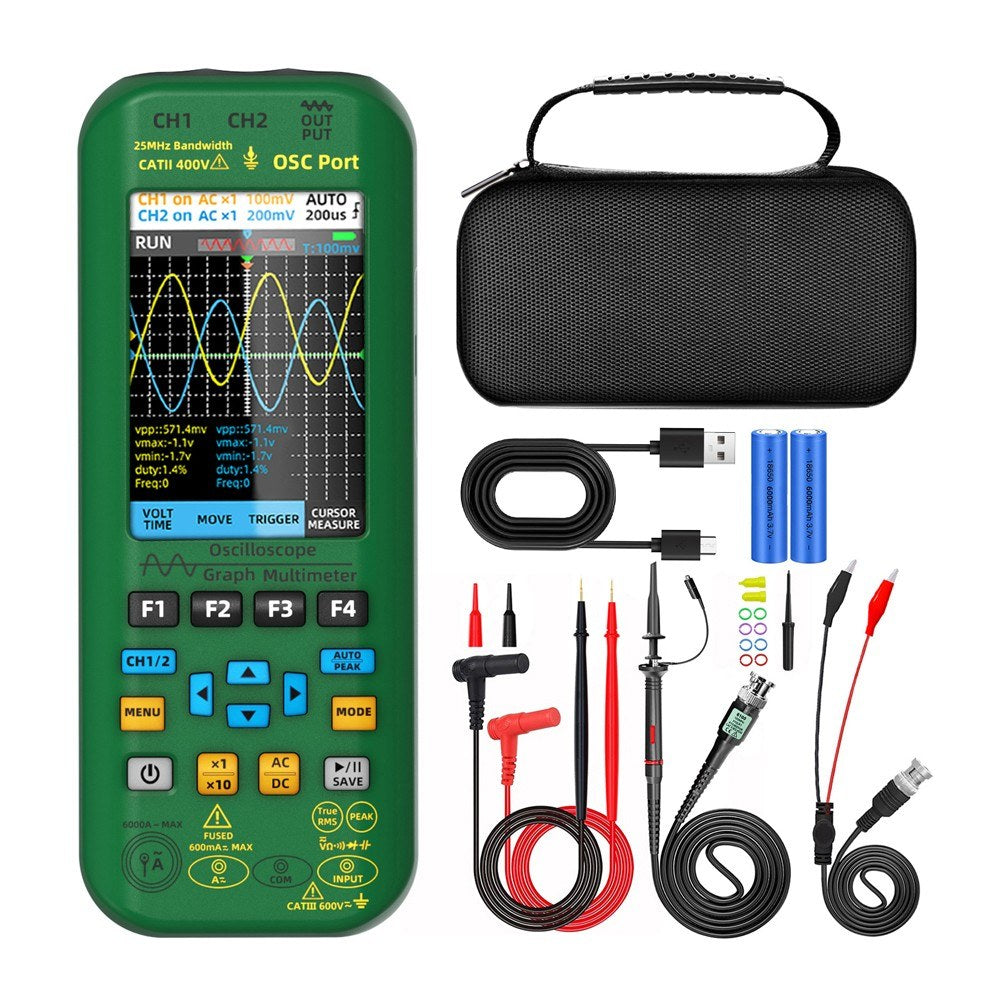

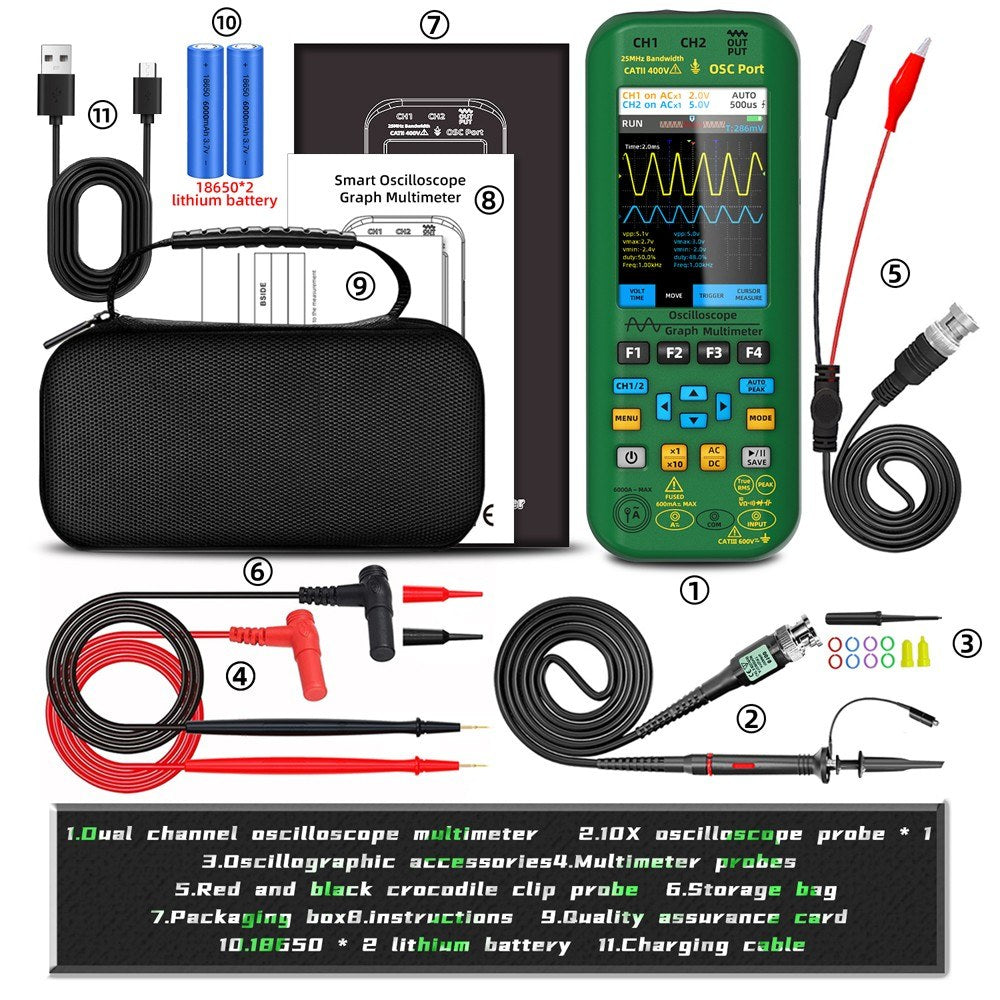

Packing List

• 1 x 3-in-1 Meter
• 2 x Probe
• 1 x Multimeter Pen
• 1 x Clip Probe
• 1 x Cable
• 1 x EVA Bag
