JUNTEK PSG9080 Dual Channel Signal Generator 1nHz-80MHz Programmable Function Frequency & Amplitude Modulation Arbitrary Waveform with Voltage Control Frequency Meter

Overview

The PSG9080 Signal Generator is a versatile tool optimized for scientific research, technical engineering, factory electronic instrument testing, and educational purposes. It offers a range of features that enable comprehensive waveform generation and measurement capabilities.

Main Features:

• Programmable Output: Customize waveform outputs (sine, square, triangle, and arbitrary waves), time, and sequence for automated operations.
• Firmware Updates: Update firmware in real time to fix bugs or for specific customization needs. Easily perform upgrades by connecting to PC software.
• Voltage-Controlled Adjustment: External analog voltage signals control frequency, amplitude, and duty cycle—ideal for industrial debugging.
• Modulation Function: Outputs modulated waveforms on single or dual channels. Supports AM, FM, PM, ASK, FSK, PSK, and PWM modulations.
• High Sampling Rate: A rate of up to 300MSa/s ensures accurate waveform display with more data points per unit time.
• Personal Color Schemes: Choose from four system color schemes for a personalized experience.
• Dual Channel Output: Simultaneously output same or different function signals with independently adjustable parameters.
• Burst Function: Generate burst signals with adjustable periods using various waveform types.
• Arbitrary Waveform Drawing: Use PC software to draw waveforms and control all instrument functions.

Specifications:

• Model: PSG9080
• Channels: 2
• Sampling Rate: 300MSa/s
• Maximum Frequency of Sine Wave: 80MHz
• Waveform Characteristics:
  • Wave Length: 8192 points/channel
  • Vertical Resolution: 14 bits

Frequency Characteristics:

• Frequency Ranges:
  • Sine Wave: 1nHz-80MHz
  • Square Waves: 1nHz-30MHz
  • Triangle Wave: 1nHz-50MHz
• Frequency Accuracy: ±5ppm 0 to 50℃

Signal Characteristics:

• Square Waves: Rising/Falling Edge Time ≤10nS, Overshoot ≤10%
• Ramp and Triangle Wave: Linearity ≤1% (less than 1MHz)

Output Characteristics:

• Amplitude Range: Variable settings based on frequency range with a resolution of 1mVpp.
• DC Bias Adjustment Range: -9.99V-15.00V

General Specifications:

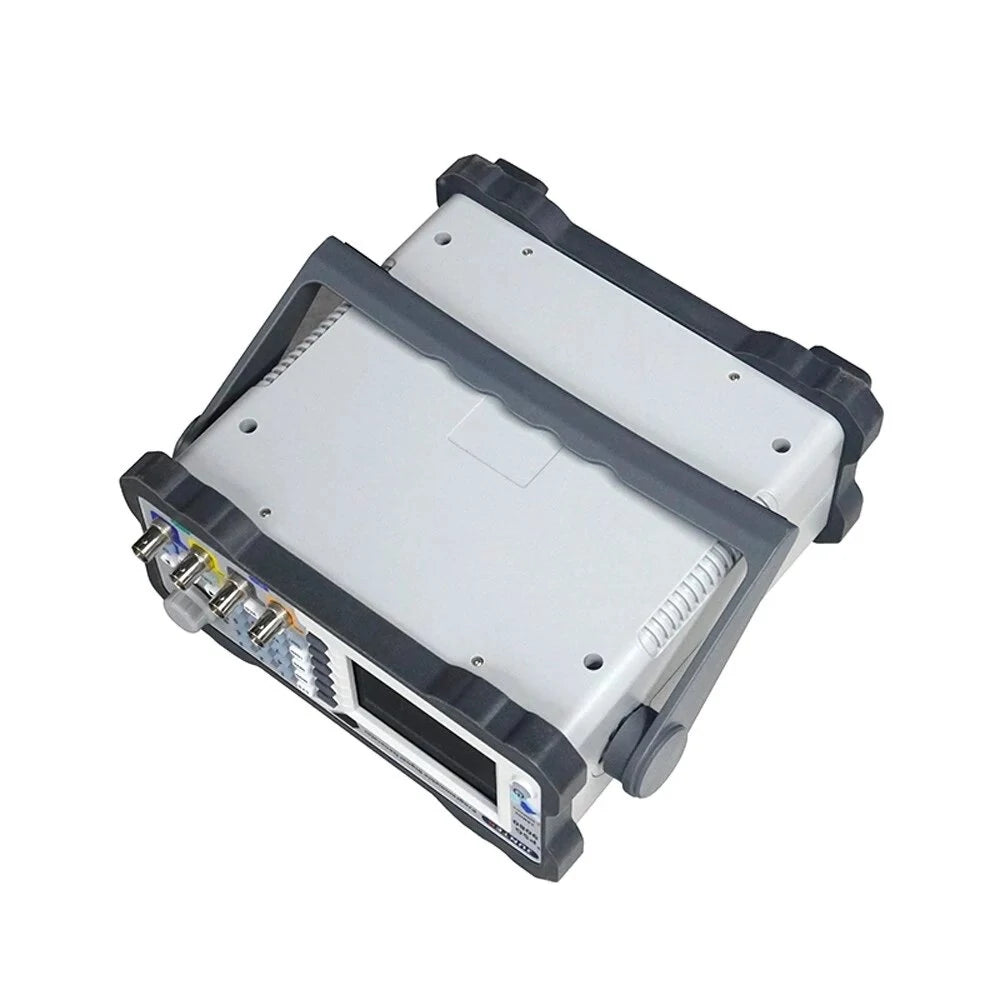

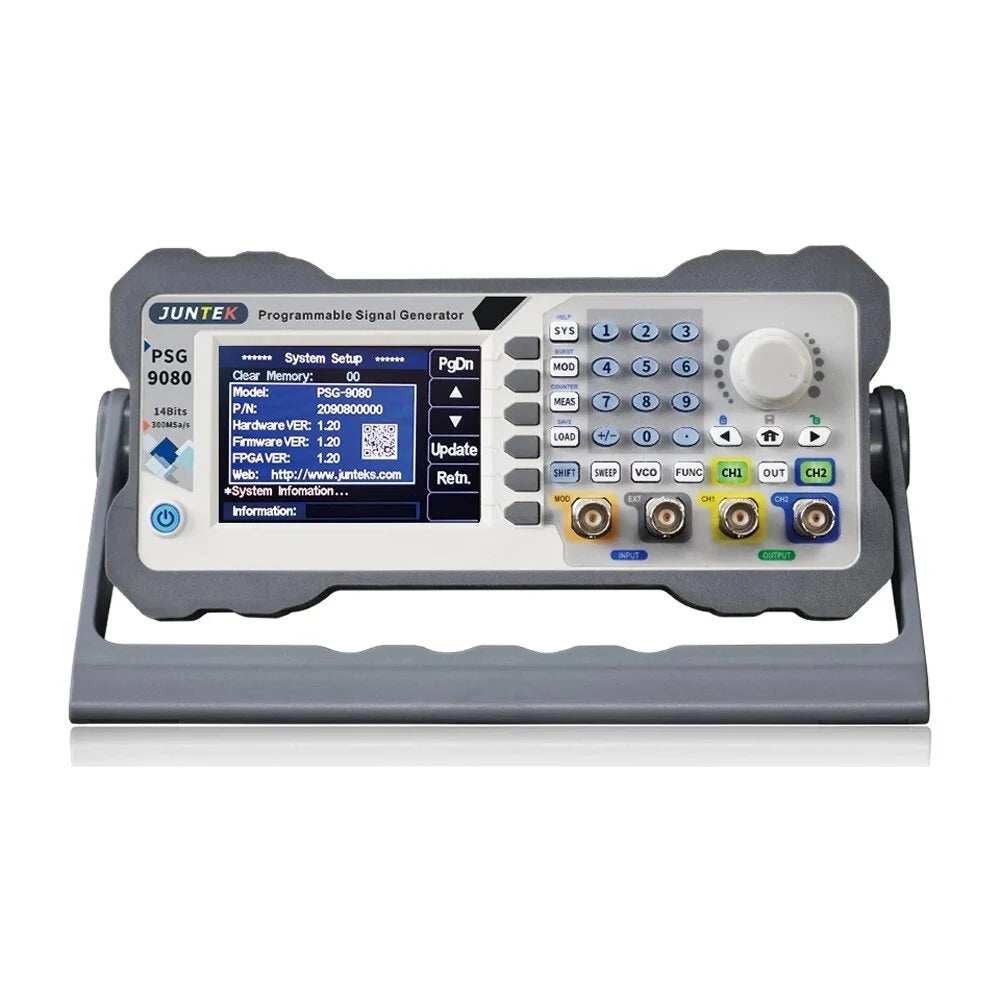

• Display: 3.5 inch TFT color LCD, 320*480 resolution
• Store and Load: Supports 100 groups, easy data management

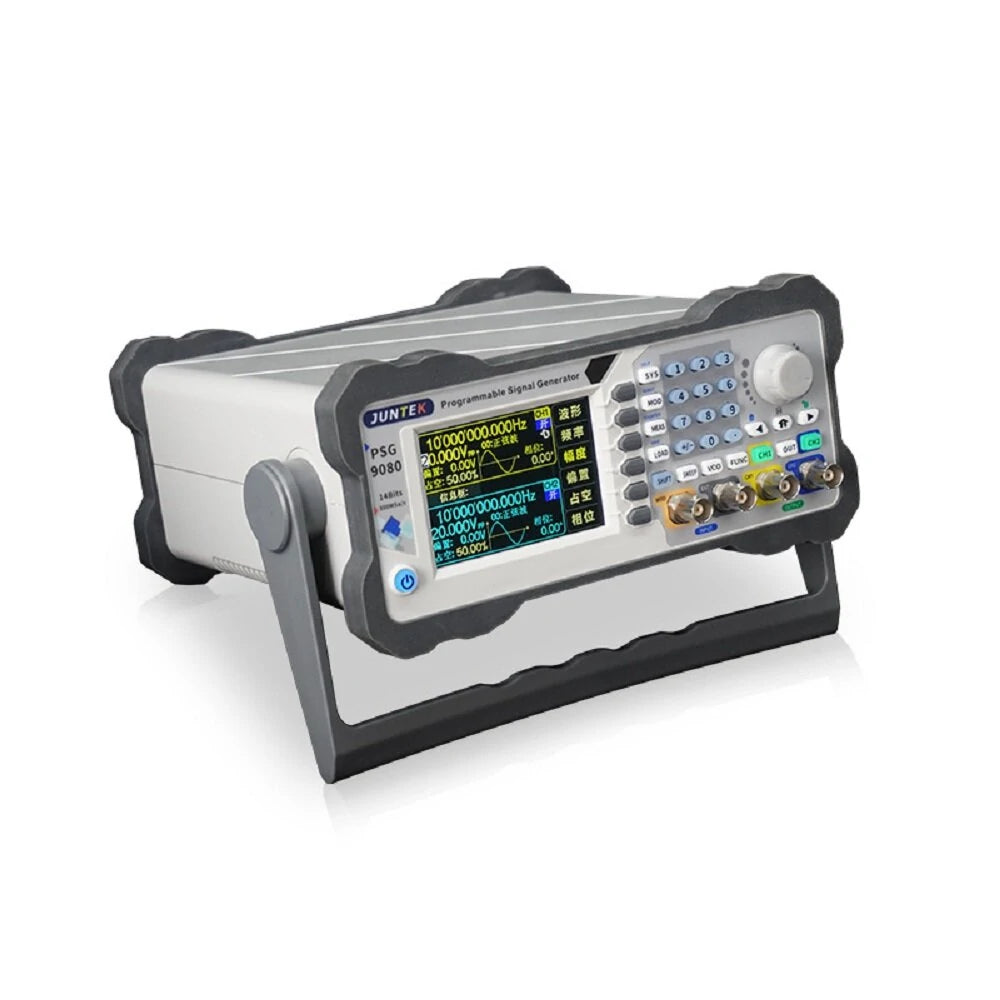

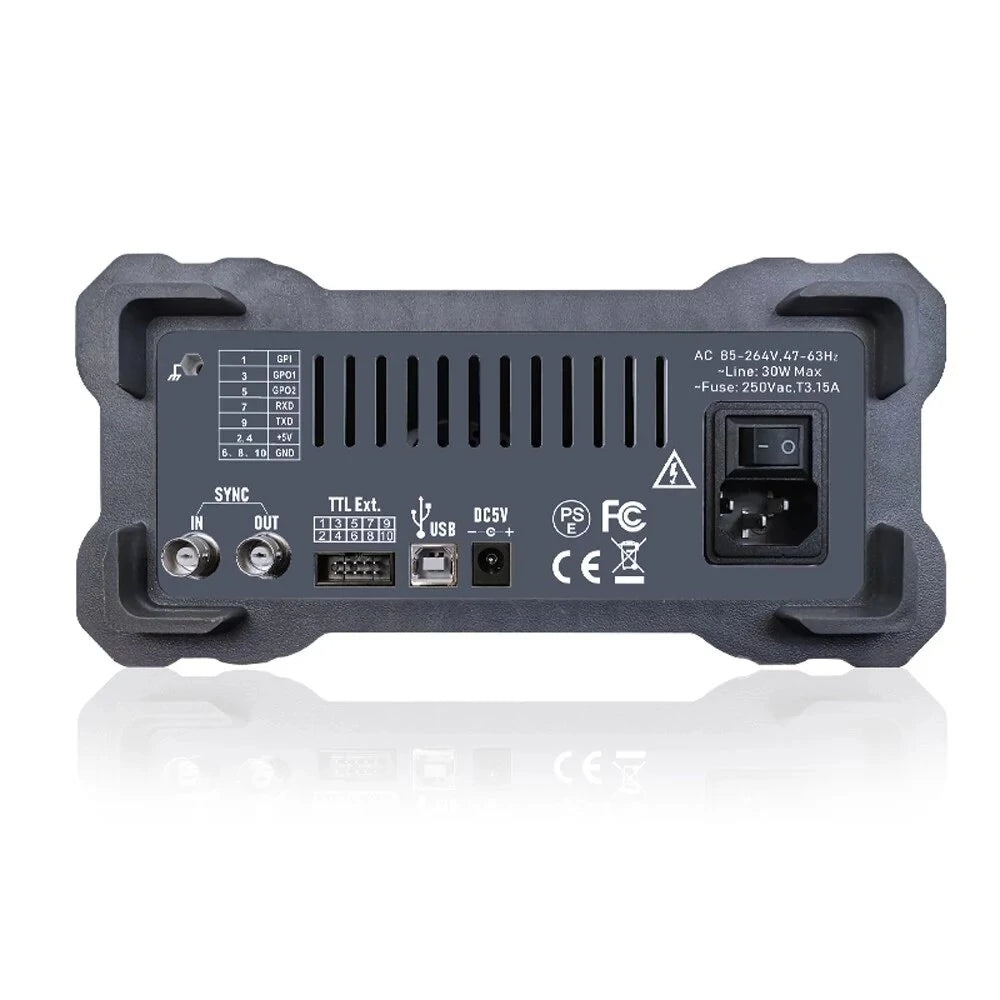

• Interface: USB to serial, TTL level mode

Package Includes:

• 1 x Signal Generator
• 1 x Power Cord
• 1 x Q9-Q9 Through Line
• 1 x USB Data Cable
• 1 x Q9 Clip Line
• 1 x User Manual
