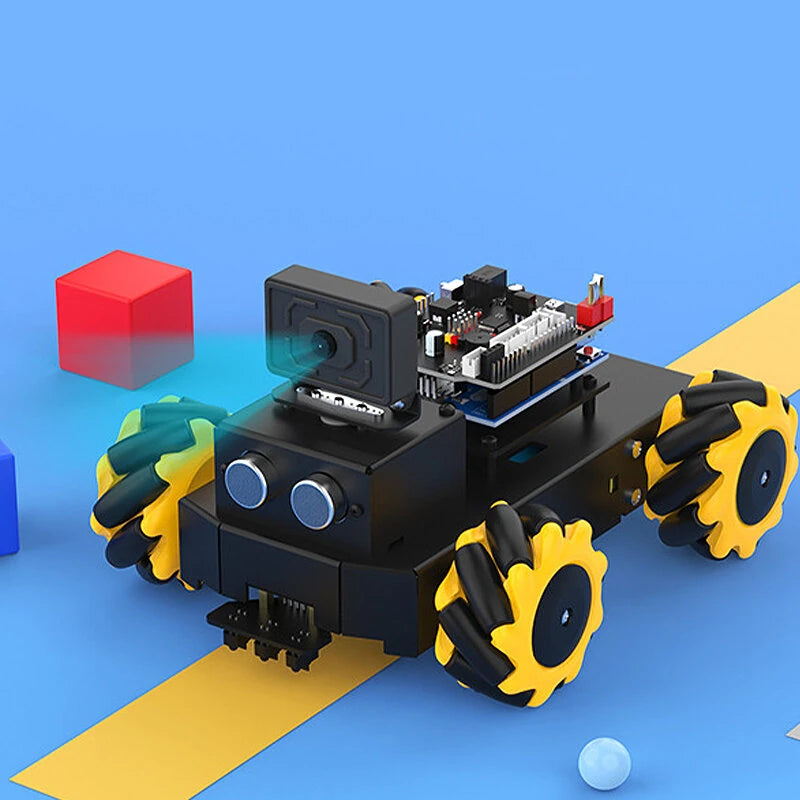

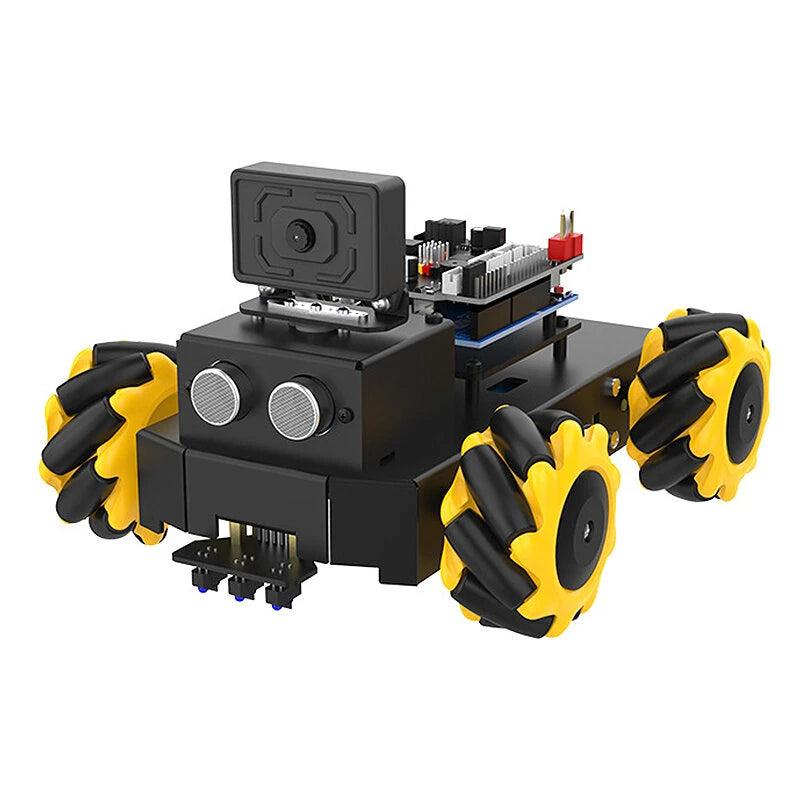

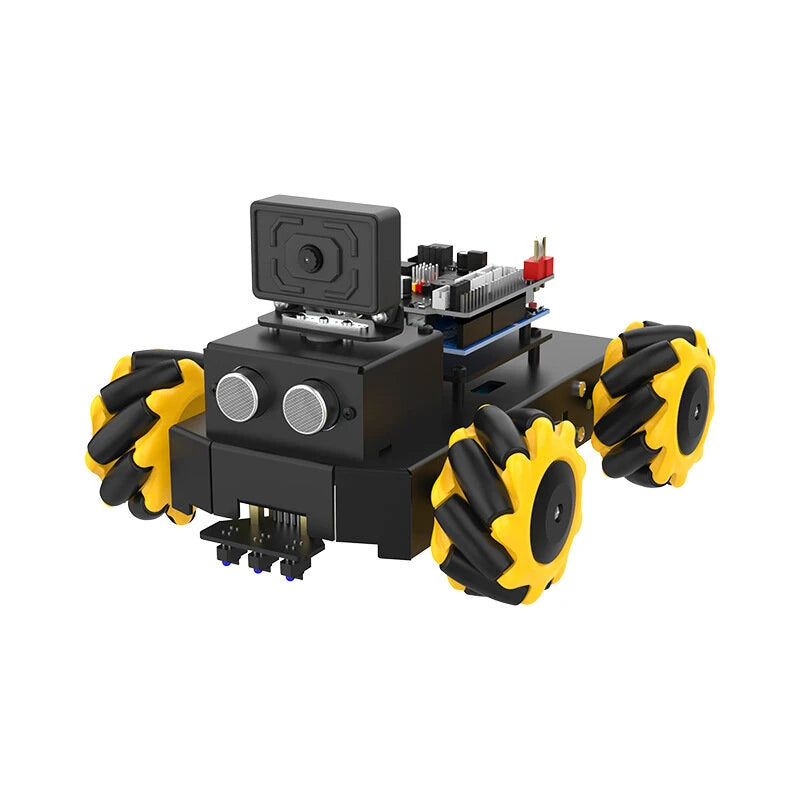

Yahboom Roboduino V2 Smart Robot Car Kit with ESP32 WiFi Camera, Metal Body Educational DIY Robotics Kit for Arduino

Product Overview

The Roboduino V2 is a state-of-the-art robotics kit, combining advanced mobility and smart technology, perfect for both beginners and seasoned robotics enthusiasts.

Specifications

• Brand: Yahboom
• Processor: UNOPro Development Board
• Programming Software: C Language
• Inputs: Three-way tracking module, ultrasonic module
• Outputs: Onboard RGB lights, WiFi video transmission module, Four-channel motor, Buzzer, Servo
• Wheels: Mecanum wheels
• Motor Type: TT reduction motor
• Camera: PTZ camera with a horizontal range of 110°, ESP32 WiFi transmission
• Communication: Serial and module communication
• Motor Torque: 0.8N.m
• Motor Speed: 245±10% RPM
• Remote Control Distance: ≤20m
• Body Material: Metal
• Servo Type: YB-SG90 high-quality servo
• Protection: Reverse connection, overcurrent, low voltage protection
• Power Supply: 7.4V lithium battery pack (2000mAh)
• Battery Life: Approximately 2 hours
• Dimensions: 192.5 x 165.8 x 117.77 mm
• Weight: Approximately 744g (assembled)

Features

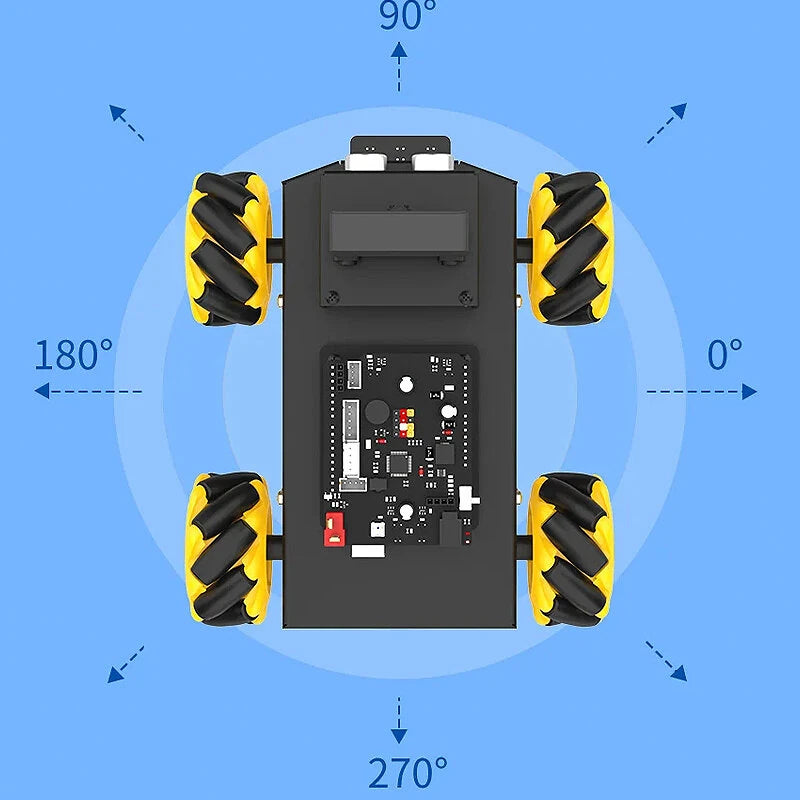

• Exceptional Mobility: Equipped with 60MM high-quality Mecanum wheels and a 4-channel motor independent drive, Roboduino V2 offers 360° omnidirectional movement, ensuring smooth paths and sharp turns.

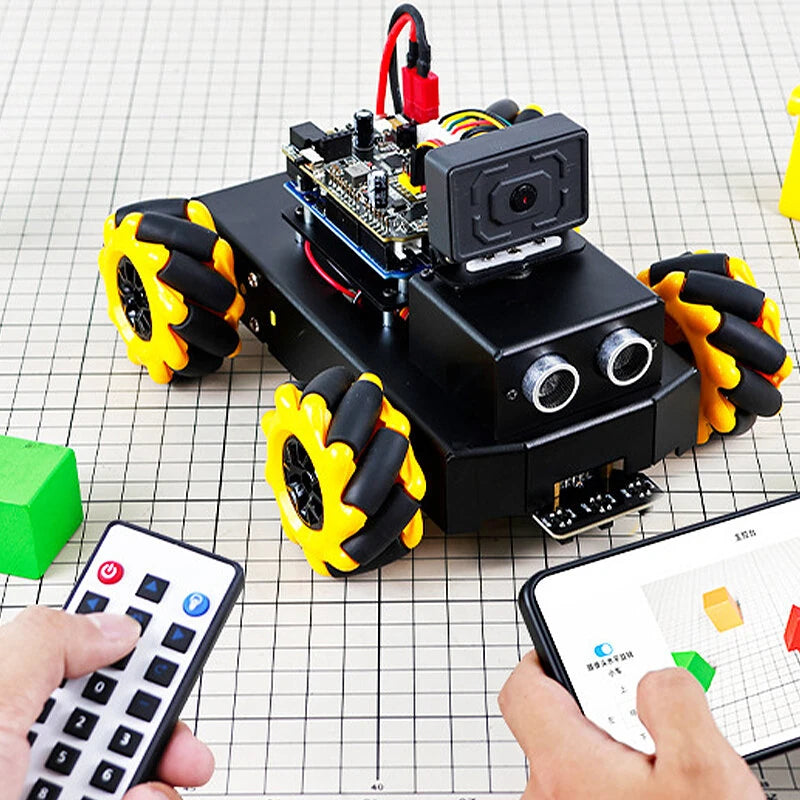

• Real-Time Video Transmission: The built-in ESP32 WiFi camera module enables real-time video streaming via the mobile app, allowing precise control of the vehicle and camera’s PTZ functions.

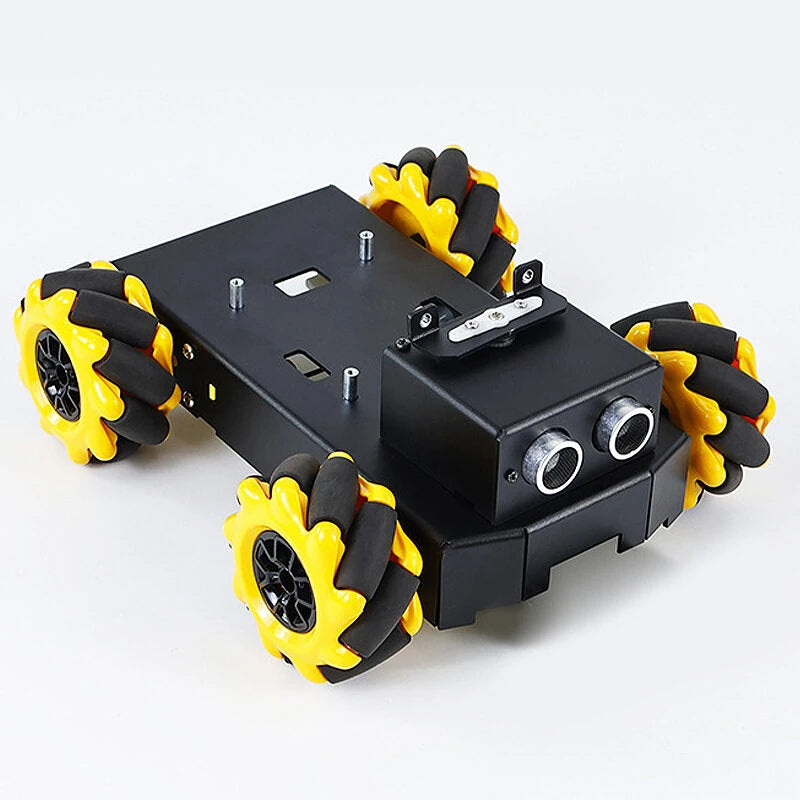

• Robust Hardware and Expansion Options: Constructed with all-metal materials, the robot includes multifunctional expansion boards and various modules like ultrasonic sensors and infrared remote controls for enhanced functionality.

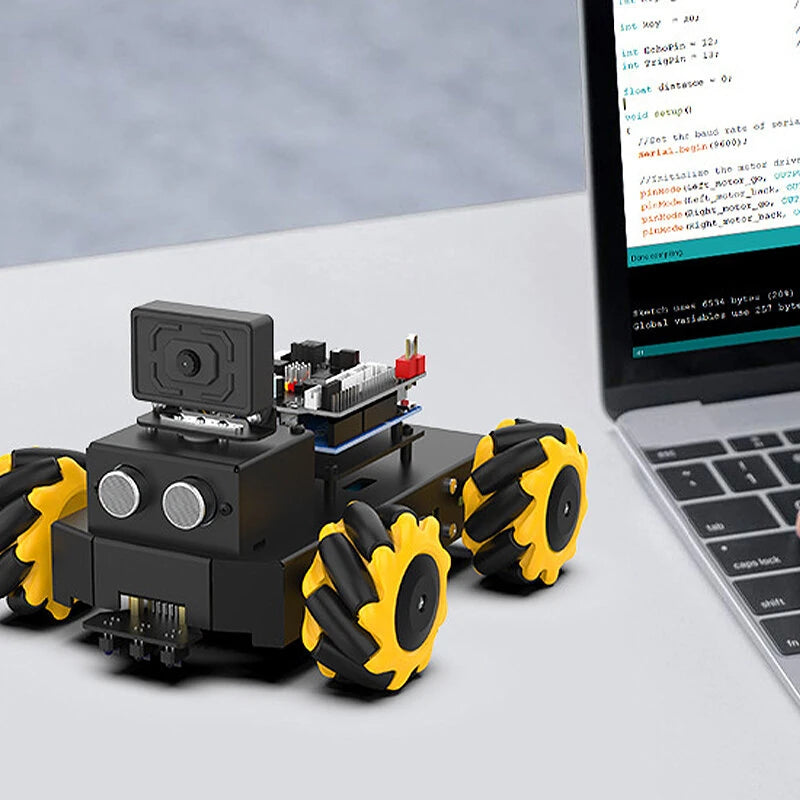

• C Language Compatibility: Supports C language programming through the official IDE platform, making it an excellent educational tool for learners of all ages, with comprehensive coding tutorials available.
• User-Friendly Assembly: The assembly process is intuitive and straightforward. All wiring utilizes anti-reverse interfaces, reducing errors. Yahboom provides assembly videos, clear instructions, and all necessary programs and codes.

Package Includes

• 1x Roboduino V2 Car Body
• 1x WiFi Camera Module
• 1x Main Control Board
• 1x Battery
• 1x Main Control Platform
• 1x Expanding Board
• 2x Velcros
• 1x 3-Channel Tracking Module
• 1x XH2.54 5Pin Cable
• 1x Square USB Data Cable
• 1x Battery Cover
• 1x Copper Column Pack
• 1x Power Charger
• 1x Screwdriver
• 1x Manual
