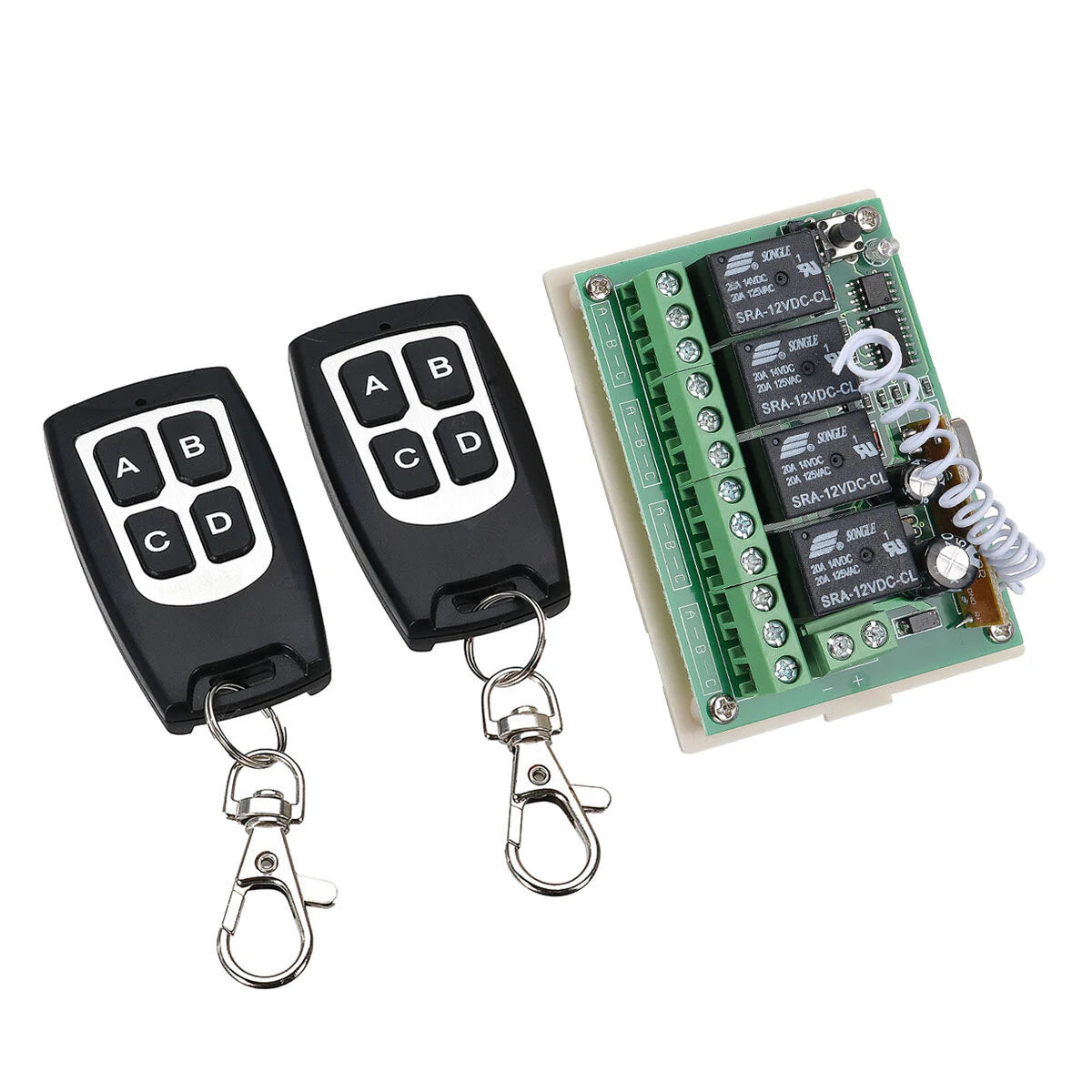

Geekcreit® 12V 4-Channel 433MHz Wireless Remote Control Switch with Dual Transmitters

Product Overview:

This versatile learning code wireless remote control switch (receiver) allows you to customize its output mode to suit your needs. It features four relays enabling equipment to turn, reverse, or toggle on/off. With a compact design, it boasts stable performance and high receive sensitivity.

Please Note:

• For additional transmitters, search code: 1018573
• No instructions are provided; rely on the description.
• This version does not support copy code functionality.

Key Features:

• Suitable for various applications: remote control, autonomous control (e.g., auto doors, windows, lifting equipment, alarms, and more).
• Controls a wide range of electronic devices wirelessly.
• Easy to set up and use.
• Compatible with multiple chip codes (2262, 2260, 1527, 2240).

Instructions:

1. Enter learning mode by pressing the learning button, indicated by a flashing light.
2. Press any remote button; the light flashes twice and turns off when successful.
3. Can learn up to 12 remotes with different codes.
4. To clear memory, press the learning button for 8 seconds until the indicator turns off.

Working Modes:

• Self-lock: Connect JP1 using the cutting-out cap.
• Jog: No connection on JP1 and JP2.
• Inter-lock: Connect JP2 using the cutting-out cap.

• Jog: Press once to turn on, release to turn off.
• Self-lock: Toggle on/off each time a button is pressed.
• Inter-lock: One button turns on, another turns off.

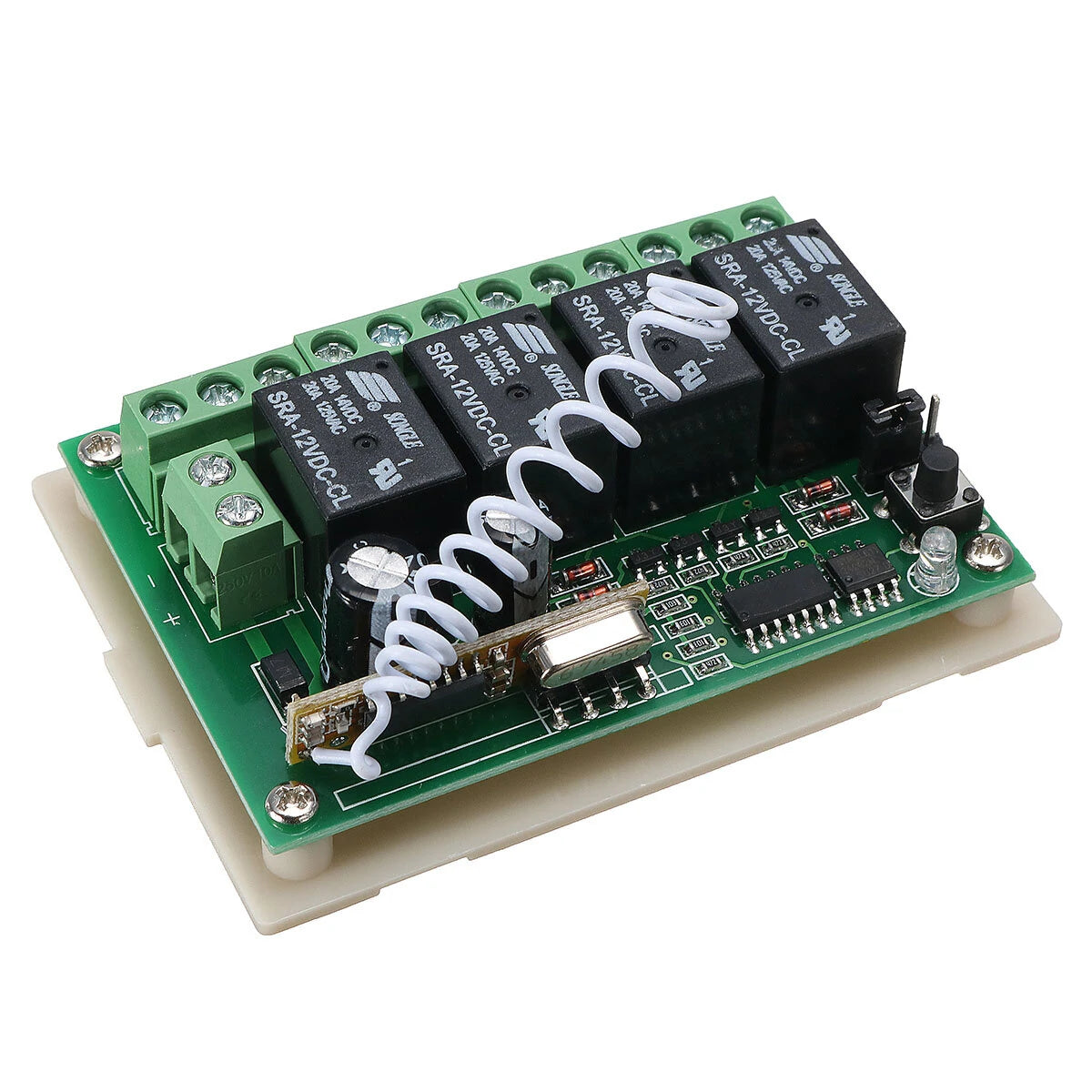

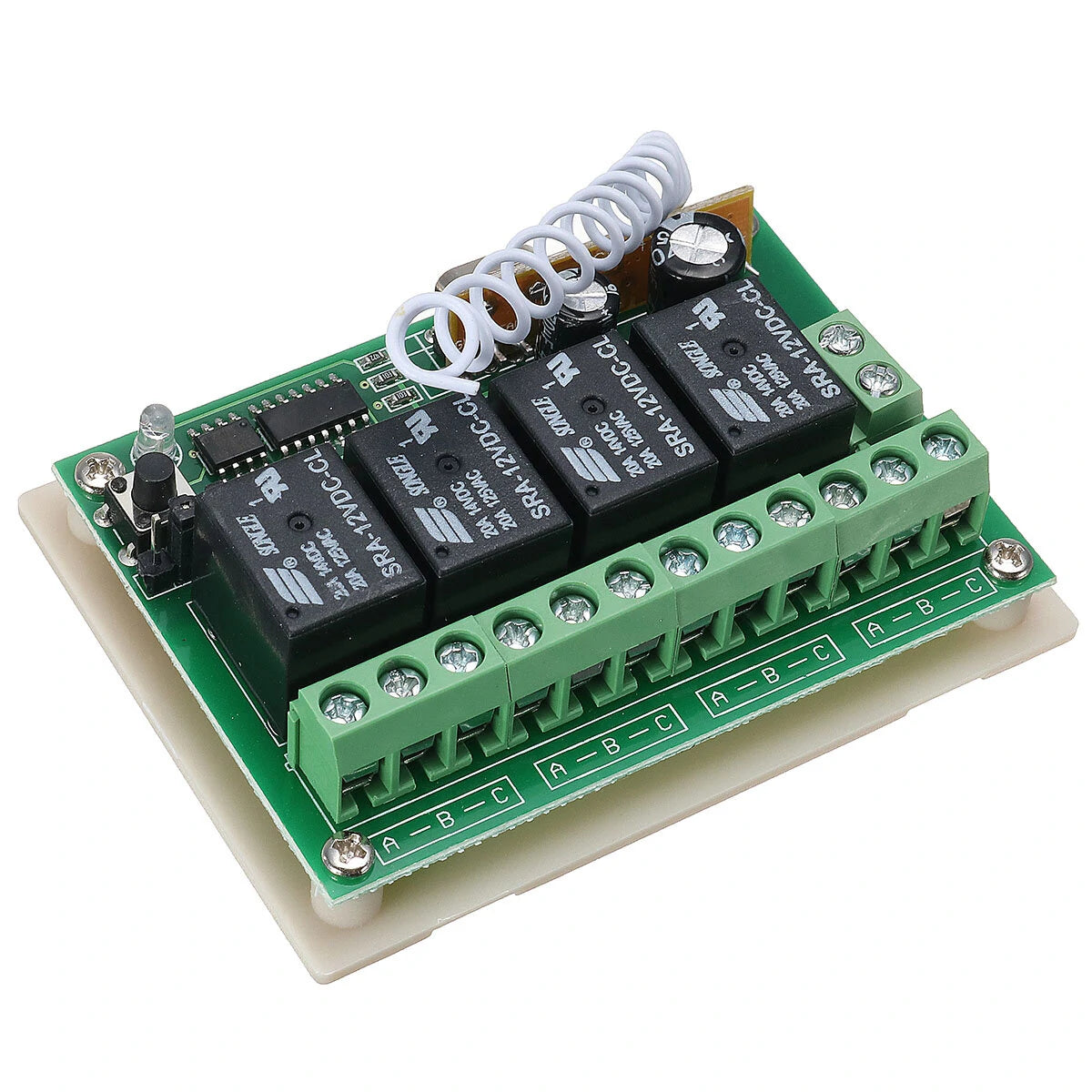

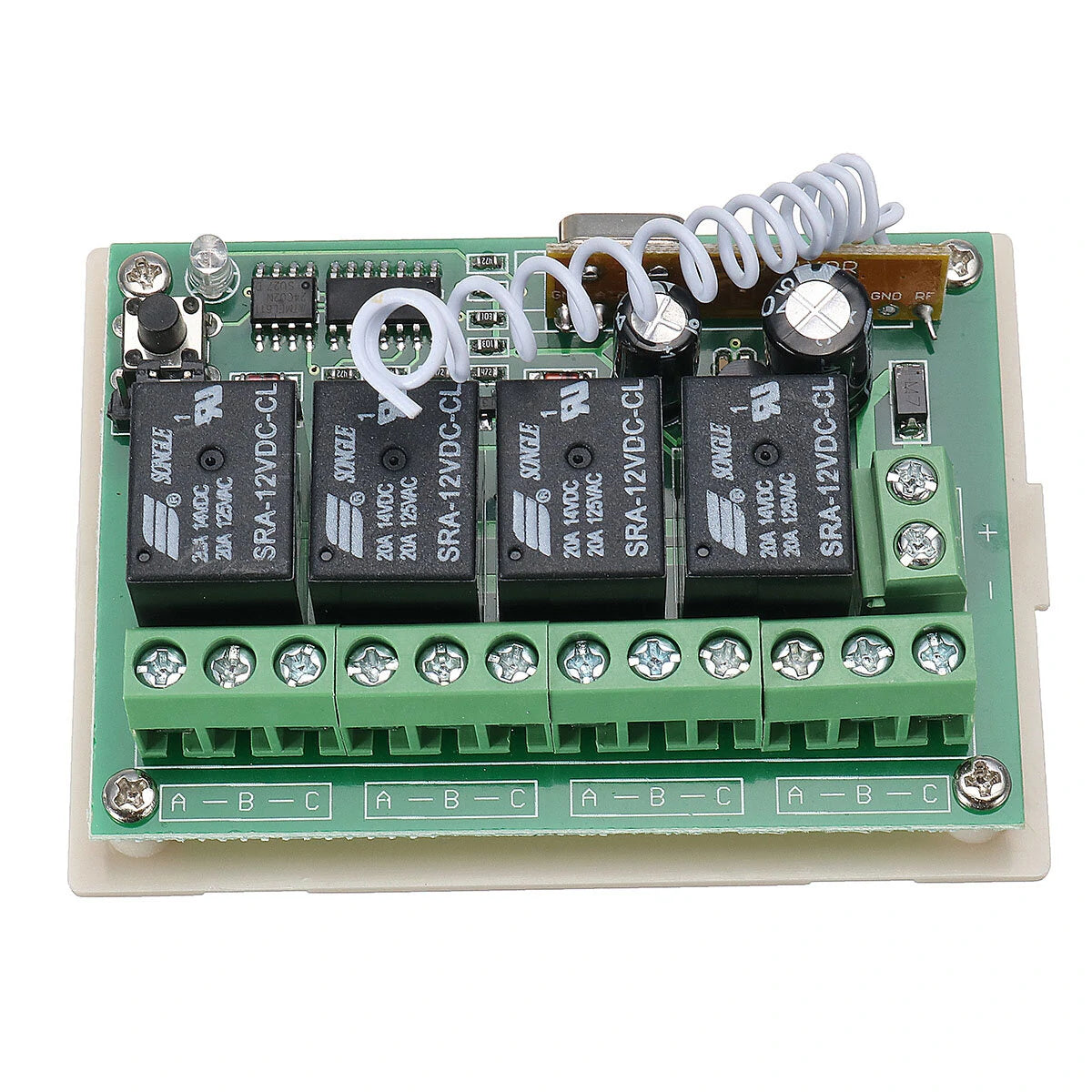

Receiver Specifications:

• Working Voltage: DC12V
• Quiescent Condition: < 6mA
• Operating Temperature: -40°C to +80°C
• Receiver Sensitivity: > -105dBm
• Frequency: 433MHz
• Output Voltage: DC and AC options
• Output Current: < 3A
• Max Load Current: 10A
• Dimensions: 72 x 52 x 26mm

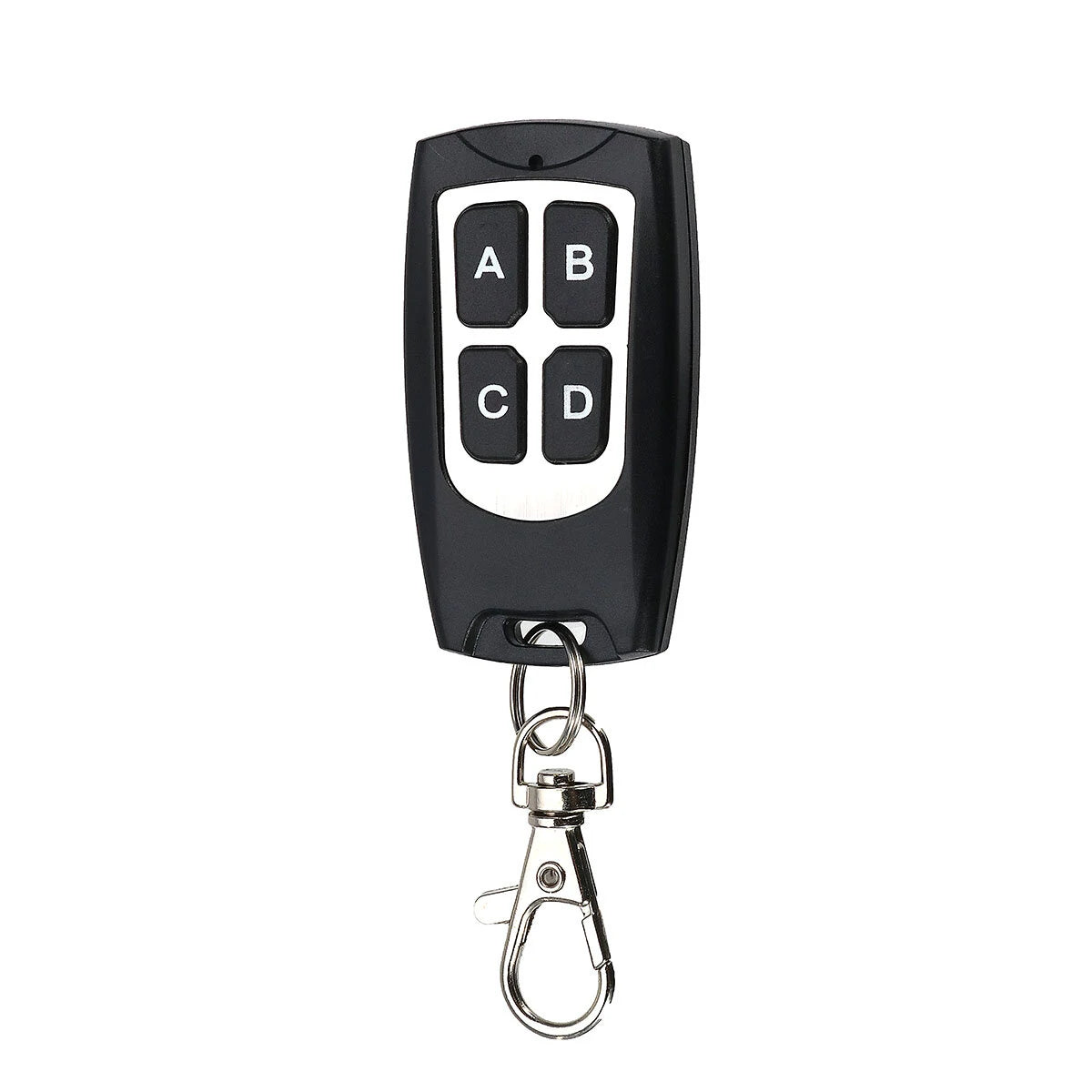

Remote Control Transmitter Specifications:

• Remote Distance: 200m
• Operating Voltage: DC 6V
• Frequency: 433MHz
• Operating Current: 13mAh
• Code Type: Fixed code / Learning code
• Dimensions: 58 x 39 x 14mm
• Battery Type: 2016 button battery

Package Includes:

• 2 x Transmitters
• 1 x Receiver
