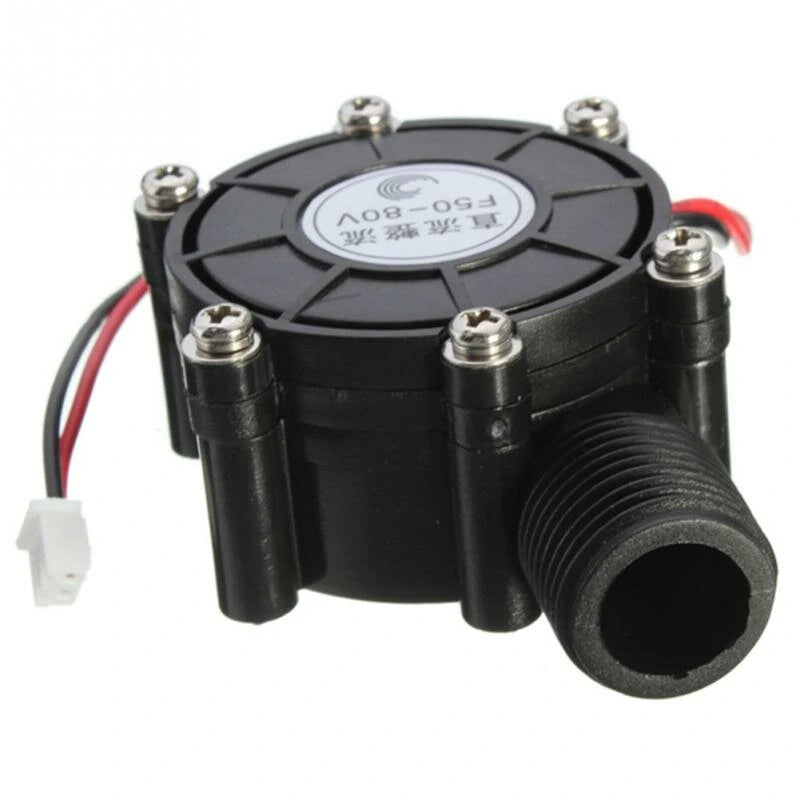

Micro Hydro Generator

Product Description

Type: 80V/12V/5V Generator

Output Specifications

• High Voltage Output: 80V (1.2Mpa)
• Maximum Output (12V): ≥220mA
• Line Resistance: 10.5±0.5Ω
• Insulation Resistance: 10MΩ (DC100)
• Outlet Closed Maximum Voltage: 0.6Mpa
• Water Outlet Open Maximum Voltage: 1.2Mpa
• Start Water Pressure: 0.05Mpa

Performance & Durability

• Mechanical Noise: ≤55dB
• Generator Weight: 90g
• Lifespan: ≥3000h
• Appearance: Clean surface, robust structure

Output Characteristics

The output voltage, without a voltage regulator, is directly proportional to the water pressure.

• 80V Output: DC 0-80V, can directly charge a 3-12V 10W LED light or a small battery, with a peak charging current of about 220mA.
• 5V Output: DC 5V regulated, suitable for charging mobile phones and batteries with charge management chips.
• 12V Output: DC 12V regulated, perfect for powering 12V radios and LED lights.

Wiring Instructions

Connect the generator by matching the positive and negative poles: the red wire is positive and the black wire is negative. Ensure the generator's polarity matches that of the power supply.

Package Contents

• 1 x Micro Hydro Generator (80V/12V/5V option)
