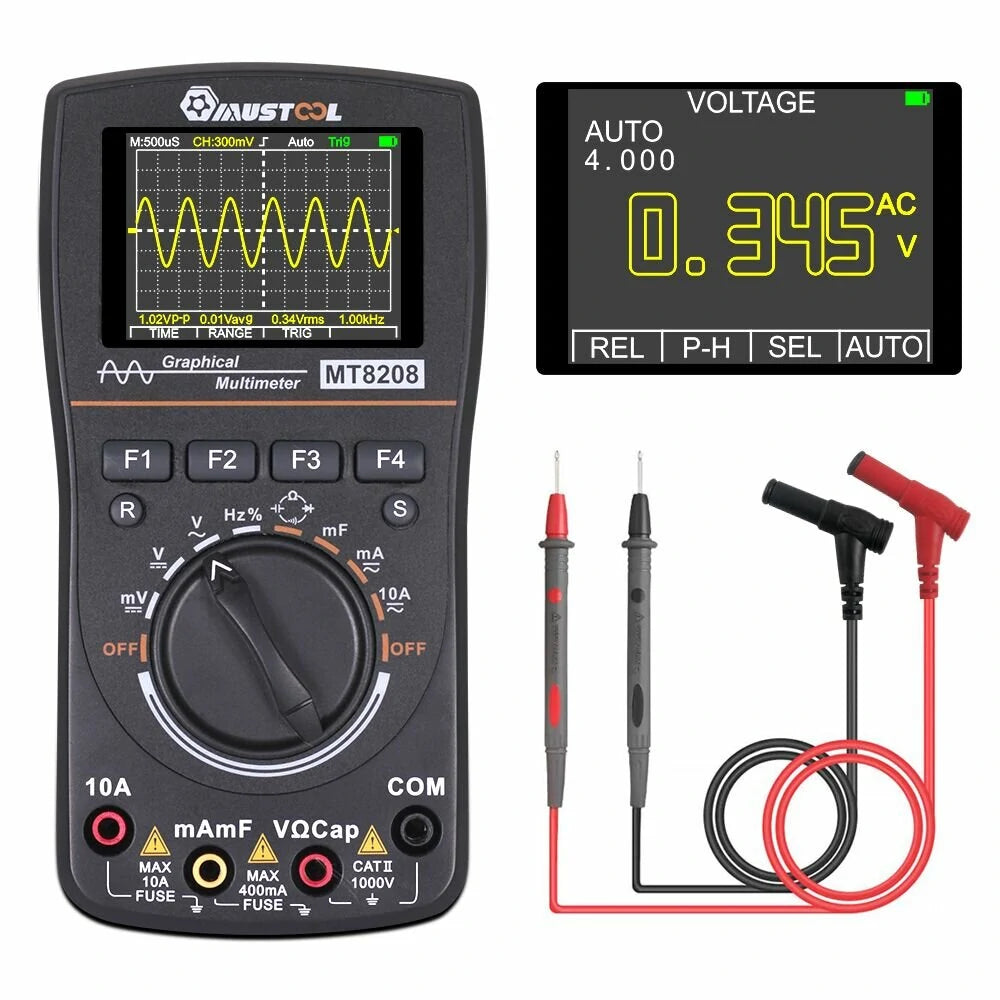

Introducing the Latest MUSTOOL MT8208 Graphical Multimeter

This summer, the MUSTOOL team proudly presents an enhanced multimeter experience with the MT8208. This is not just any multimeter; it's a powerful integration of an oscilloscope and multimeter functionality in one device.

Key Features:

• 2.4-inch vibrant color screen for clear and bright display
• Upgraded bandwidth of 1MHz with a 2.5Msps sampling rate, ideal for DIY enthusiasts
• Exceptional value at unbeatable prices

Don't let this opportunity pass you by!

Comparison with MT8206:

Specifications:

• Model: MT8208
• Display: 320x240 LCM, 2.4 inches
• Battery: 3 x AA batteries (not included)
• Power Consumption: About 80mA
• Usage Time: Approximately 5 hours in low light conditions
• Storage Capacity: 100 data entries/10 waveforms
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -10°C to 60°C
• Dimensions: 83 x 160 x 32mm
• Weight: Approximately 195g without battery

Multimeter Specifications:

• DC Voltage: 400mV, 4V/40V/400V/1000V with 0.75% accuracy
• AC Voltage: 400mV/4V/40V/400V/750V with 1.0% accuracy
• DC Current: 40mA/400mA, 4A/10A with 1.2% accuracy
• Alternating Current: 40mA/400mA, 4A/10A with 1.5% accuracy
• Resistance: 400.0Ω to 40.00MΩ with 1.0% accuracy
• Capacitance: 0.1nF to 100μF with 2.0% accuracy
• Frequency: 5Hz to 5MHz with 1.0% accuracy
• Duty Cycle: 0.1% to 99.9% with 1.0% accuracy
• Diode Test: Test voltage around 5V, current approximately 1.5mA
• Continuity Test: Judgement resistance included
• Fuse Specifications: 500mA/250V, 10A/250V

Package Includes:

• 1 x MT8208 Oscilloscope
• 1 x Test Leads
• 1 x English Manual
• 1 x Packing Box
