NOYAFA NF-8601 Series RJ45 CAT6 Network Cable Tester & Tracker with LCD Display - PoE/PING/Port, Length & Wiremap Measurement

Product Functions:

• TDR Theory: Measures the length of Cat5e, Cat6, Cat7, coaxial, and telephone cables.
• Wire Mapping: Provides length measurement and distance to fault information.

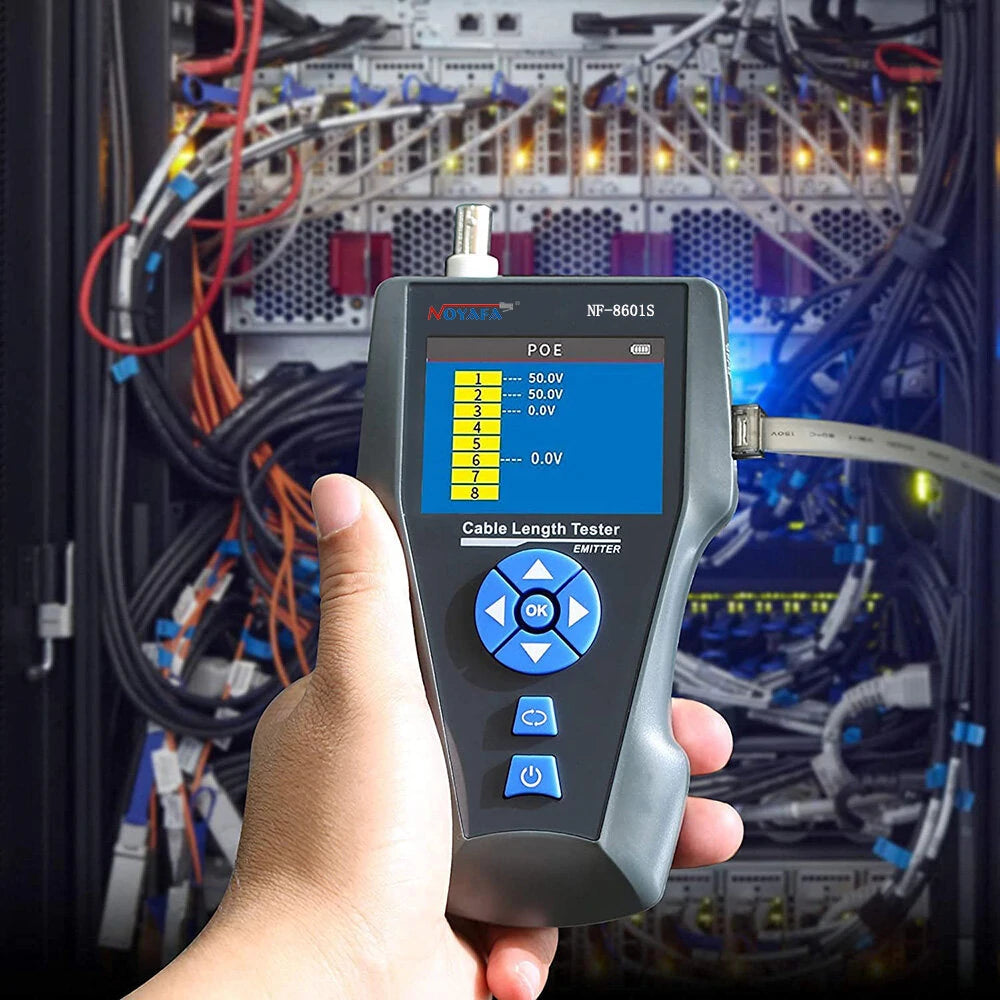

• PoE Function: Identifies power-providing pins and detects voltage levels.
• PING Function: Tests network performance, data packets, and min/max response times.
• Cable Locator: Quickly identifies cables without removing insulation.
• Hub Blink: Locates network ports via flashing hub/switch port lights.
• Voltage Detector: Integrated receiver detects voltage levels (90~1000V).

Benefits:

• Tone Tracing: Locates cables with a complete AC filter.
• TF Card Support: Exports data to a computer (50 sets, TXT format).
• Dual Scan Modes: Supports common and PoE switch scanning.
• Power Supply: Operates with a 3.7V lithium battery and features a 2.8-inch color screen.

Technical Specifications:

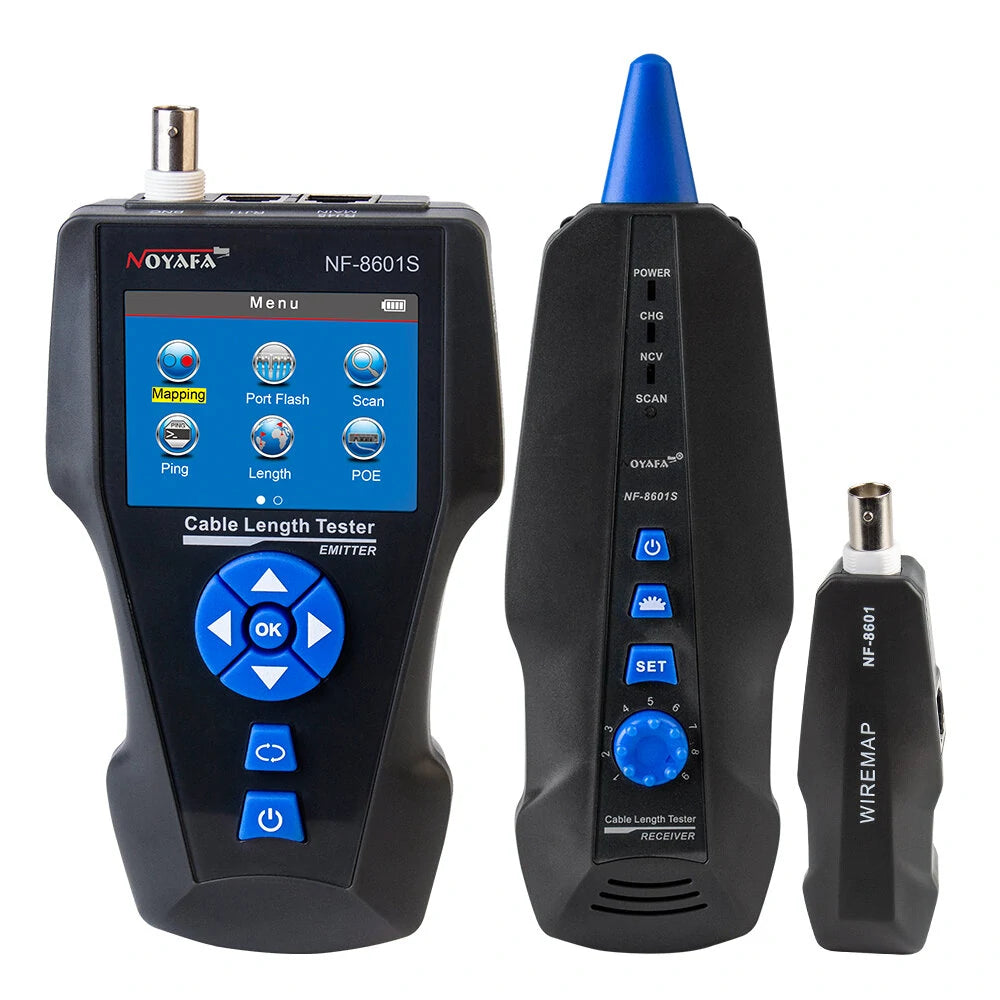

NF-8601S Transmitter

• Display: LCD 320x240 mm with backlight
• Cable Test Types: STP/UTP 5E, 6E, network, telephone, coaxial
• Maximum Wire Map Distance: 1000 m
• Maximum Tracing Distance: 1000 m
• Maximum Cable Length: 1000 m
• Minimum Calibration Distance: 50 m
• Accuracy: Up to 98% (after calibration)
• Compatible Connectors: RJ11, RJ45, PING/POE, BNC
• Cable Map Indication: LCD (#1-#8)
• Battery Type: 3.7V lithium battery 1800mAh
• Operating Temperature/Humidity: 10℃ ~ 60℃ / 0% ~ 70%
• Dimensions: 173 x 92 x 34 mm

NF-8601S Receiver

• Cable Hunting: RJ11, RJ45, BNC
• Minimum Cable Requirement: ≥ 2 cores

Package Includes:

Type A: NF-8601W

• 1 x NF-8601W Transmitter
• 1 x NF-8601W Receiver
• 1 x Charging Adaptor
• 1 x Telephone Line Adapter
• 1 x Network Cable Adapter
• 1 x Cable Clips
• 1 x User Manual
• 1 x Carry Bag
• 1 x Gift Box

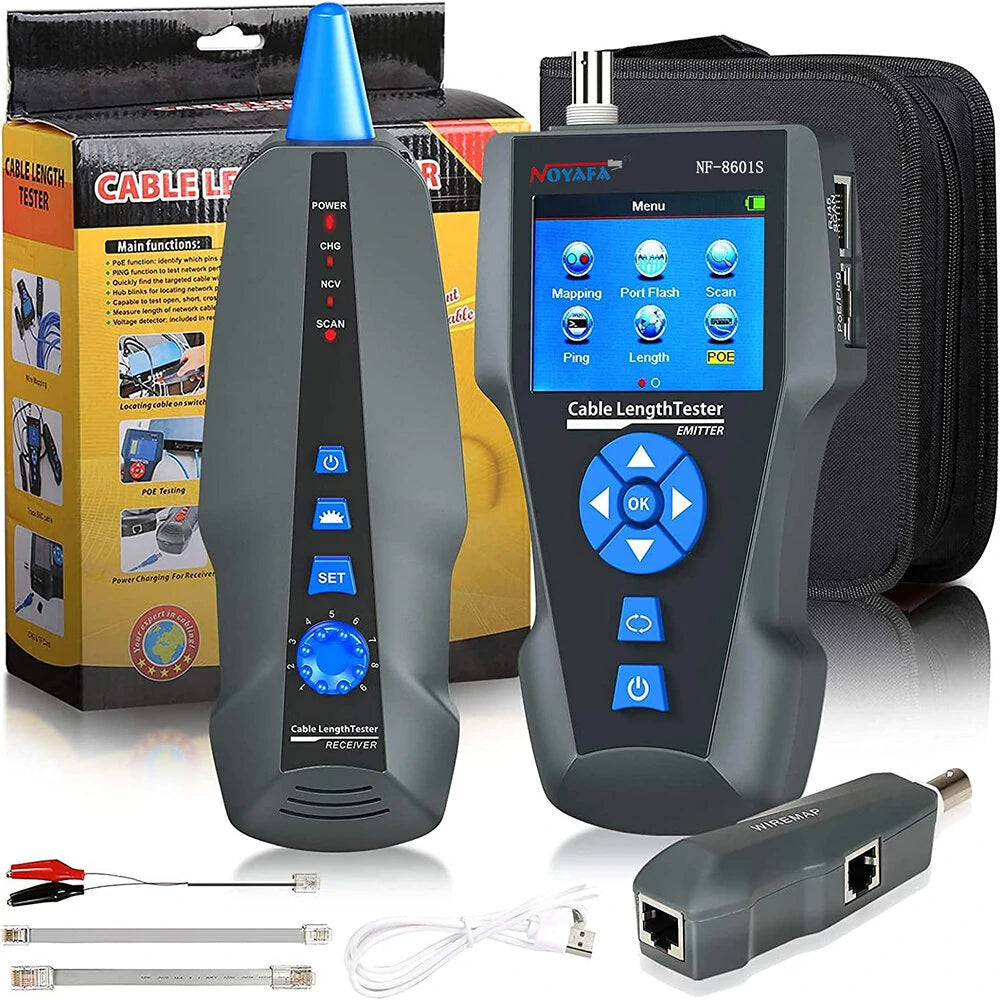

Type B: NF-8601S

• 1 x NF-8601S Transmitter
• 1 x NF-8601S Receiver
• 1 x Telephone Line Adapter
• 1 x TF Memory Card
• 1 x Cable Clips
• 1 x Carry Bag
• 1 x Gift Box

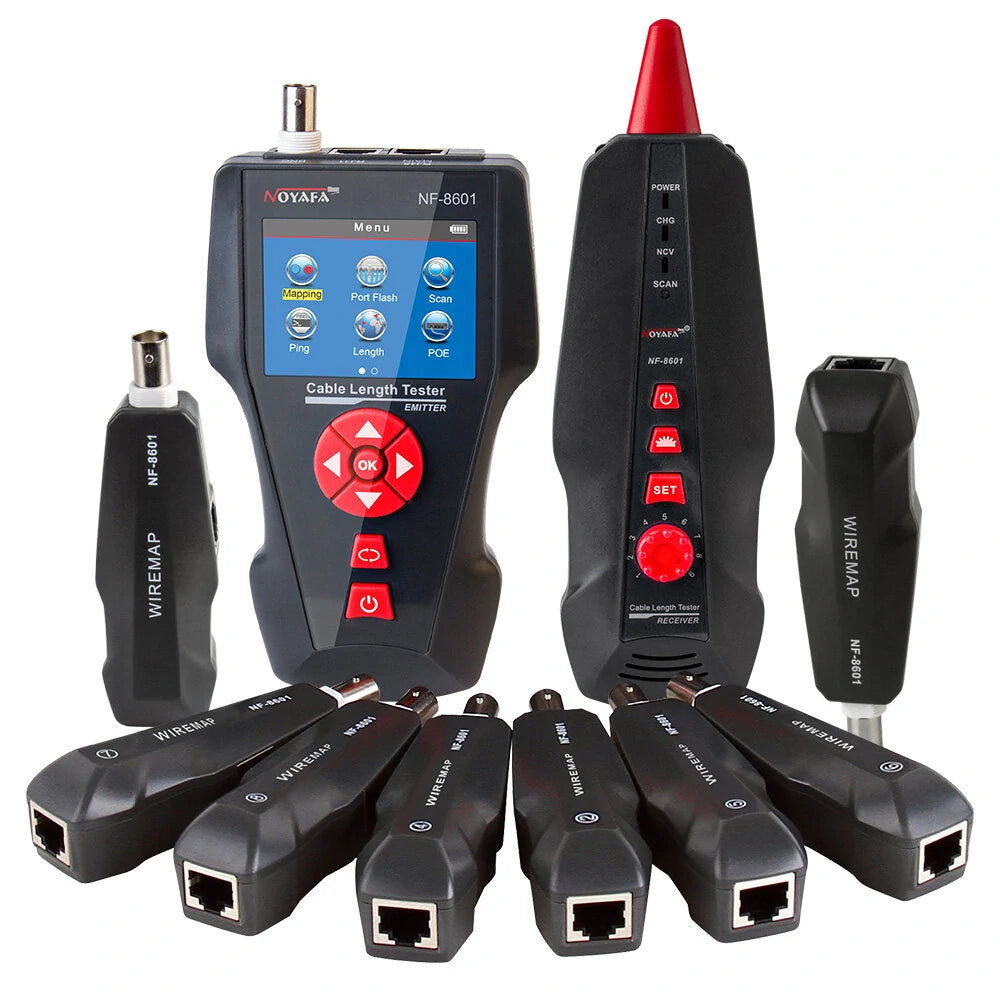

Type C: NF-8601

• 1 x NF-8601 Transmitter
• 1 x NF-8601 Receiver
• 2 x Built-in Battery
• 1 x Adapted Telephone Line
• 1 x Adapted Network Cable
• 1 x Cable Clips
• 1 x Charging Adaptor
• 1 x Carry Bag
• 1 x Gift Box
