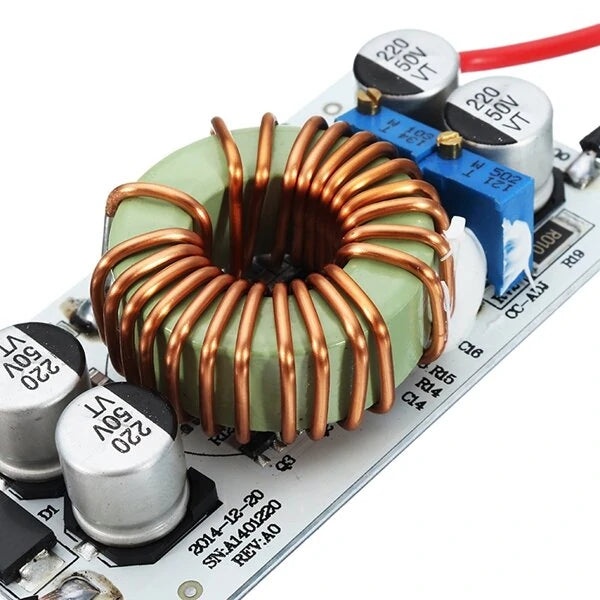

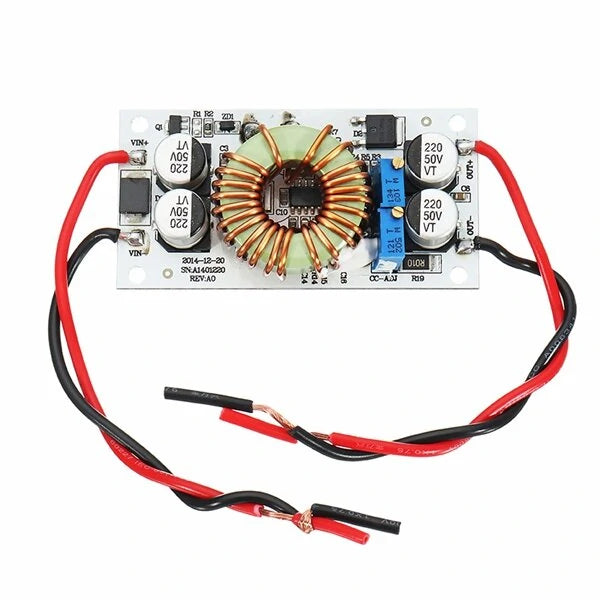

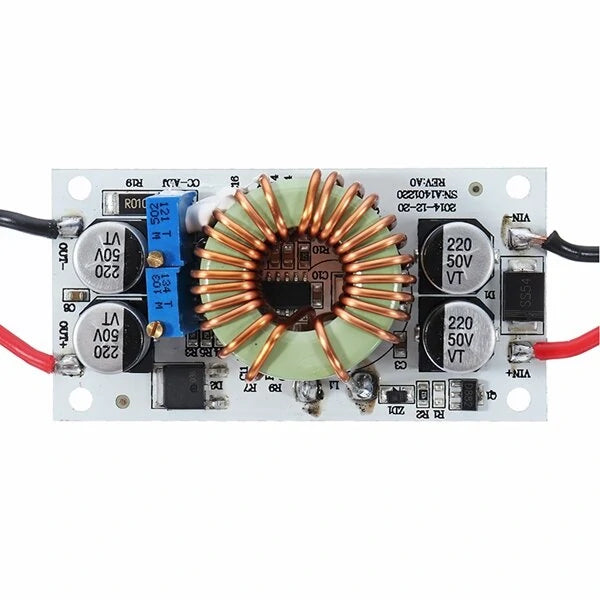

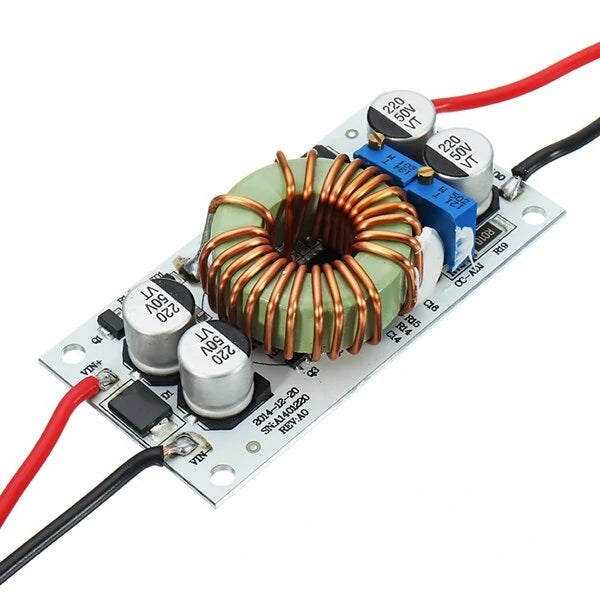

250W Boost Static Current Module

Product Specifications:

• Module Type: Non-isolation boost module (BOOST)
• Input Voltage: DC 8.5-48V
• Input Current: Max 10A (Requires enhanced heat dissipation if exceeding 8A)
• Static Working Current: 10mA (For 12V to 20V; higher output voltages increase static current)
• Output Voltage: Continuously adjustable 10-50V (Default: 19V on delivery)
• Output Current: Max 10A (Requires enhanced heat dissipation if exceeding 6A. Output current decreases with higher voltage differences)
• Constant Current Range: 0.2-8A
• Output Power: Input voltage * 10A, e.g., 12V * 5A = 60W, 24V * 5A = 120W
• Working Temperature: -40 to +85°C (Enhance heat dissipation in high ambient temperatures)
• Work Frequency: 150KHz
• Conversion Efficiency: Up to 96% (Depends on voltage and current conditions)
• Over-Current Protection: Yes (Reduces output voltage if exceeding 13A)
• Reverse Connection Protection: Yes (Up to 5A)

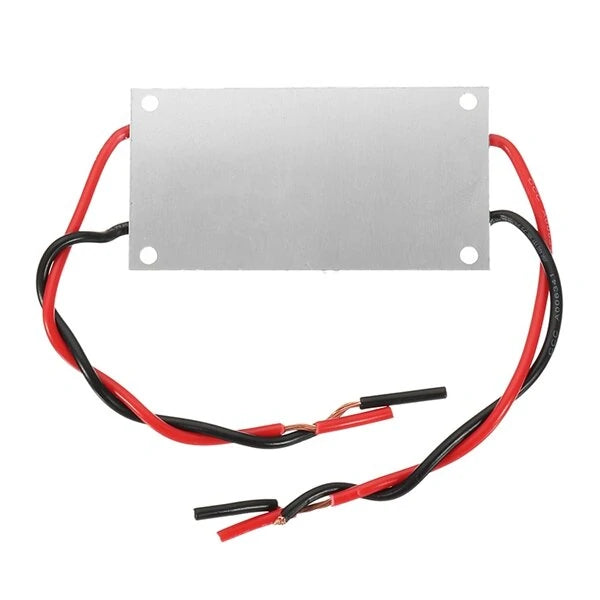

• Installation: 4 x 3mm screw holes

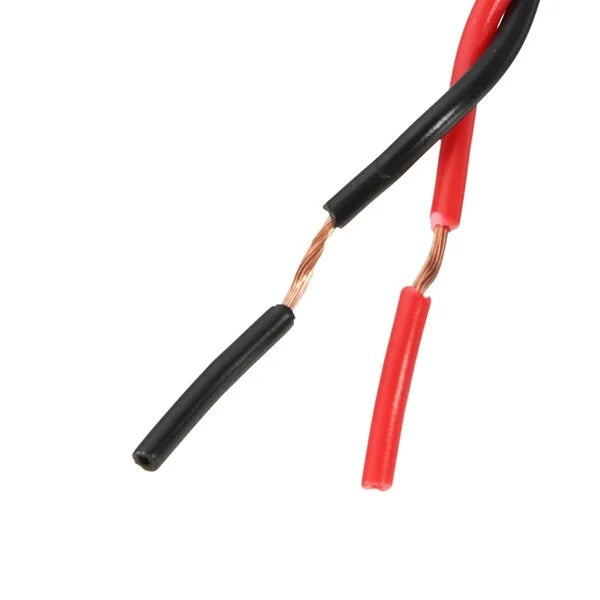

• Connection Mode: Wiring output
• Module Size: 69 x 35mm

Adjustment Instructions:

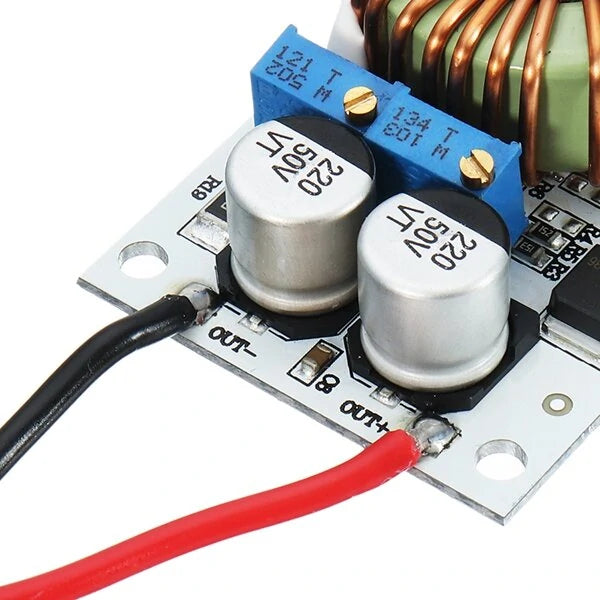

1. Adjust the RV1 potentiometer to set the required output voltage for your battery or LED. Example: For 10 series of LED, adjust to 37V.
2. Turn the RV2 potentiometer clockwise around 30 times to set the minimum output current. Connect your LED, then adjust RV2 to achieve the desired current.

Note: Do not adjust the current while in short circuit. The boost module cannot be adjusted in short circuit conditions.

Application Scope:

• Create a stable power supply with input at 12V and adjustable output from 12-50V.
• Power supply for electronic equipment, adjusting the output as per system voltage requirements.
• Power supply for laptops, PDAs, or digital products as on-board supply.
• DIY large power laptop mobile supply using a large 12V lithium battery pack.
• Stabilize solar panels.
• Charge batteries or lithium batteries.
• Drive high-power LED lights.

Package Includes:

• 1 x Boost Power Module
