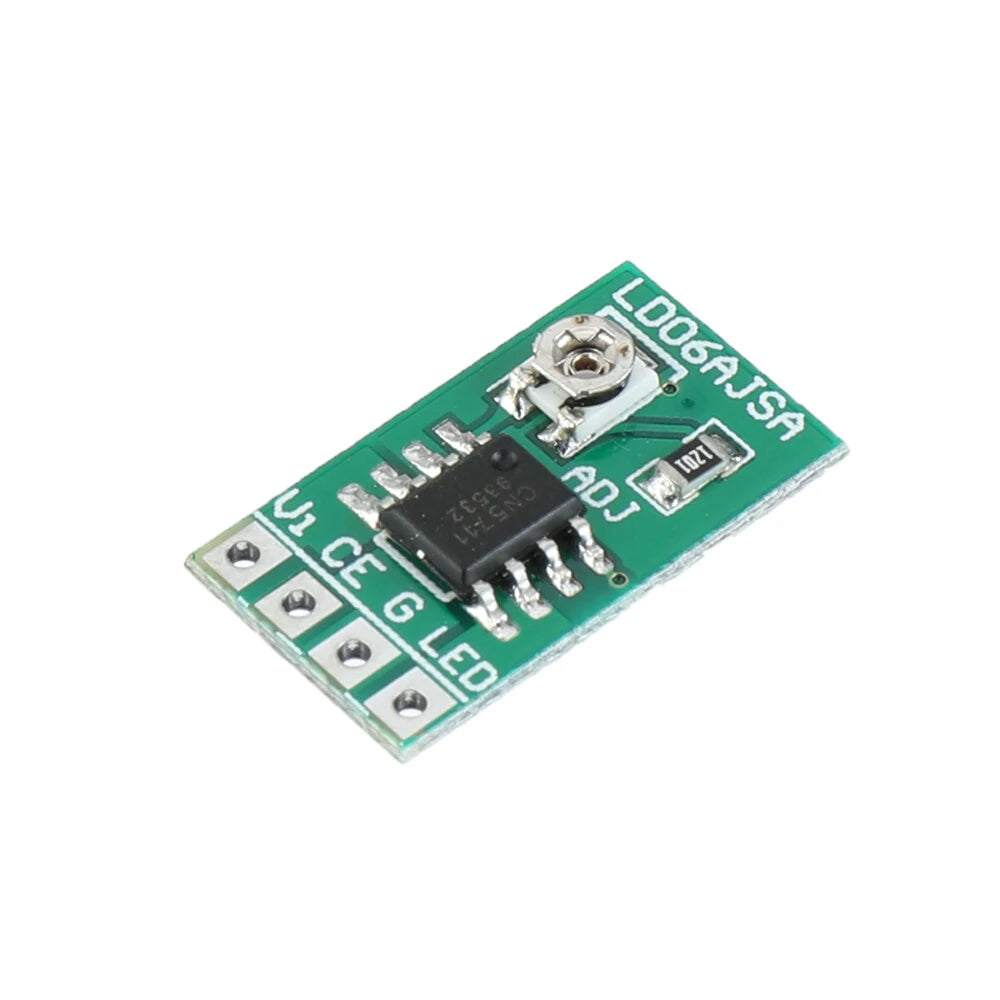

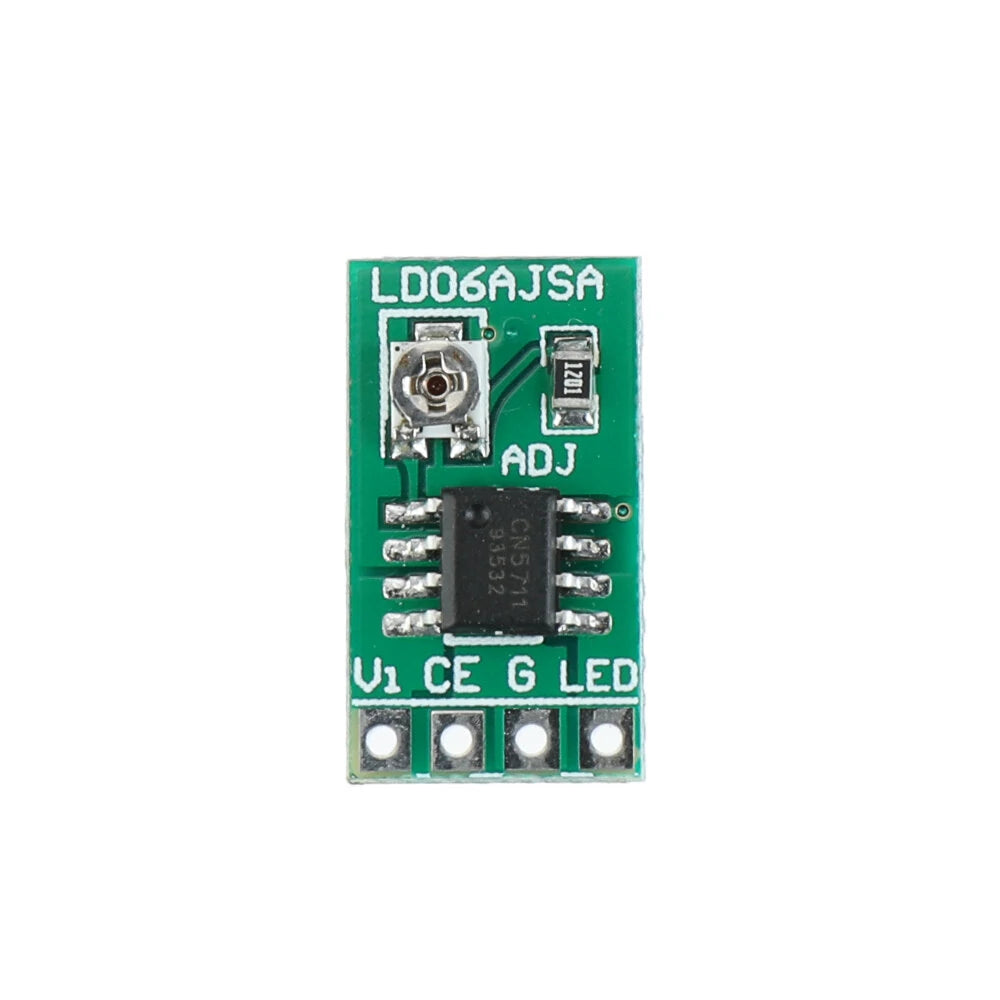

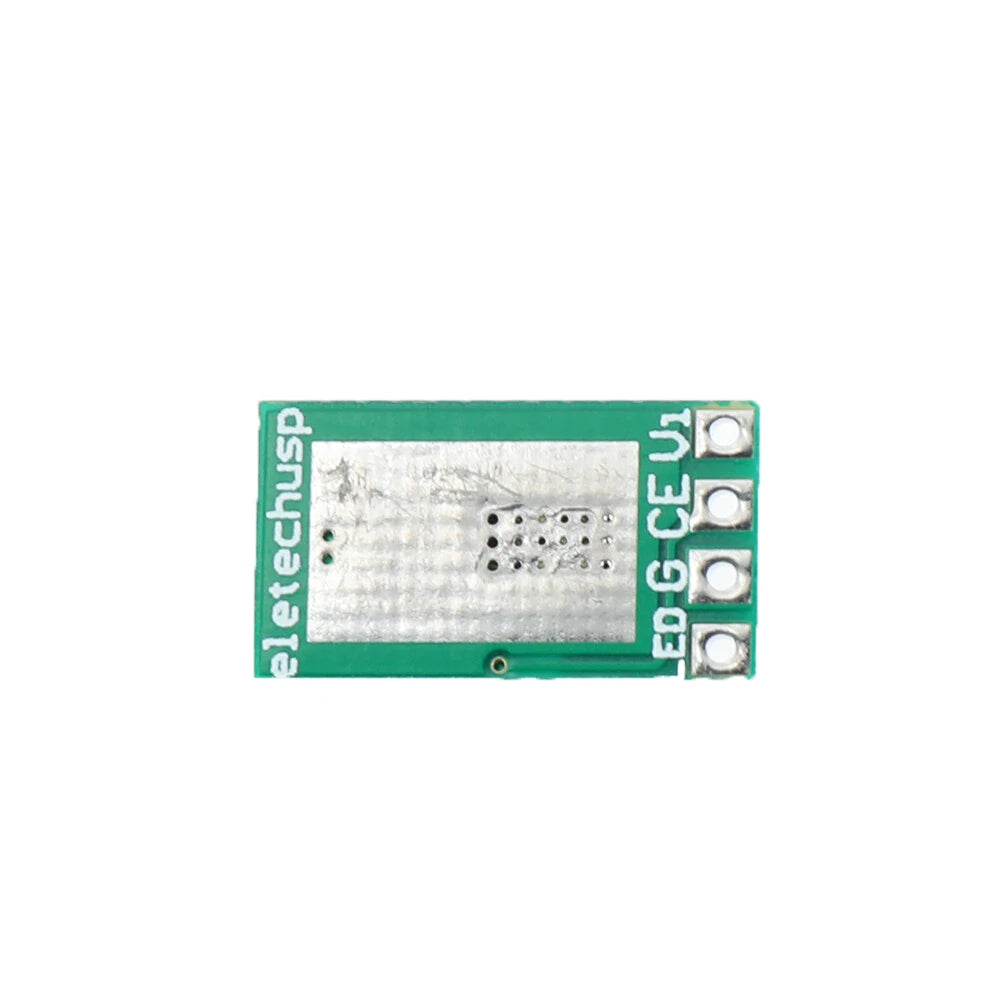

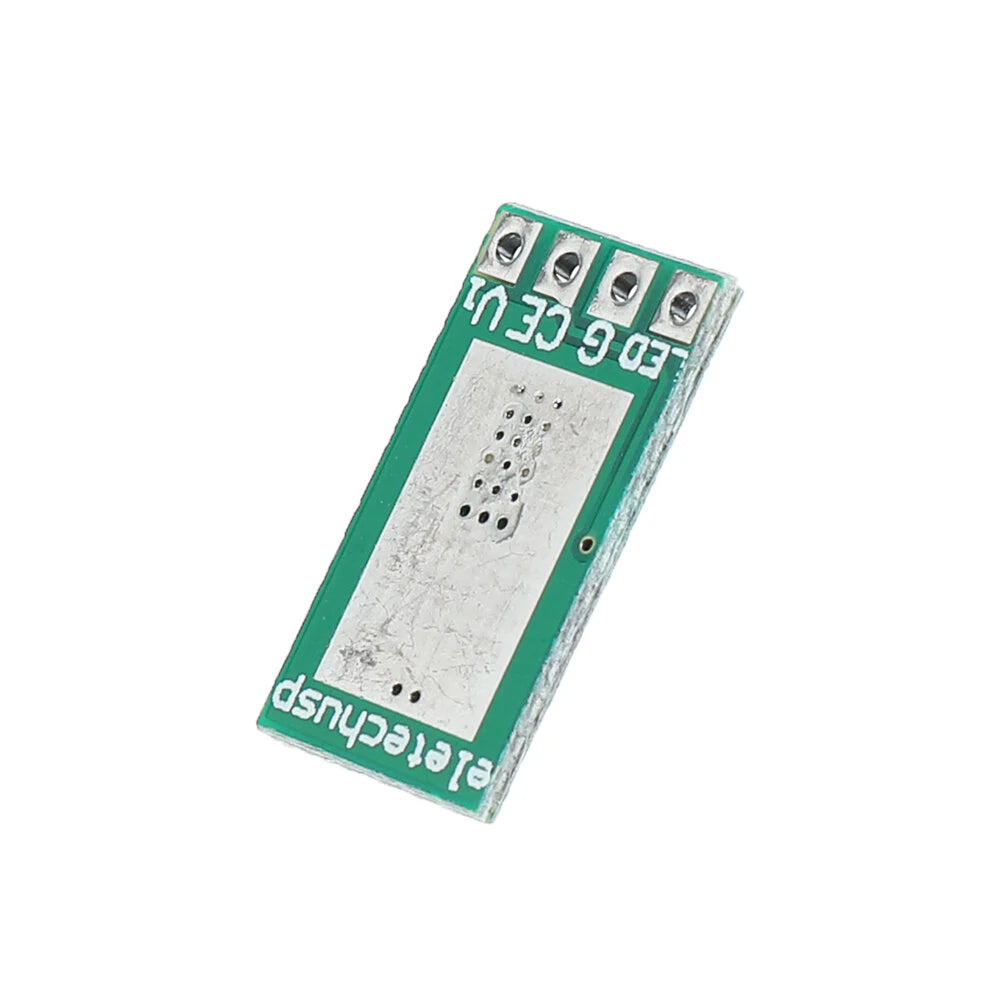

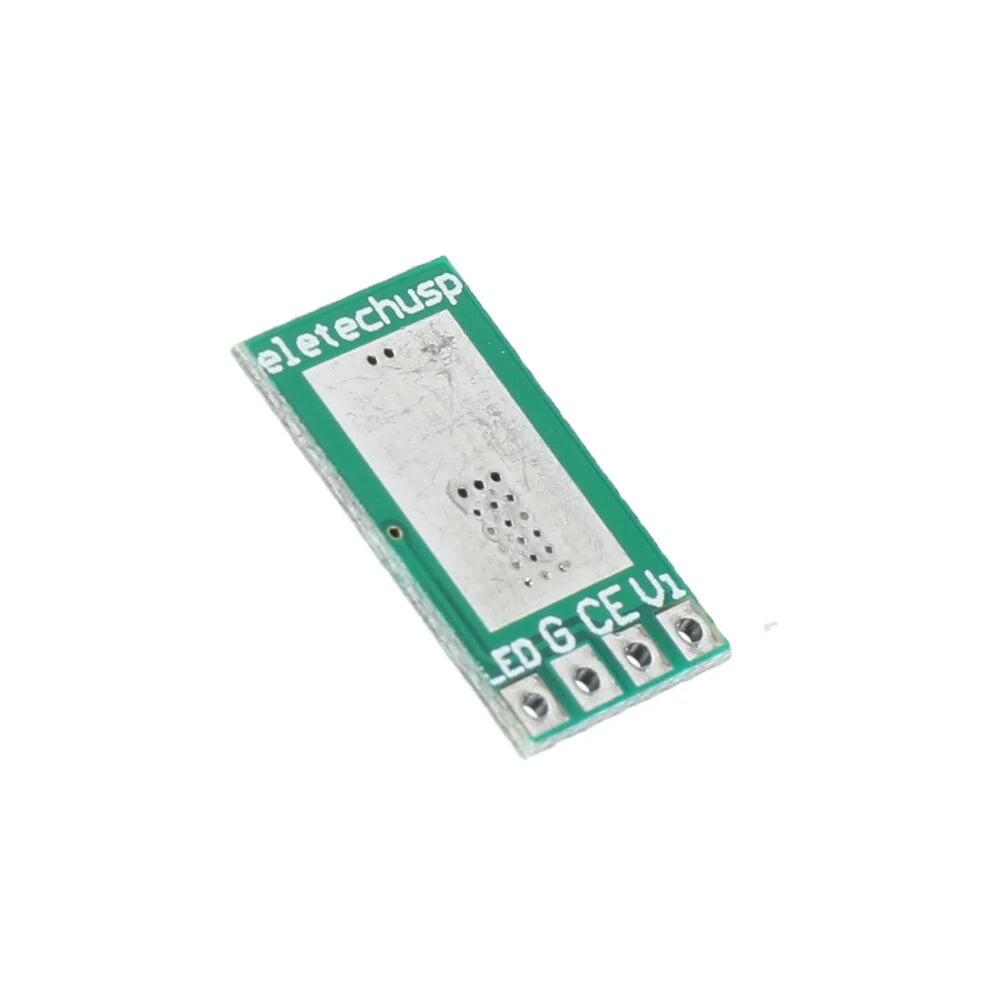

LD06AJSB Adjustable Constant Current Converter Module, PWM Controller for 2.8-6V LED Driver (30-1500mA)

Name: LD06AJSB Adjustable Constant Current Converter Module, PWM Controller for 2.8-6V LED Driver (30-1500mA)
Brand: Evalm
SKU: 7841898676938
Price: 3.10 USD
Availability: InStock

$3.10 USD

~~$0.00 USD~~ $3.10 USD

Sale Sold out

Shipping calculated at checkout.

Estimated Delivery: -

Quantity

Product Description

Precise Details

Specifications:

Working Voltage: DC 2.8-6V
Output Current: 31-1500mA
Maximum Output Power: 9W
Can drive 1-16pcs 2.8-6V LEDs (maximum current does not exceed 1.5A)
Perfect for 3V 3.3V 3.7V 5V 6V LED Driver
Current Regulation: 1) Through adjustable resistance; 2) Through PWM control
Chip Temperature Regulation
Over LED Current Protection

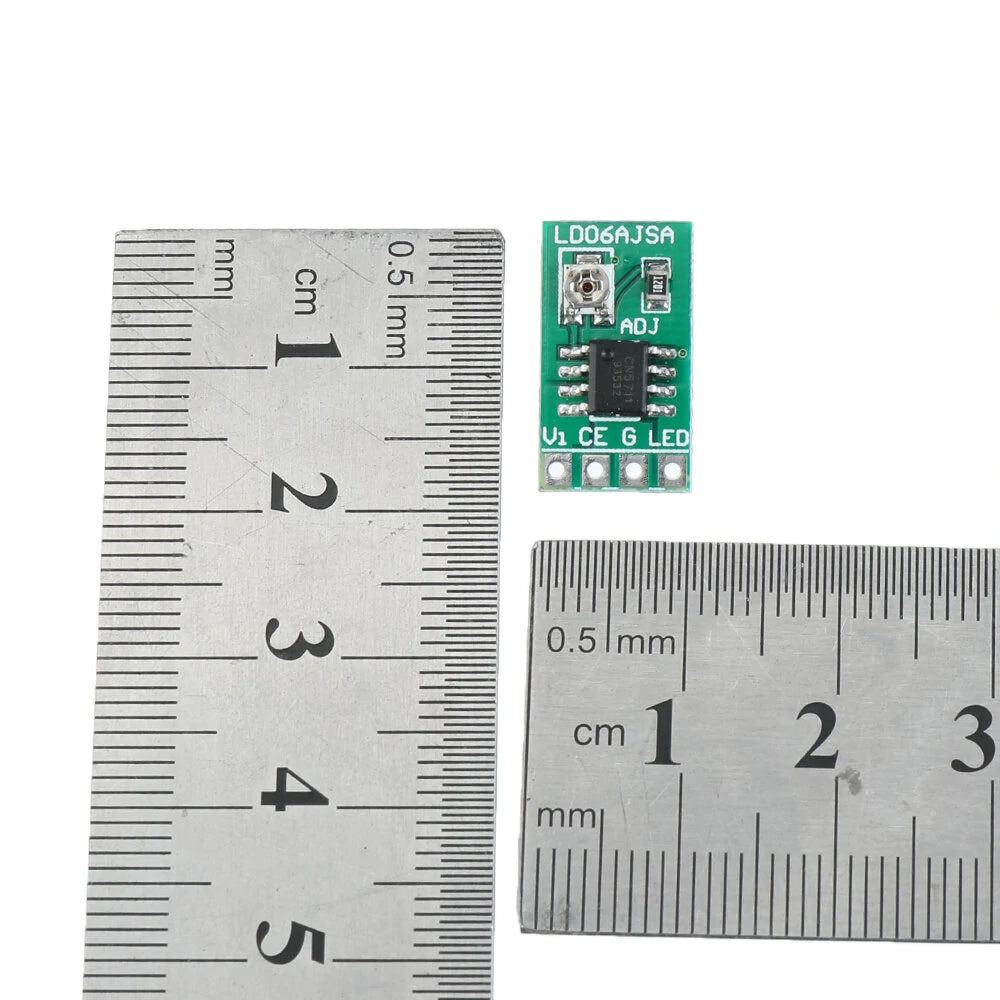

Size: 18mm x 10.2mm x 2.8mm

Applications:

Application 1: Use a suitable screwdriver to gently rotate the adjustable resistance as per the wiring diagram.
Application 2: Adjust the resistance to 0 ohms or maximize the current (as per Application 1) and use the MCU output PWM signal to control LED output current. Ensure PWM signal frequency is less than 2KHz.

Overview:

The LD06AJSA/B is a current regulation integrated circuit with an input voltage range of 2.8V to 6V. It delivers a constant output current up to 1.5A, adjustable with an external resistor. Its design reduces external components, ideal for LED drivers and maintains stable operation when input voltage is above 2.8V.
This device features temperature regulation, ensuring continuous LED operation in high temperatures. When junction temperature reaches around 135°C, it reduces LED current to prevent further temperature rise, maximizing power handling and preventing damage.
The LD06AJSA/B incorporates a chip enable function to limit current consumption to 1uA when shut down.
It also includes an over-current protection mechanism that activates as LED current approaches 1.9A, preventing further increases.
