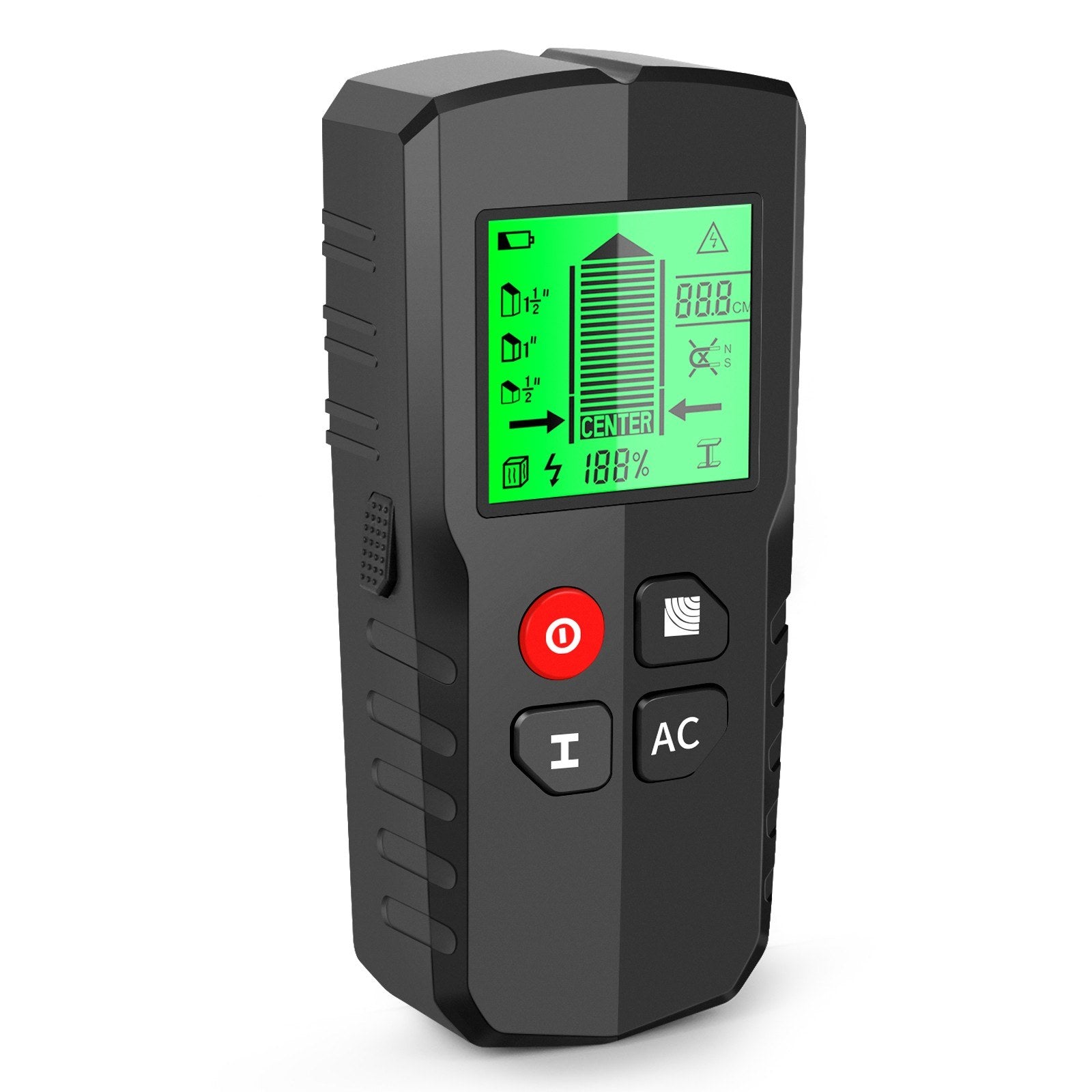

Digital Wall Detector

This digital wall detector offers high detection accuracy and versatility for various applications. Designed with 5 working modes, it allows you to select the appropriate mode according to the object you need to detect. Equipped with an LCD display with backlight, it quickly locates wood, metal, and AC wires behind walls, floors, and ceilings. The detector distinguishes between magnetic and non-magnetic metals. Suitable for both industrial and domestic use, this tool is ideal for home decoration, renovation, and equipment installation.

Features:

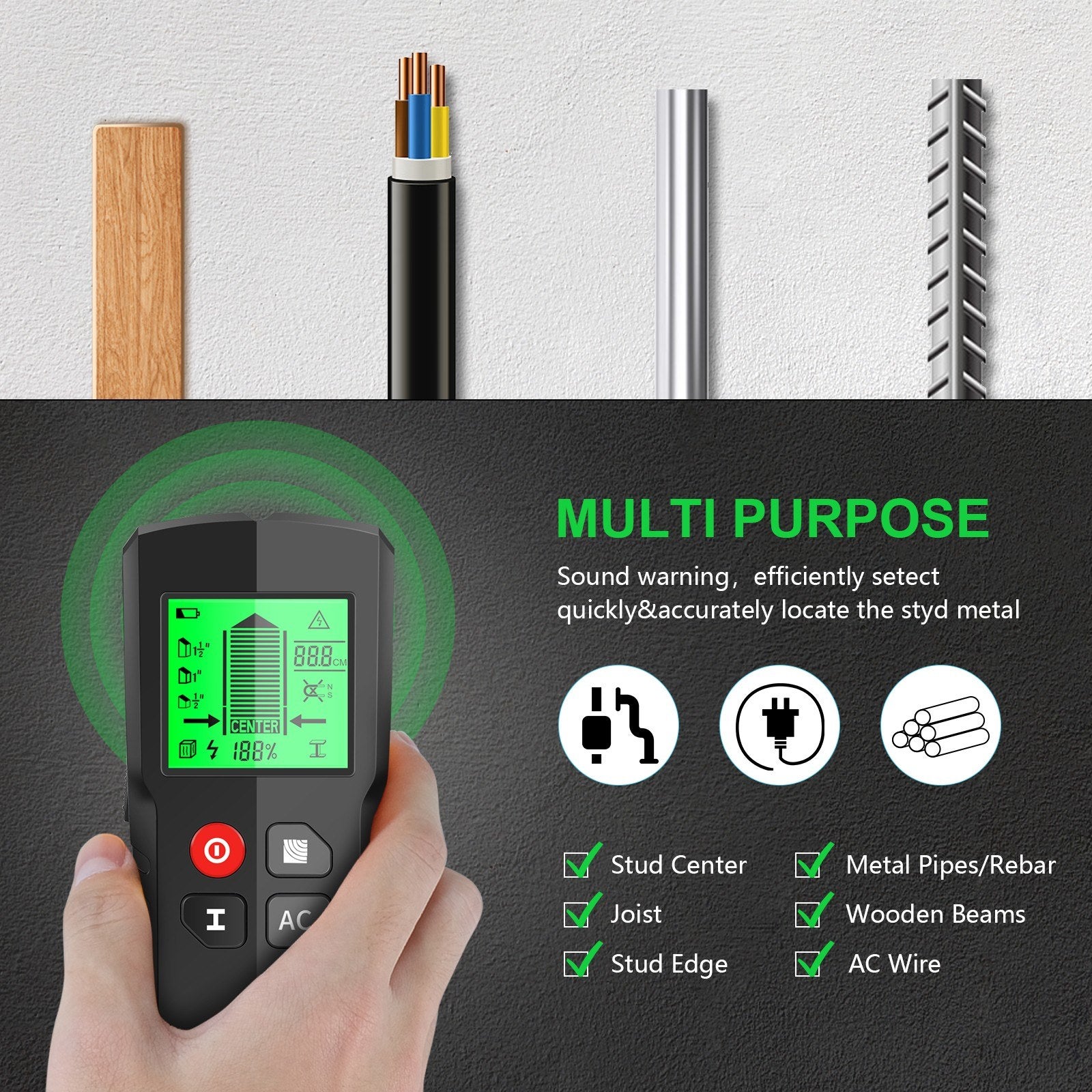

• Multifunctional Design: Detects studs, metal, and unshielded AC live wires. Identifies whether detected metal is magnetic. Suitable for slats, wallpaper, wood floors, acoustical ceilings, painted walls, and more. Helps avoid hazards when installing TVs, cabinets, and garage racks.

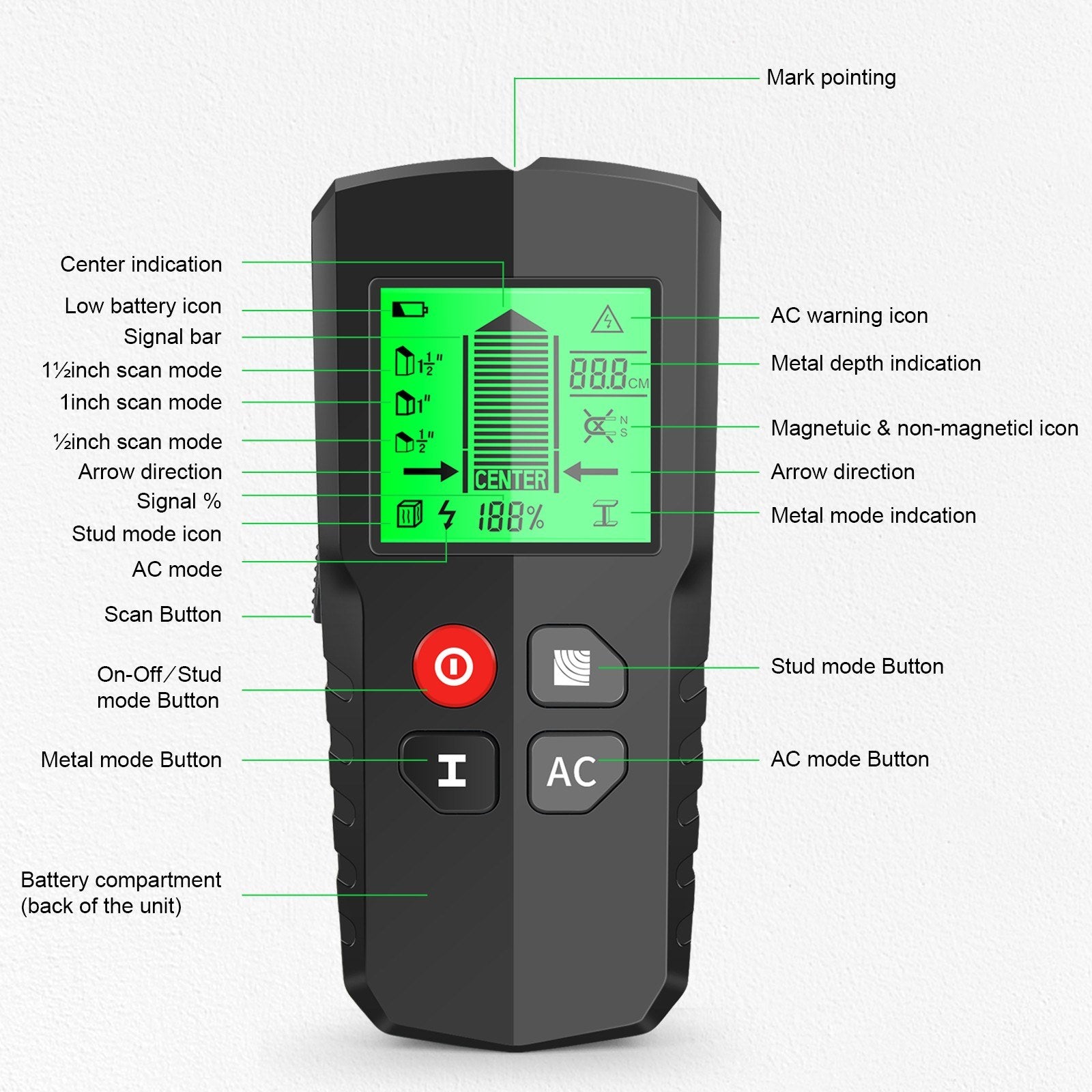

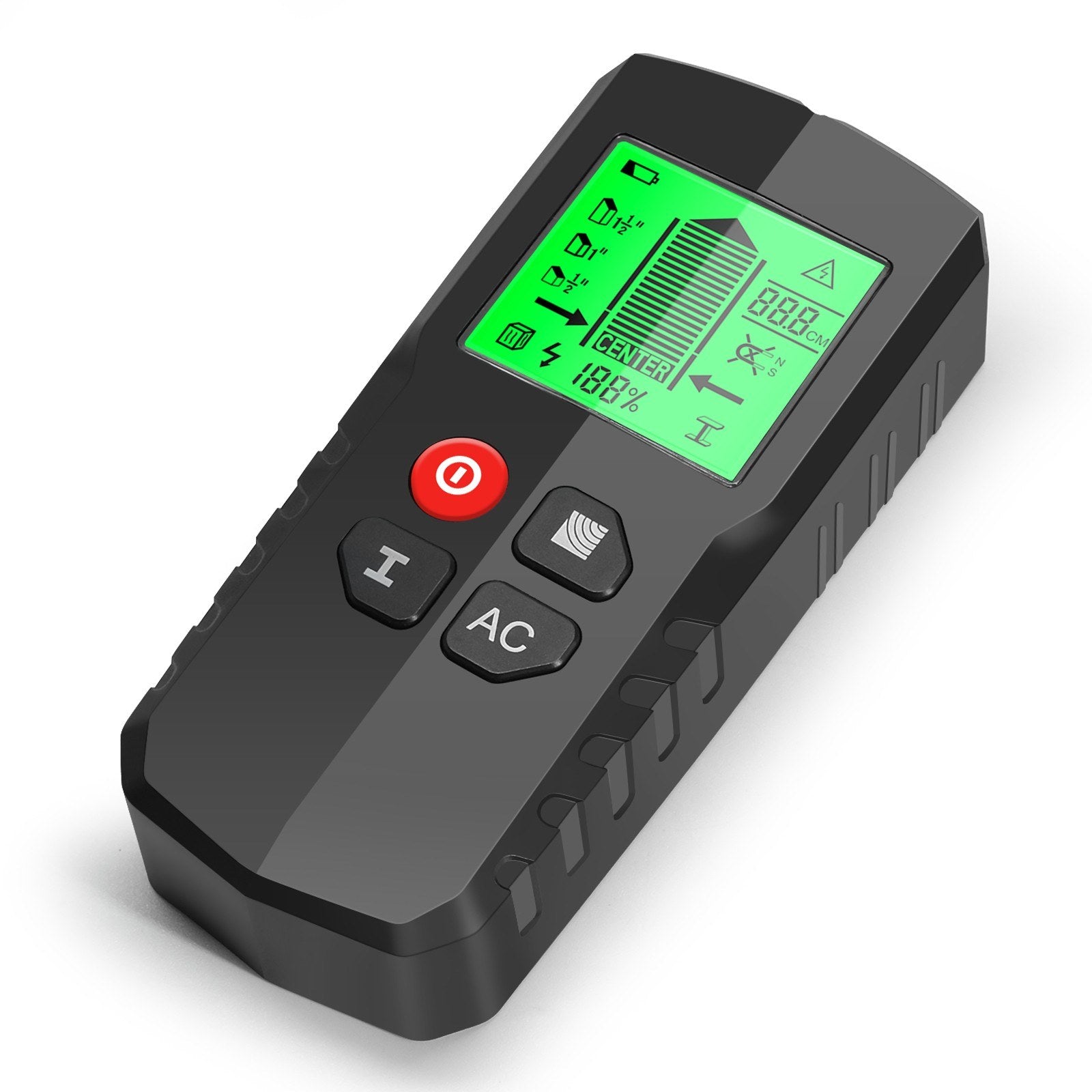

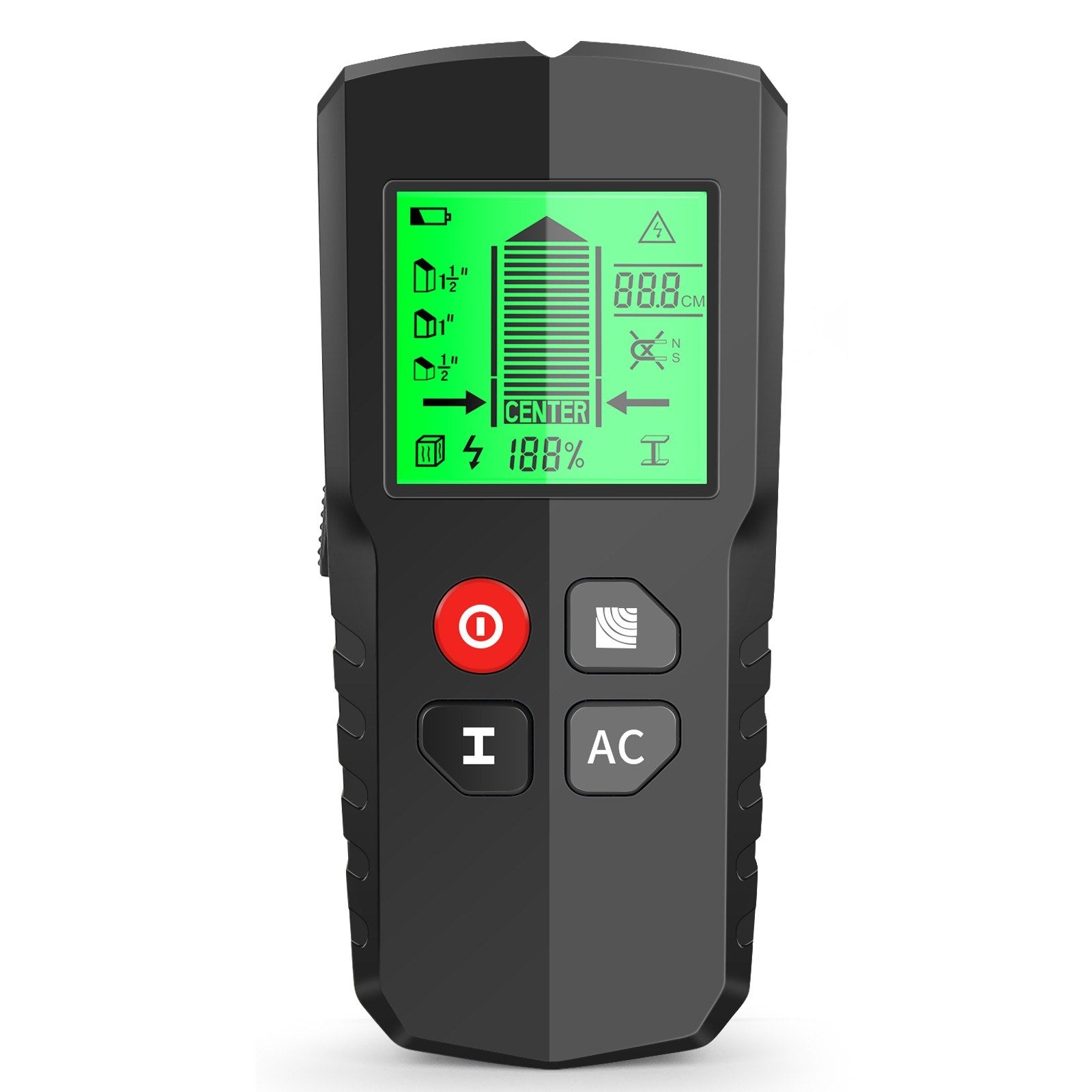

• LCD Display: Backlit display increases indicator bar and percentage as the scanner approaches a stud. Confirms location with a full indicator bar and continuous buzzer sound. Includes signal bar, center indication, and metal depth functions.

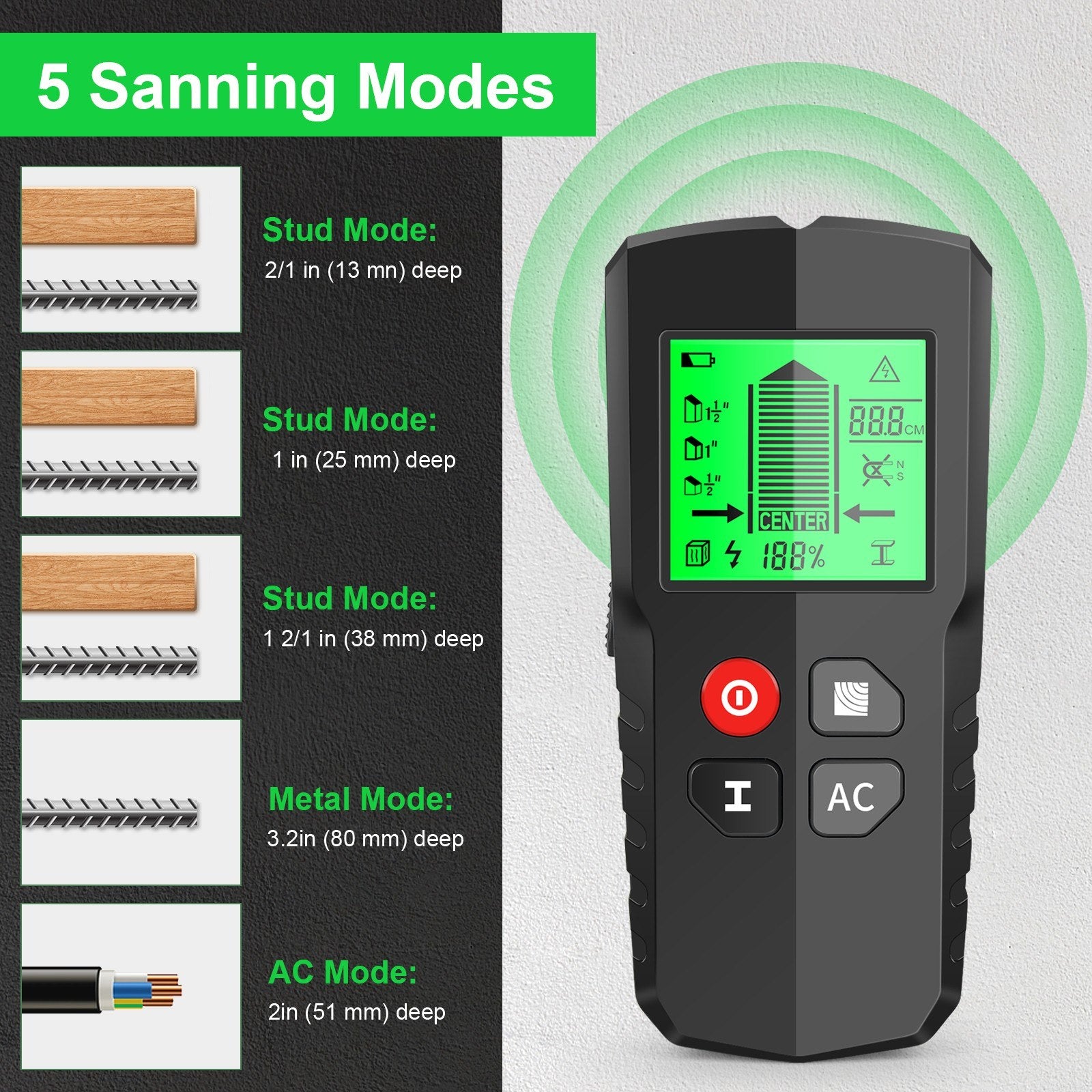

• 5 Working Modes: Choose between 1/2" stud scan mode, 1" stud scan mode, 1 1/2" stud scan mode, metal mode, and AC mode, tailored to your detection needs.
• 3 Stud Scan Modes: Detects wood or metal studs at varied depths: 1/2" up to 13mm, 1" up to 25mm, and 1 1/2" up to 38mm.
• Metal Scan Mode: Used for steel bars, metal keels, and pipes with detection of magnetic metals up to 80mm and non-magnetic metals up to 60mm.
• AC Scan Mode: Detects live AC wires up to 51mm deep. Features interactive calibration.
• Easy to Use: Simply move the tester on the surface to detect studs, metal, rebar, pipes, or AC wires. Scans from left to right.
• Wide Applications: Perfect for both industrial and domestic scenarios, including home decoration, wall installation, and equipment maintenance.

Note:

• This stud finder is for use on dry interior walls only.
• Sensing depth and accuracy may vary due to moisture, material content, wall texture, and paint.
• Not designed for scanning materials such as ceramic floor tile, carpeting, lath and plaster walls, foil insulation, glass, or dense materials.

Specifications:

• Name: Wall Metal Detector
• Material: ABS

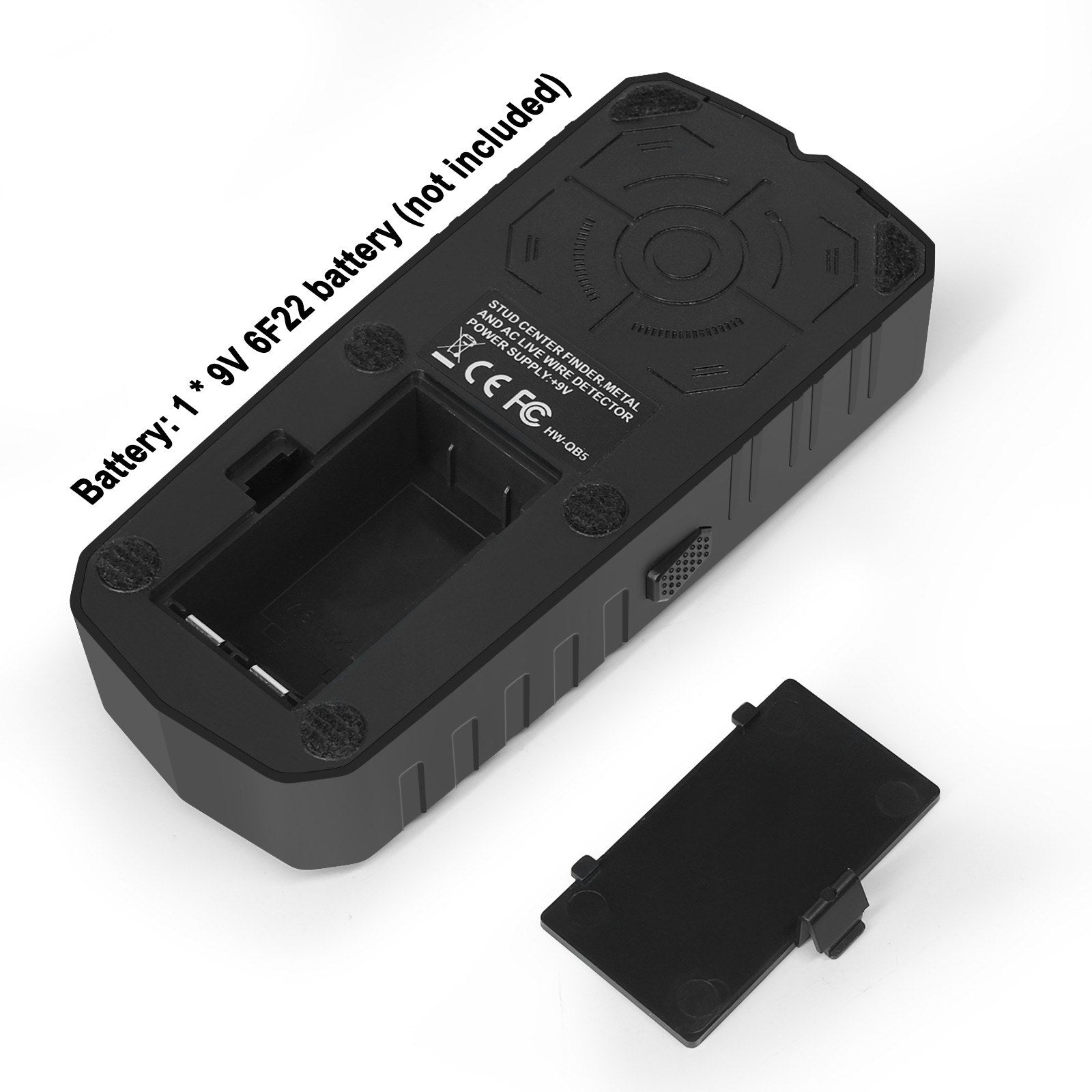

• Battery: 1 * 9V 6F22 battery (not included)
• Operating Current: <50mA
• Shutdown Current: <10μA
• Automatic Shutdown Time: 3 minutes

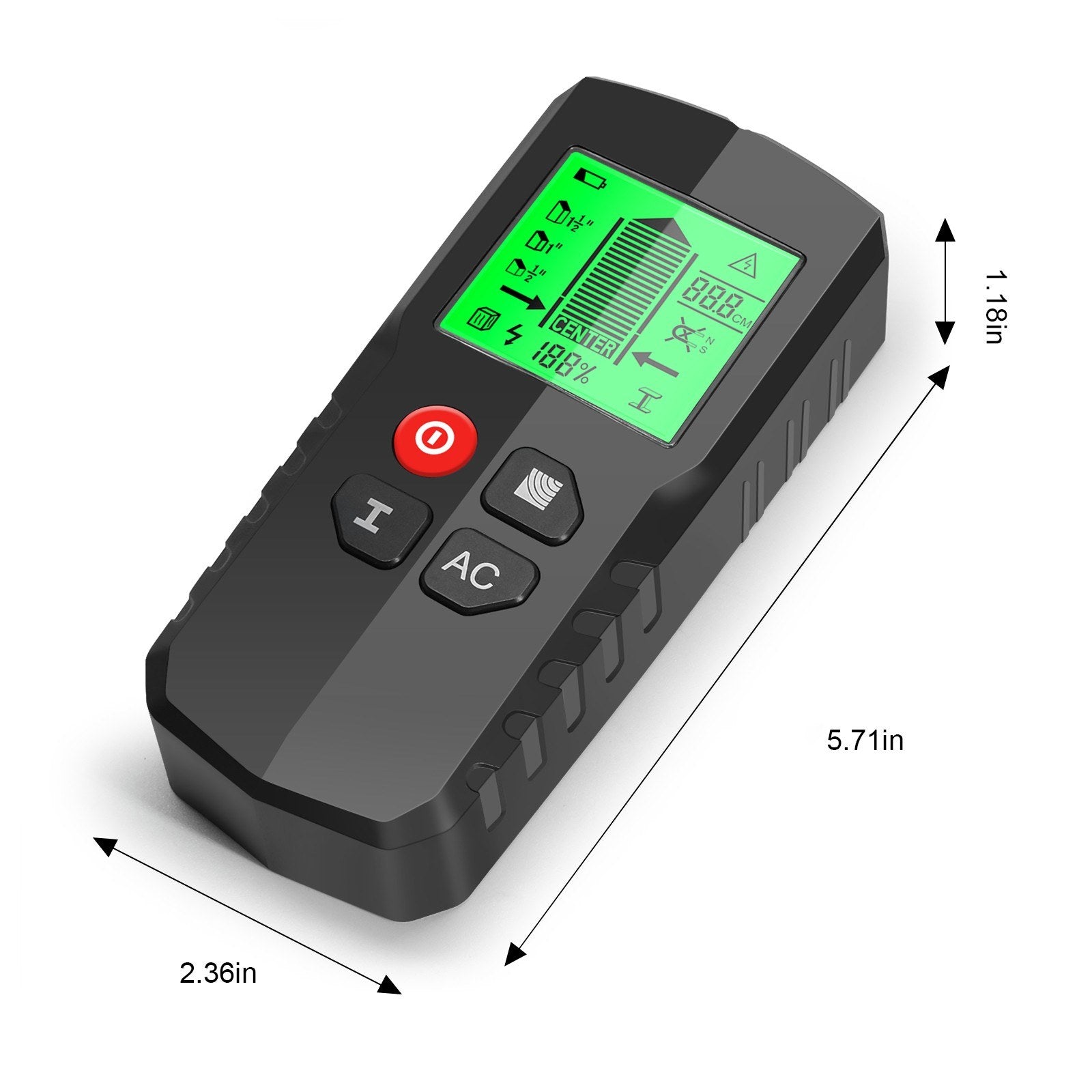

• Item Size: 145 * 60 * 30mm / 5.71 * 2.36 * 1.18in
• Package Size: 165 * 74 * 40mm / 6.50 * 2.91 * 1.57in
• Package Weight: 158g / 5.57 ounces

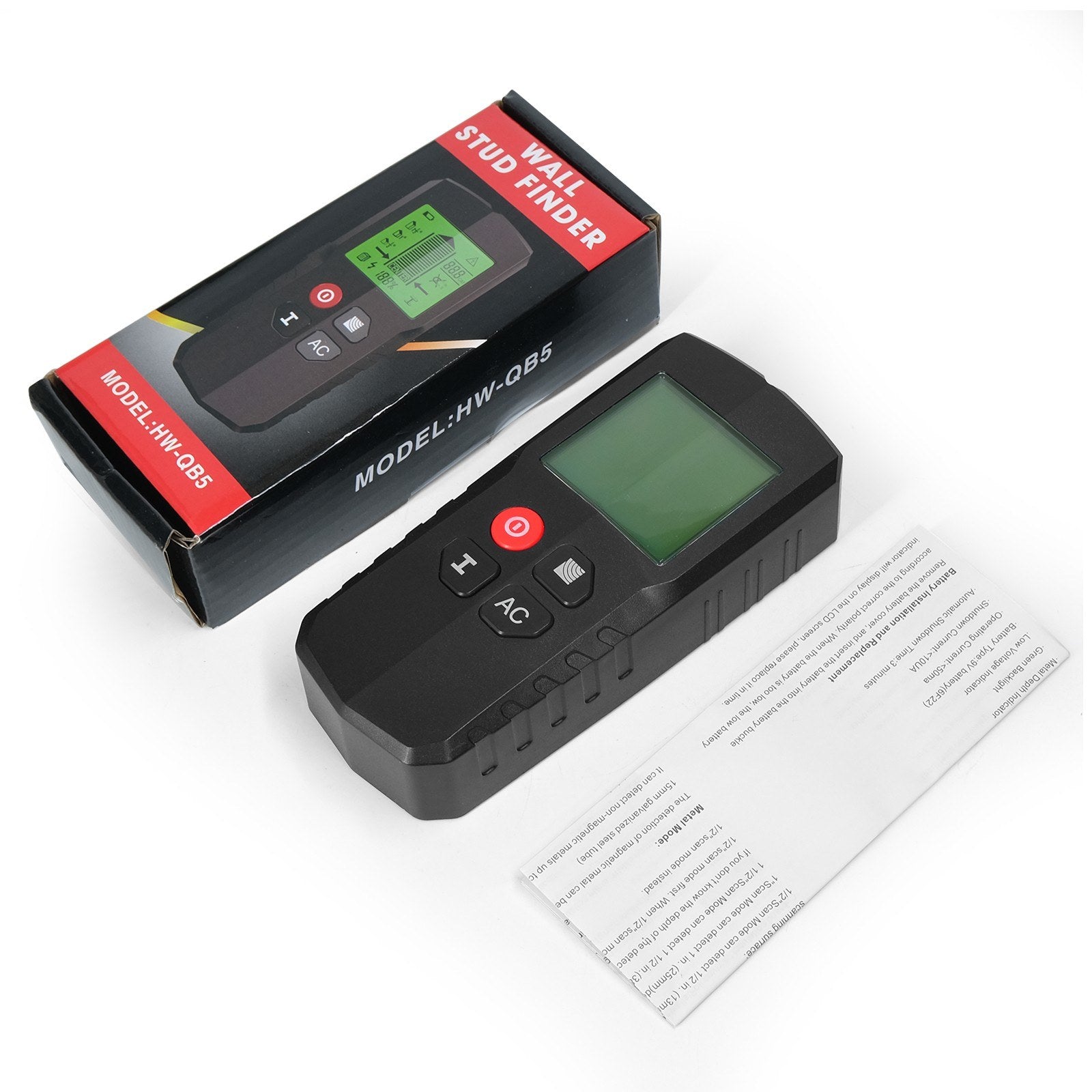

Packing List:

• 1 * Wall Metal Detector
• 1 * Guideline
