Bluetooth Digital Amplifier Board Module 2.0 Stereo 15W/30W Dual Channel with High-Low Bass Adjustment HIFI DIY Audio

Precise Details:

Specification:

• Brand: XINYI Sini Audio
• Product Model: XY-T30L/XY-T15H
• Power Supply: DC 9-24V/3A
• Bluetooth Version: 5.1
• Audio Output: Stereo/2.0
• Audio Input: Bluetooth, AUX, U disk, USB sound card
• Frequency Range: 20Hz - 20KHz
• Audio Adjustment: Treble and bass tuning
• Volume Adjustment: 360° stepless tuning
• Audio File Format: WAV, FLAC, APE, MP3
• Output Power: Varied based on resistance and power supplied

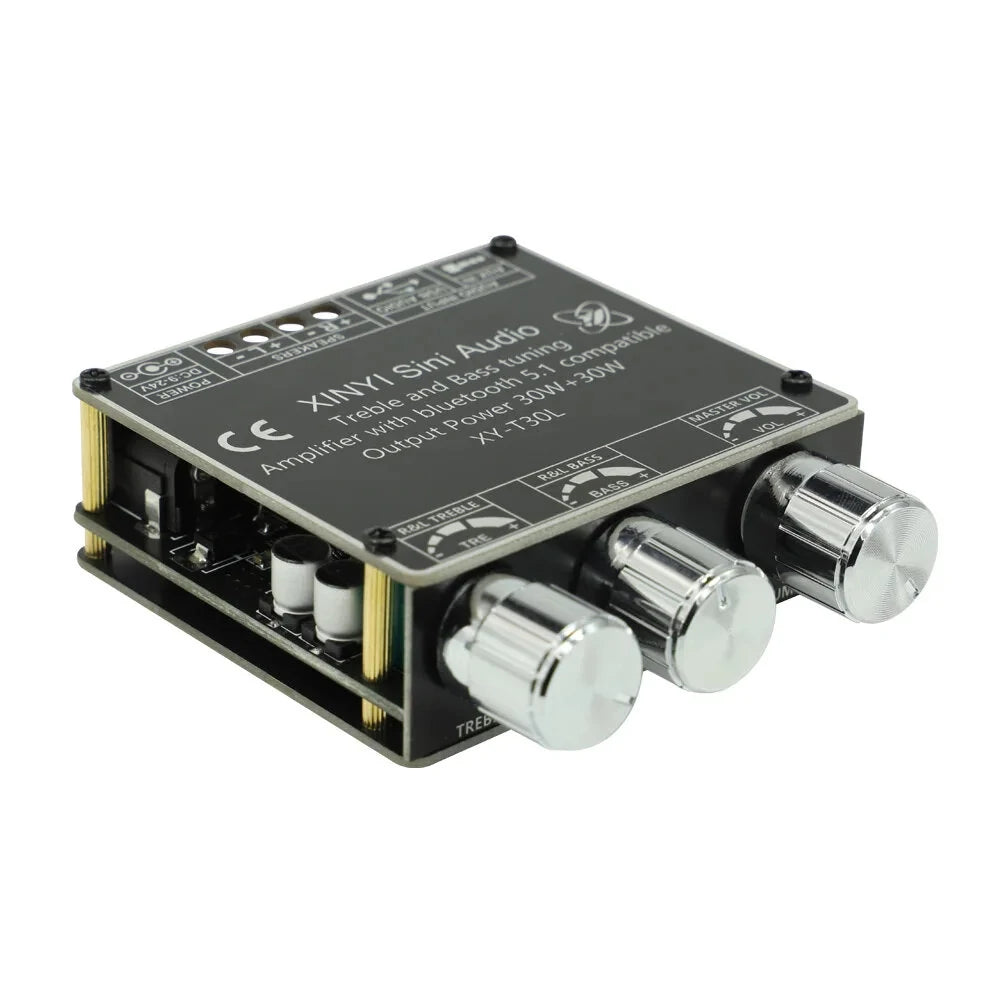

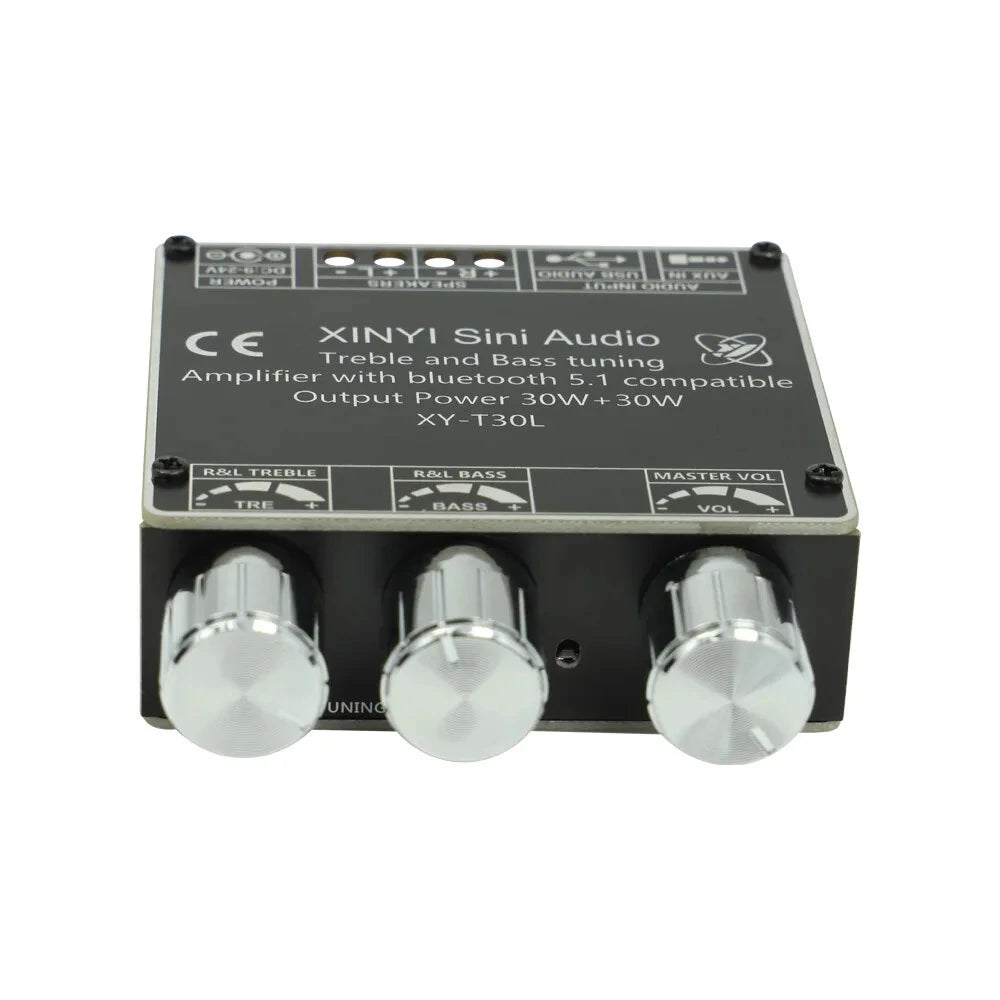

  • XY-T30L:
    • 20W*2 @ 4Ω/12VDC
    • 10W*2 @ 8Ω/12VDC
    • 30W*2 @ 4Ω/15VDC
    • 30W*2 @ 8Ω/24VDC

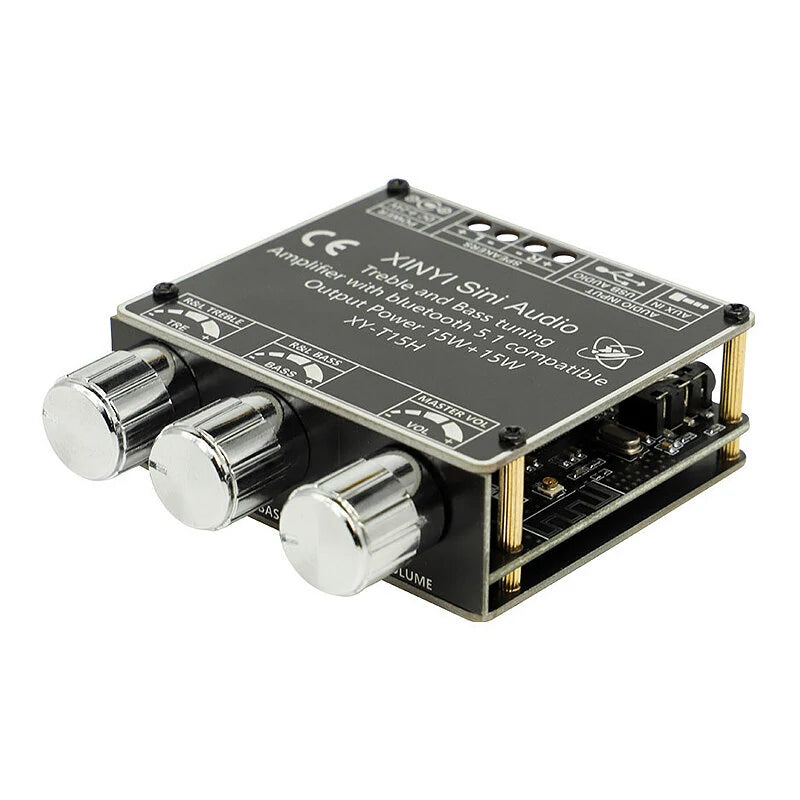

  • XY-T15H:
    • 20W*2 @ 4Ω/12VDC
    • 10W*2 @ 8Ω/12VDC
    • 15W*2 @ 8Ω/16VDC
    • 20W*2 @ 8Ω/24VDC
• Protection Mechanism: Over voltage, under voltage, overheating, DC detection, and short circuit protection
• Unique Function: Supports Sinilink APP
• Product Size: 64mm x 72mm x 22mm
• Product Weight: 95g

Features:

• Wide Power Supply Range: Compatible with DC power supply from 9V to 24V.
• Multipurpose Audio Input: Offers Bluetooth, AUX, U disk, and USB sound card inputs.
• Broad Frequency Range: Covers 20Hz to 20KHz for a wide array of sounds.
• Advanced Protection Mechanisms: Includes protections from over voltage, under voltage, overheating, and short circuit with DC detection.
• Sinilink APP Support: Allows enhanced control with the Sinilink mobile app.

Package Includes:

• 1x Top Board
• 1x Main Board
• 1x Bottom Board
• 3x Knob Caps
• 4x M2*4+3mm
• 8x M2*3 Screw
• 4x M2*14mm
• 1x DC Plug
• 1x Screwdriver
• 1x Heat Sink
