Geekcreit® 0.96 OLED I2C Display 128x64 Module for Arduino-Compatible Boards

Product Details

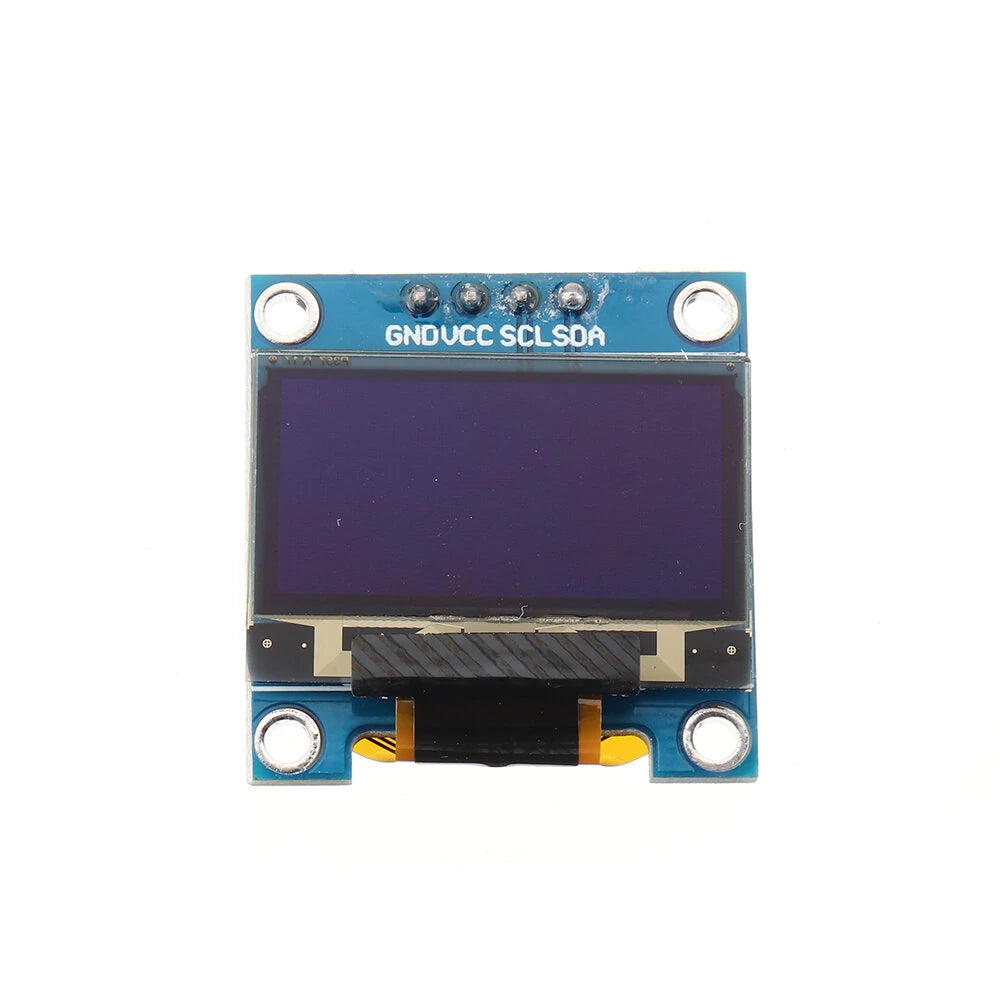

Pin Definition:

• VCC: 3.3-5V
• GND: Ground
• SCL: Serial Clock
• SDA: Serial Data

Features:

• Size: 0.96 inch
• Resolution: 128×64
• Color Options: White, Blue
• Viewing Angle: Greater than 160°
• Supported Platforms: 51 series, MSP430 series, STM32/2, etc.
• Ultra Low Power Consumption: 0.04W during normal operation
• Wide Voltage Support: DC 3.3V-5V
• Operating Temperature: -30°C to 80°C
• Driver Chip: SSD1306
• Communication Method: IIC, only 2 I/O ports required
• Backlight: OLED self-illumination, no backlight needed

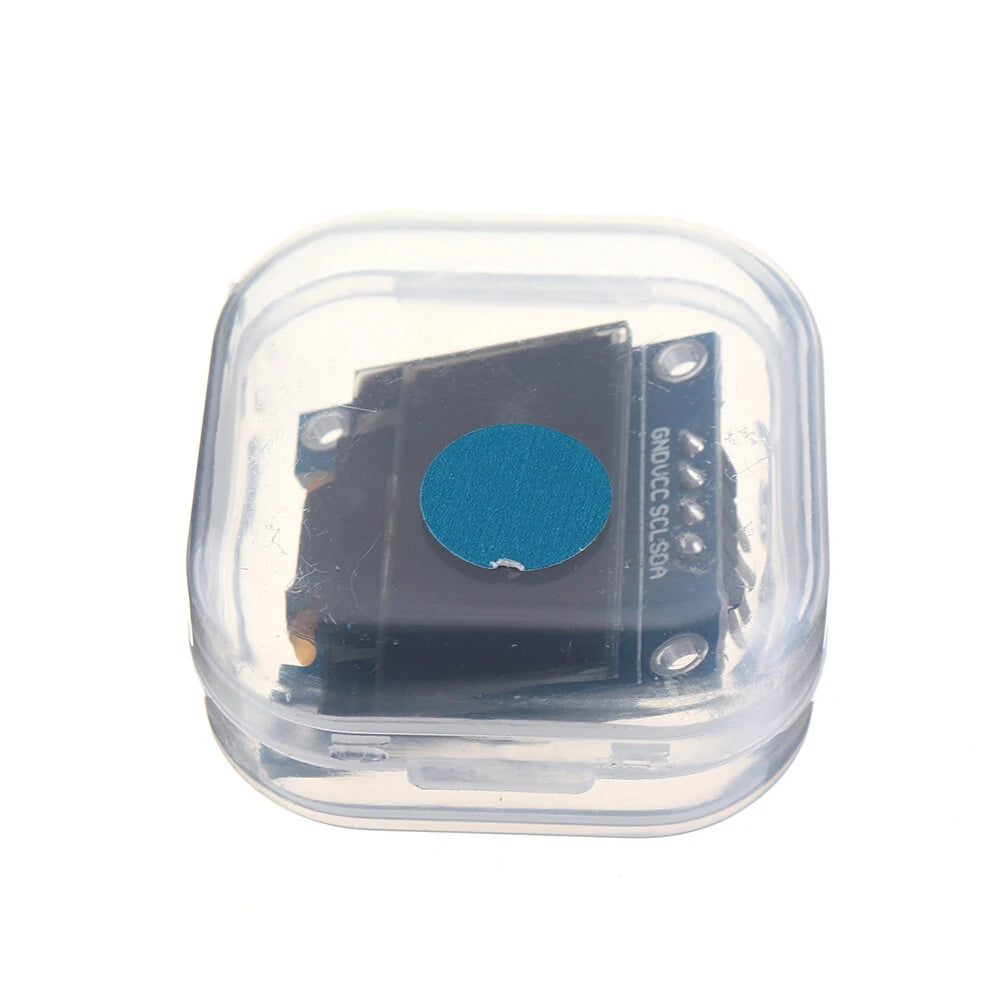

Package Includes:

• 1 x OLED Module
