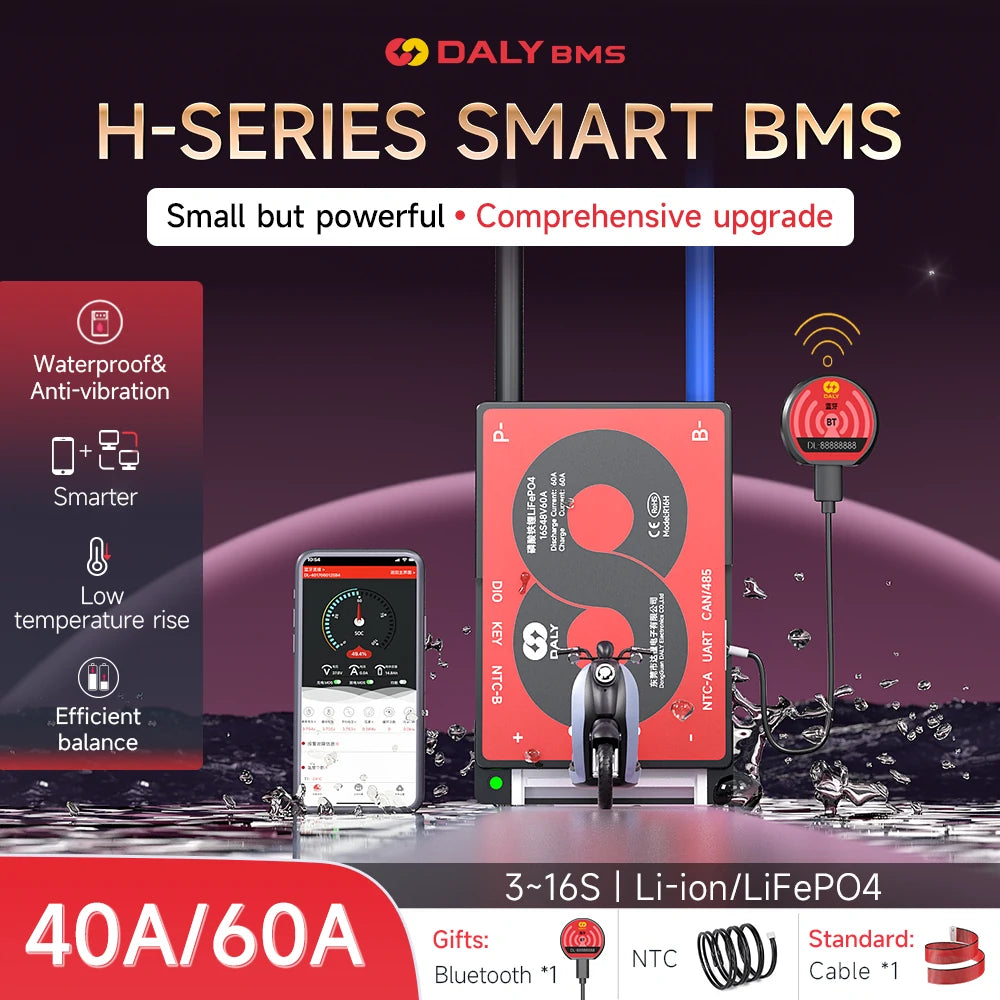

Multifunctional Ternary Lithium Battery Protection Board 40A/60A with Balance, Bluetooth, RS485, & CAN for 3S-16S Li-ion 4.2V Street Light & Portable Solar Power

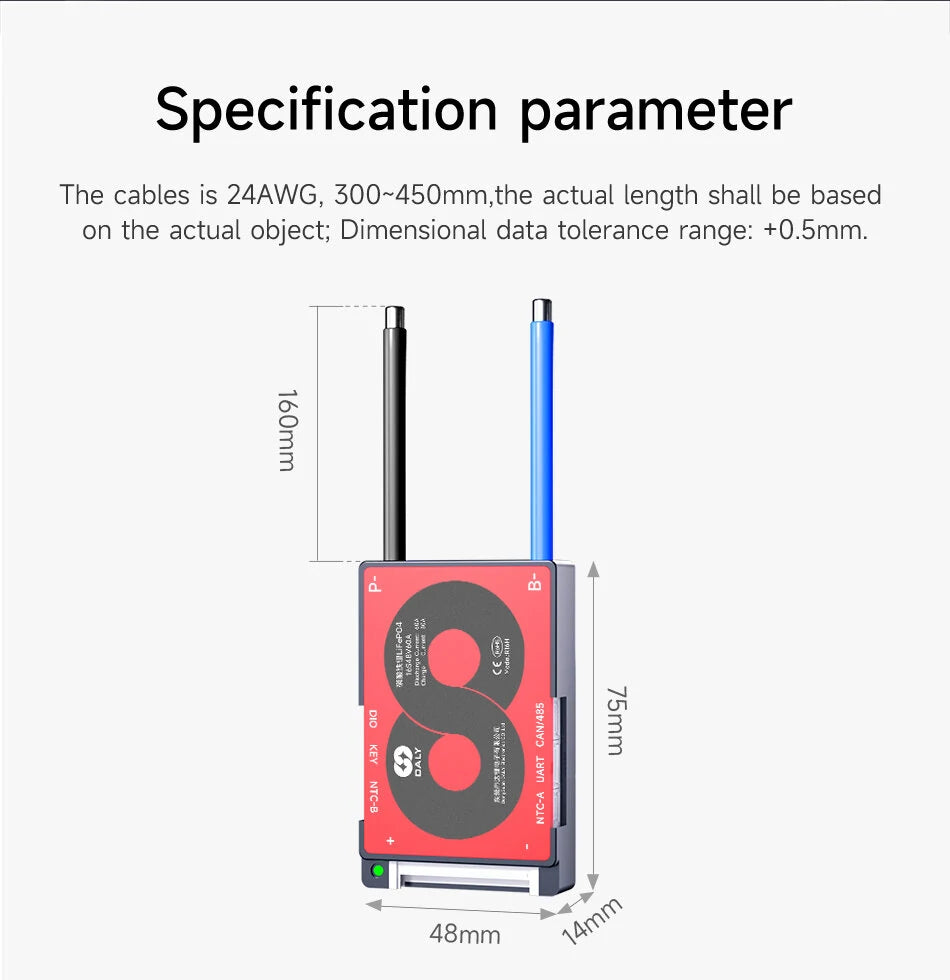

Specifications

Rated Discharge Current (V): Li-ion: N(Battery string) x 4.2V

Charging Voltage (A): 40-60 A

Discharge Overcurrent Protection Value (A): 60-90 A

Charging Current (A): 40-60 A

Charge Overcurrent Protection Value (A): 60-90 A

Main Circuit On-Resistance (mΩ): Passive equalization function (100±30mA)

Equalization Turn-On Voltage (V): Li-ion: 4.0 (Can be set up)

Equalize Opening Differential Pressure (mV): 20 (Can be set up)

Balance Current (mA): Li-ion: 100±15

Protection Features

Short Circuit Protection: External Load short circuit

Short Circuit Protection Delay (μS): 10-500 (Actual test subject to customer's battery)

Short Circuit Protection Release: Remove load release

Single Cell Over-Charge Protection: Li-ion: 4.25±0.05 V (Can be set up)

Protection Delay (S): 1±0.8

Recovery Voltage (V): Li-ion: 4.15±0.05

Single Cell Over-Discharge Protection: Li-ion: 2.7±0.05 V (Can be set up)

Protection Delay (S): 1±0.8

Recovery Voltage (V): Li-ion: 2.8±0.05

Charge/Discharge Over-Current Protection

Protection Delay (S): 1±0.8

Release Condition: Remove load to reset

Additional Information

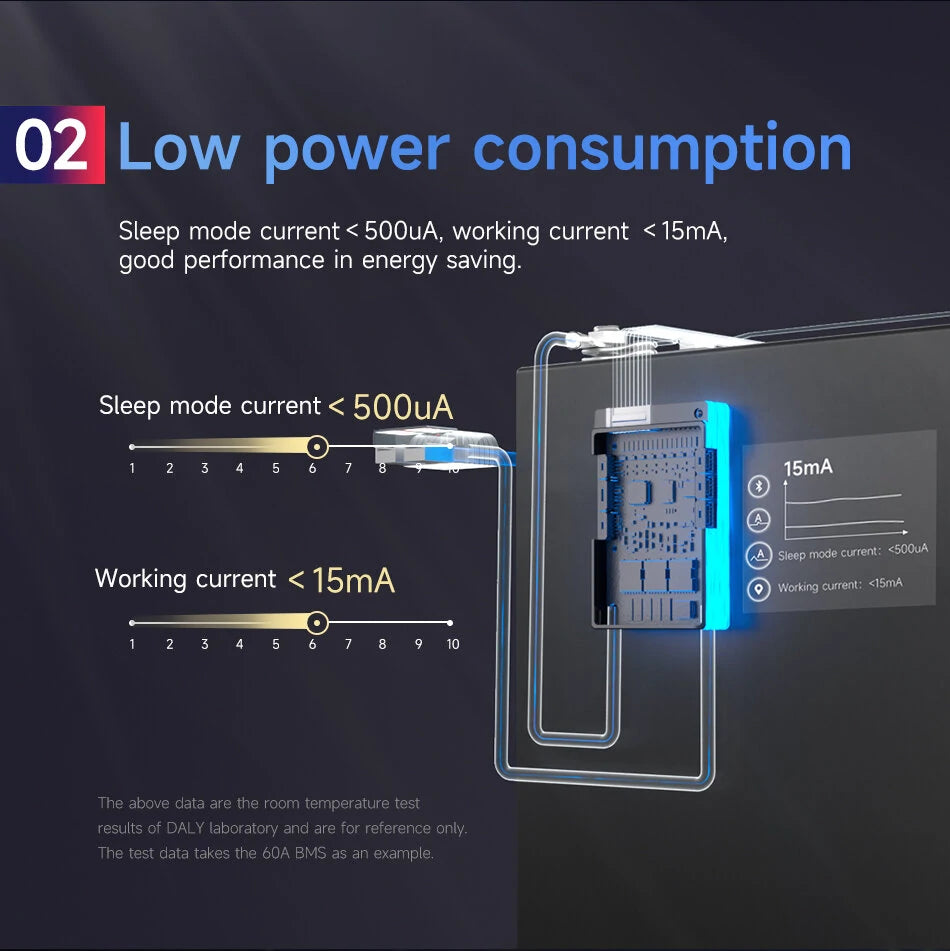

Working Current (mA): Current consumption data available on request.

Temperature Protection (°C): Charging/Discharge: -35~75 (Can be set up)

Storage Temperature (°C): -40~85

Resting Current (uA): Sleep time (S): 3600

Note

: The above data are results from DALY laboratory tests and are for reference only. For customized services, please consult customer service.

Installation and Wiring in 3 Easy Steps

1. Solder the Sampling Cables: Connect the black cable to the negative terminal of the battery and subsequent red cables to positive terminals of sequential battery strings.
2. Check the Cables: Measure voltages between adjacent cables from the header to ensure proper connections.
3. Connect the Output Wires: Attach the B- wire of the BMS to the total negative terminal, and plug the sampling cable into the BMS. Activate the BMS and verify voltages are consistent.

Activating the BMS

The BMS activates automatically on first use. If dormant, activate it using the following methods:

1. Use key switch.
2. Press buttons on the Bluetooth module or SOC indicator.
3. Use CAN/RS485 communication or connect to the Mobile APP via Bluetooth.
4. Charge or discharge the battery.

Please ensure all connections are secure and the NTC is connected before activation.

Package Includes

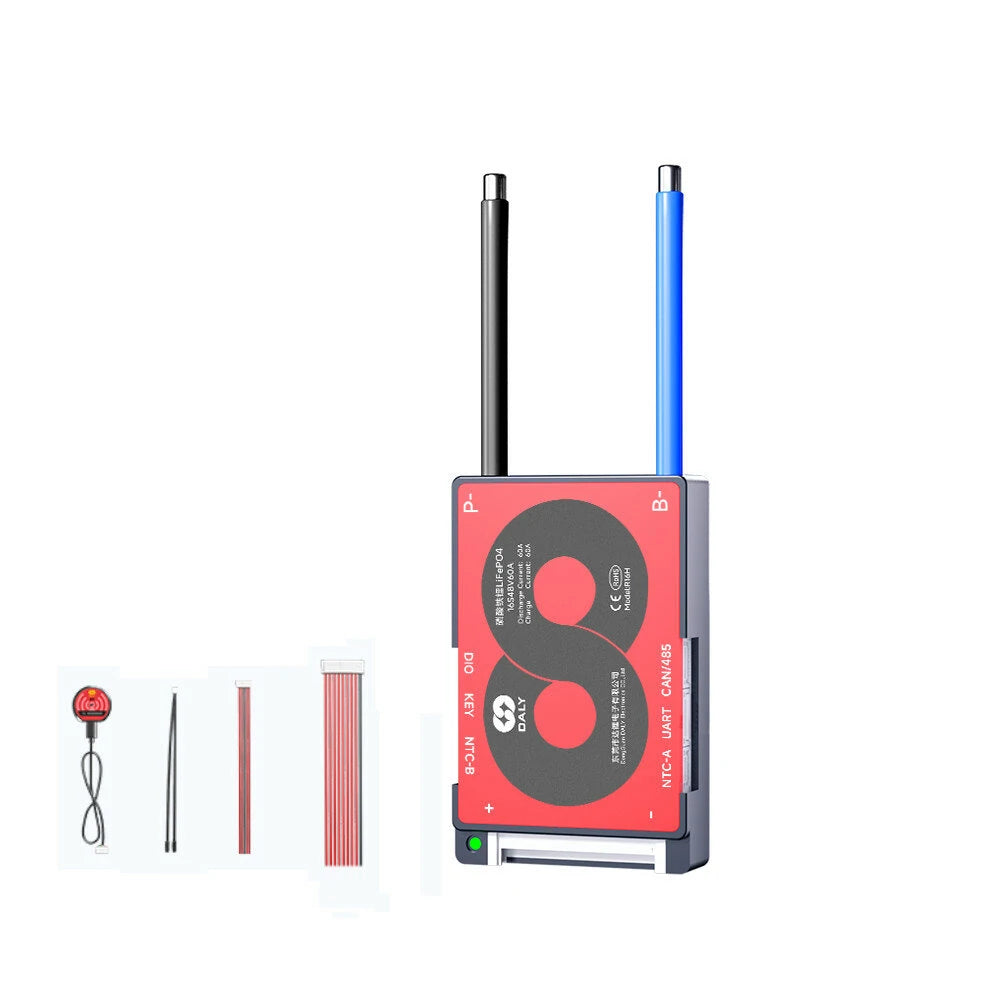

• 1 x Smart BMS
• 1 x Cable
• 1 x Bluetooth Module
• 1 x NTC
• 1 x CAN/485 5-pin Connector
