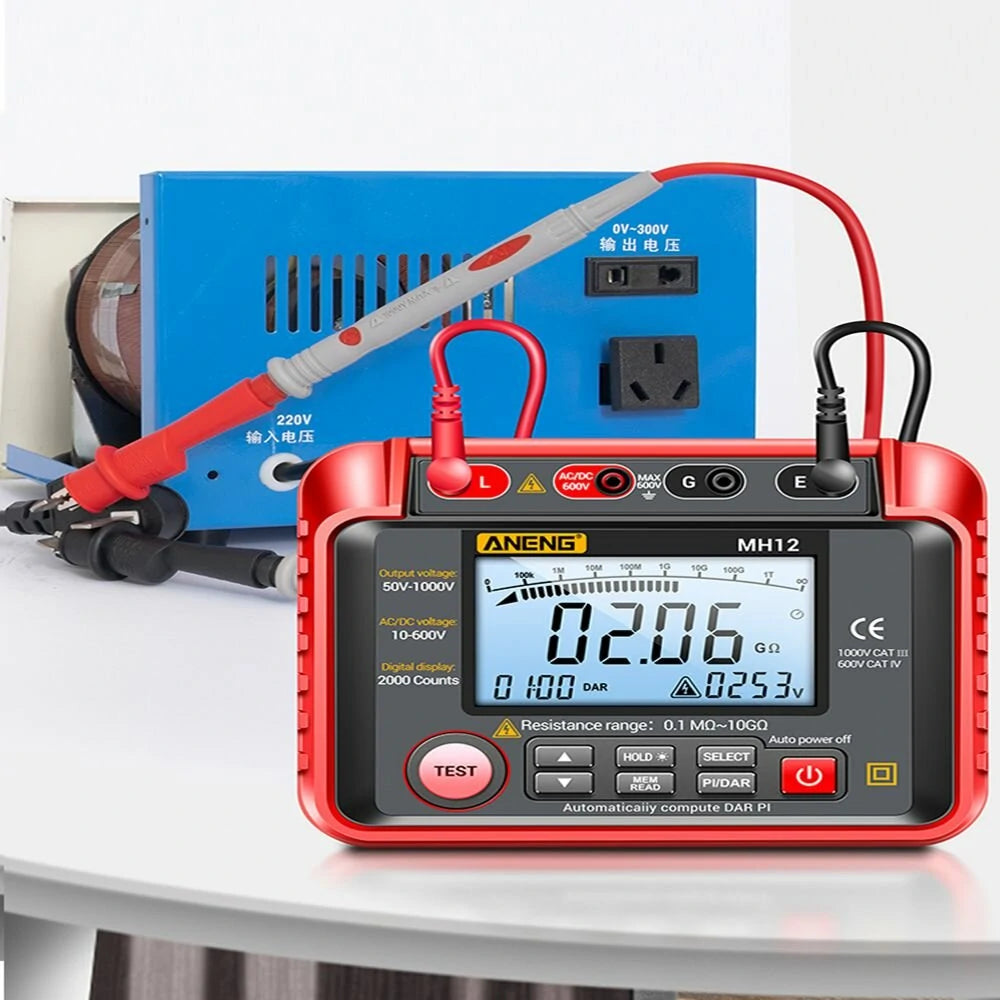

ANENG MH12 Digital Insulation Earth Resistance Tester & Megohmmeter with LCD Display

Product Features:

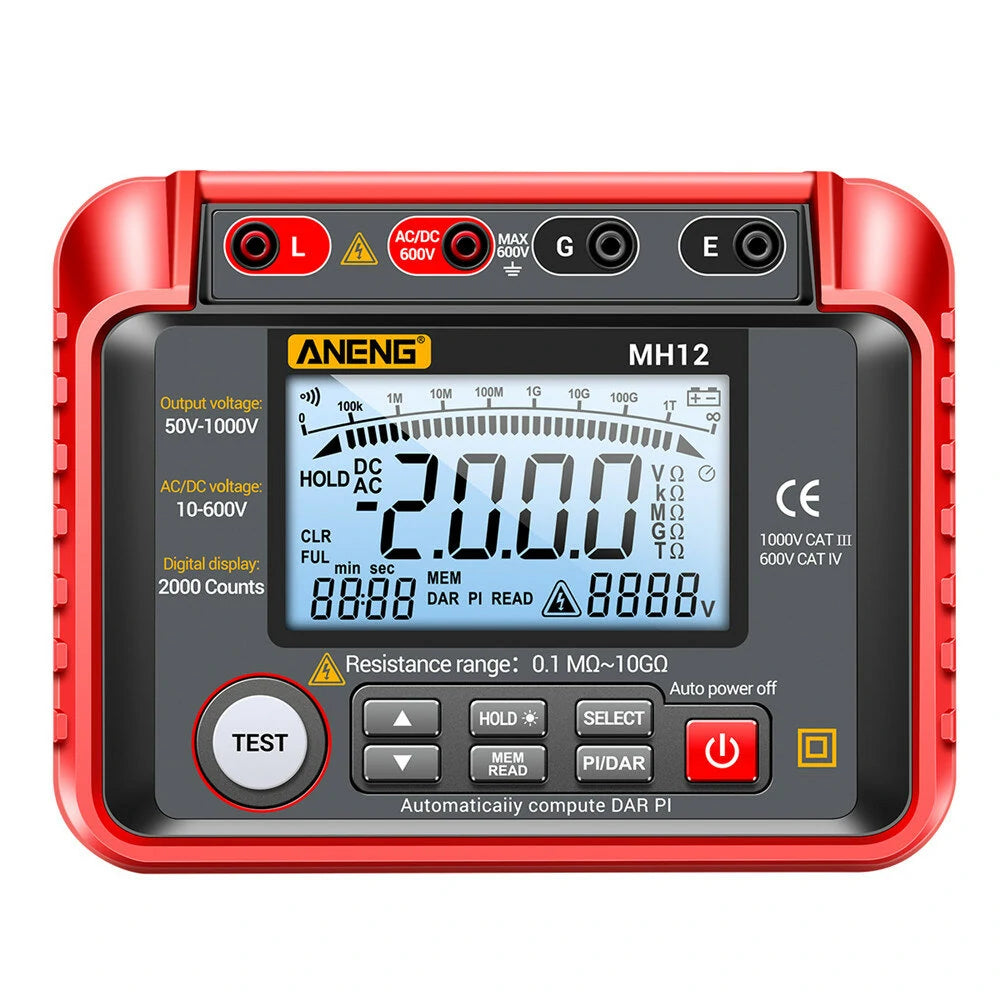

• LCD multi-display and analog bar display with full symbol display for easy reading.
• Automatic range and software calibration for accurate measurements.
• Full key operation for user-friendly experience.
• Measurements include AC and DC voltage and insulation resistance.
• Stores up to 100 data groups for easy recall.
• Automatic calculation of polarization index and absorption ratio.
• Backlight and data retention function for convenience.

Specifications:

• Material: Durable ABS Plastic
• Dimensions: 17.2 x 14 x 6.2 cm / 6.79 x 5.52 x 2.48 in
• Power Supply: Requires 8 AA batteries (not included)
• Maximum Display: 2000 counts for precise readings

Measuring Range:

• Output Voltage: MH12 - 50V to 1000V (Increments: 50V, 100V, 250V, 500V, 1000V)
• Insulation Resistance: MH12 - From 0.1MΩ to 10GΩ

Absorption Ratio and Polarization Index Standards:

• Absorption Ratio (DAR): Measures the insulation resistance ratio at 1 minute to that at 30 seconds.
• Polarization Index (PI): Measures the insulation resistance ratio at 10 minutes to that at 1 minute, helpful for determining moisture impact on insulation resistance.
• Essential for assessing the absorption and polarization processes in insulating materials under high voltage.
• Used in power systems to evaluate insulation quality, crucial for main transformers, cables, motors, etc.

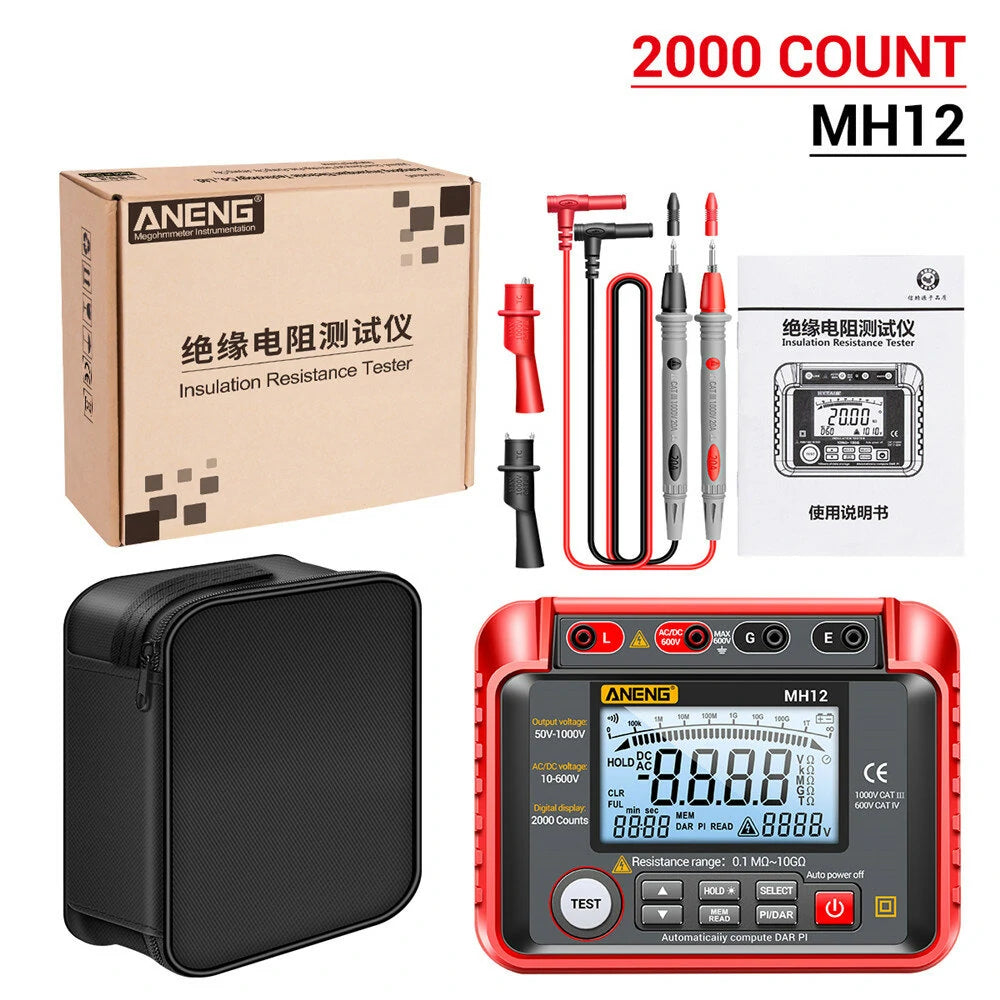

Package Includes:

• 1 x Resistance Megohmmeter
• 2 x Test Leads
• 2 x Alligator Clips
• 1 x Storage Bag
• 1 x Manual
• 1 x Packing Box

Note:

• Please be aware that actual product color may vary slightly due to lighting and screen display differences.
• Allow a 1-2 cm measurement deviation due to manual measurement.
