YIHAOGD YH CNC Milling DRO Display with 2/3 Axis Grating, TTL Linear Scale Encoders 50-1100mm for Lathe Tools

YIHAOGD YH CNC Milling DRO Display with 2/3 Axis Grating, TTL Linear Scale Encoders 50-1100mm for Lathe Tools

Regular price $98.08 USD
Regular price $0.00 USD Sale price $98.08 USD
Sale Sold out
Shipping calculated at checkout.
Size

Shipping Icon Estimated Delivery: -

Product Description

YIHAOGD YH Digital Readout Display System

Enhance your CNC milling precision with the YIHAOGD YH 2/3 Axis Grating Digital Readout Display System, featuring a 5μ 50-1000mm TTL Electronic Linear Scale perfect for lathe tools.

Specifications

  • Model: 2 Axis/3 Axis
  • Voltage Range: AC 100V~240V / 50HZ~60HZ
  • Signal: TTL
  • Plug: DB9
  • Resolution Options: 10μm, 5μm, 2μm, 1μm, 0.5μm
  • Effective Length: 50mm to 1000mm
  • Total Length Calculation: Effective Length + 142mm

System Functions

  1. Zero Clearing
  2. Reset
  3. mm/inch Mode
  4. ABS/INC Coordinate Conversion
  5. 200 Sets Sub Datum
  6. Power Off Memory
  7. Center of 1/2
  8. Liner Error Compensation
  9. Sleeping Mode
  10. Clear 200 Sets Sdm Datum
  11. Calculator
  12. Drilling of Circumference
  13. Drilling of Oblique Line
  14. Machining of Inclined Plane
  15. Machining of Circular Arc
  16. Lathe Function (Match)
  17. Rectangular Lumen Gradual Processing
  18. Digital Filtering
  19. Vibration Filtering
  20. R / Diameter Function

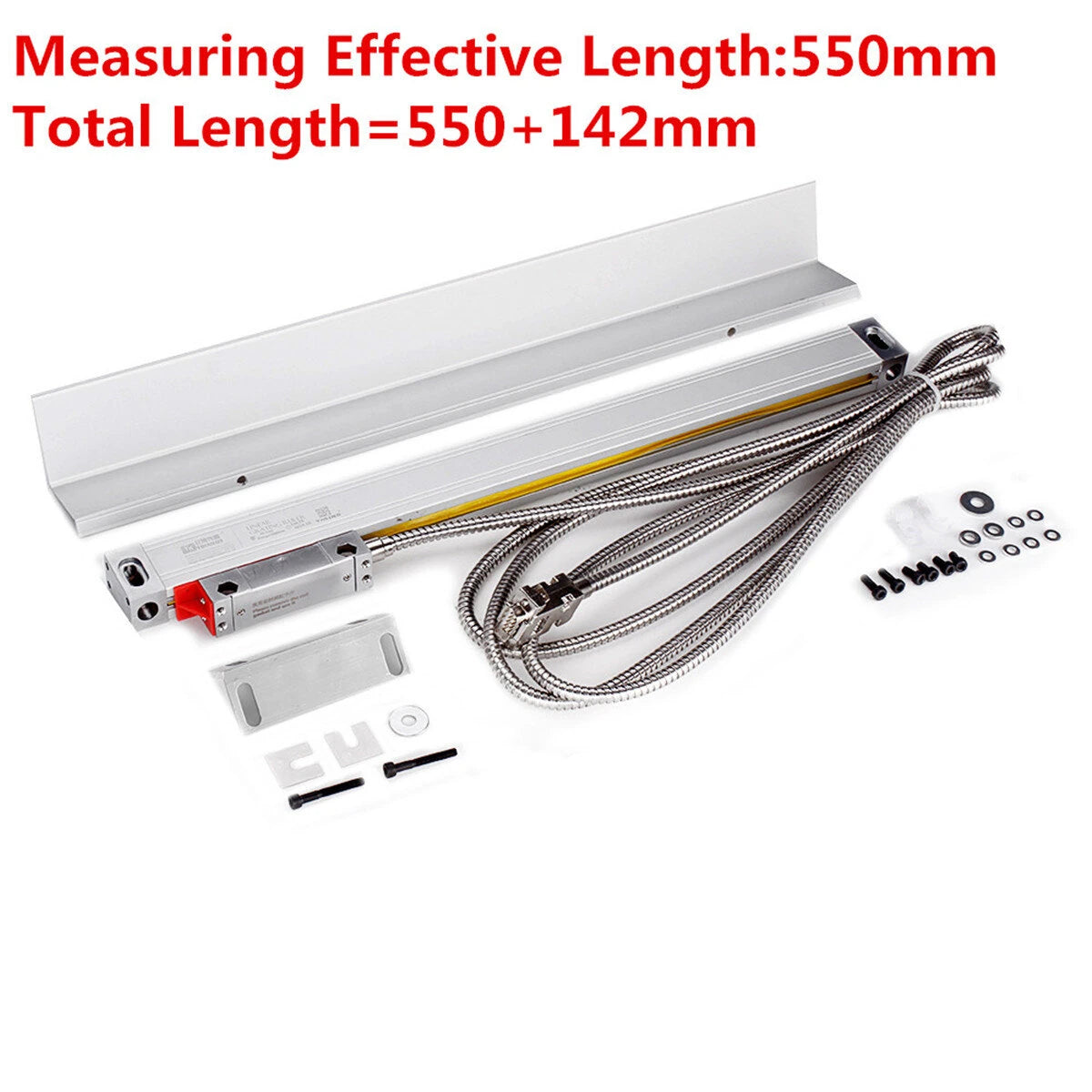

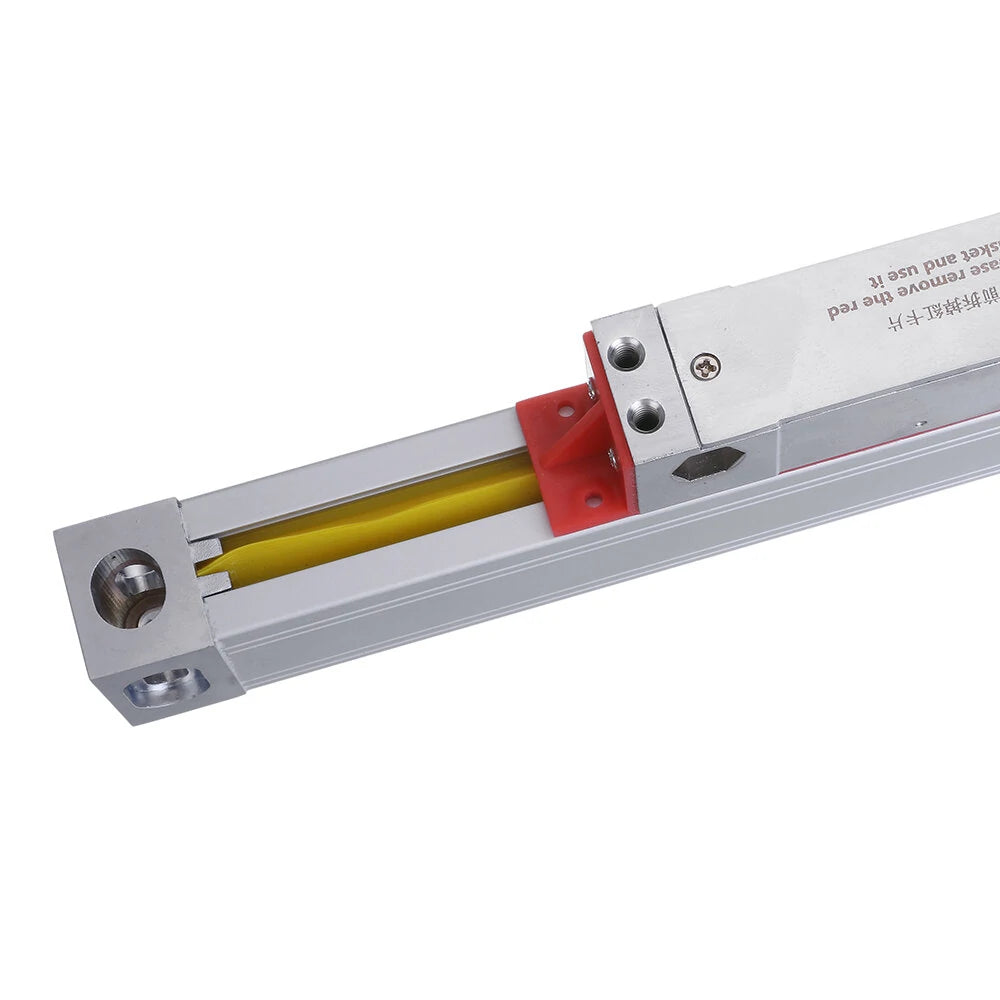

Linear Scale Specifications

  • Travel Length: 0-1000mm / 0-40 inch
  • Total Length: Travel Length + 142mm
  • Cable Length: 3 meters
  • Resolution: 0.005mm (5μ)
  • Grating Pitch: 0.02mm (50LP/min)
  • Protection Class: IP54

Features

Why Choose YH Digital Readout Systems?

  • Boost productivity, save time, and enhance precision
  • Easy to install on new or existing equipment
  • Compatible with any machine with manual axis slides
  • Data interface for additional processing or printouts

Benefits of 5μ YH Linear Encoders

  • Eliminates machine tool position errors
  • Stable long-term speed performance
  • Durable construction, resistant to vibration
  • Compact, lightweight, and easy to install
  • Available in sealed or enclosed designs

Package Contents

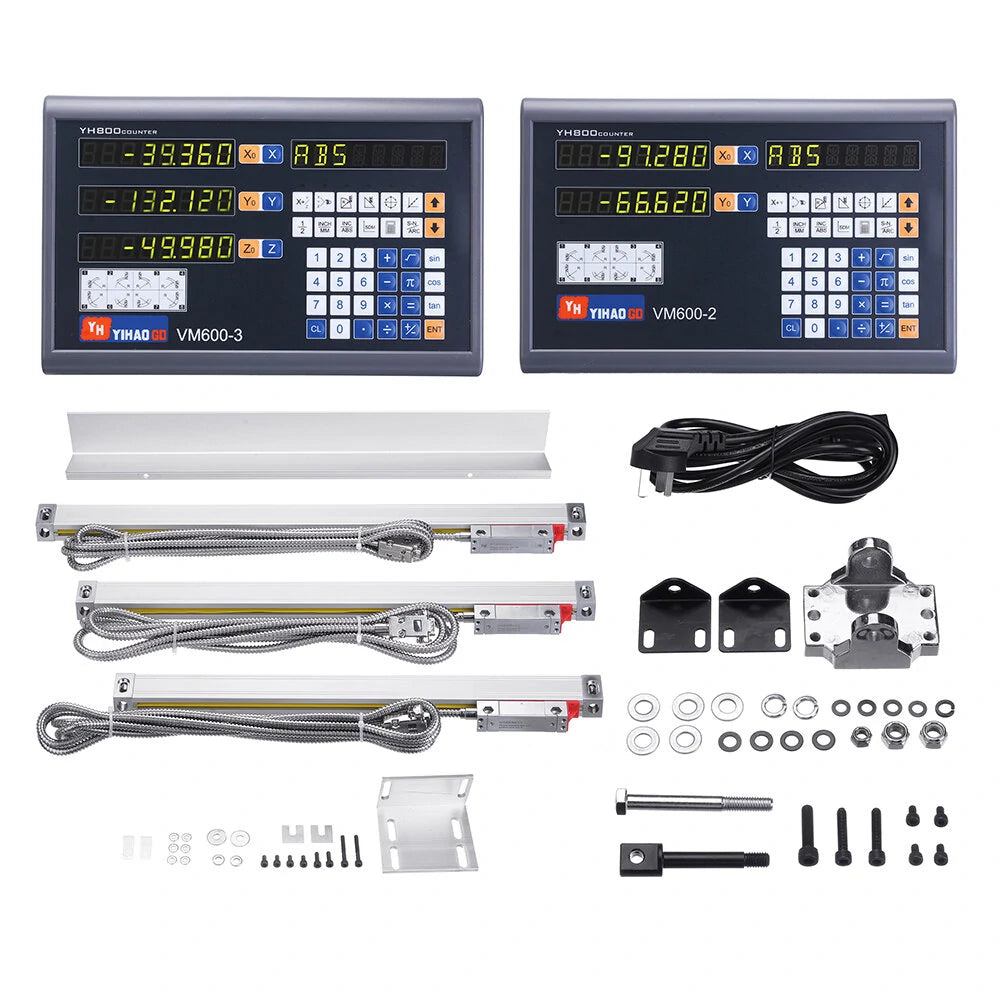

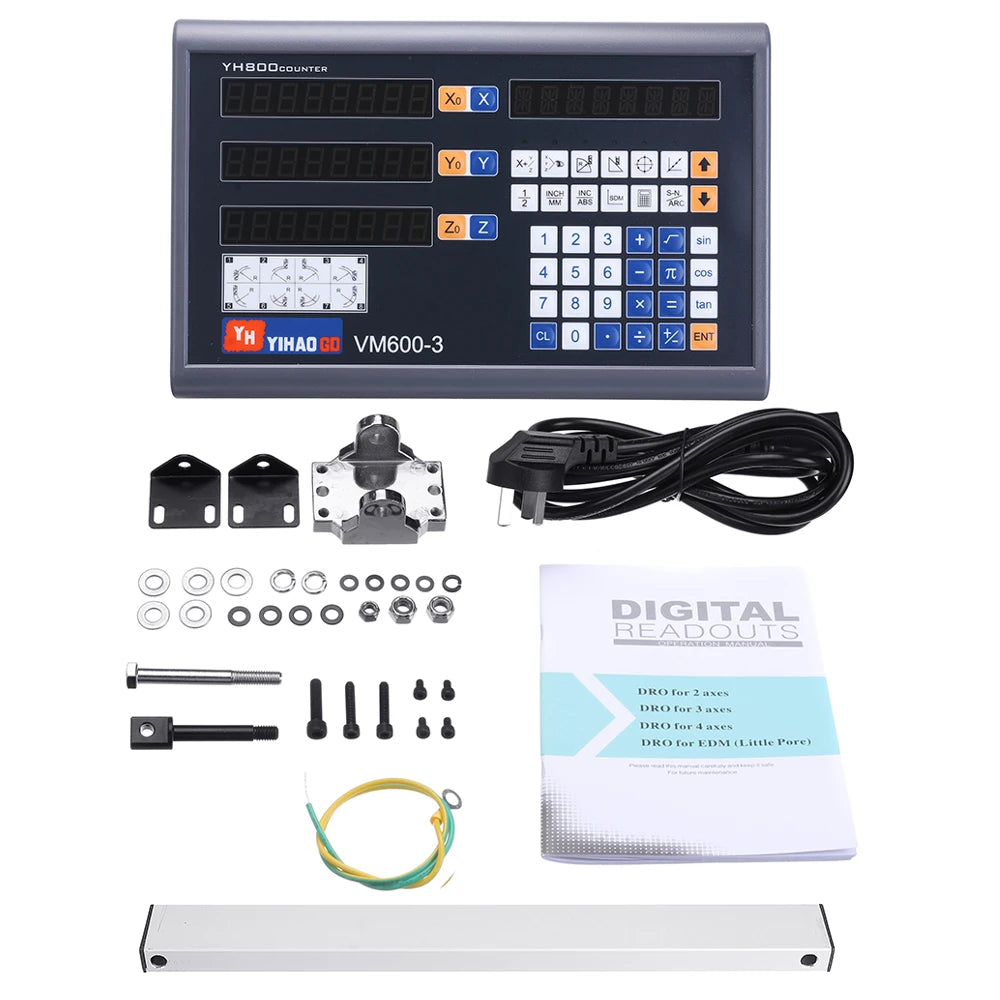

3 Axis Digital Readout Package Includes:

  • 1 x 3 Axis Digital Readout

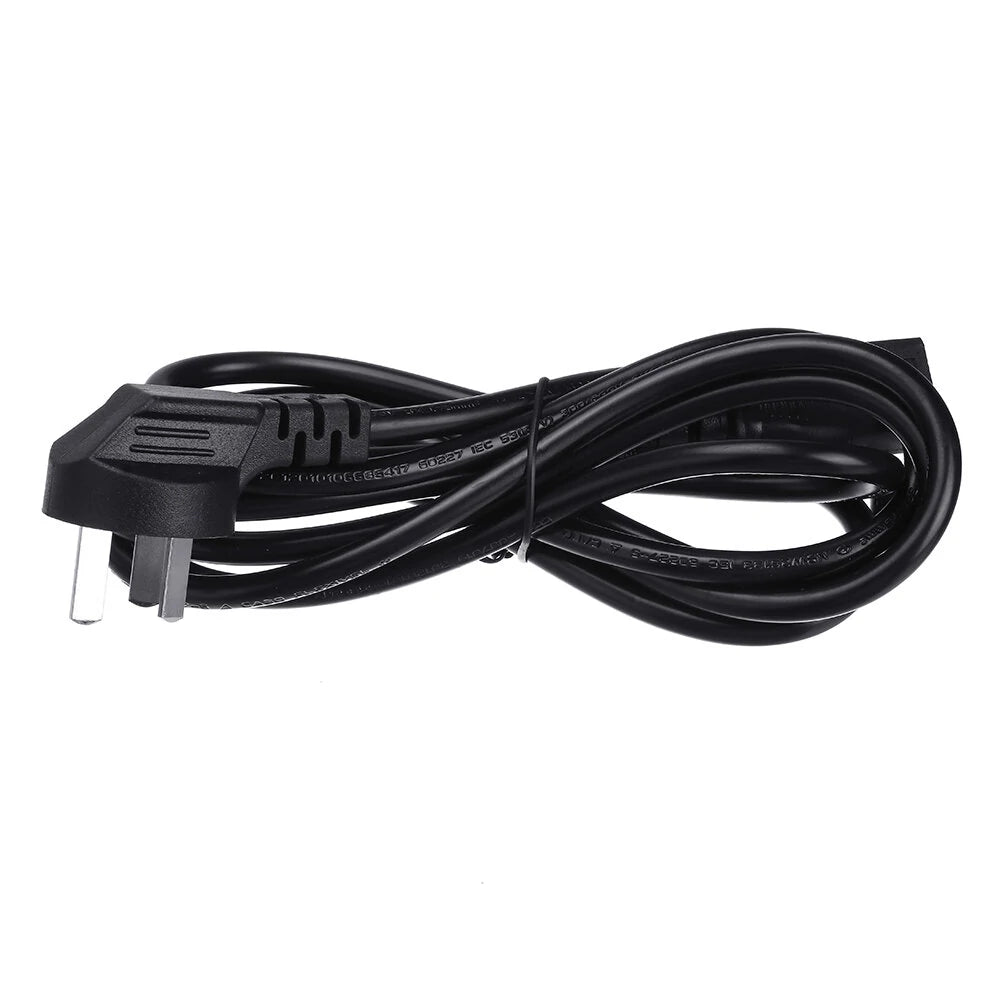

  • 1 x Power Cable with adapter
  • 1 Set of Bracket and Accessories
  • 1 x Manual

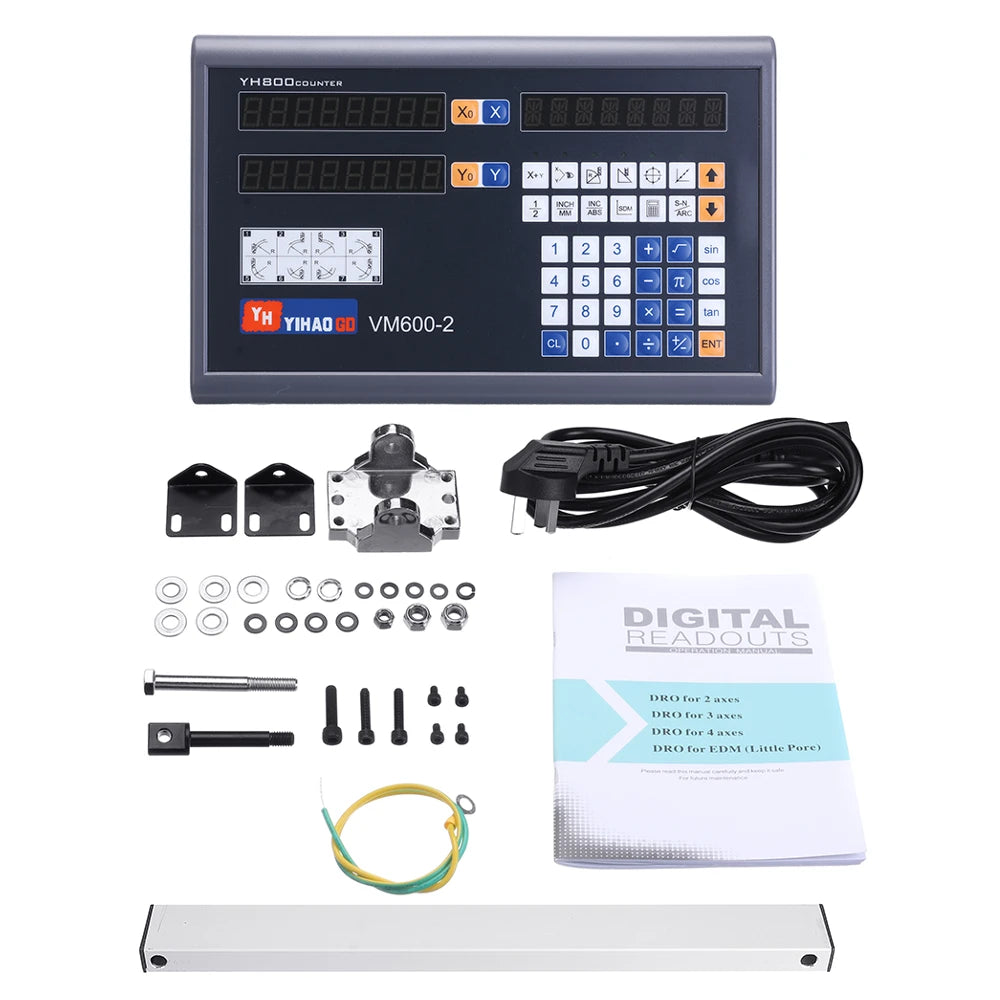

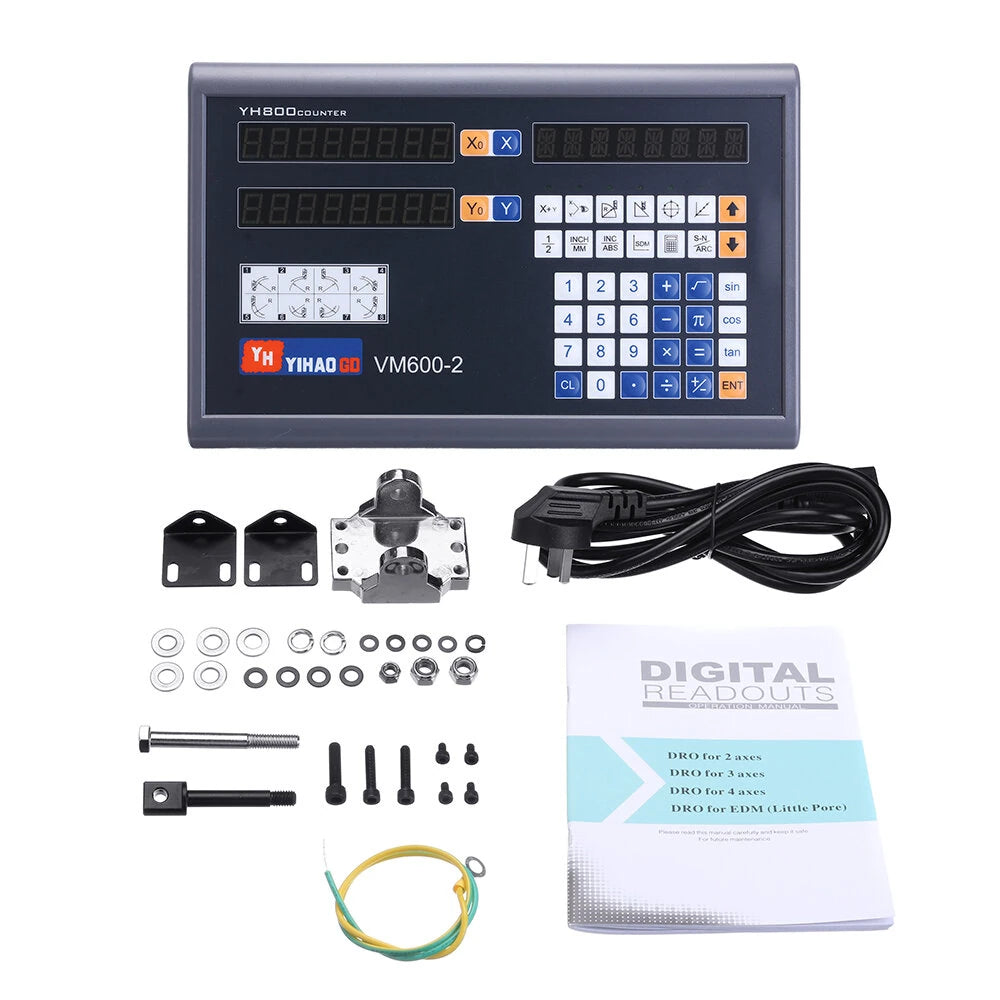

2 Axis Digital Readout Package Includes:

  • 1 x 2 Axis Digital Readout
  • 1 x Power Cable with adapter
  • 1 Set of Bracket and Accessories
  • 1 x Manual

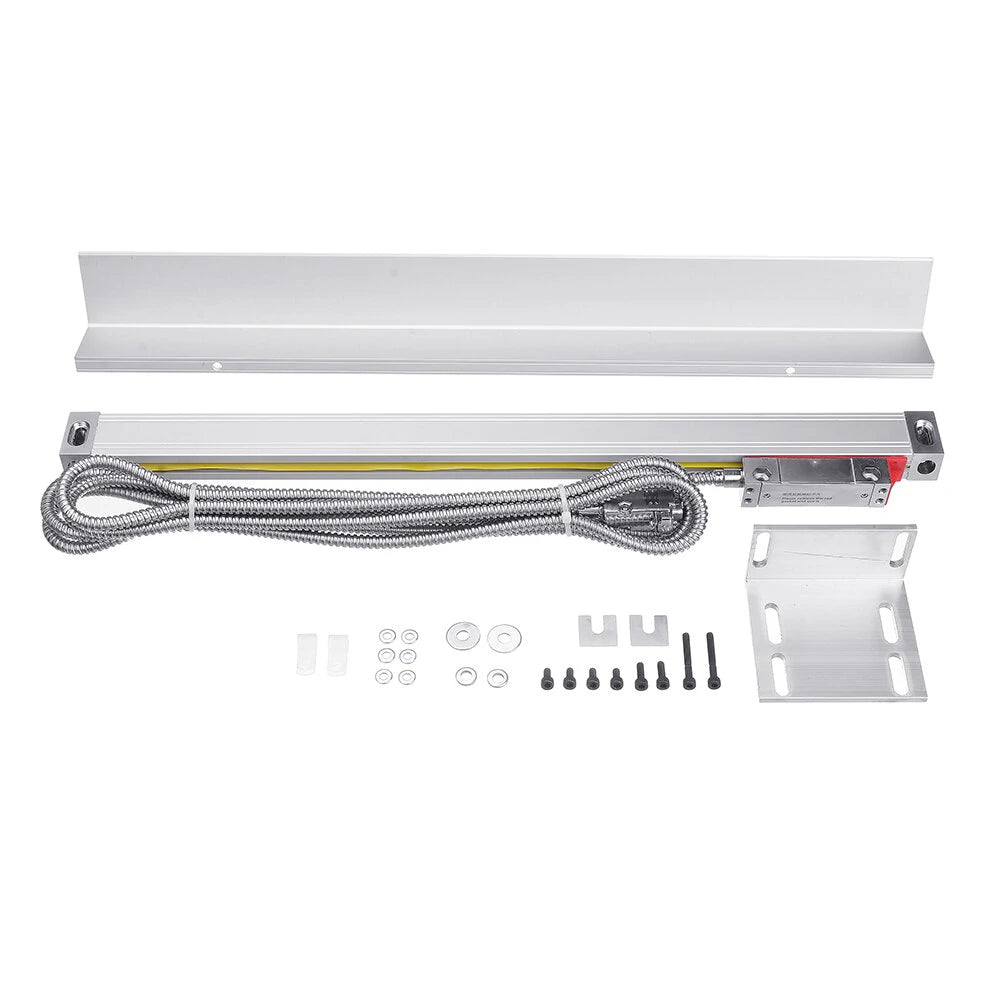

Linear Scale Package Includes:

  • 1 x Linear Scale
  • 1 x L-Plate
  • 1 x Bracket
  • 1 Bag of Screws
