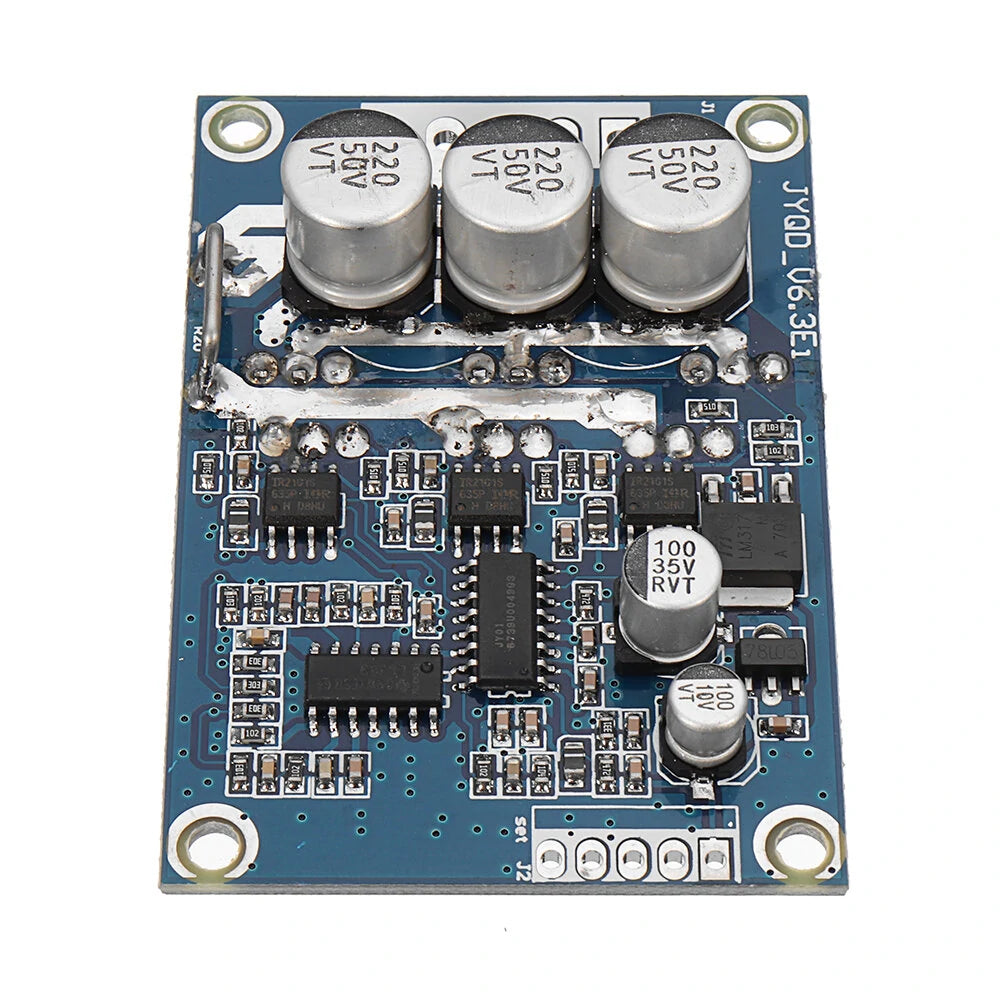

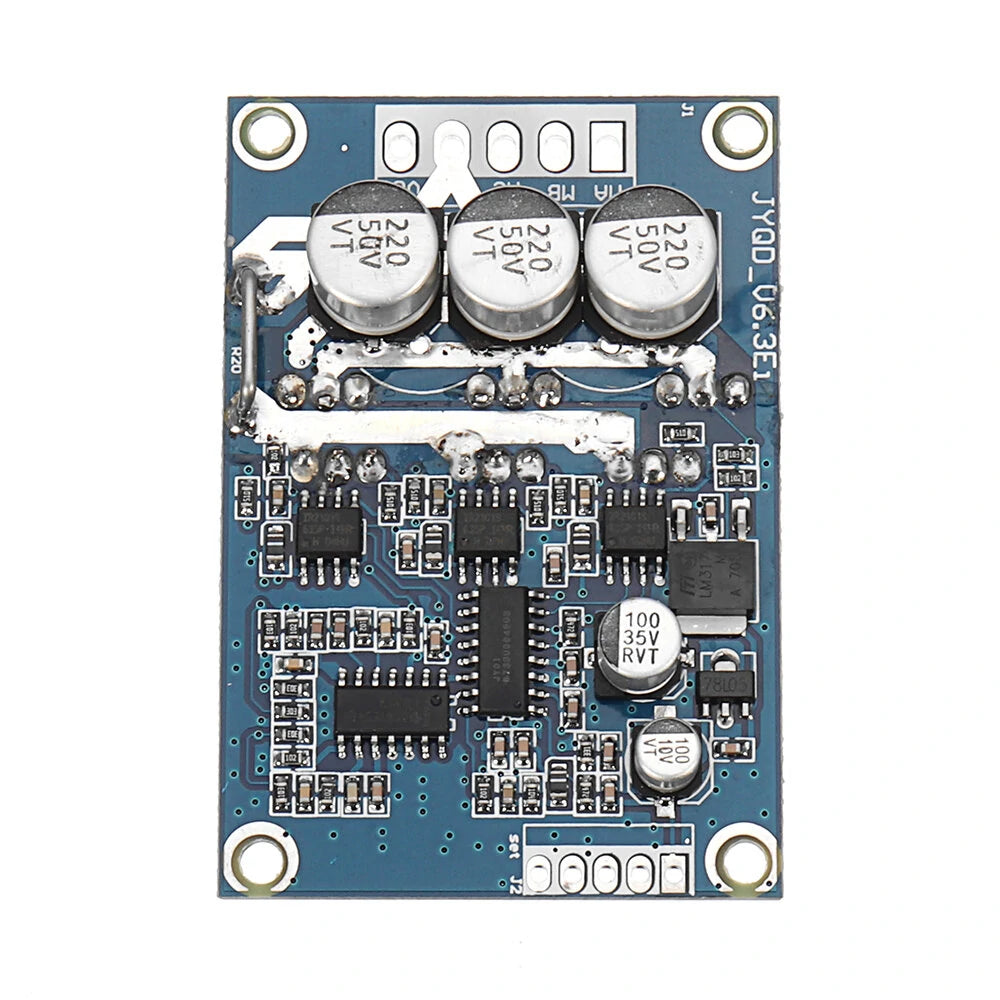

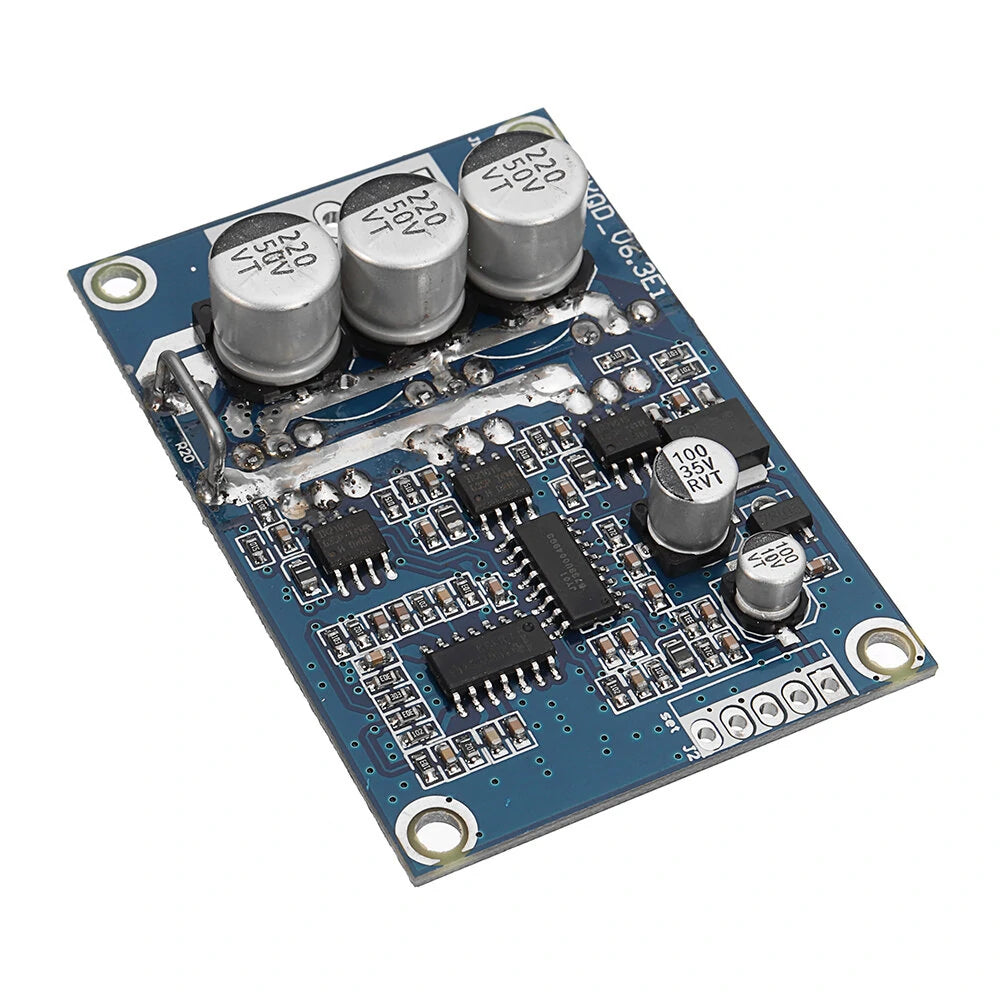

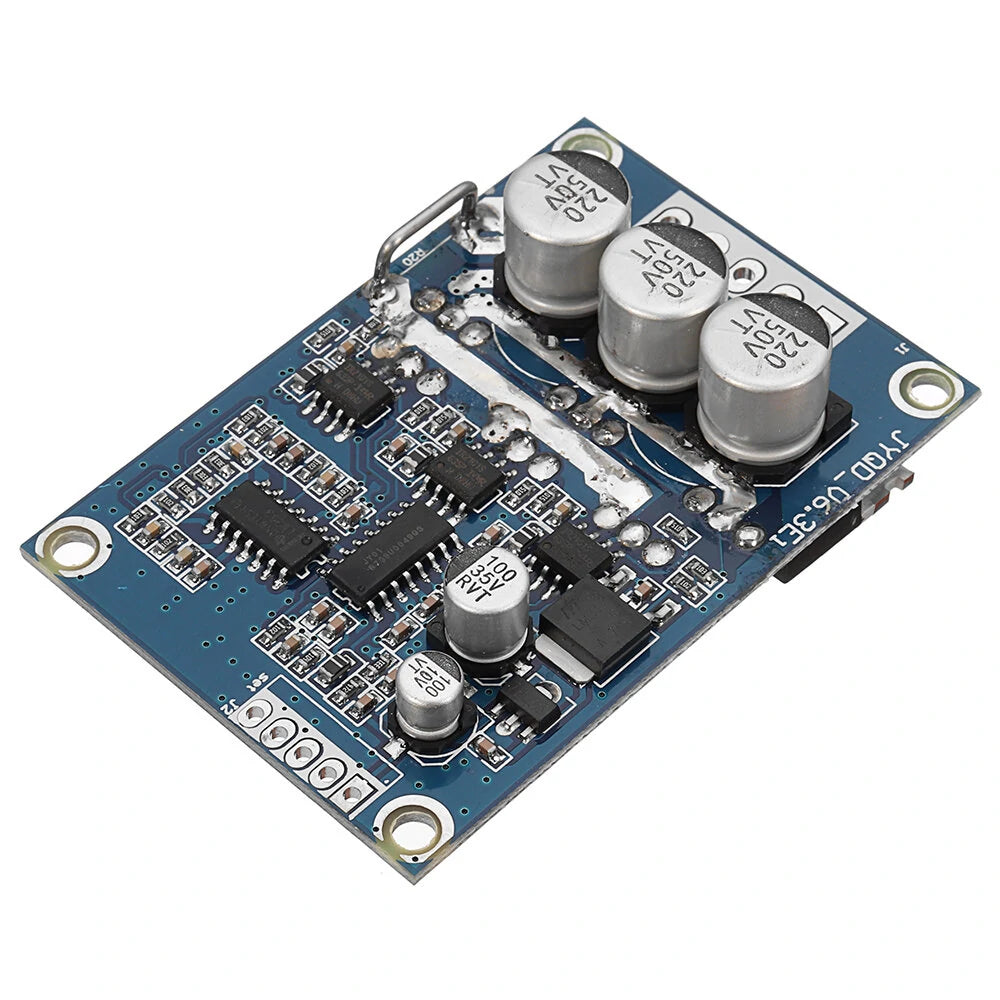

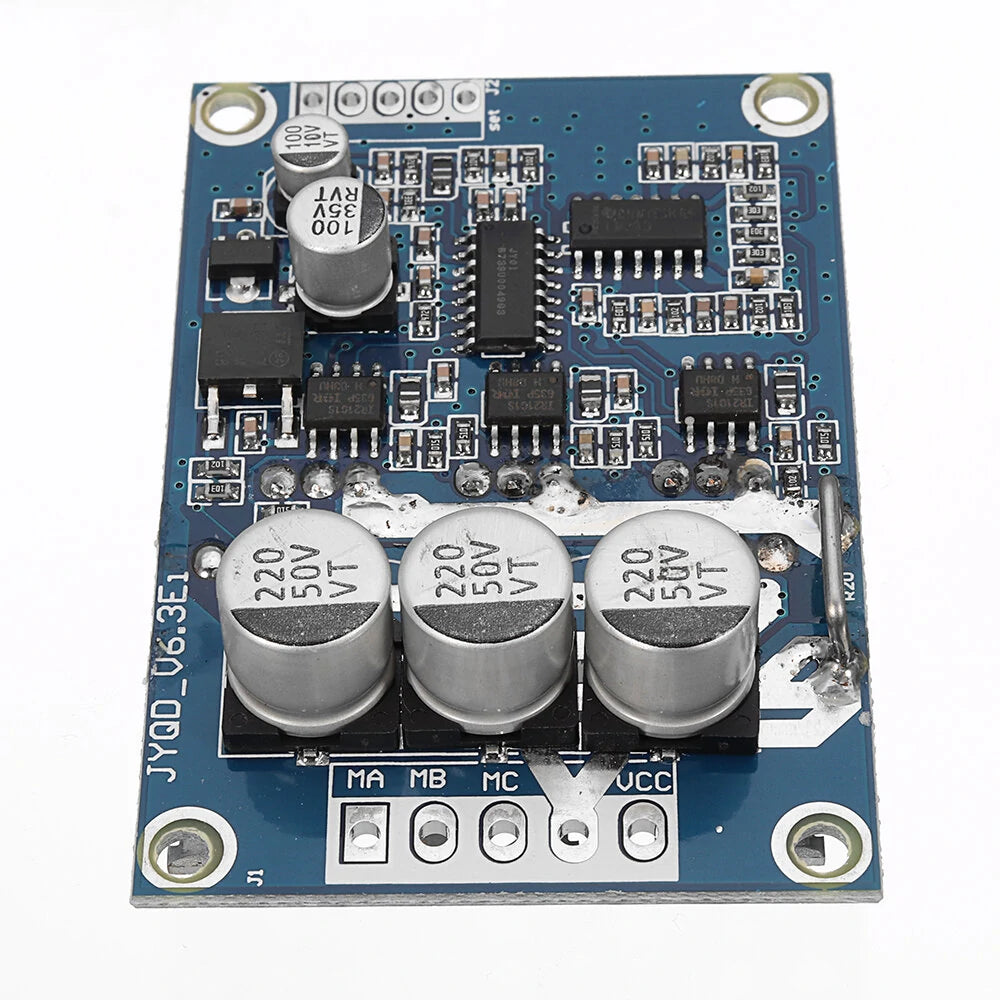

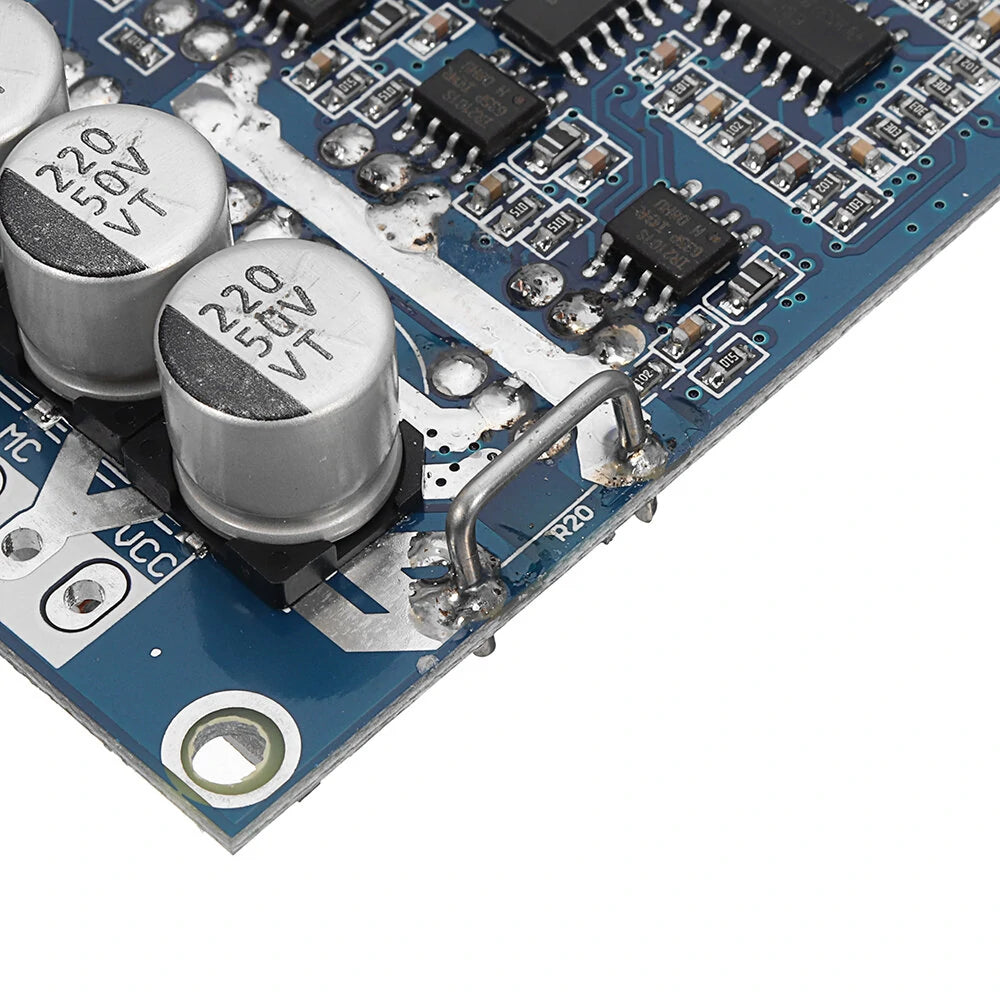

12V-36V 15A 500W BLDC Motor Controller with Stall & Over-Current Protection

Product Specifications:

• Operating Voltage: DC 12V-36V
• Speed Voltage: 0.1V-5V
• Operating Temperature: -40~85°C
• Humidity: 90%RH
• Protection Features:
  • Stall Protection: Yes
  • Over-current Protection: Yes
• Control Features:
  • Enable Control: Yes
  • Steering Control: Yes
  • Speed Control Signal: Yes
• Dimensions: 63mm x 42mm x 17mm (L x W x H)
• Probe Size: 3mm, Length: 57mm
• Width: Fixed hole center distance 36.5mm

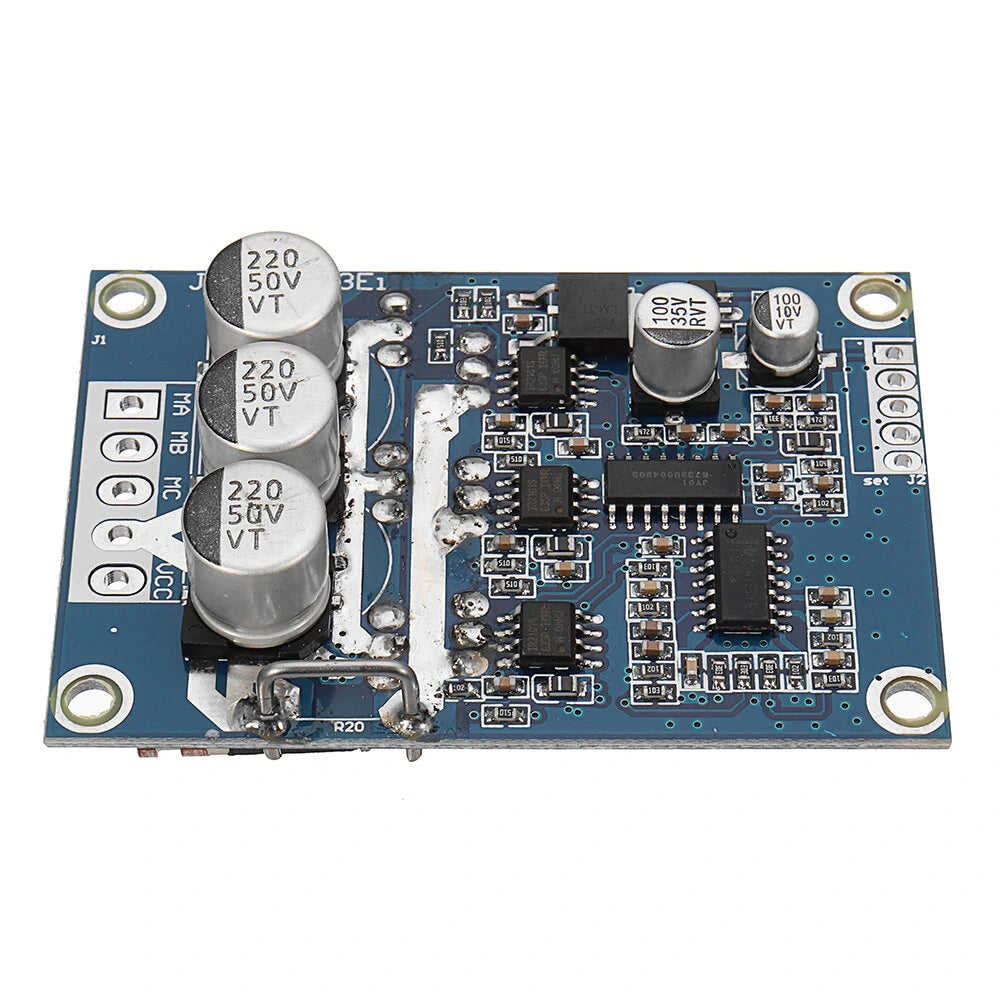

Power Terminal Outputs:

• VCC (Positive Power Supply)
• GND (Negative Power Supply)
• MC (Motor Phase W)
• MB (Motor Phase V)
• MA (Motor Phase U)

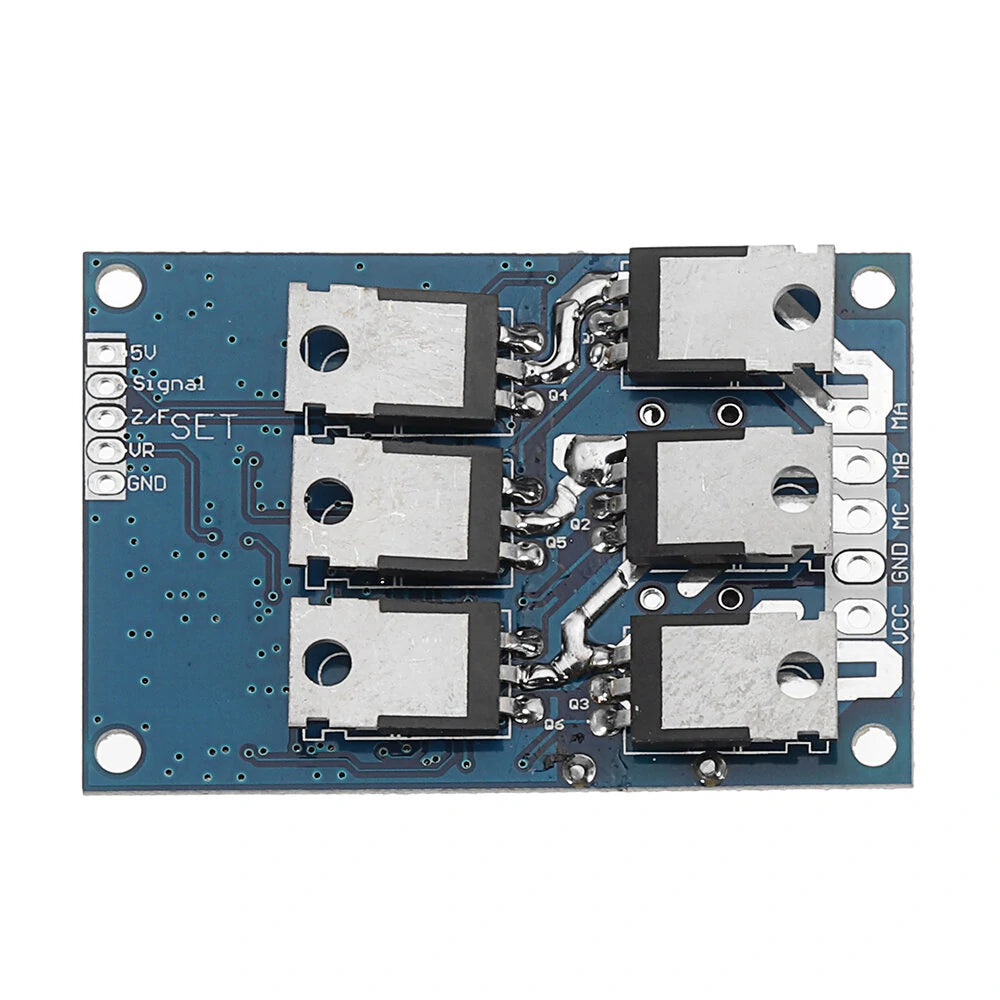

Control Terminal Setup:

• GND: Control Terminal Ground
• VR: Governor End 0-5V (10% - 100% Motor Speed)
• ZF: Reversing Control
• M: Tachometer Pulse Output
• EL: Enable Control Terminal
• 5V: 5V Control Terminal

Set Control Instructions:

1. Motor Speed Control: Use a potentiometer or MCU control. Connect the middle pin of the potentiometer to the VR speed port. Ends connect to 5V and GND for faster speeds.
2. Motor Steering Control: Switch or MCU control is available. Connect to GND or 5V for directional control.
3. Speed Signal Output: Provides high and low pulse outputs. Not suitable for IC without proper understanding.

Additional Information:

• Motor driver board requires 12-36V DC input. Connect VCC to positive and GND to negative power supply.
• For brushless DC motors with three lines, connect to MA/U, MB/V, and MC/W appropriately.

Tips for Optimal Use:

• If using below 60W, no additional heat sink is necessary. Above 60W, ensure a heat sink is used to prevent permanent damage.
• Recommended cooling surface area is greater than 200 square centimeters.

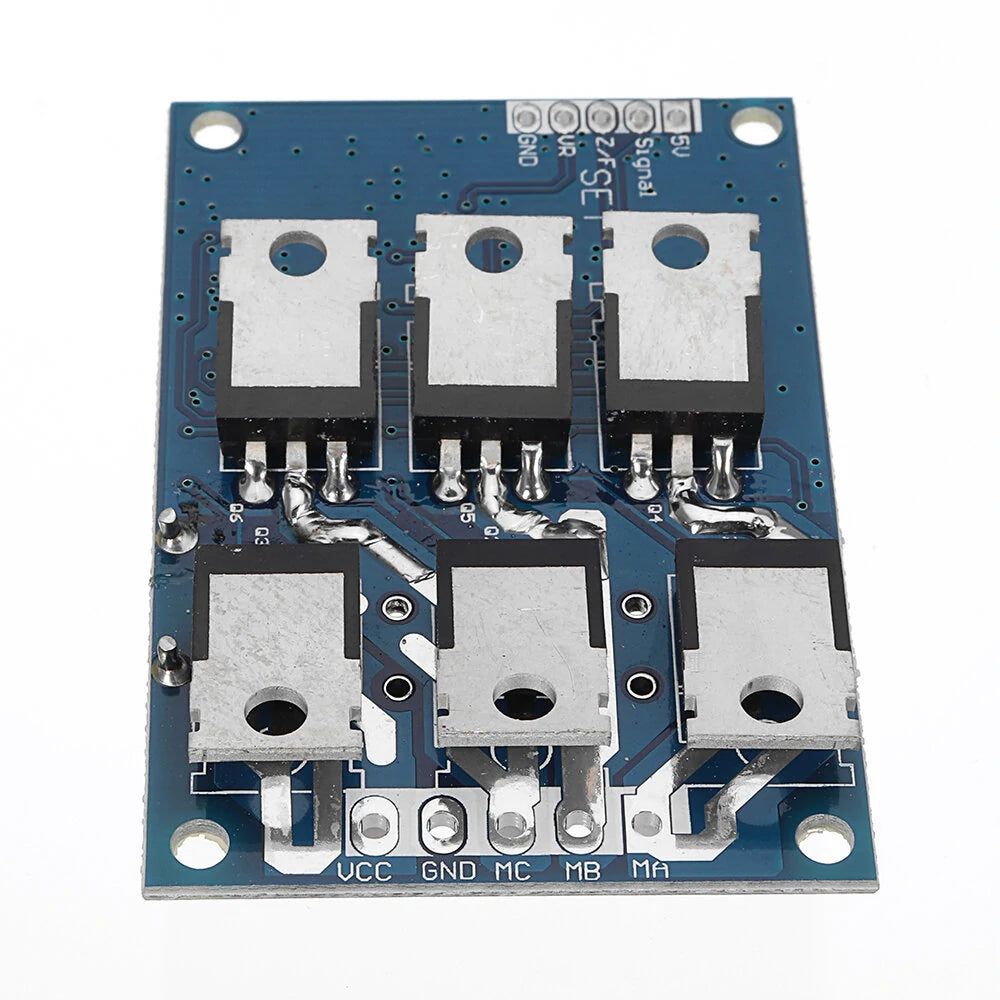

• When installing a heat sink, ensure proper insulation of the module's MOS pipes with insulation films and thermal grease to avoid damage.

Package Includes:

• 1 x 12-36V 500W Brushless Motor Controller
