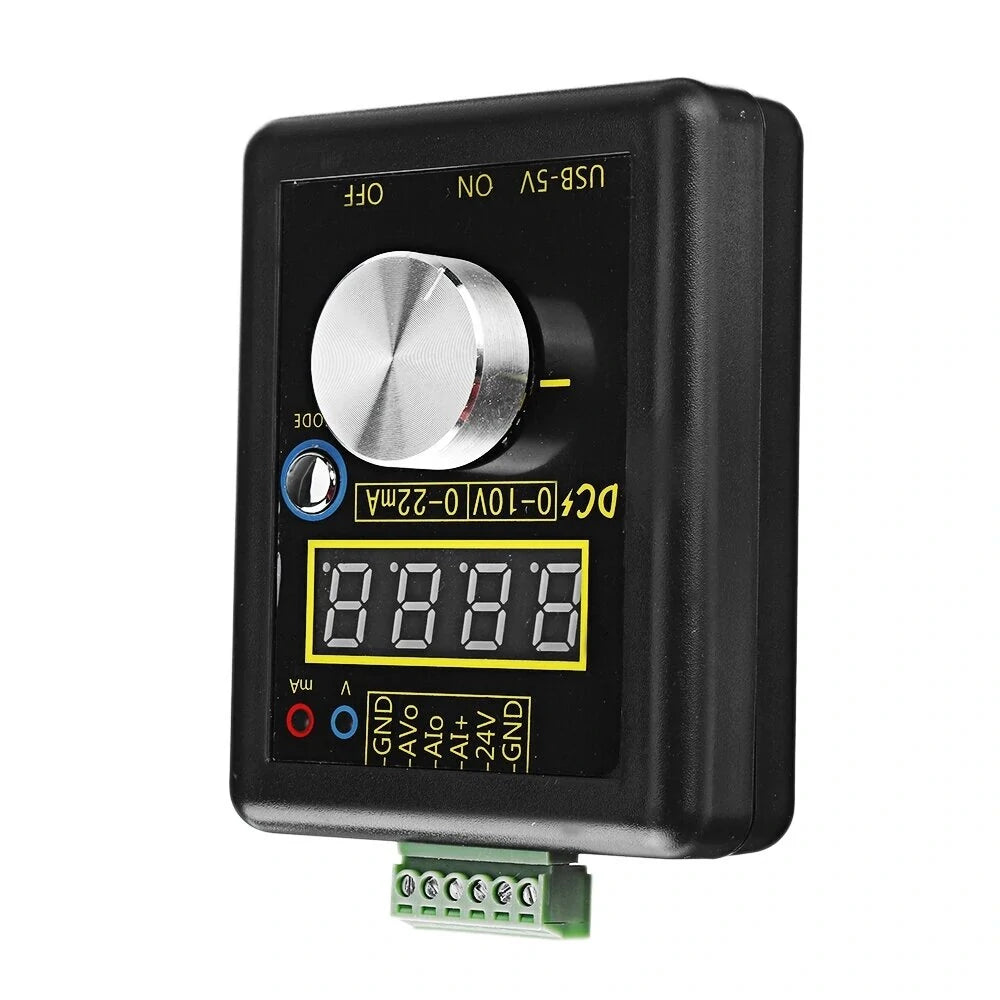

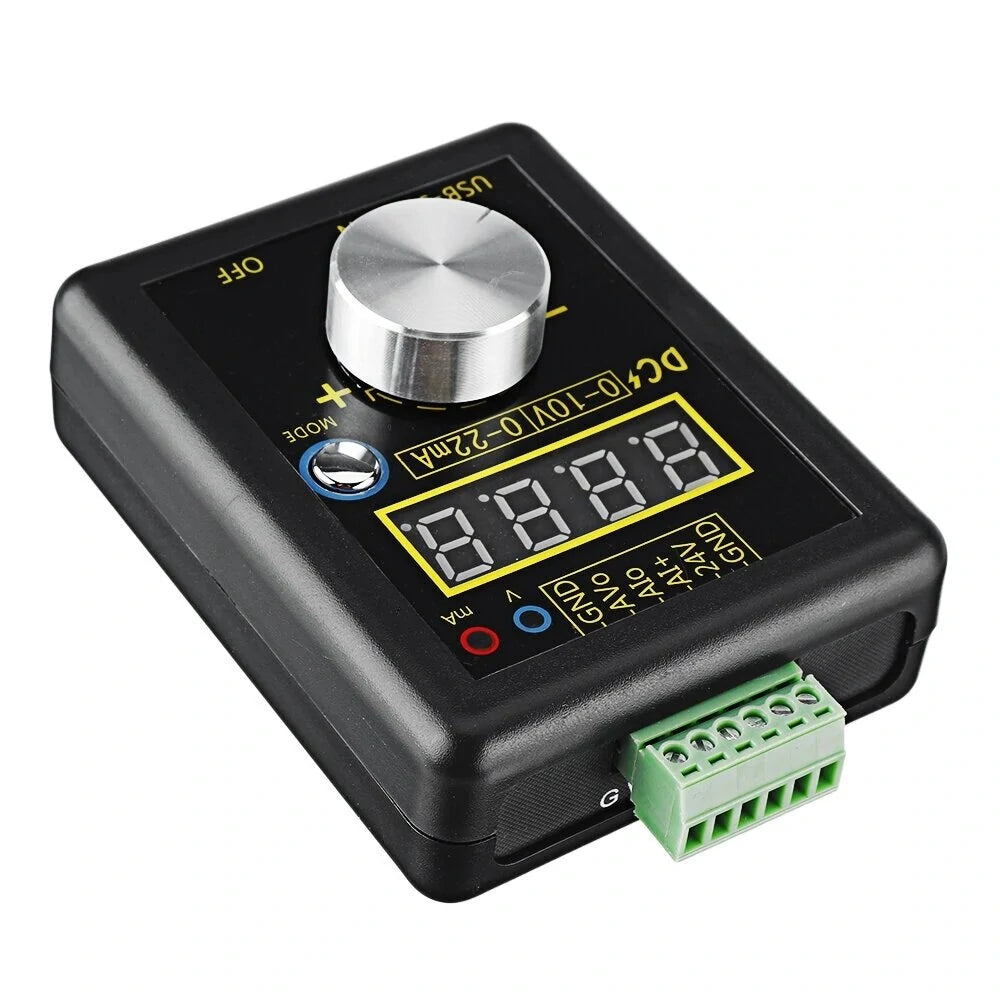

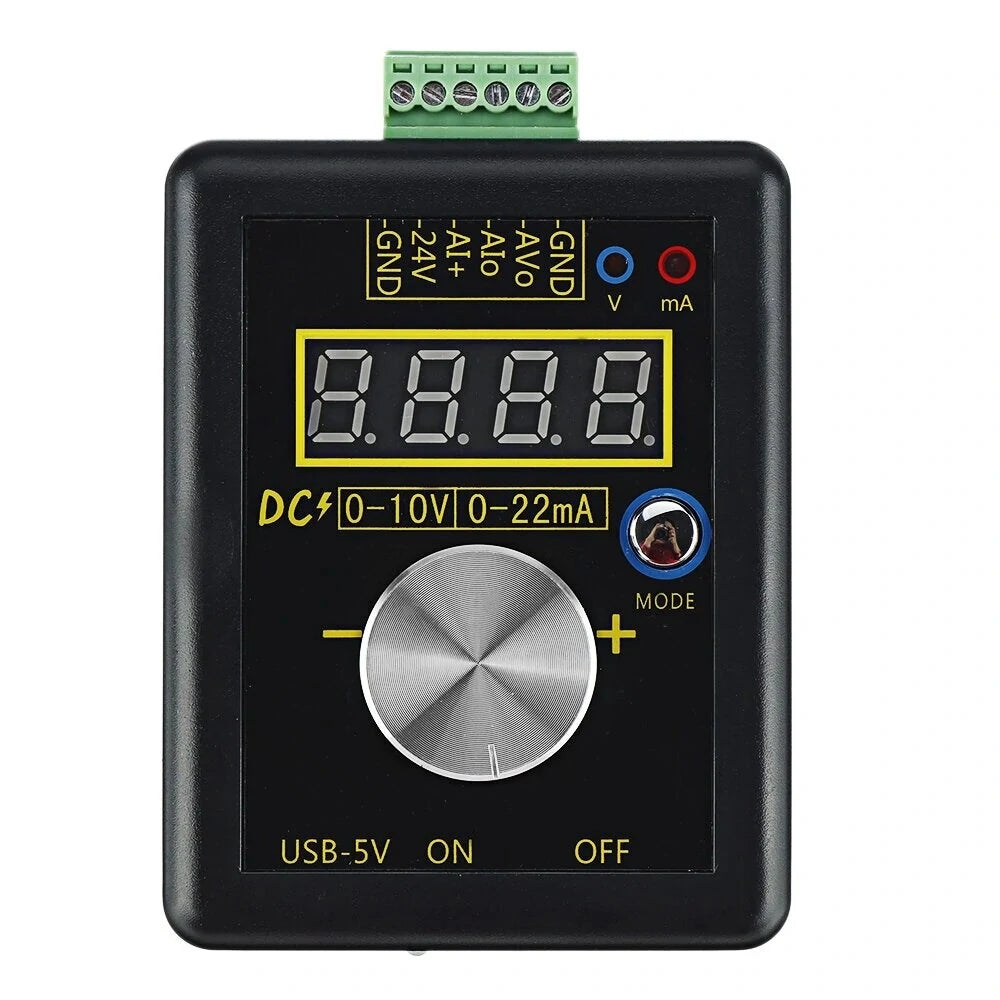

FNIRSI SG002 Digital Voltage & Current Signal Generator 4-20mA 0-10V Professional Measuring Instrument

Purchase Now: Built-In Lithium Battery Style Voltage & Current Generator

Features:

• This voltage and current signal generator is an essential tool for electrical engineers and technicians during onsite installation, commissioning, overhaul, and maintenance of electrical equipment.

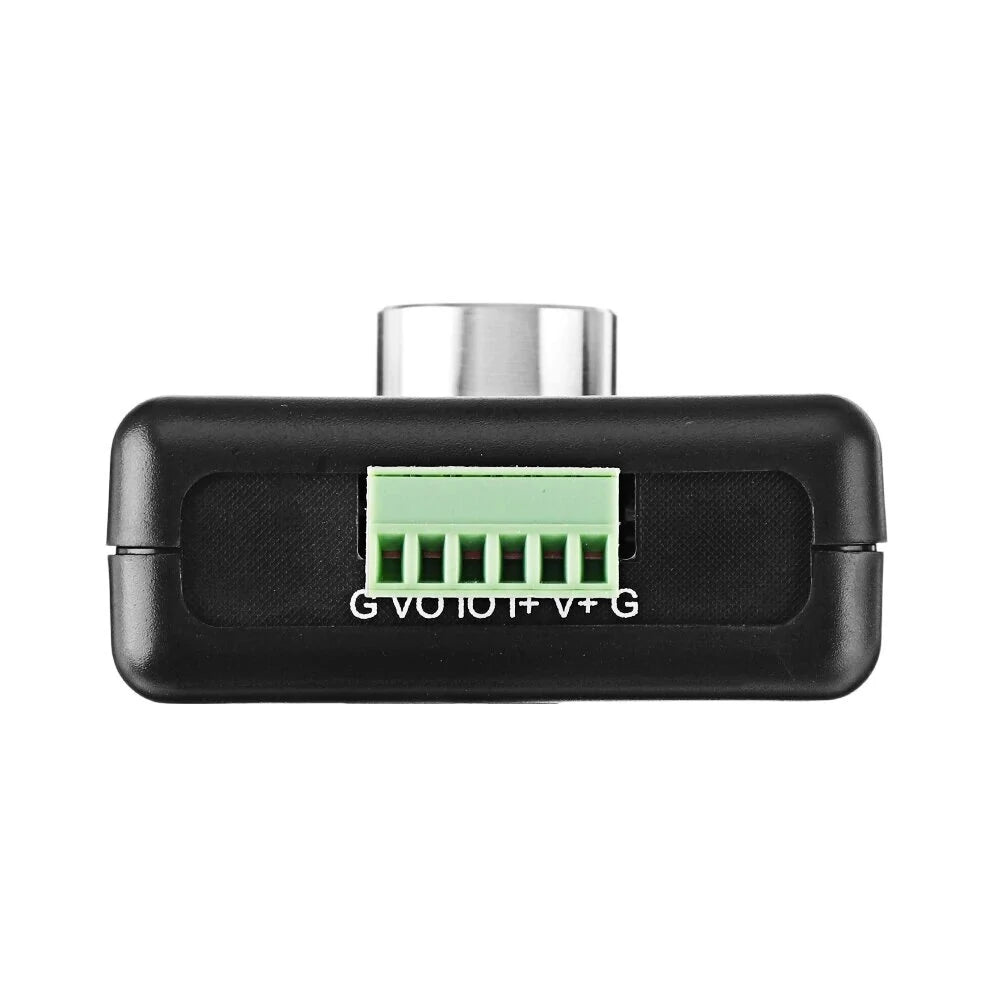

• Features pluggable terminal blocks for safe and convenient wiring.
• Includes a 4-digit high-definition digital tube with adjustable display brightness, ranging from 1-8.
• Designed with an aluminum knob cap, electroplated button, high-quality film, charging indicator, and battery switch for enhanced usability.
• Offers two power supply methods: external power supply or DC5V micro USB. Both can be used simultaneously for continuous operation.
• Compatible with DC 15-30V external power supply, sharing a power source with PLC and other equipment.
• The MicroUSB universal interface can connect to mobile power, chargers, computers, and more.
• Easily save voltage and current settings on the normal operation screen. Simply click the encoder, and the saved value will display automatically upon the next startup, eliminating the need for repeated adjustments.
• Compact and portable design makes it the ideal choice for on-site debugging.

Specifications:

• Material: ABS
• Color: Black
• Voltage Output: ±12V
• Current Output: 0-24mA
• Charging Method: External Power Supply, DC5V Micro USB
• Size: Approximately 89 x 69 x 28mm (3.5 x 2.7 x 1.1in)
• Packing Size: Approximately 90 x 70 x 38mm (3.5 x 2.8 x 1.5in)
• Weight: Approximately 95g (3.4oz)

Packing List:

• 1 x Voltage and Current Generator (Battery Not Included)
