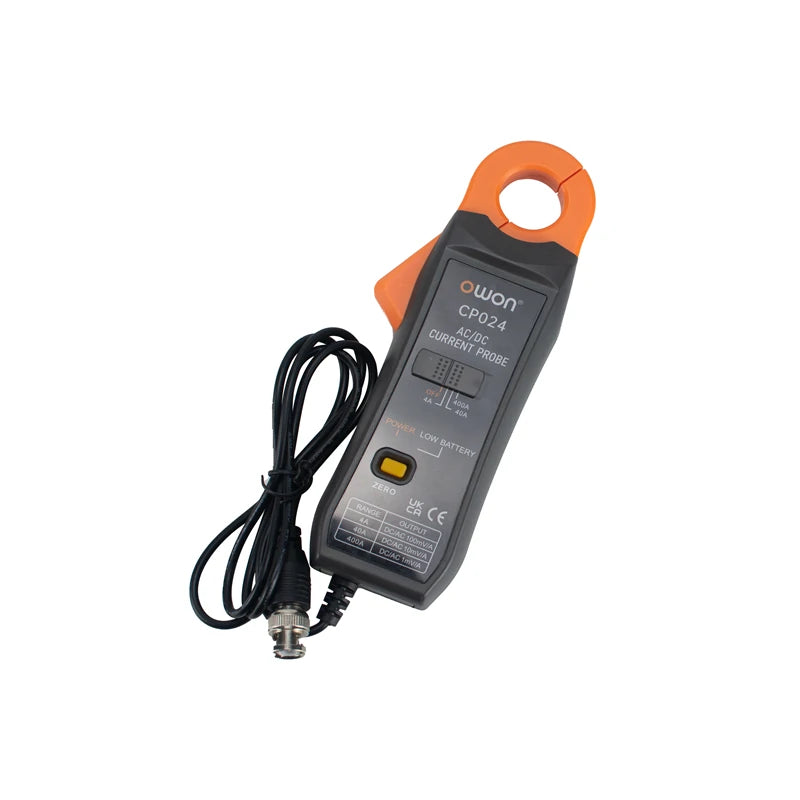

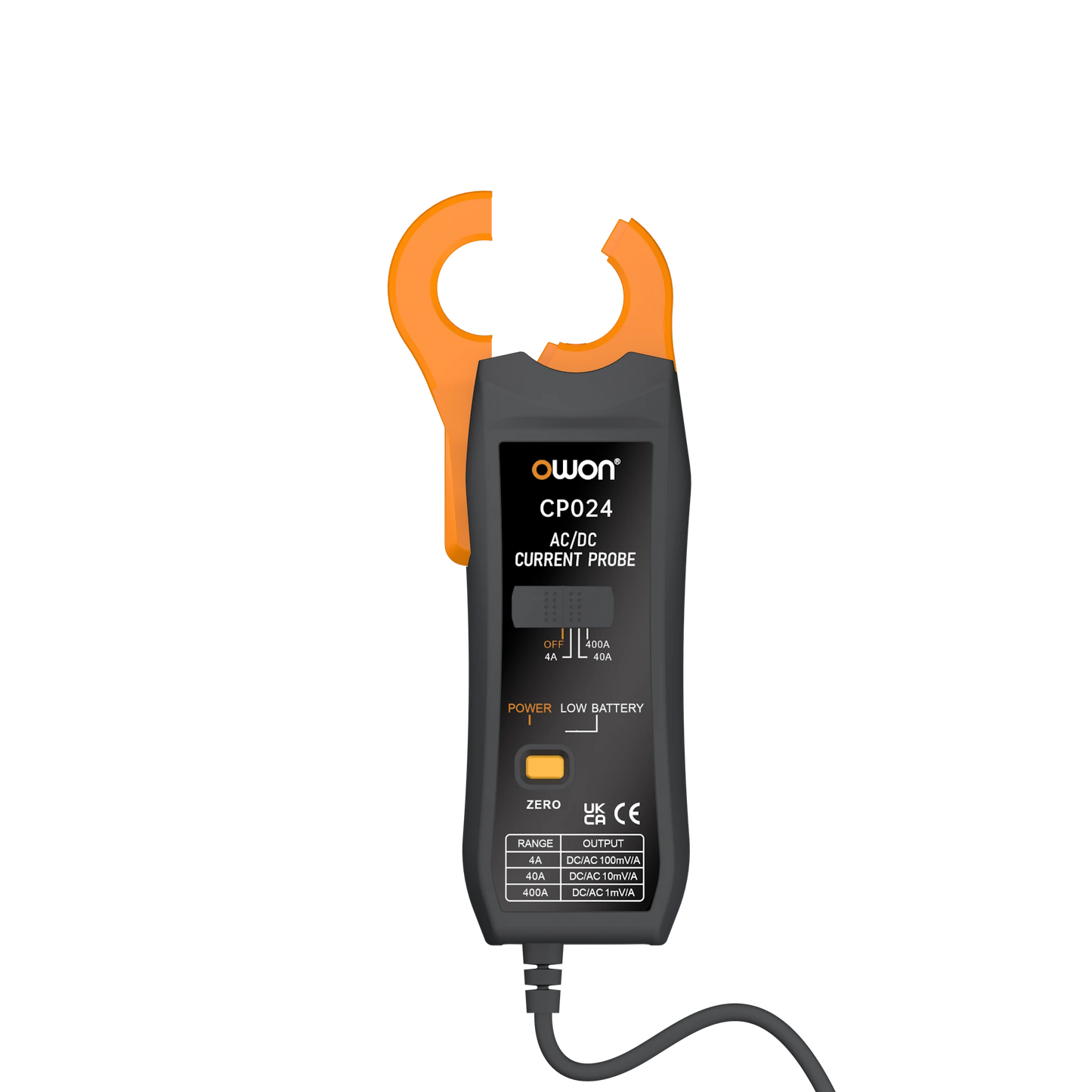

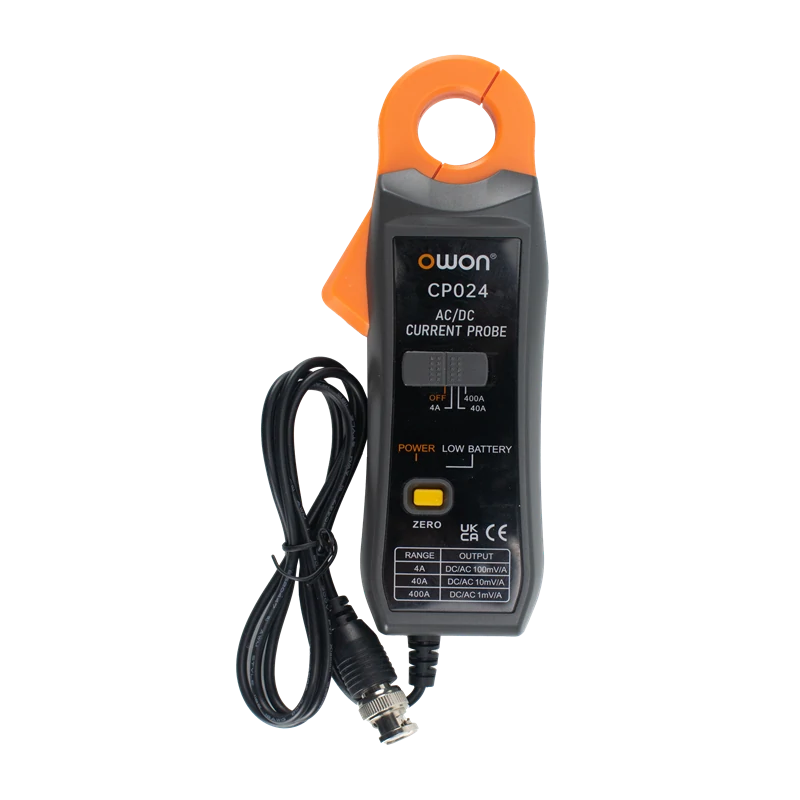

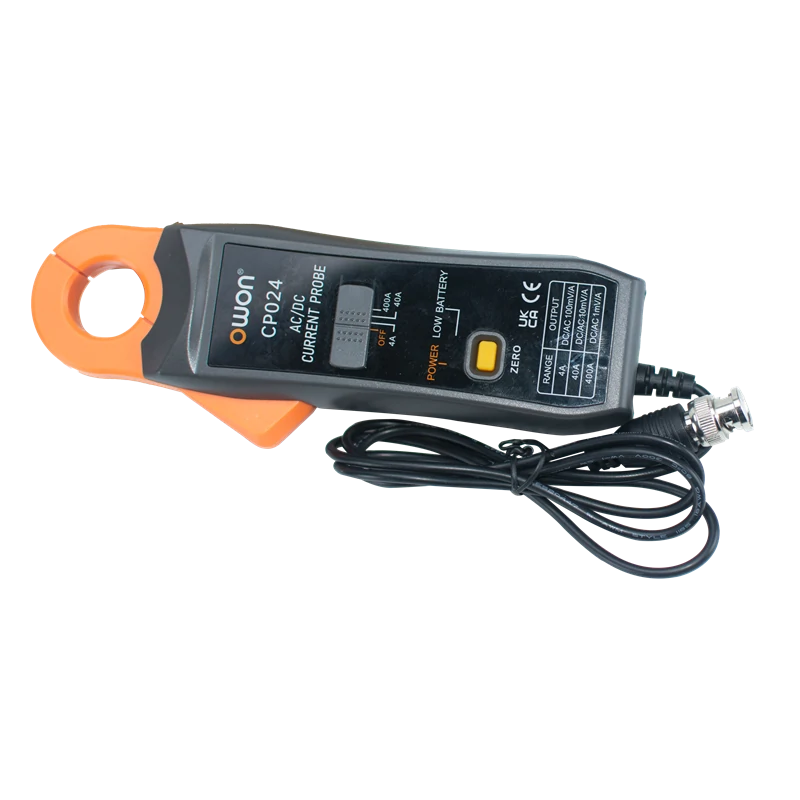

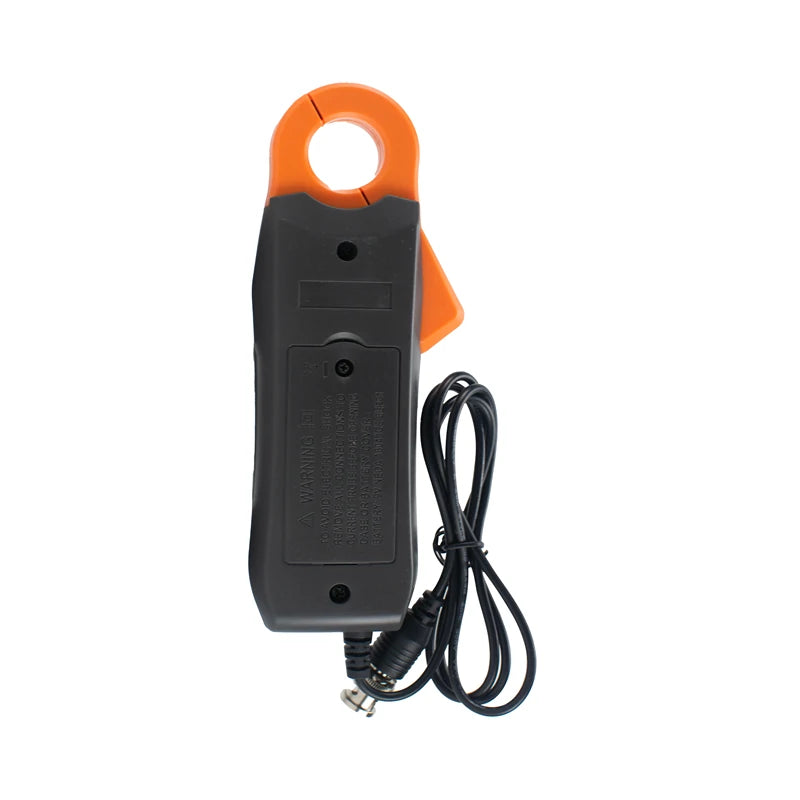

OWON CP024 Upgraded AC/DC Current Clamp Probe Tester, 200KHz 400A Bandwidth Oscilloscope Accessory

Description:

Introducing the AC/DC Current Clamp Probe - CP024, a versatile tool designed to meet all your current measurement needs. With a test range from 1mA to 400A, this probe offers precision and reliability.

Key Features:

• Wide Bandwidth: DC 200KHz (-3dB)
• Minimal Error by Earth Magnetic: ± 30mA max
• Remanence (±100A to 0A): ± 30mA max
• Jaw Size: 23mm (Max)
• Auto Zero at Power On
• Low Battery Indication

Specifications:

DC Current

Range	Sensitivity	Accuracy
DC 4A	1 mV/10 mA	±(1.5%rdg±5d)
DC 40A	1 mV/0.1A	±(1.5%rdg±5d)
DC 300A	1 mV/1A	±(1.5%rdg±5d)
DC 300~400A	1 mV/1A	±(3.0%rdg±5d)

AC Current

Range	Sensitivity	Accuracy
AC 4A	1 mV/10mA	±(2.0%rdg±5d)
AC 40A	1 mV/0.1A	±(2.0%rdg±5d)
AC 300A	1 mV/1A	±(2.0%rdg±5d)
AC 300~400A	1 mV/1A	±(3.0%rdg±5d)

General Specifications:

• Power Supply: 9V (6LR61) Battery (Not included)
• Dimension (W*H*D): 180 x 68 x 32 mm
• Device Weight: About 250 g
• Operating Temperature: 0℃ to 50℃, ≤70%RH

Package Includes:

• 1 x CP024
• 1 x Quick Guide
• 1 x Soft Bag
• 1 x Manual
