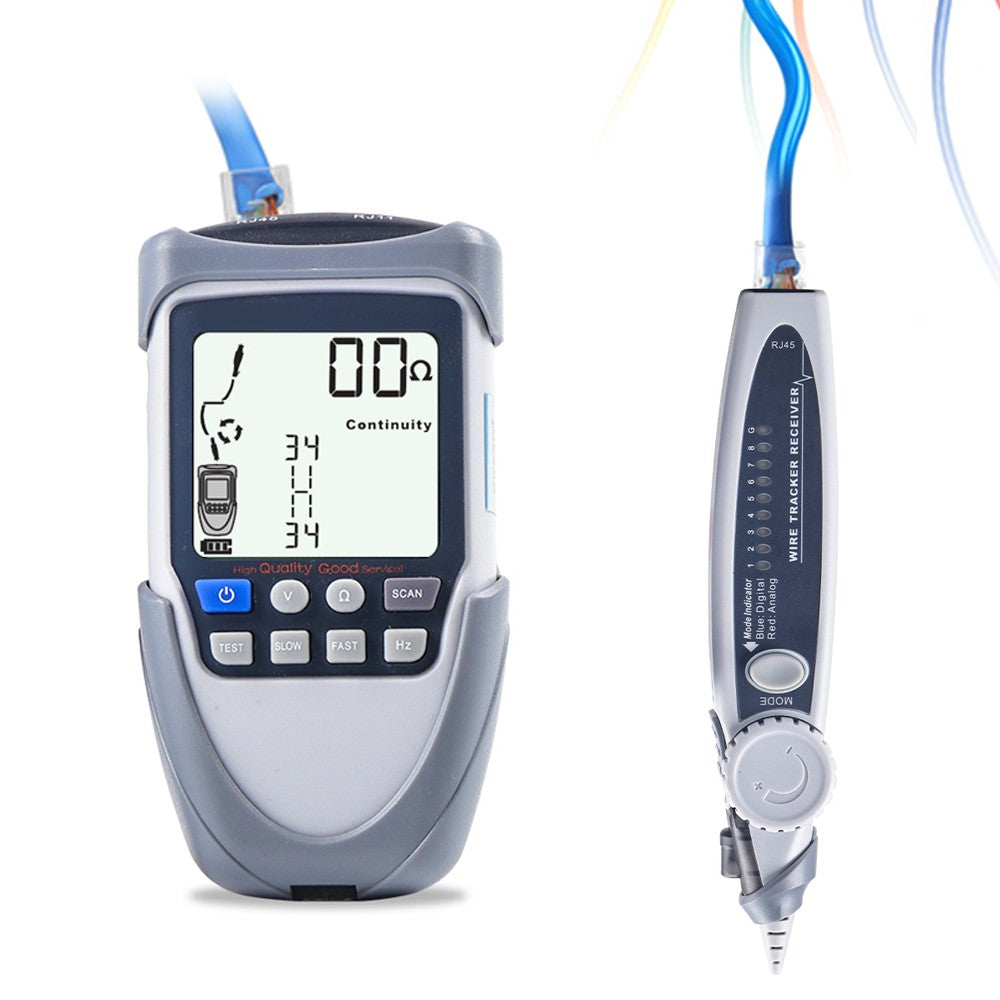

Handheld Portable Network Cable Tester

The Handheld Portable Network Cable Tester is an essential tool for communication professionals and maintenance personnel. This device allows you to quickly and efficiently identify the cable you need from a vast tangle of wires. Widely applicable in telephone systems, computer networks, video networks, optical communication, and various metal wire applications, this tester is designed to meet your needs and exceed expectations.

Key Features

• LCD Display: An easy-to-read LCD display ensures clarity in data viewing. Choose from three operational modes: POE, digital, or analog.
• POE Testing: Test both standard and non-standard POE devices, including POE voltage, power supply polarity, and power mode.
• Voltage Testing: Activate with "V" to measure battery voltage and polarity. Press again to switch to POE test mode for POE line and voltage measurements.
• Adjustable Sensitivity: Fine-tune the sound gear for precise data depending on signal strength.
• LED Flashlight: Utilize the built-in flashlight to operate efficiently in dim or dark environments.

Specifications

• Material: ABS
• Type: ET612/ET613 (optional)
• Power:
  • Transmitter: 3 AA batteries (not included)
  • Receiver: 9V battery (not included)
• Analogue cable tracing: Yes
• Digitalized cable tracing: Yes
• Tracking cables with PoE support: Yes
• Identify wire pairs & quality of wire connections: Yes
• Battery voltage polarity checking: Yes
• Battery Voltage measurement (for reference only): Yes
• PoE voltage polarity checking: Yes
• PoE Voltage measurement (for reference only): Yes
• Split pair: Yes
• Breakpoint checking: Yes
• Continuity test: Yes
• Tracing signal transmission distance: 3Km
• Output signals level: ~15Vp-p
• Vibration indication: Only ET613
• Flashlight: Yes
• Loudness adjustable: Yes
• Low battery indicator: Yes

Package size: 220 x 148 x 50mm / 8.7 x 5.8 x 2.0in

Package weight: 389g / 13.7oz

Package Includes

• 1 Transmitter
• 1 Receiver
• 3 Cables
