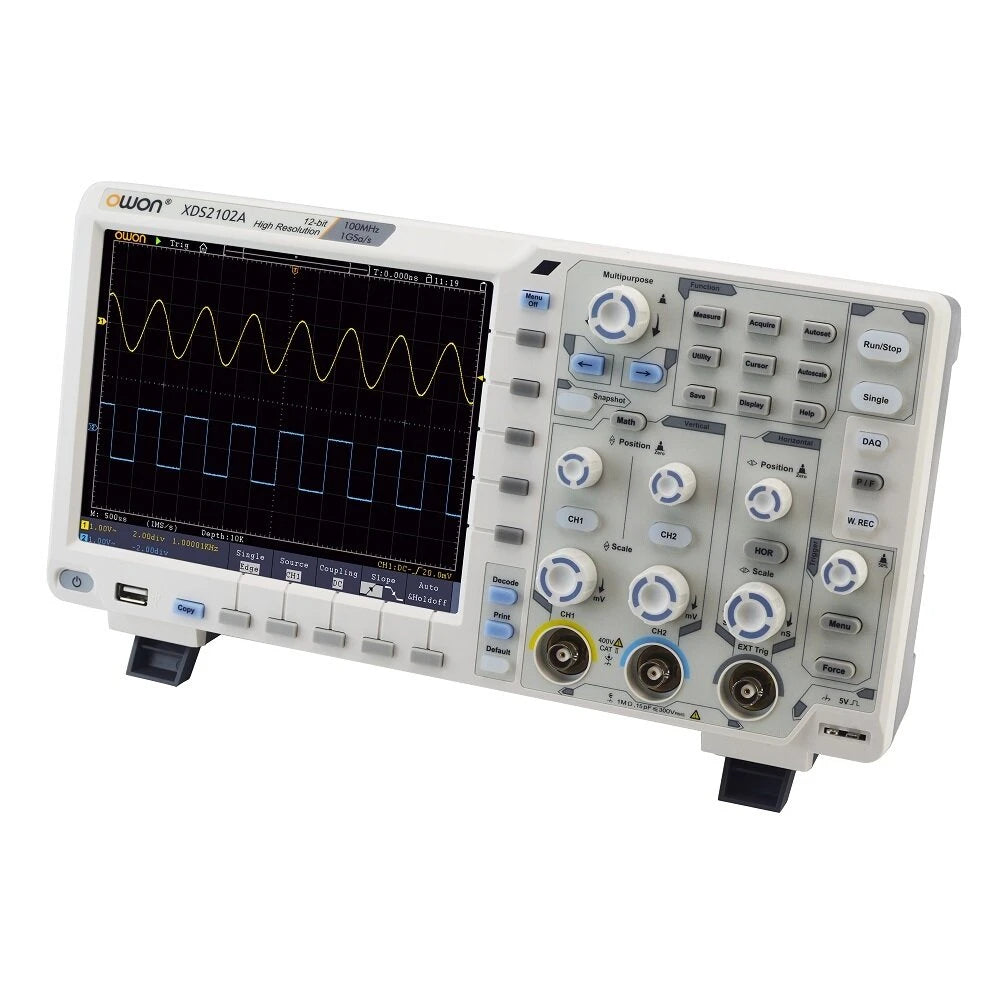

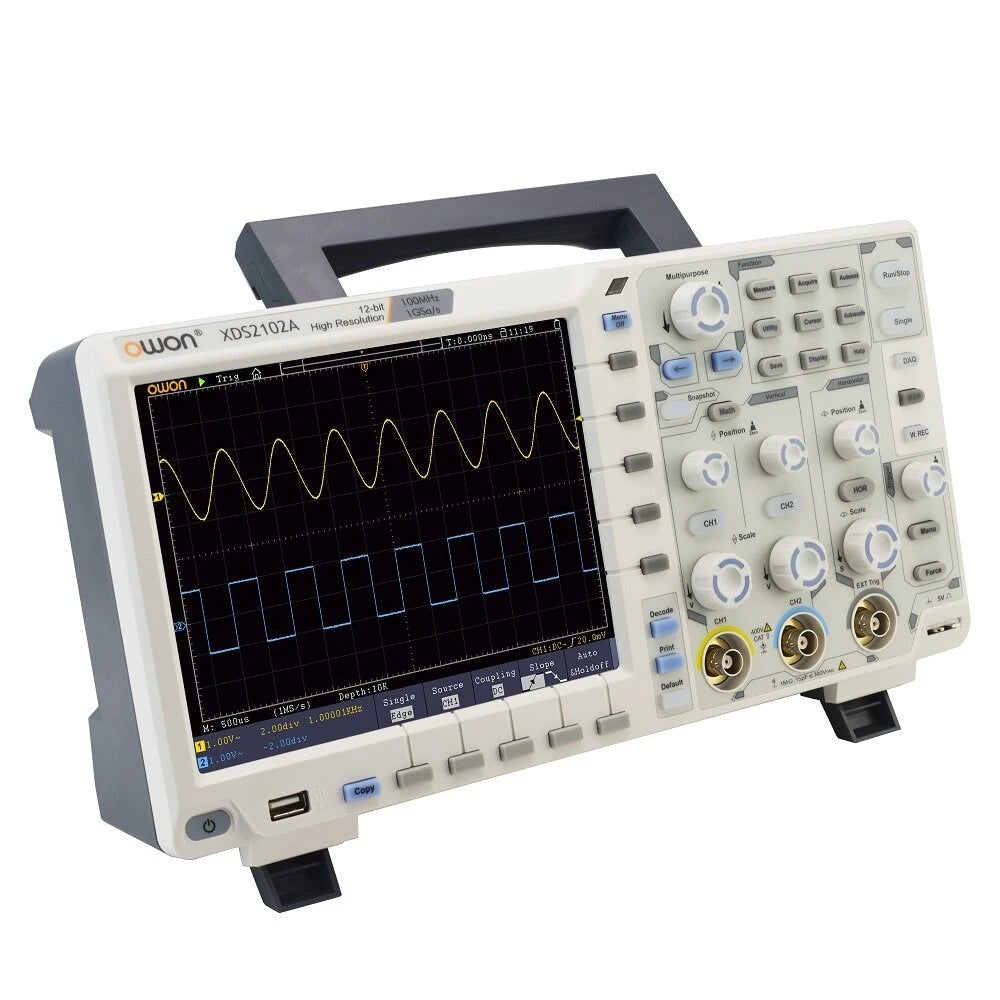

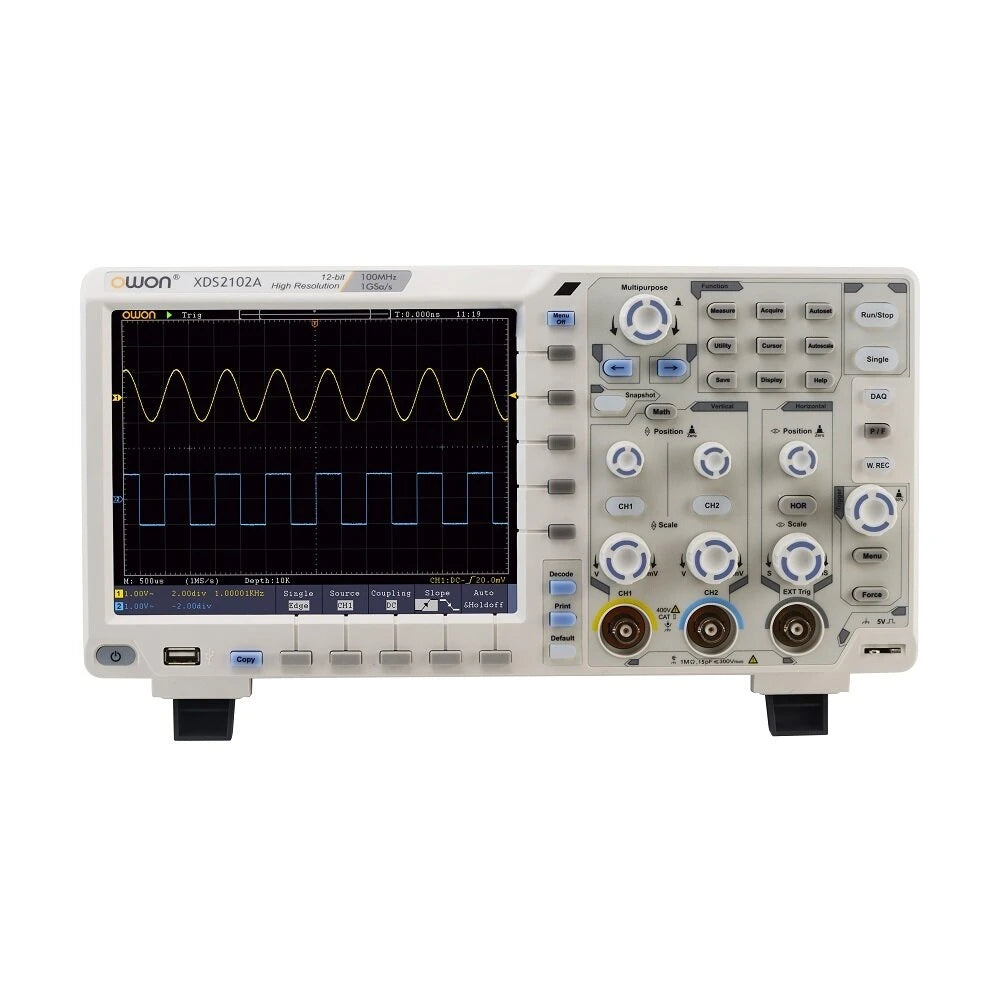

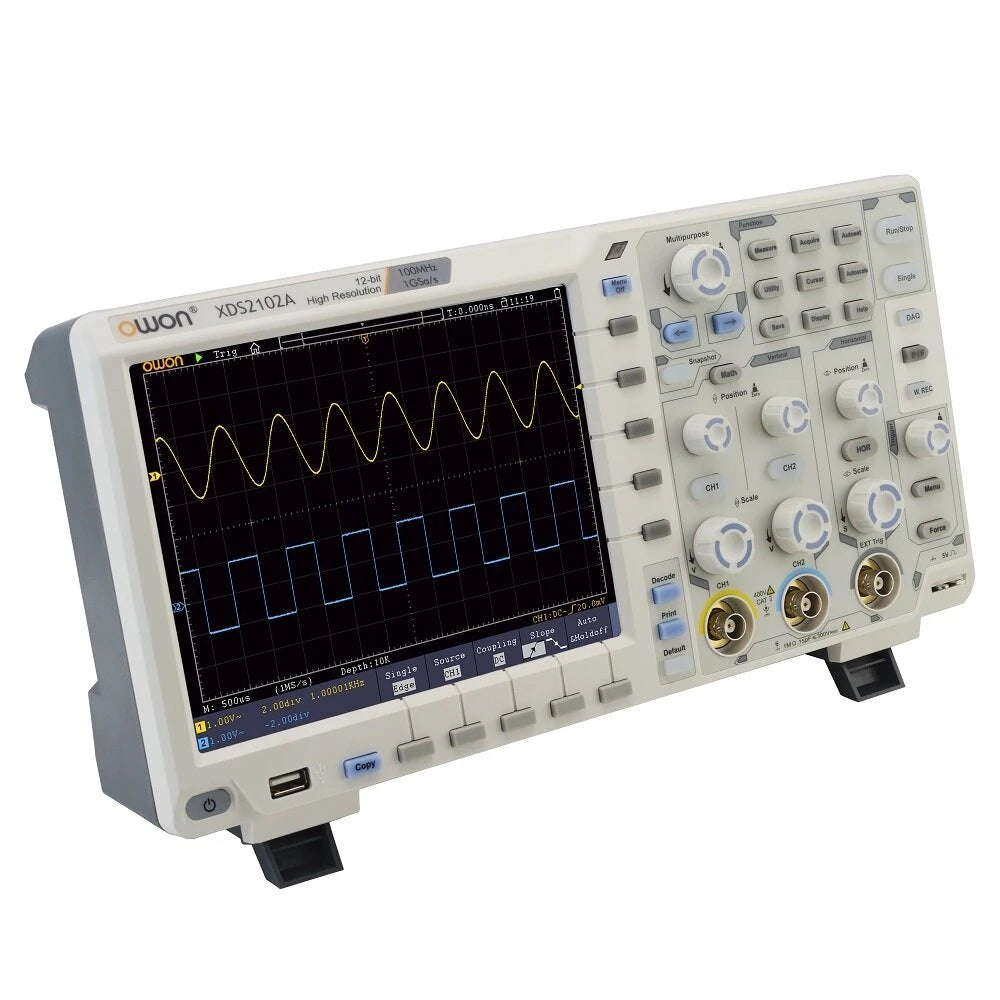

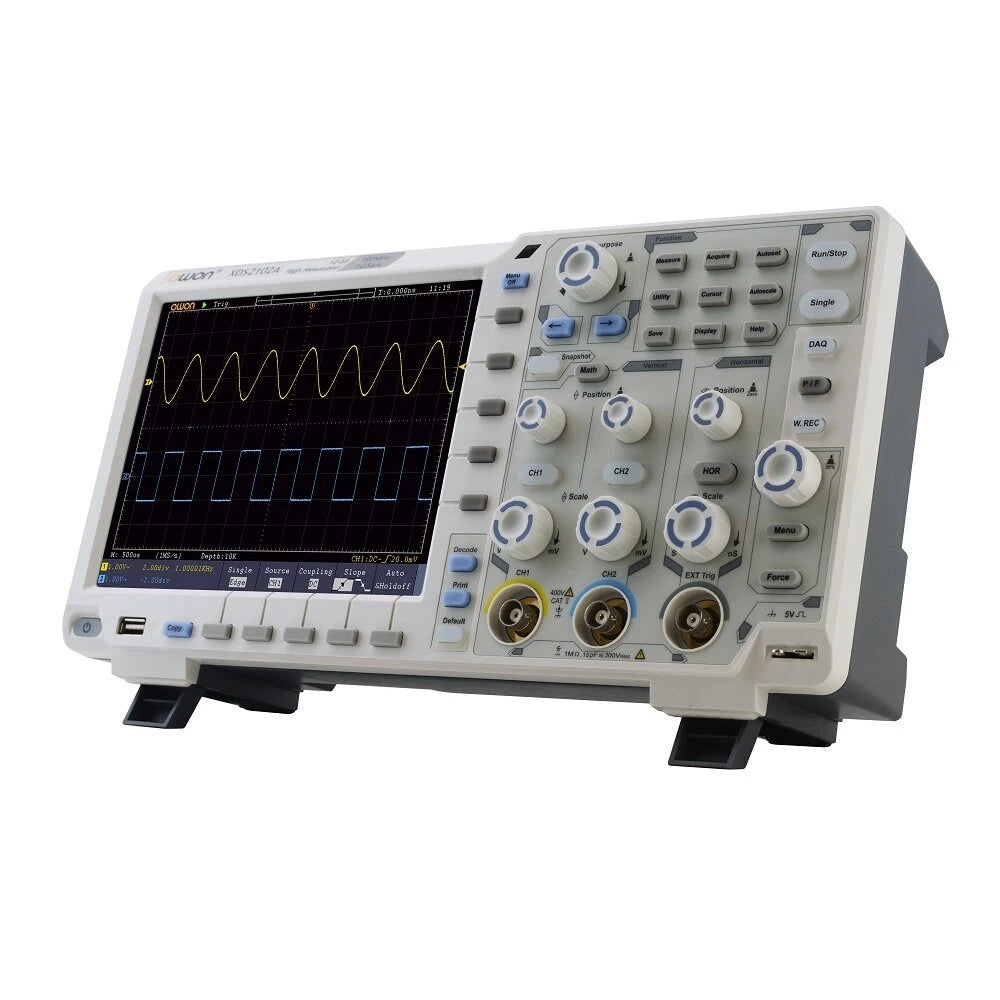

Owon XDS2102A High-Resolution 100MHz Digital Oscilloscope, 12-Bit, 1GS/s, 8 LCD, 2 Channels

Features:

• 12-bit high-resolution ADC for detailed waveform restoration
• 20M record length and 55,000 wfms/s waveform refresh rate
• Low background noise with vertical sensitivity ranging from 1 mV/div to 10 V/div
• Multi-trigger options and bus decoding functions
• SCPI and LabVIEW support
• Ultra-thin body design for space efficiency
• Integration of multiple interfaces: USB host, USB device, PictBridge USB port, LAN, AUX, and more
• VGA port for video expansion and teaching demonstrations
• 8-inch 800x600 high-resolution LCD display

Specifications:

• Model: XDS2102A
• Bandwidth: 100MHz
• Sample Rate: 1GS/s (8 bits), 500MS/s (12 bits)
• Vertical Resolution (A/D): 12 bits
• Record length: 20M
• Waveform Refresh Rate: 55,000 wfms/s
• Horizontal Scale (s/div): 2ns/div - 1000s/div, stepped by 1-2-5
• Rise Time (at input, typical): ≤3.5ns
• Channel: 2 + 1 external
• Display: 8" color LCD, 800 x 600 pixels
• Input Impedance: 1MΩ ± 2%, in parallel with 15pF ± 5pF
• Channel Isolation: 50Hz : 100:1, 10MHz : 40:1
• Max Input Voltage: 1MΩ ≤ 300Vrms
• DC Accuracy: average ≥16: ±(3% reading + 0.05 div) for △V
• Probe Attenuation Factor: 0.001X - 1000X, stepped by 1-2-5
• LF Respond (AC, -3dB): ≥10Hz (at input, AC coupling, -3dB)
• Sample Rate / Relay Time Accuracy: ±1 ppm (TYP, Ta=+25℃)
• Interpolation: sin(x)/x
• Interval (△T) Accuracy (full bandwidth): Single: ±(1 interval time + 1ppm x reading + 0.6ns); Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)
• Input Coupling: DC, AC, and GND
• Vertical Sensitivity: 1mV/div - 10V/div (at input)
• Trigger Type: Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN
• Bus Decoding: I2C, SPI, RS232, and CAN
• Trigger Mode: Auto, Normal, and Single
• Vertical Range: ±2V (1mv/div - 50mv/div), ±20V (100mv/div - 1V/div), ±200V (2V/div - 10V/div)
• Line / Field Frequency (video): NTSC, PAL, and SECAM standard
• Cursor Measurement: △V and △T between cursors, along with auto-cursors
• Automatic Measurement: Vpp, Vavg, Vrms, Frequency, Period, Week RMS, Cursor RMS, various Voltage levels, Overshoot, Phase, Preshoot, various Time metrics, various Duty Cycle metrics, various Counts
• Waveform Math: +, -, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, and digital filter (low pass, high pass, band pass, band reject)
• Waveform Storage: 50 waveforms
• Lissajou's Figures: full bandwidth
• Phase Difference: ±3 degrees
• Communication Interface: USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
• Frequency Counter: available
• Power Supply: 100V - 240V AC, 50/60Hz, CAT II
• Power Consumption: ＜15W
• Fuse: 2A, T class, 250V
• Dimensions (W x H x D): 340 x 177 x 90 mm
• Weight: 2.40 kg

Package Includes:

• 1 x Instrument

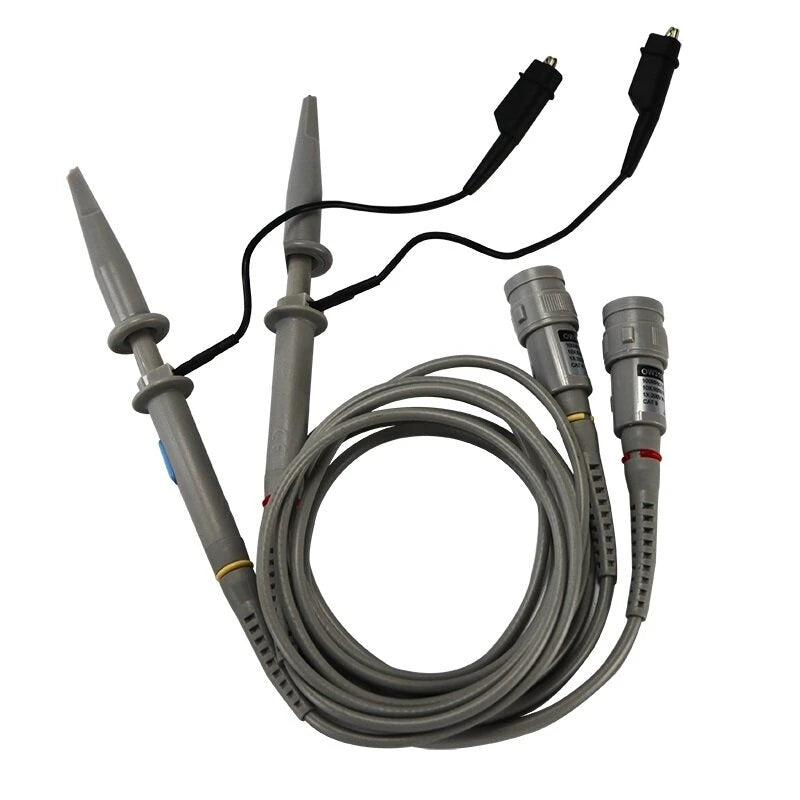

• 1 x Probe
• 1 x Pen knife
• 1 x Power cord (EU plug)
• 1 x USB cable
• 1 x User Manual
