Product Description

Feature Highlights:

• High Carrying Capacity: Our advanced spot welding pen features an imported MOS tube capable of carrying 550A of current, offering exceptional welding power. Its integrated design allows for easy connection to a battery, enabling faster and more efficient welding operations.

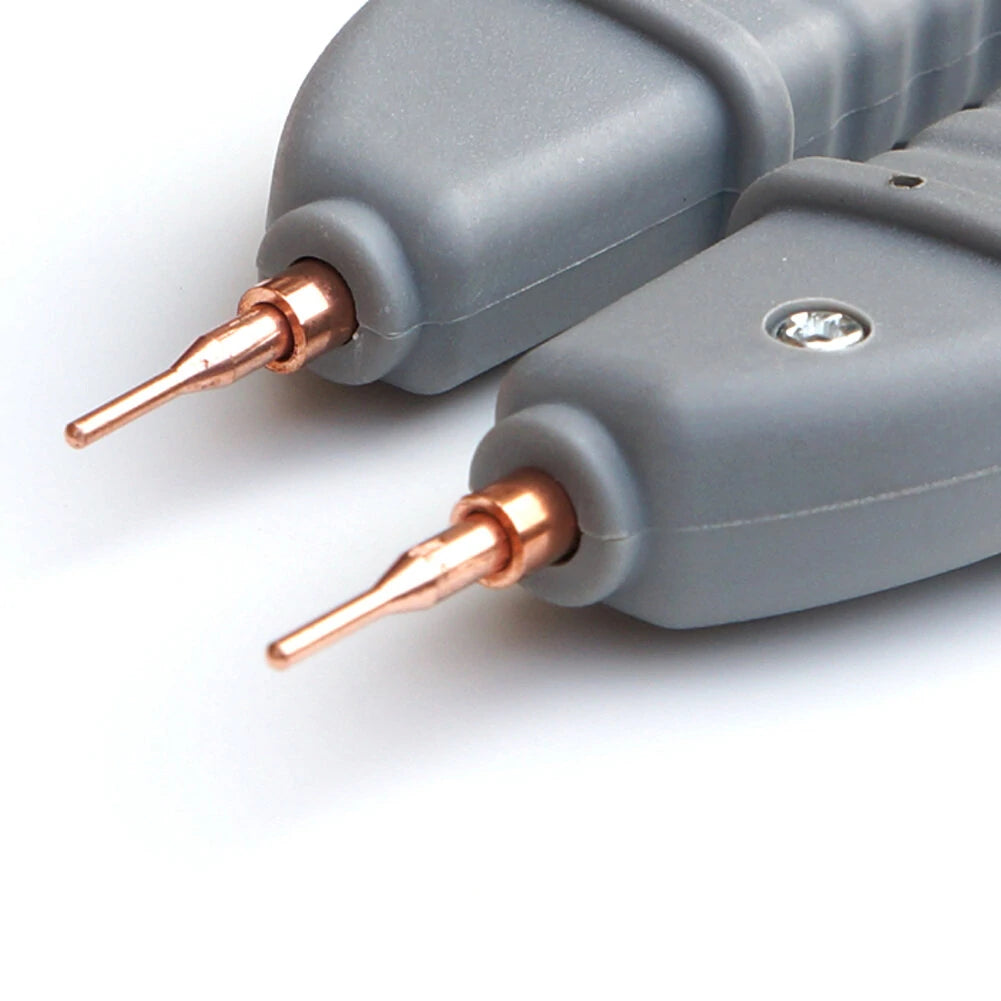

• Removable Copper Pin: Designed with a removable copper pin, this handheld spot welder enhances both expandability and maintainability, ensuring long-lasting performance.

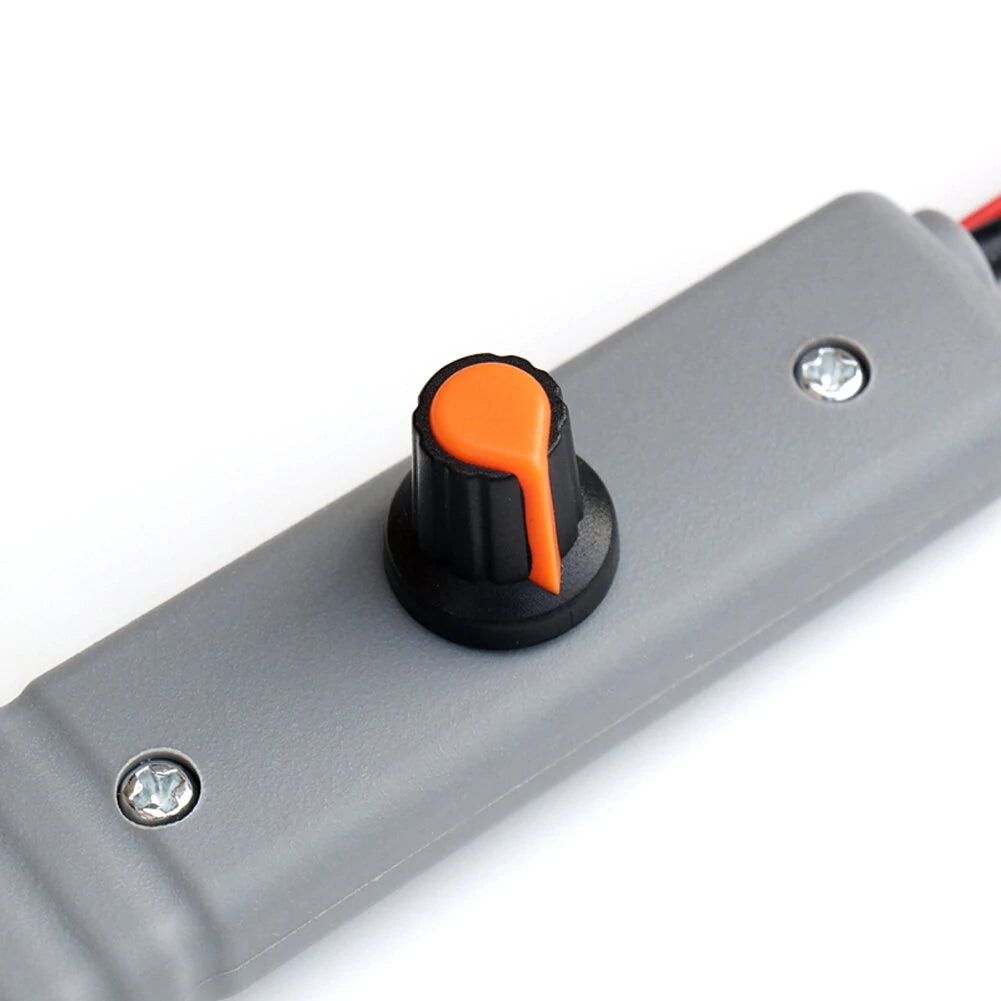

• 99-Speed Adjustment: Benefit from 99-speed infinite adjustment for precise control, catering to diverse welding needs. Its design facilitates precise welding, making it ideal for varied tasks.

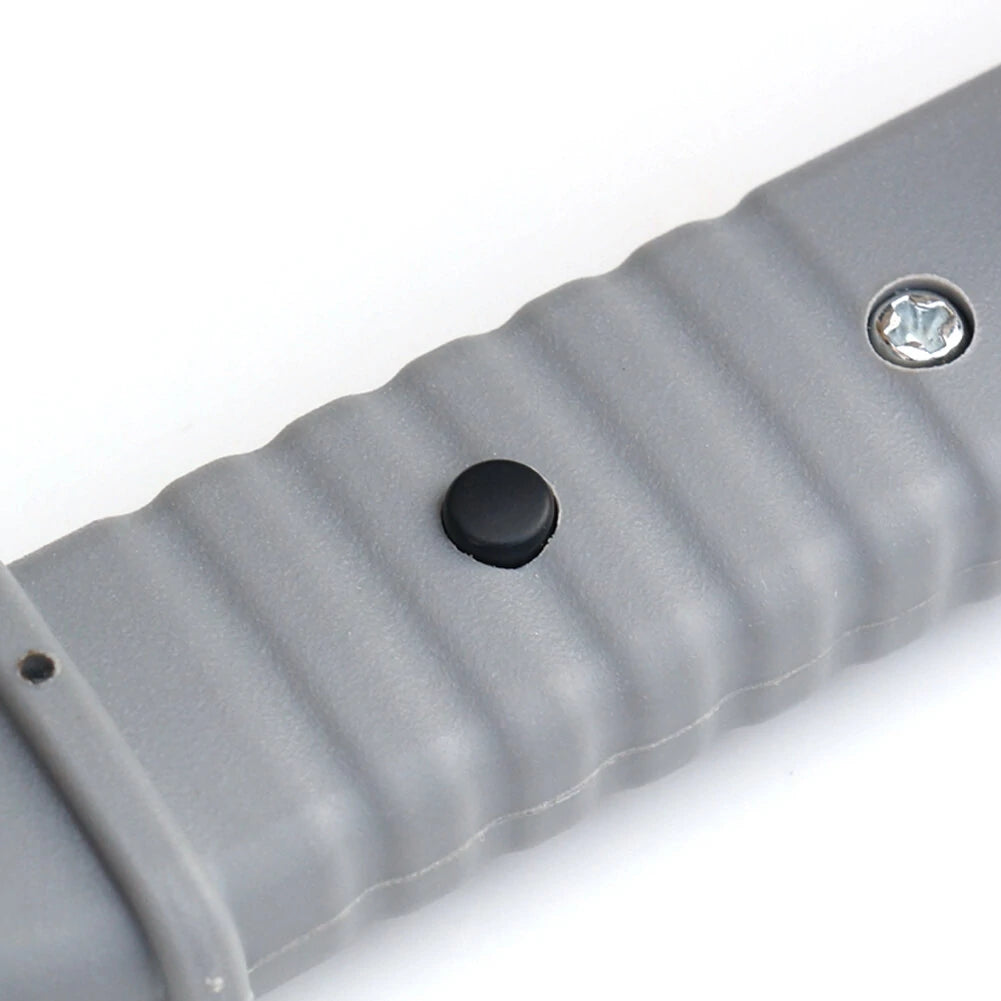

• Trigger Button: The included trigger button lets you complete welds with a single press, perfect for one-handed operation, enhancing convenience and efficiency.
• LED Indicator: A built-in LED indicator displays the working status, providing assurance and real-time details on current operation. Compatible with 18650 and 21700 battery packs, this versatile and lightweight unit is suitable for electricians, metal welding professionals, and construction fields.

Specifications:

• Certification: None
• Origin: Mainland China
• Model Number: Spot Welding Machine
• Max. Welding Thickness: 0.1mm
• Dimensions: 170 x 25mm
• Weight: 150g
• Usage: Spot welding
• Wire Length: 350mm
• Wire Specification: 12AWG silicone wire

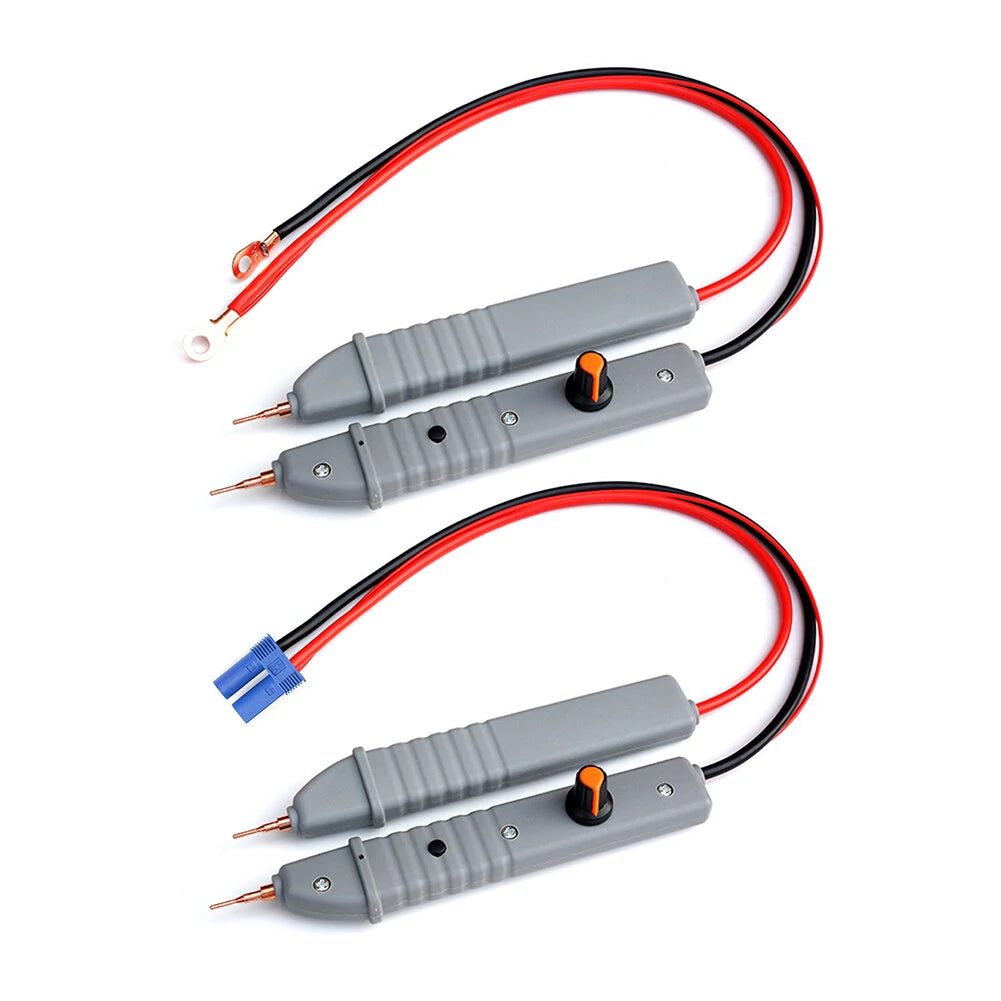

• Power Interface: Copper lug / EC5 (optional)
• Operating Voltage: 12V-16.8V
• Spot Welding Current: 80A-150A
• Power Module: Imported 550A MOS tube
• Case Material: High temperature resistant nylon
• Spot Welding Material: 0.1mm nickel-plated tape
• Welding Needle Specification: 3 x 1.5 x 40mm professional alumina copper welding needle
• Copper Needle Replaceable: Yes
• Material: ABS + metal

Package Included:

• 1 x Welding Machine Needle (Choose interface option)

Key Points of Use:

1. We recommend a 12V, 20AH-60AH lead-acid battery, or a high-rate 3-string or 4-string lithium battery pack as input power (must perform well, enough to start a car; voltage range: 12V-16.8V).
2. Ensure firm connections and avoid extending wires randomly. Start with low power for spot welding and gradually increase to avoid excessive current impacting MOS tube performance. Do not reverse-connect input electrodes or exceed specified voltage range.
3. For best results, weld 0.1mm nickel-plated steel strips. Achieving 0.2mm thickness is possible with double welding. Avoid welding pure nickel, copper, or aluminum.

Note: Due to different monitors and lighting, actual item color might slightly vary from the pictures. Please allow a 1-2cm deviation due to manual measurement.
