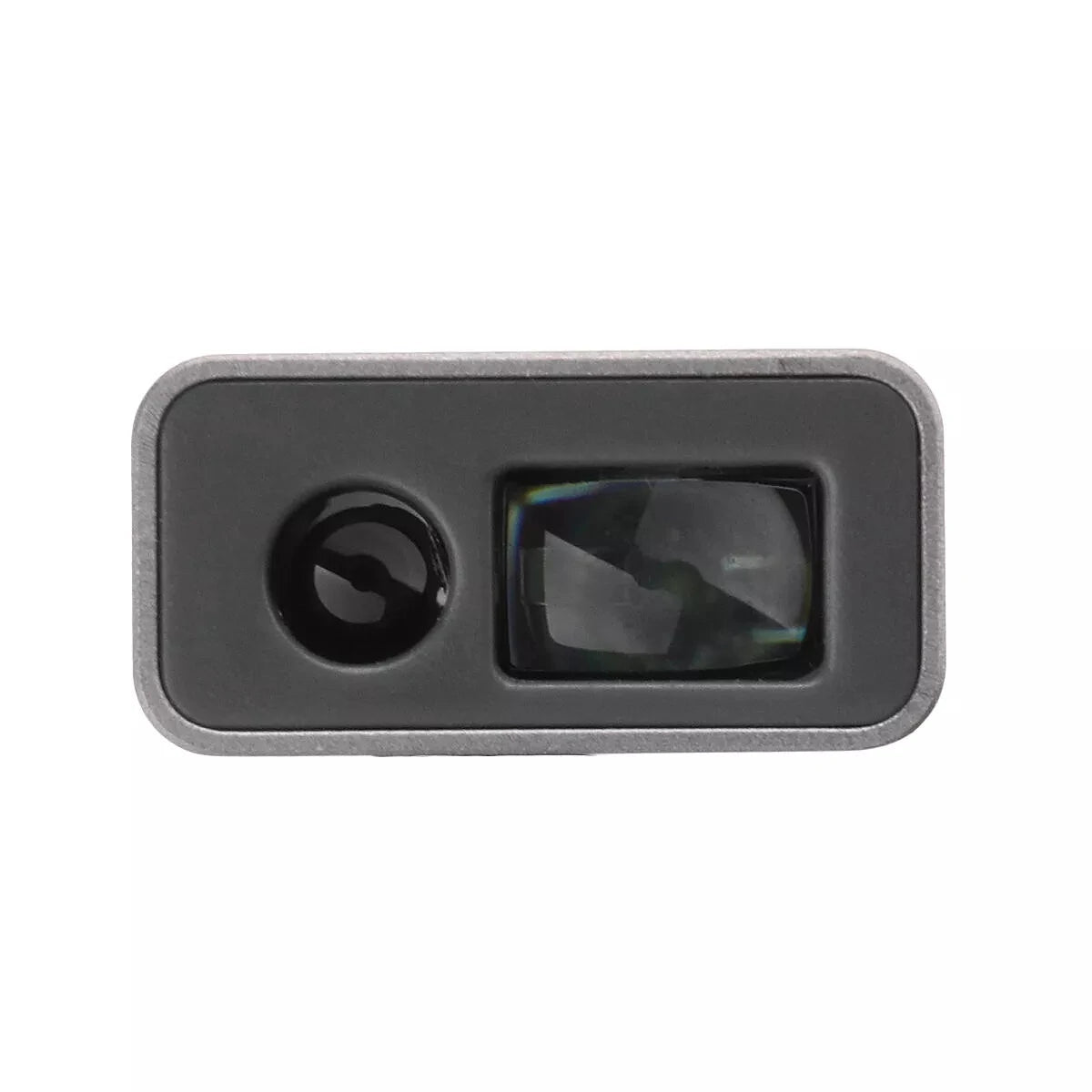

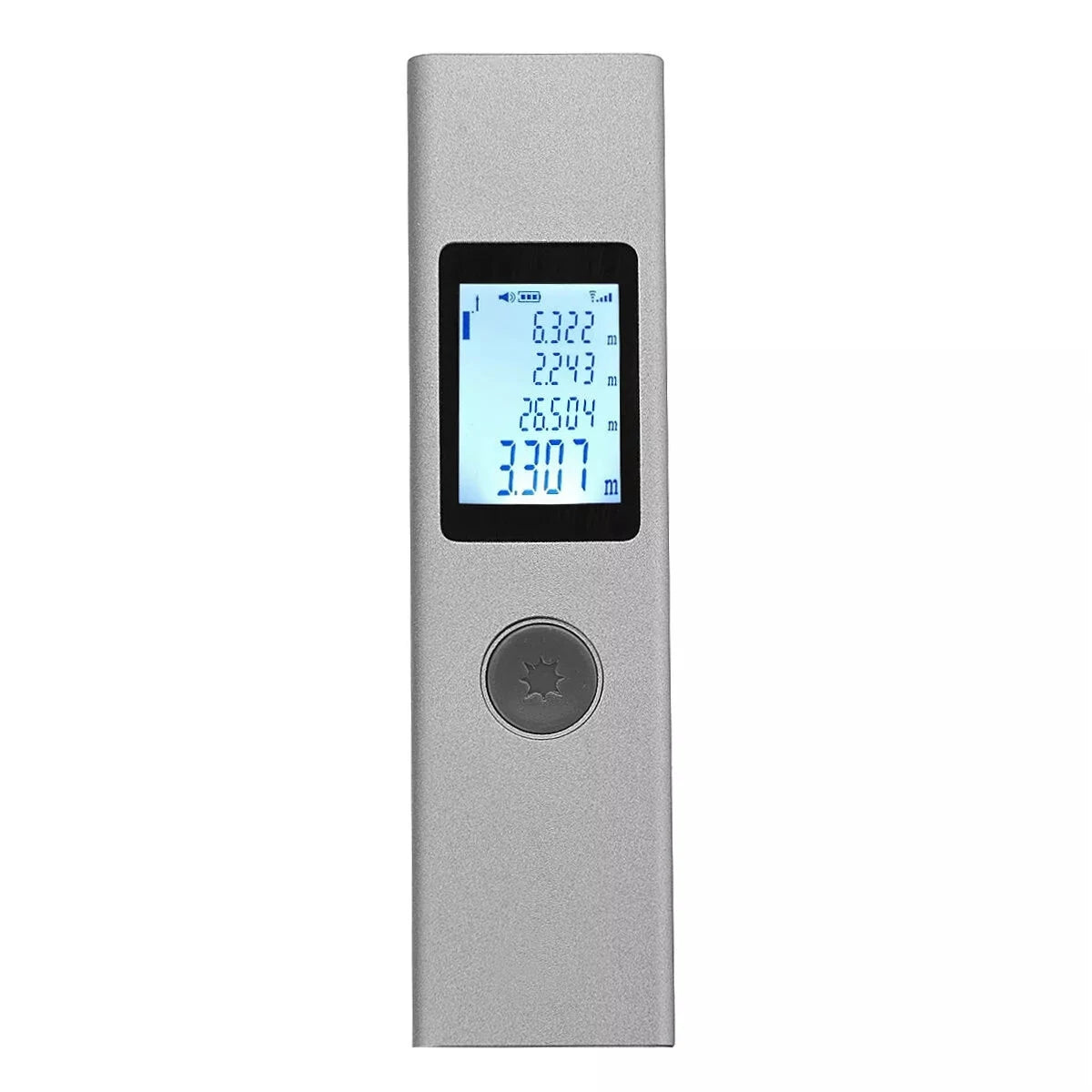

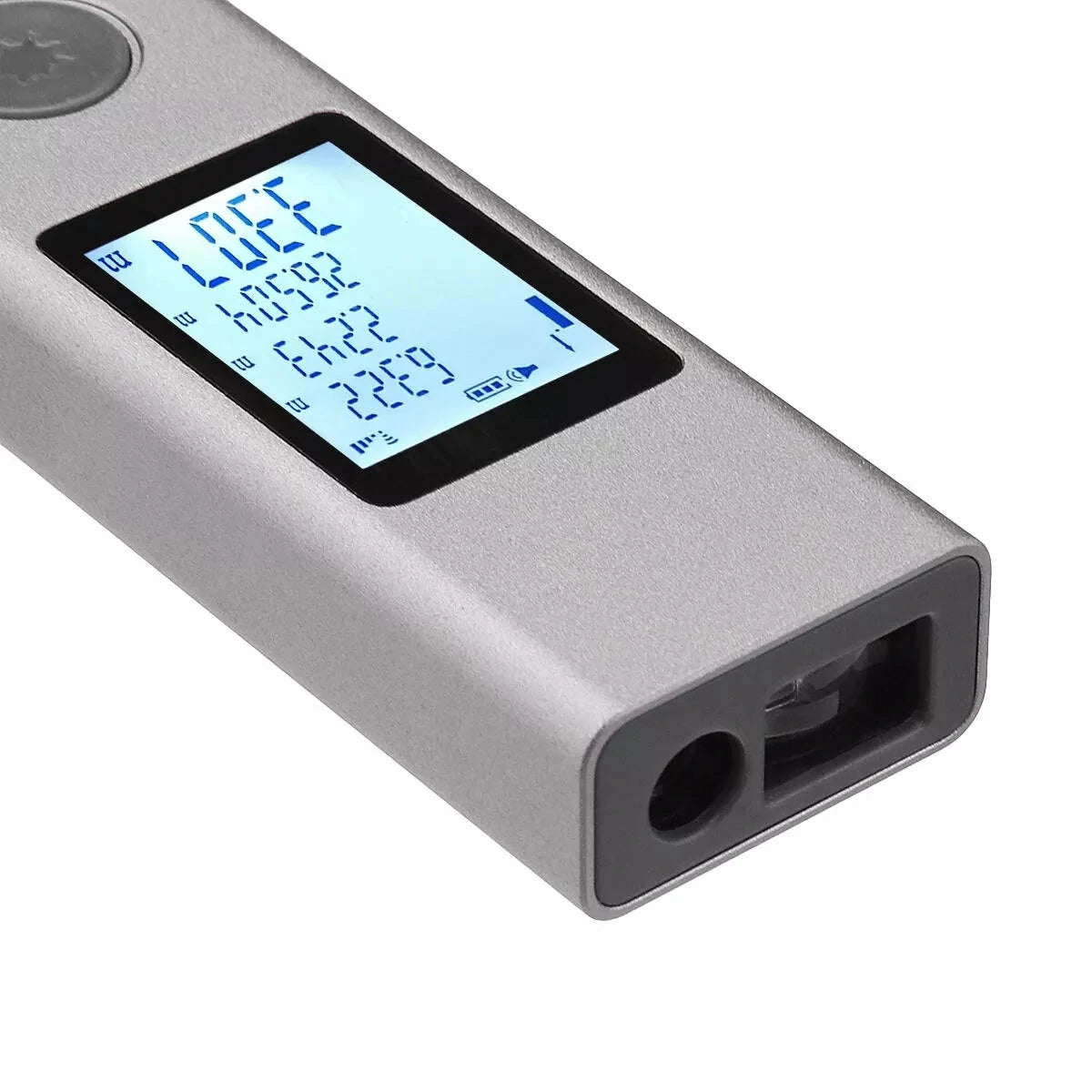

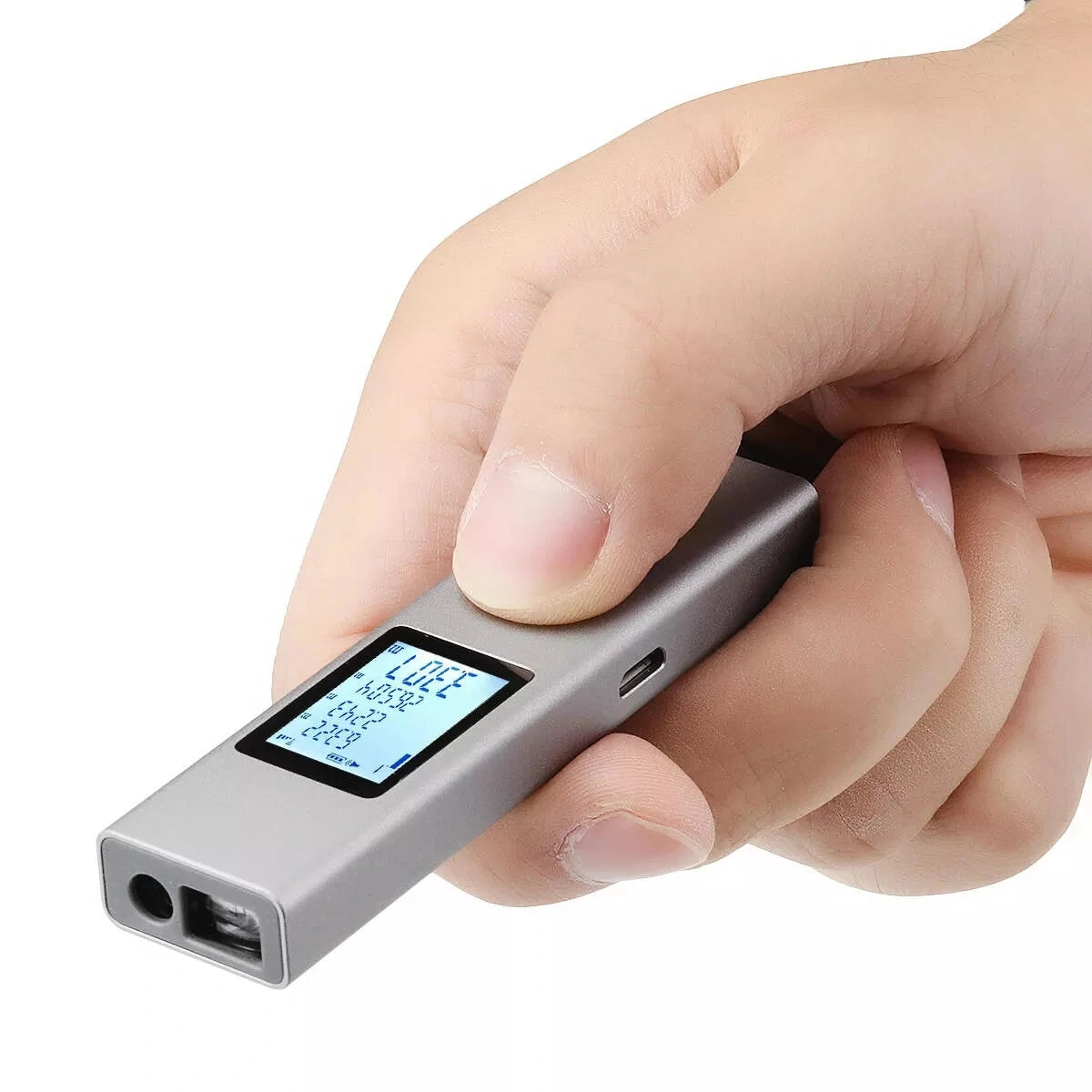

LS-1S Laser Rangefinder

Download the manual here.

The LS-1S Laser Rangefinder, winner of the 2019 German iF Design Award, is a remarkable tool for those in need of precision and convenience. Weighing only 28g, it offers high accuracy and a simple one-button operation. Experience a new way to tackle your repair projects.

Enhanced Features Over LS-1:

• Increased battery capacity to 220mAh
• Switch from single to continuous measurement function

Note: The initial batch of devices may still feature the "LS-1" branding. Rest assured, these units are fully upgraded to LS-1S specifications.

Specifications:

• Model: LS-1S
• Material: Aluminum alloy
• Product Type: Portable laser rangefinder
• Measurement Units: Meters (m), Feet (ft), Inches (in)
• Measurement Accuracy: ±2mm
• Operating Temperature: 0℃-40℃
• Storage Temperature: -20℃-60℃
• Battery Capacity: 220mAh, USB Rechargeable (Approx. 3,000 uses)
• Measuring Distance: 0.03 - 40m
• Laser Type: Class 2, 620~670nm

Features:

• Compact design measures distance, area, and volume with speed and precision
• Long measuring distance up to 40m with high accuracy ±2mm

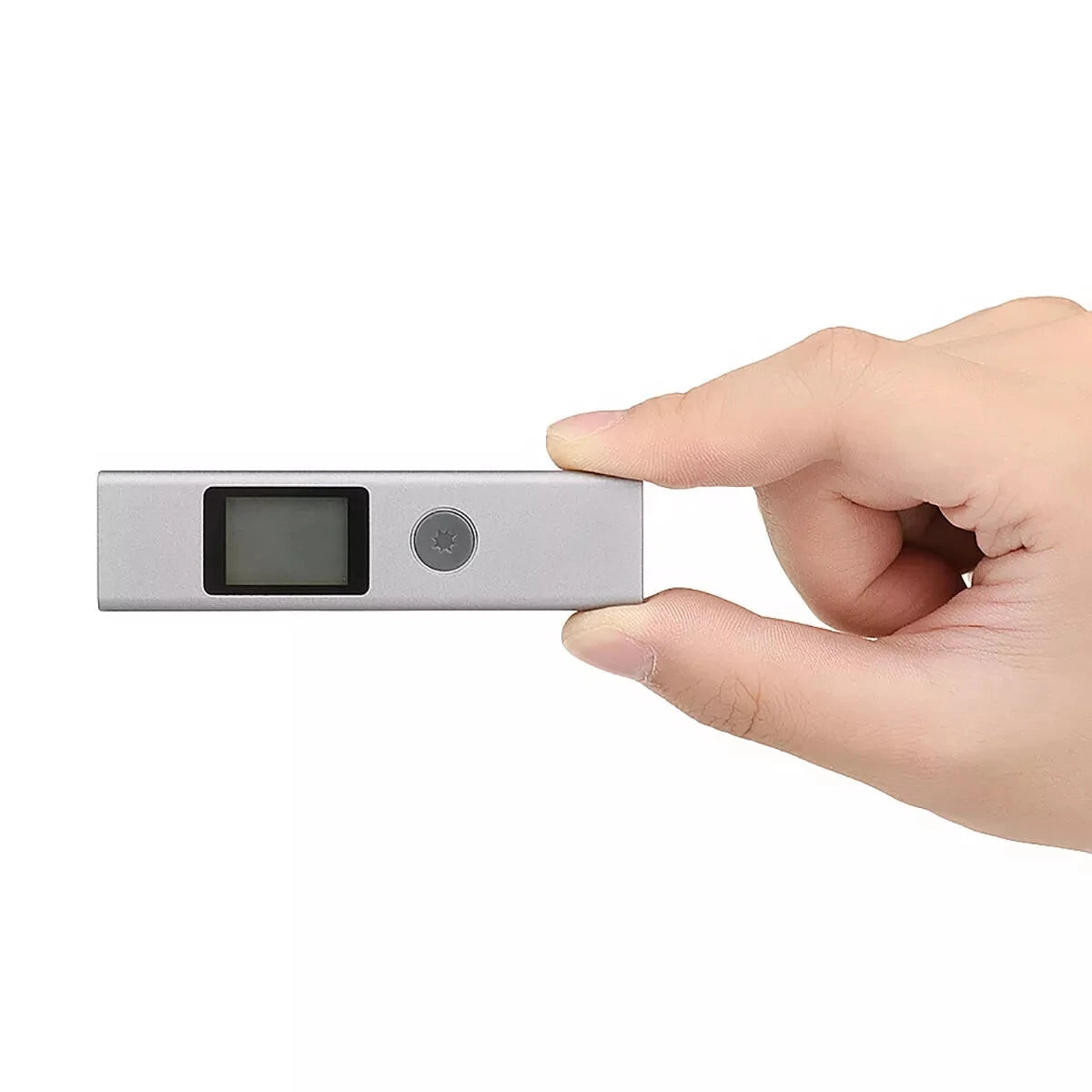

• Lightweight at 28g, making it portable and easy to handle
• Switchable measurement units (meters, inches, feet) for convenient reading

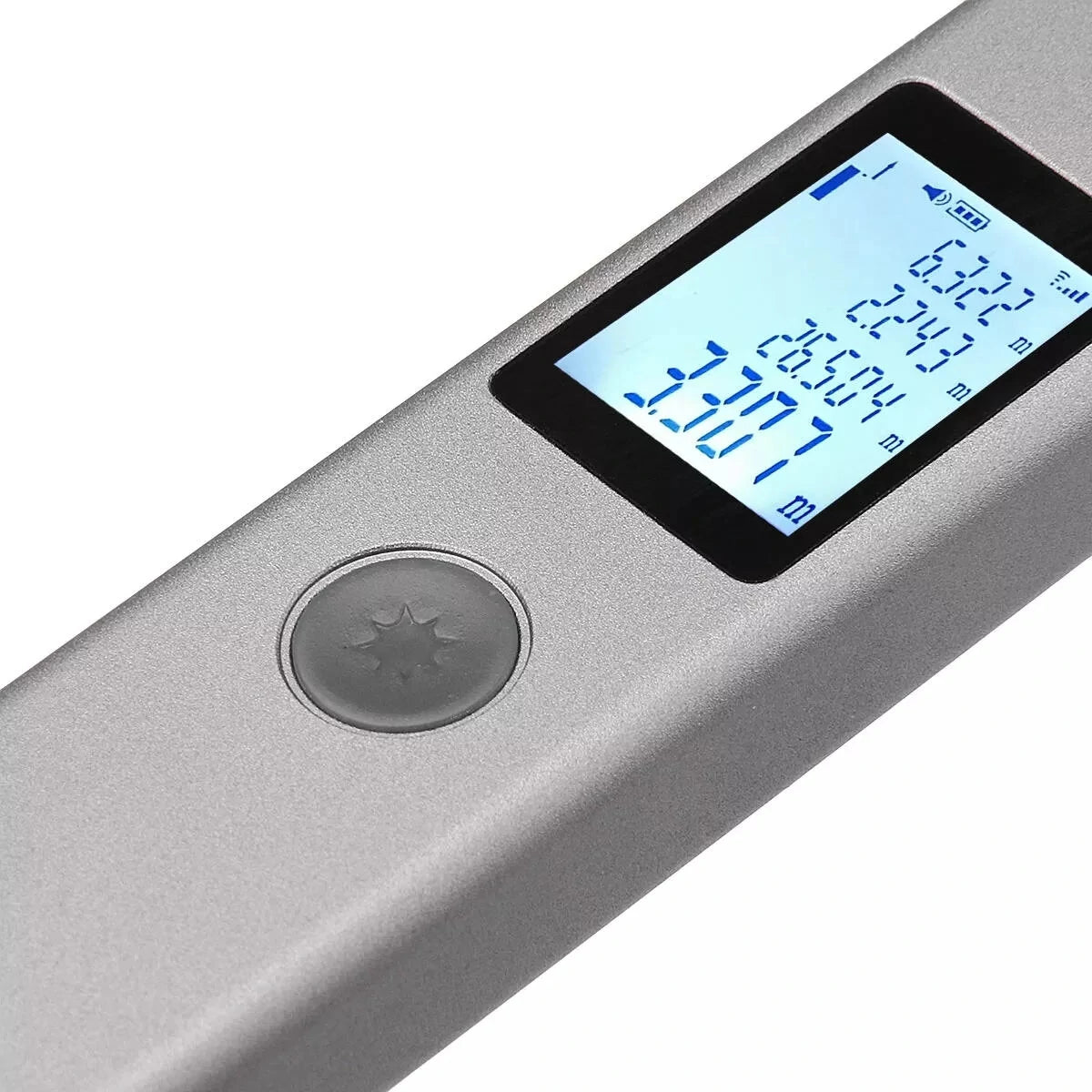

• Large backlit LCD for clear visibility in low-light conditions
• Ideal for interior decoration, indoor design, and construction projects

Package Includes:

• 1 x LS-1S Laser Rangefinder
