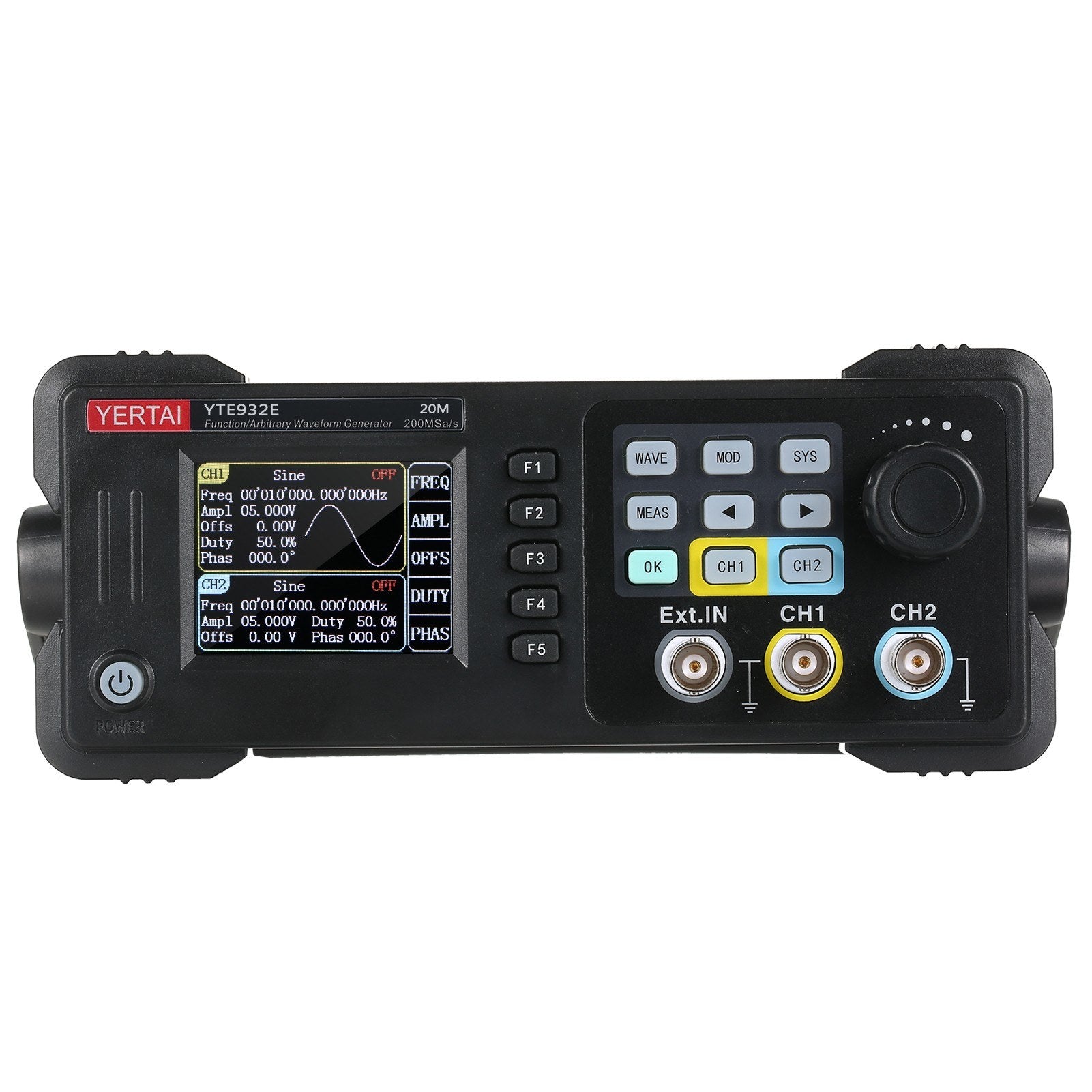

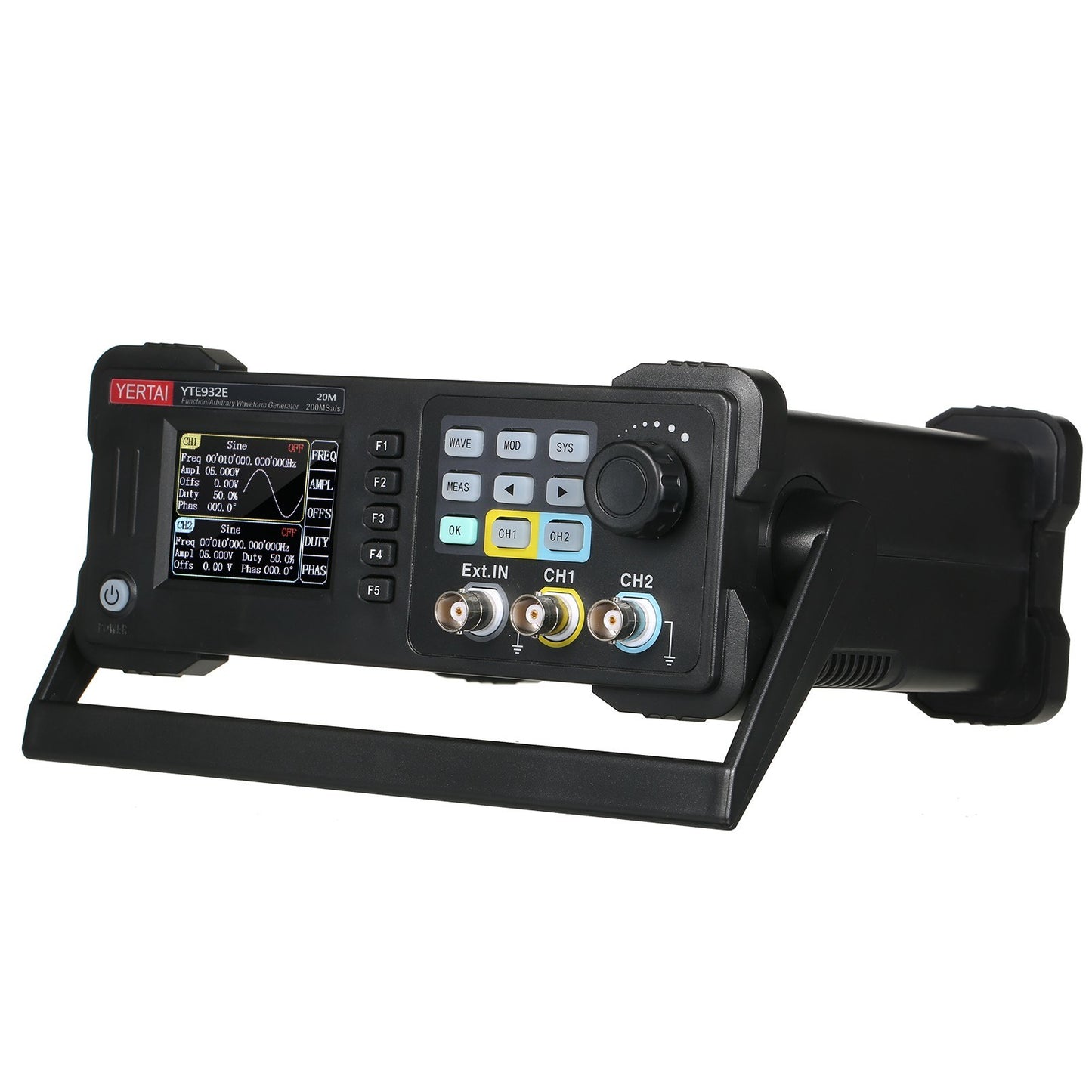

20MHz Dual-Channel Arbitrary Waveform Generator, 200MSa/s, 8k Storage, 2.4 TFT LCD

Arbitrary Wave Generator

The Arbitrary Wave Generator utilizes advanced direct digital frequency synthesis technology to deliver signals with exceptional accuracy, stability, and minimal distortion.

Key Features:

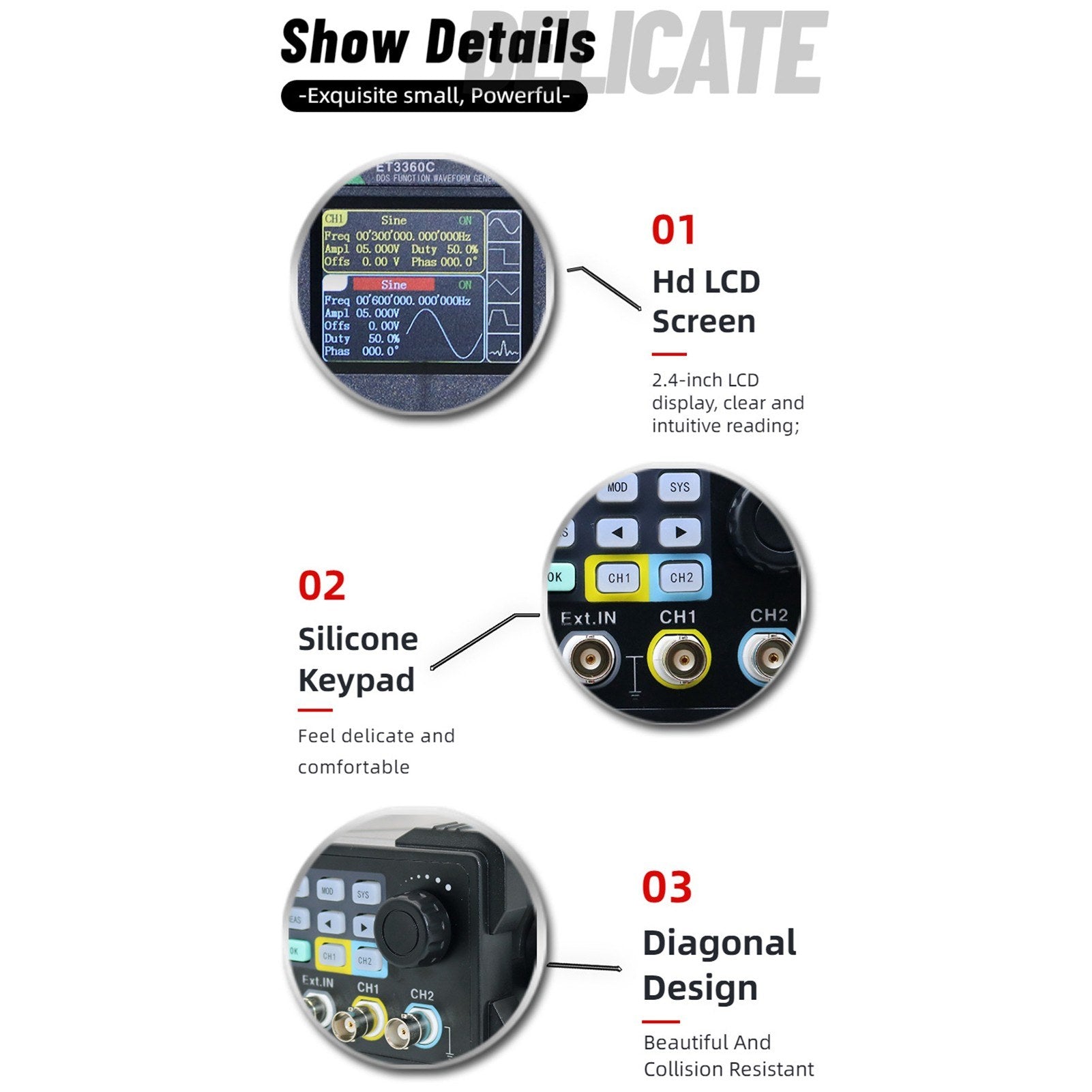

• Clear and intuitive 2.4-inch 320x240 TFT LCD display.
• Multilingual menu: Choose between Chinese and English.
• Independent channels with phase synchronization.
• Sampling rate of 200MSa/S, 13-bit vertical resolution, and 8k storage depth.
• Includes 5 basic waveforms and 32 built-in arbitrary waveforms.
• Store up to 50 user-defined waveforms internally.
• Two measurement modes: frequency meter and counter.
• Adjustable pulse wave output.
• Offers both internal and optional external AM, FM, and PM modulation functions.
• Supports internal/external ASK, FSK, and PSK modulation.
• Dual-channel output with a maximum output frequency of 60M.
• Capabilities for linear/logarithmic sweep and burst (pulse train) waveform output.
• Equipped with a 100MHz precision frequency meter and a 32-bit counter.

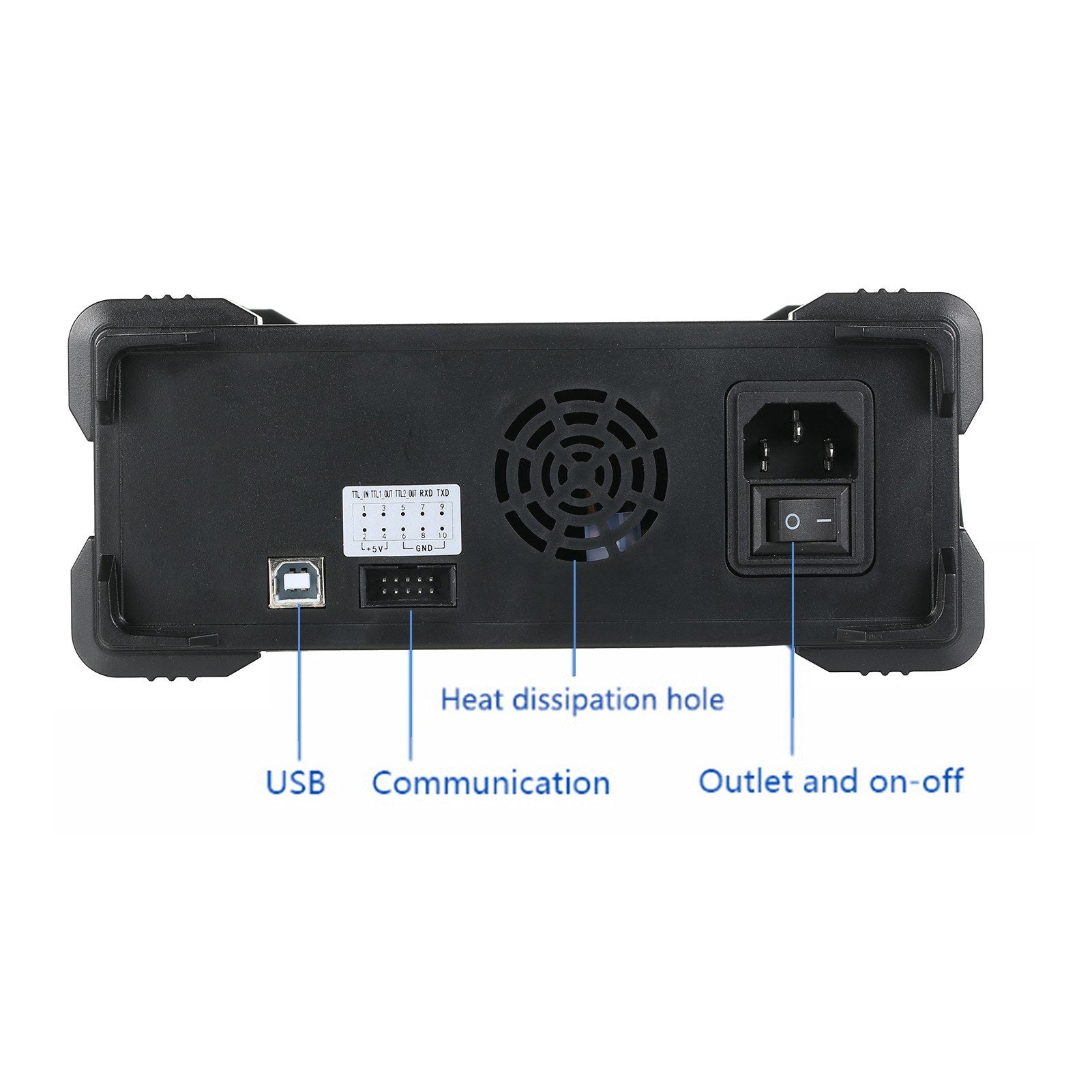

• Standard USB Device interface, with optional external analog modulation interface.
• Includes multifunctional arbitrary waveform editing software.

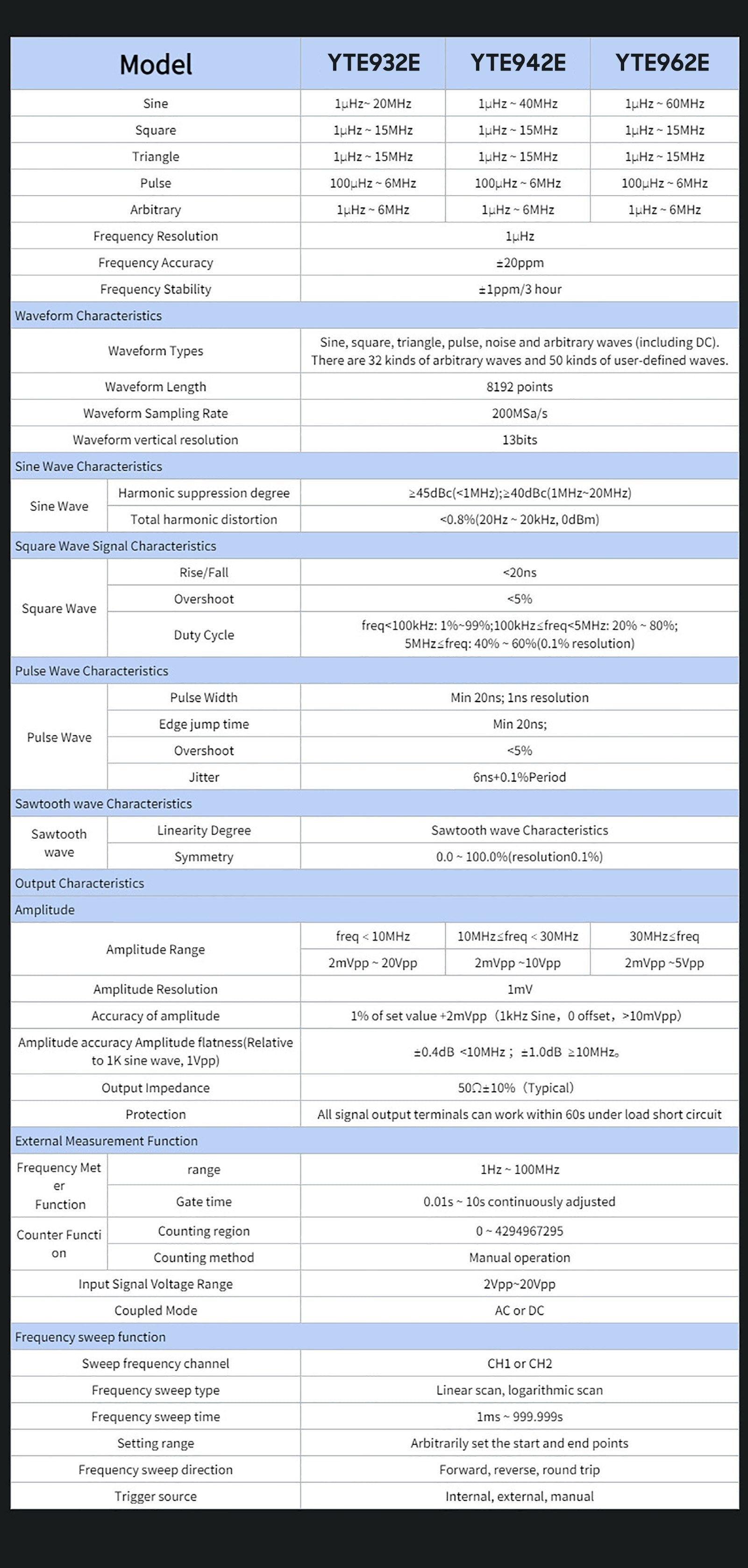

Specifications:

• Plug Type: EU / US (Optional)

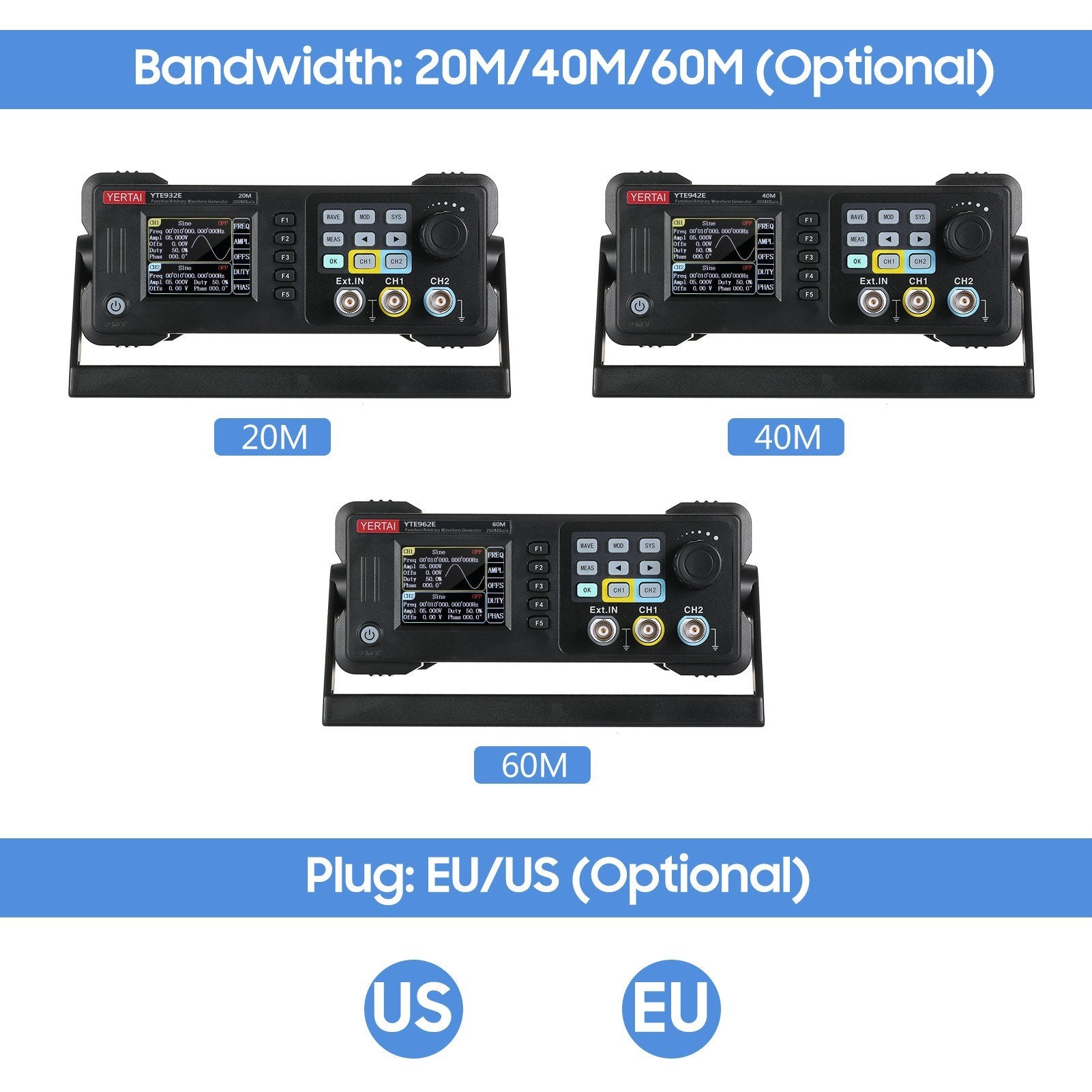

• Bandwidth Options: 20M / 40M / 60M
• Material: Durable ABS
• Power Voltage: AC 110-240V, 50/60Hz
• Power Consumption: Less than 15W
• Display: 2.4 inch TFT LED with 320x240 resolution and 16M color display
• USB Interface: USB device compatible

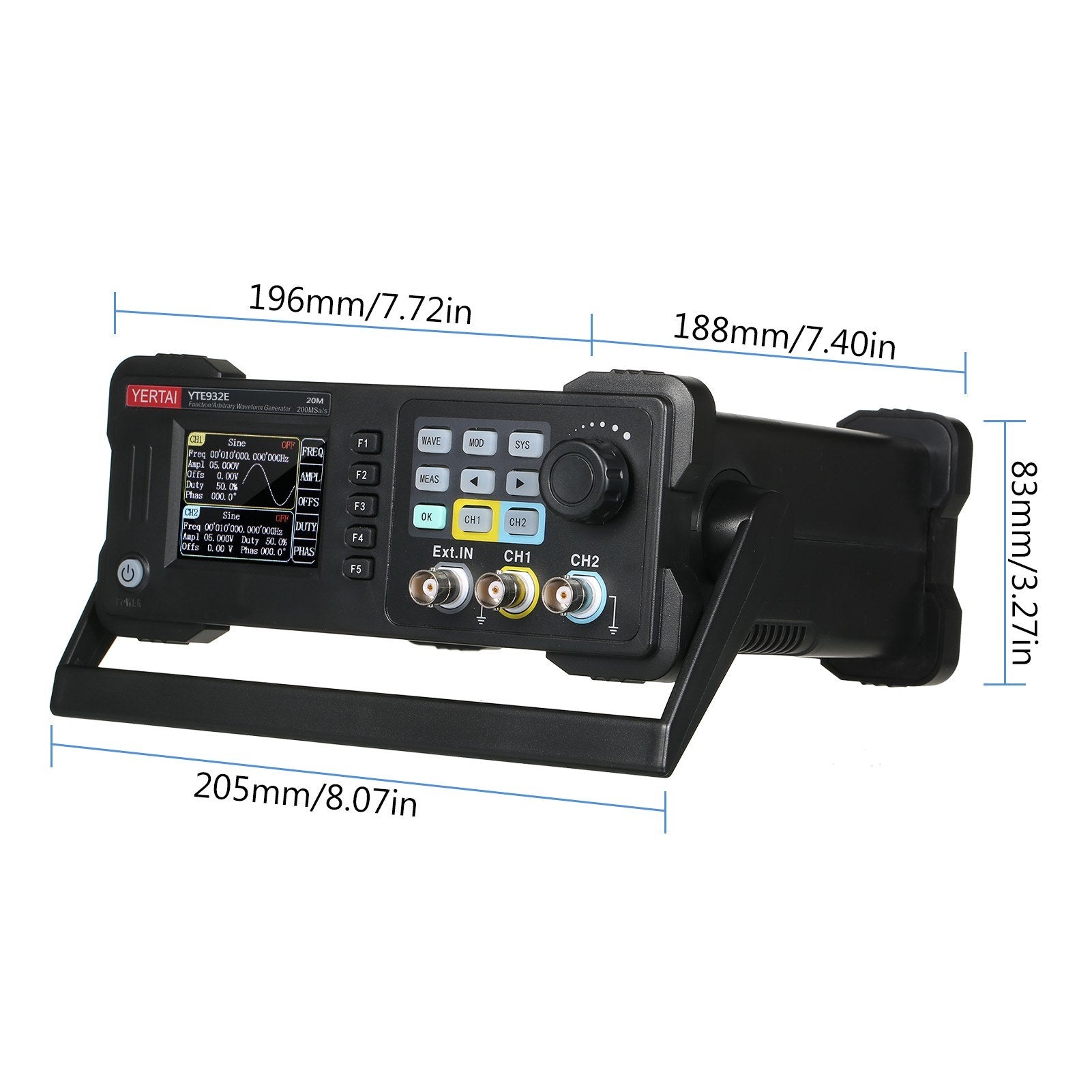

• Item Dimensions: 205 x 188 x 83mm / 8.07 x 7.40 x 3.27in
• Item Weight: 594g / 1.31lb
• Package Weight: 1045g / 2.31lb
• Package Dimensions: 27.5 x 23.7 x 12cm / 10.83 x 9.33 x 4.72in

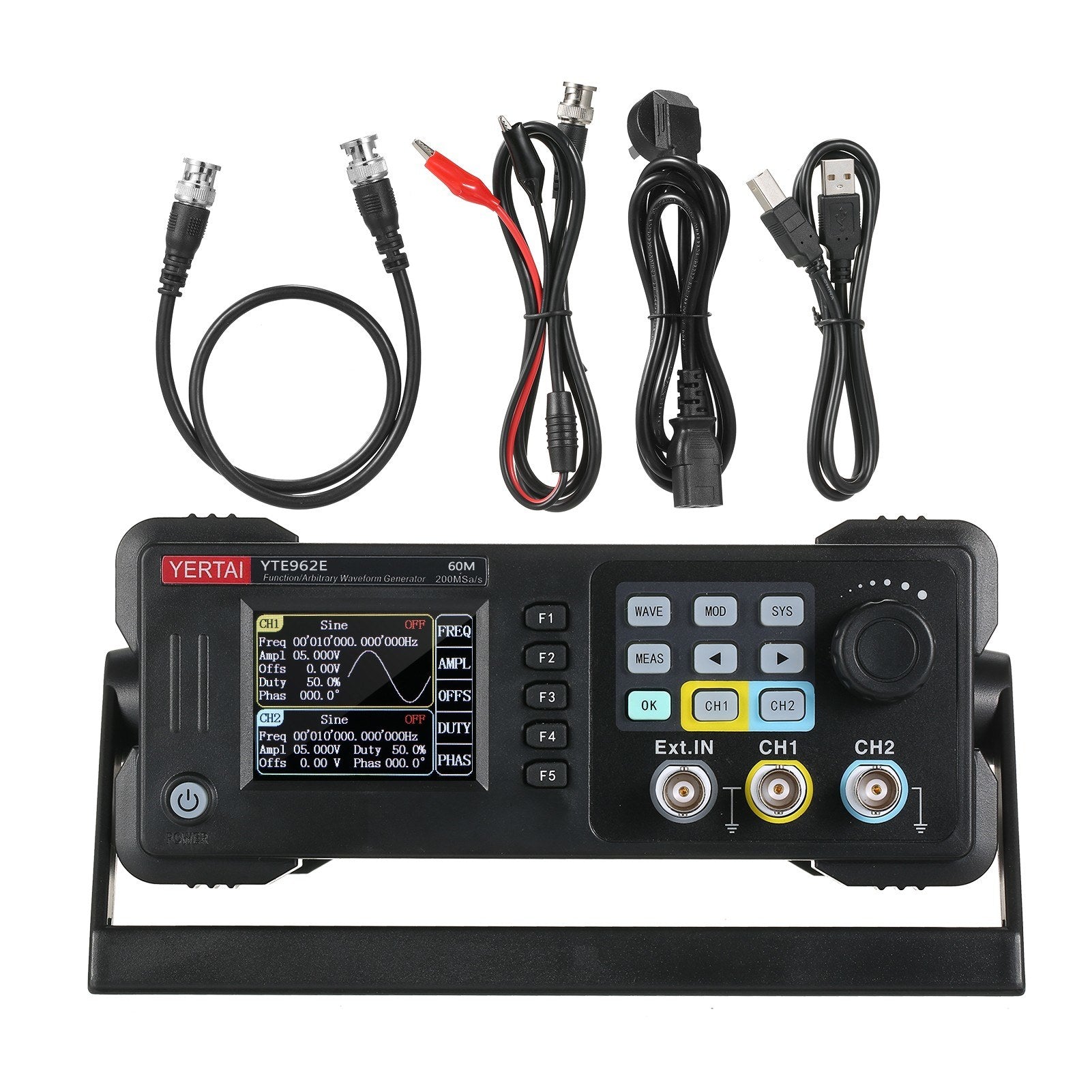

Package Includes:

• 1 x Waveform Generator
• 1 x Power Cable
• 1 x USB Data Cable
• 1 x Straight Signal Cable
• 2 x BNC Coaxial Cables
