High-Precision H3Y-4 Adjustable Time Relay 14 Pin LCD Display | 12V/24V DC & 220V AC Dual Cycle Timer with Fire-Resistant Base

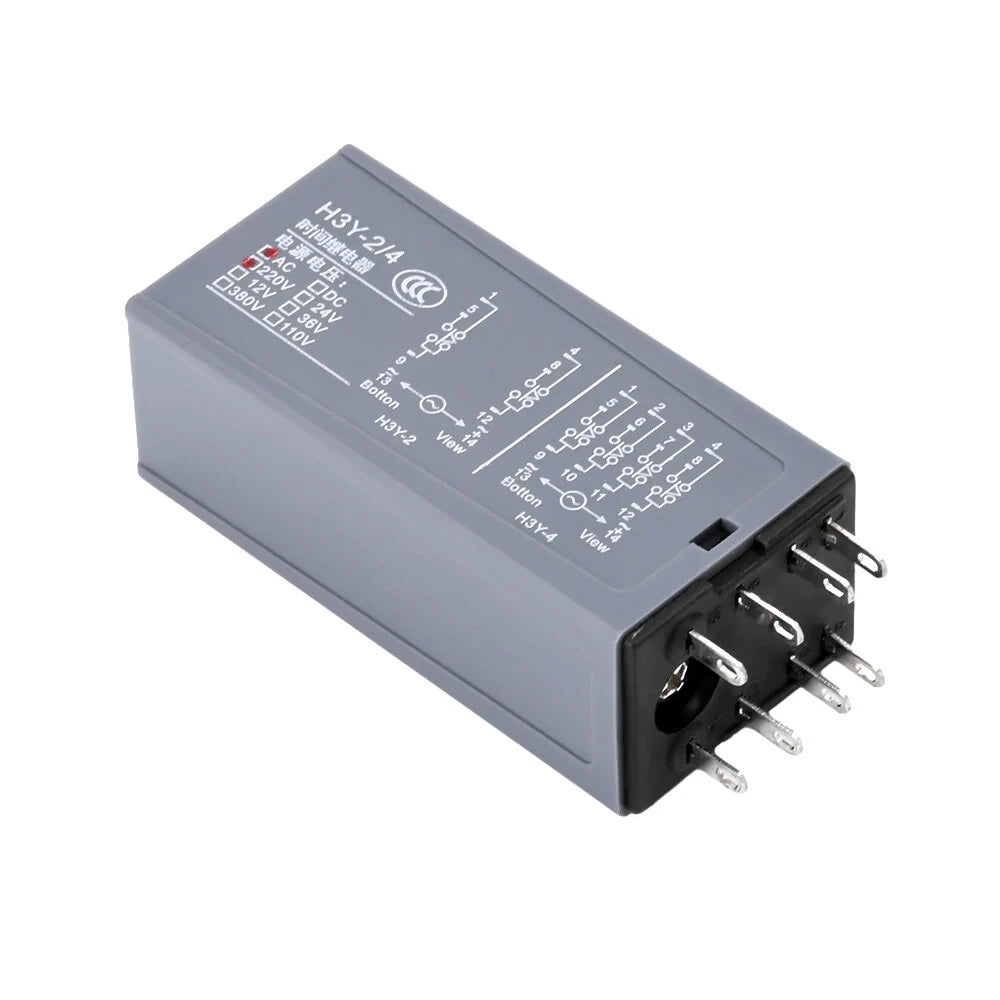

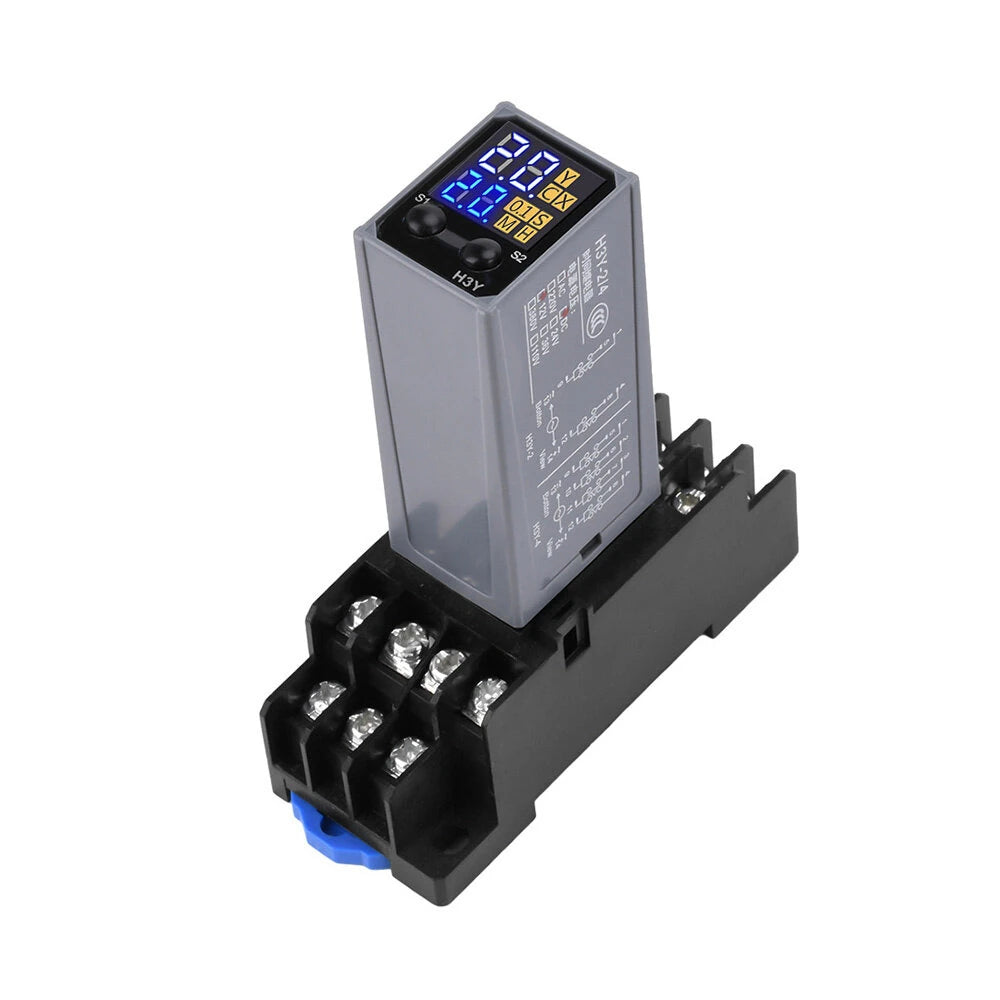

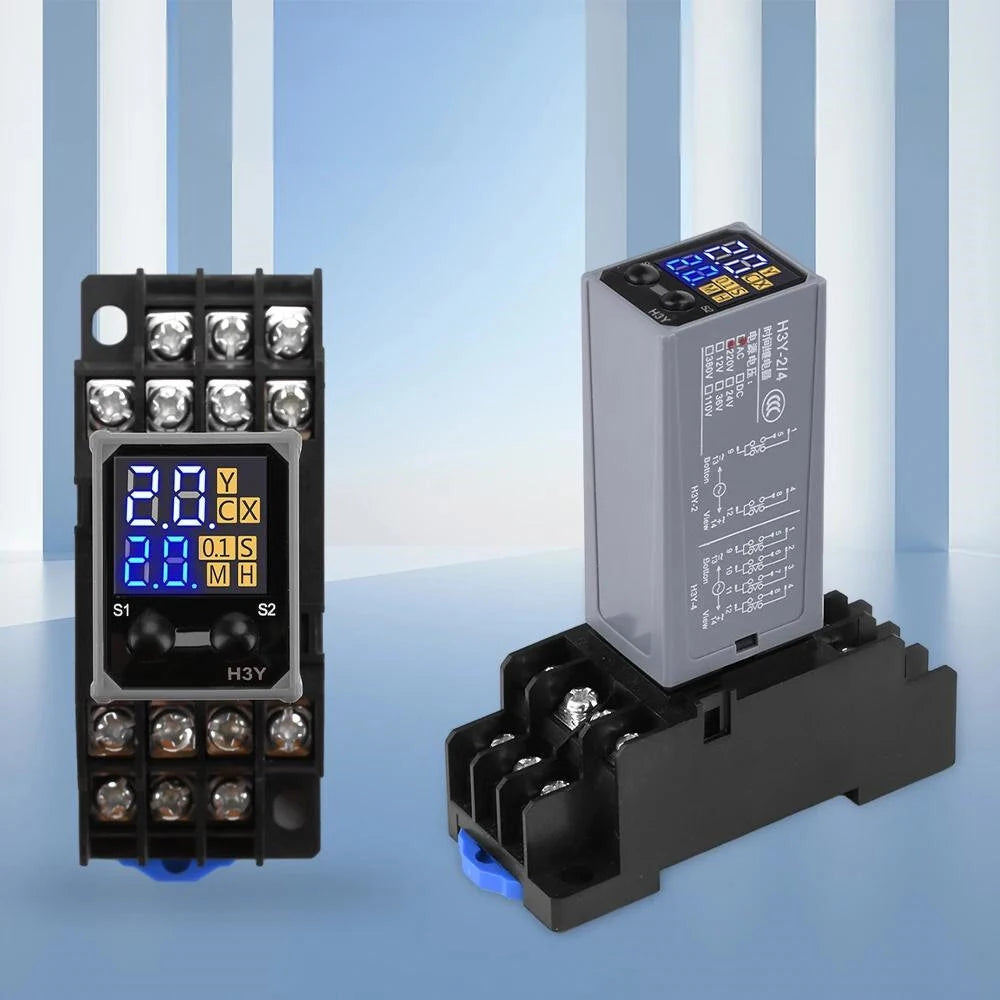

Product Name: Time Relay (14 Pin/4 Open/4 Close)

Model: H3Y-4

Voltage Options: DC 12V, 24V, 220V

Time Range: 0.1s-99h

Time Error: 1%

Power Consumption: Max. 1.5VA

Operating Temperature: -25℃ to 75℃

Allowable Voltage Range: 90-110% of rated voltage

Working Modes:

• Y: Power On Delay
• C: Delayed Release
• X: Loop Delay
• Lc: Number of Cyclic Delays

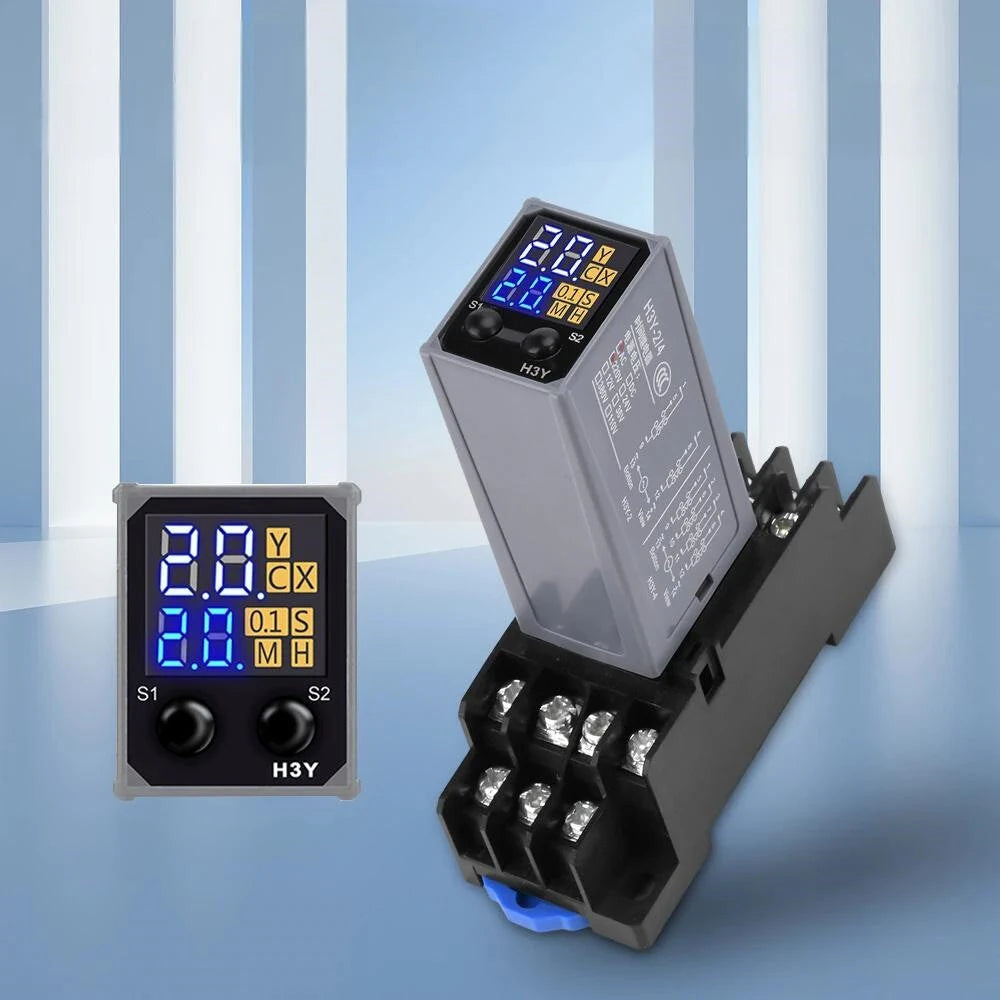

Mode Setting:

Long press the S1 button on the left for 3 seconds. The mode will automatically switch in a loop after flashing. Release the button at the desired mode. After 5 seconds, the setting will be saved.

Time Base Setting:

Long press the S2 button on the right for 3 seconds. The time base will automatically switch in a loop after flashing. Release the button at the desired mode. After 5 seconds, the setting will be saved.

Number Setting:

Click left to switch modes.

Features:

• Fire-Resistant and Heat-Resistant Construction: The robust PC shell is both fire-resistant and heat-resistant, offering exceptional safety and durability.
• Clear LED Digital Display: High-definition LED screen simplifies monitoring and setting adjustments.
• High-Quality Silver Contacts: Ensures stable performance and reliable switching operations with minimal maintenance.
• High-Conductivity Copper Pins: Large capacity pins provide superior conductivity and long-term reliability.
• Versatile Delay Modes: Supports power on delay, delayed release, cycle delay, and cycle delay count setting for diverse applications.

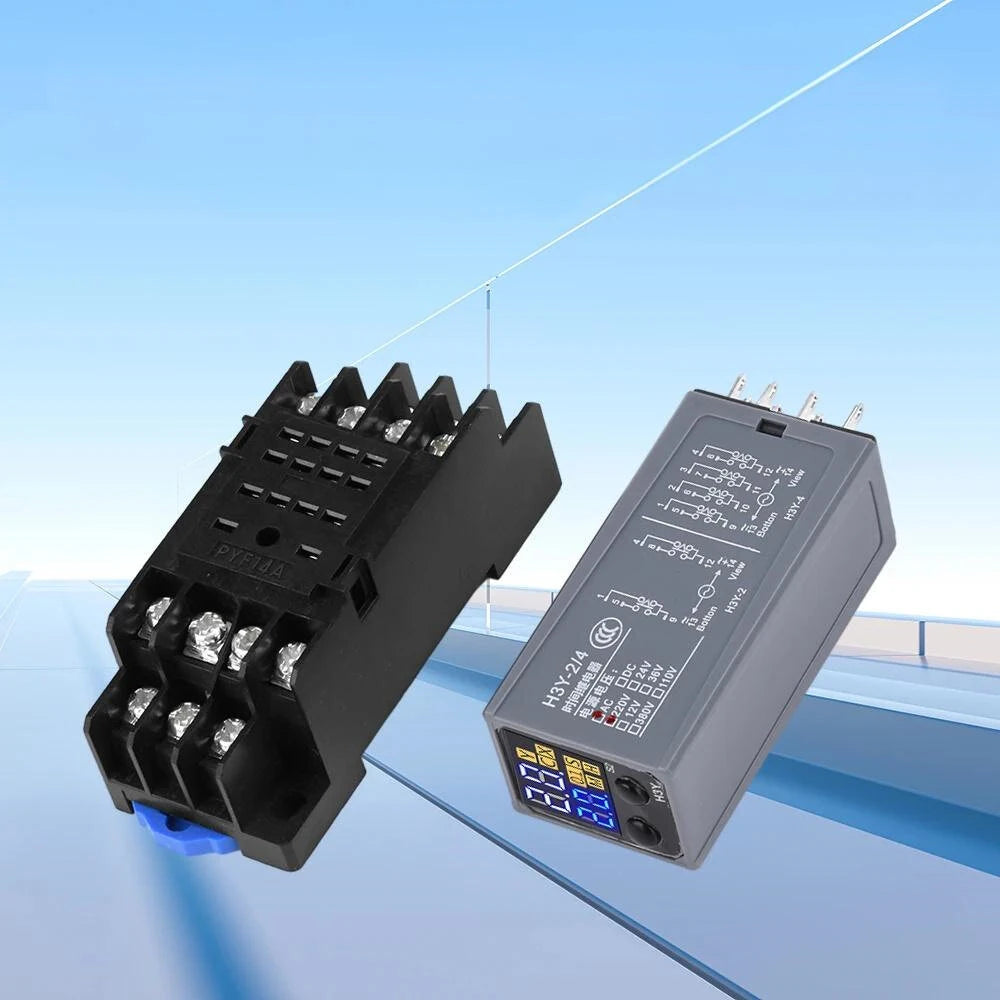

Package Included:

• 1 x Time Relay
• 1 x Base
