ESP32 CAM WiFi Camera Module Kit with ESP32-S3 Chip, ROS1/ROS2 & APP Control - Compatible with Microbit DIY Robot Car

Description:

The ESP32-CAM module, featuring an ESP32-S3 chip and a 2MP camera, offers a seamless connection experience. After powering up, it automatically establishes a WiFi hotspot (AP mode) and can also connect to existing WiFi networks (STA mode). Users can connect to its WiFi hotspot or to the same WiFi network to stream live video on their phones. The module interfaces with STM32, AR, and other microcontrollers via a serial port. It's designed for easy installation on smart cars using a bracket/PTZ, and Yahboom provides an app for remote control of smart cars and the 2DOF PTZ.

Key Features:

• Includes a basic bracket and 2DOF PTZ for diverse application scenarios.
• Equipped with a built-in ESP32-S3 chip and 2MP camera within a blue and white ABS plastic case, compatible with building block parts.
• Automatically initiates 2.4G WiFi hotspots (AP mode) and connects to existing networks (STA mode).
• Communicates with development boards like STM32, AR, and Microbit via a serial port for smart car integration with a WiFi camera PTZ.

Specifications:

ESP32-WIFI Camera:

• Antenna Module: 2.4GHz FPC (Soft Board) Antenna
• Interface Type: Serial Port
• Antenna Gain: 3dB gain
• Case Material: ABS
• Operating Modes: Default AP mode + STA mode
• Supply Voltage: 5V
• Supply Current: 250mA
• Transmission Distance: ≤20m
• Dimensions: 48 x 32 x 23.04 mm
• Weight: 21g
• Interface Definition: 5V power supply positive TXD serial port transmitter, GND power supply negative RXD serial port receiver

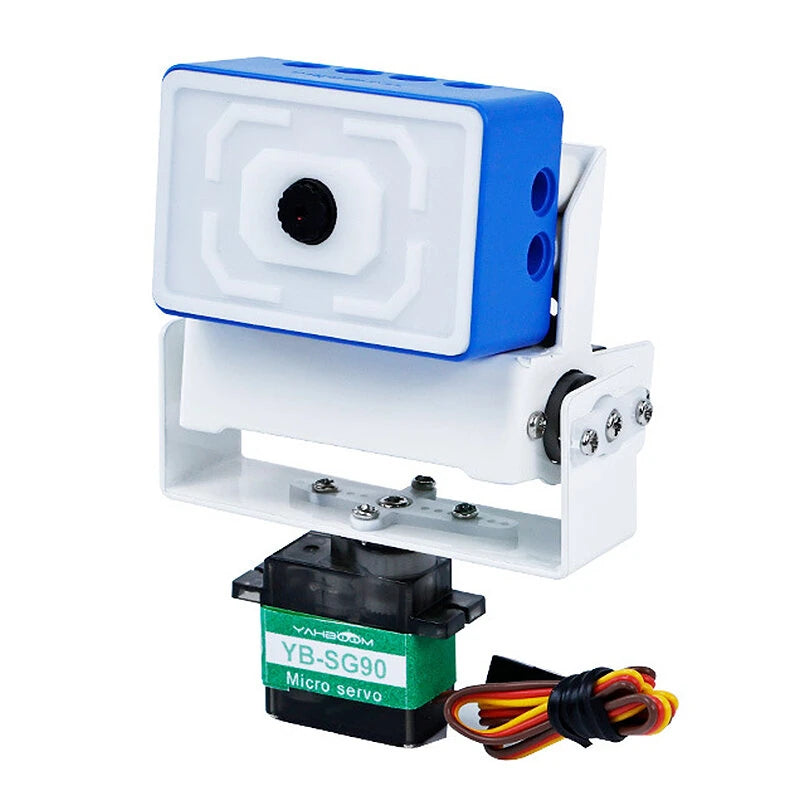

2DOF Electric PTZ:

• Degrees of Freedom: 2
• Servo Cable Length: 245mm +5mm
• Features: Supports 2DOF movement in horizontal and vertical directions, installable on smart car platforms with the ESP32-CAM module
• PWM Pulse Width Range: 500-2500us corresponding to 0-180°
• Servo Model: High quality 9G plastic servo
• Working Current: 80mA
• No-load Speed: 0.14 sec/60°
• Stall Current: 650mA
• Angle Accuracy: 180° ± 1°
• Stall Torque: 1.3kgf.cm
• Dimensions: 62 x 36 x 80.7 mm
• Weight: 70g

Package Includes:

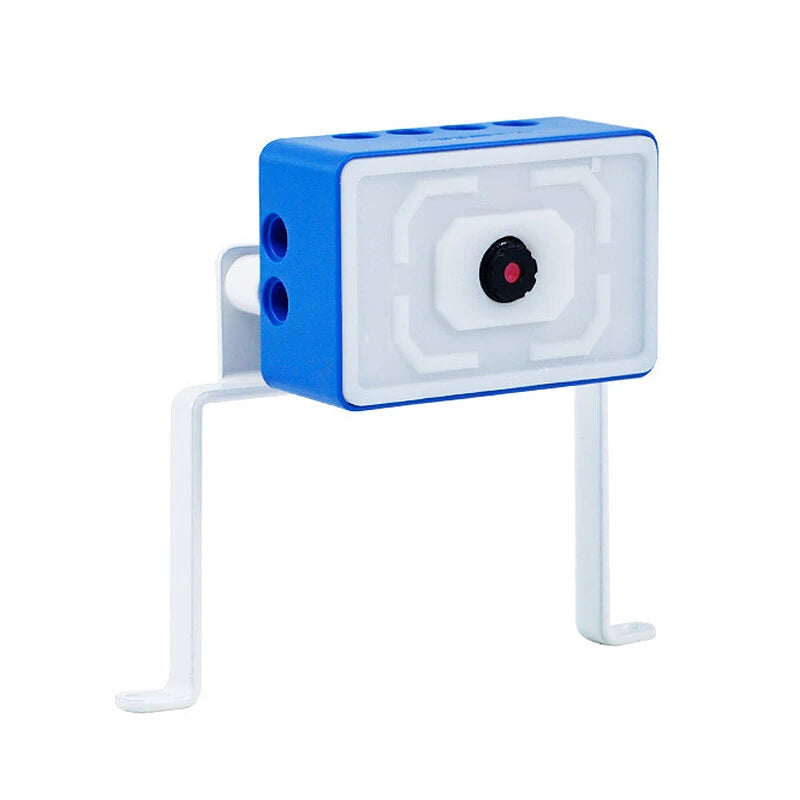

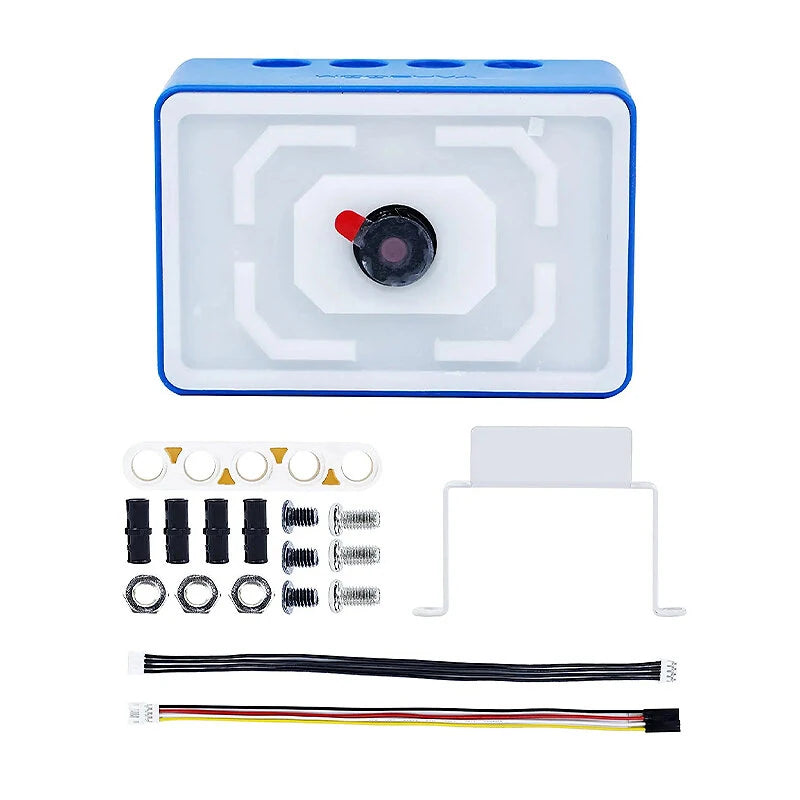

• Camera Module + Fixed Bracket:
  • 1x WiFi Camera Module
  • 1x Fixed Bracket
  • 1x 4Pin Cable
  • 1x 4Pin Dupont Line
  • 1x Accessory Pack

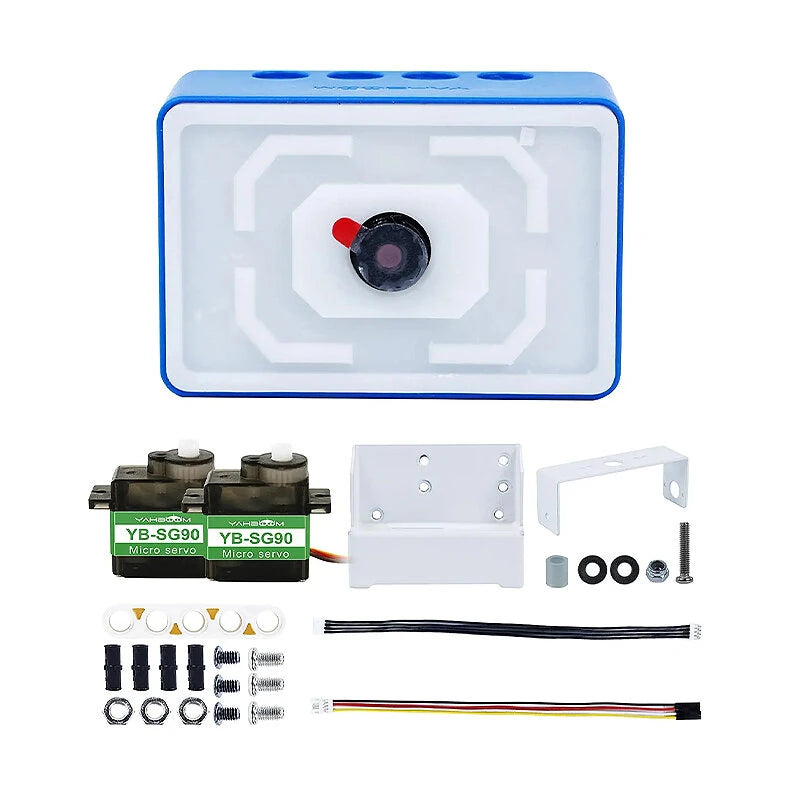

• Camera Module + 2DOF PTZ:
  • 1x WiFi Camera Module
  • 1x PTZ Accessories Package
  • 1x 4Pin Cable
  • 1x 4Pin Dupont Line
  • 1x Accessory Package
