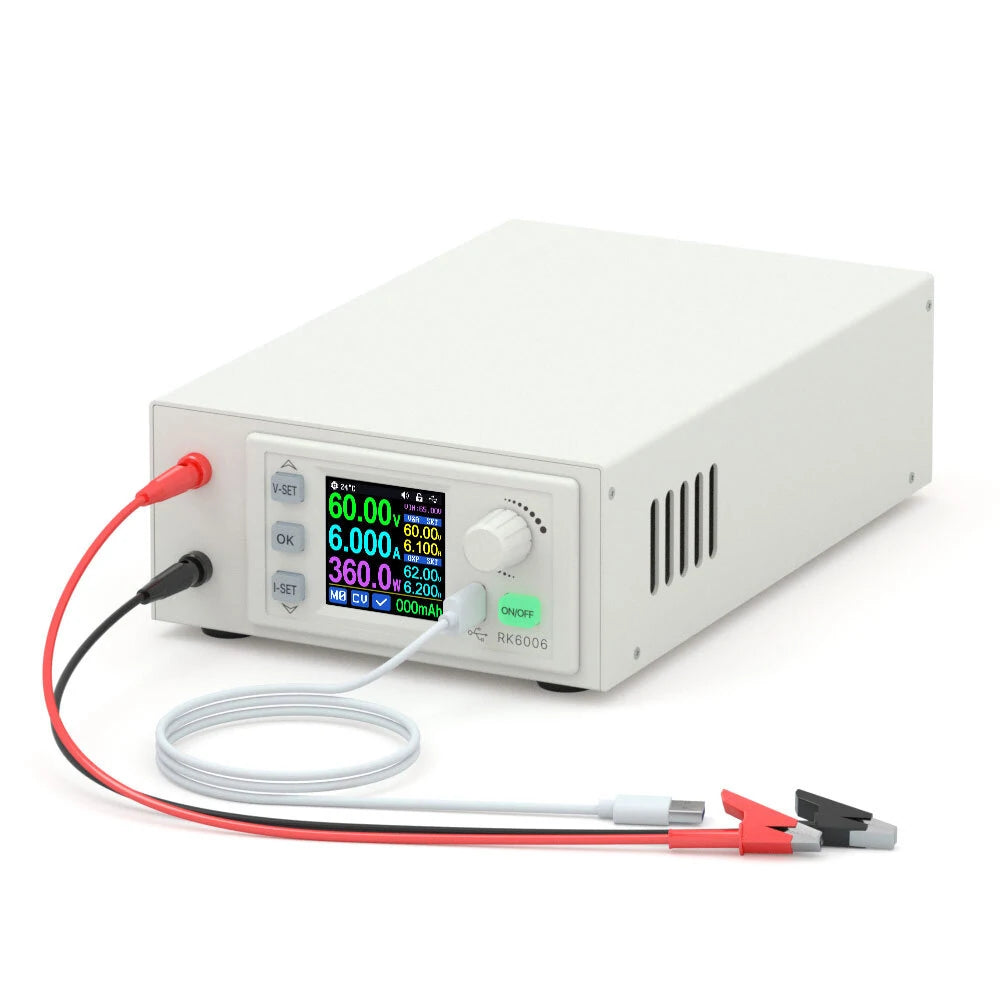

RIDEN RK6006-C 60V 6A Digital Power Supply with HD Display & Overvoltage Protection

Product Features

High Precision

The RK6006-C Digital Power Supply ensures precise control with an output voltage setting/reading resolution of 0.01V and output current setting/reading resolution of 0.001A.

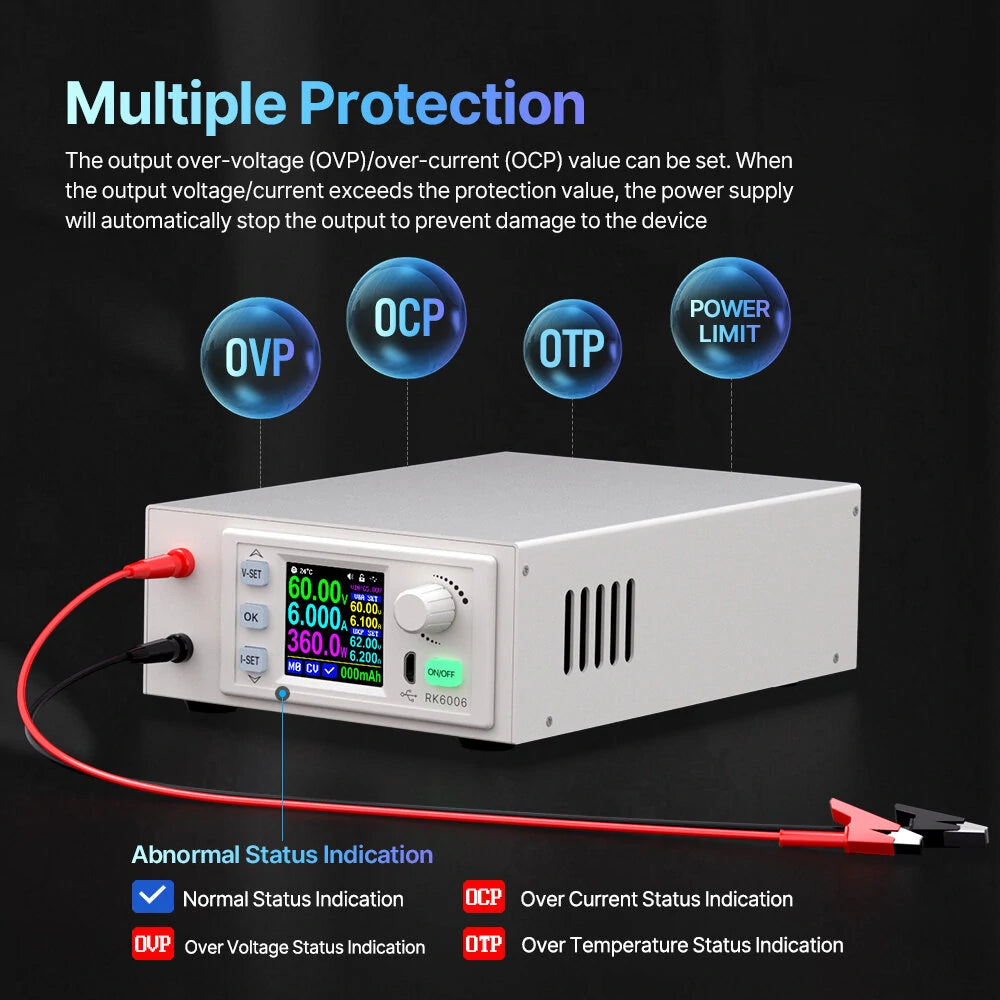

Multiple Protection Mechanisms

This device includes over-voltage (OVP) and over-current (OCP) protection, which automatically stop the output to prevent damage when set values are exceeded.

Versatile Measurement Range

The unit is capable of handling a wide range of power needs, with capacity and energy measurement ranges of 0-9999.99Ah and 0-9999.99Wh respectively.

Efficient Response Time

In constant voltage mode, the power supply boasts a quick response time of 2ms (0.1A-5A load), ensuring seamless performance.

High-definition Display

Settings and readings are displayed clearly with its 2.4-inch color HD display, making it easy to understand.

Specifications

• Brand: RIDEN
• Model: RK6006-C
• Screen: 2.4-inch color HD display
• Input Voltage Range: 100-120V/200-240V AC
• Output Voltage Range: 0-60.00V
• Output Current Range: 0-6.000A
• Output Power Range: 0-360.0W
• Output Voltage Setting/Reading Resolution: 0.01V
• Output Current Setting/Reading Resolution: 0.001A
• Output Ripple Typical: 100mV VPP
• Constant Voltage Mode Response Time: 2ms (0.1A-5A load)
• Capacity Measurement Range: 0-9999.99Ah
• Energy Measurement Range: 0-9999.99Wh
• Working Temperature Range: -10℃ to 40℃
• Over Temperature Protection: System temperature > 90℃
• Product Dimension: 200 x 115 x 57 mm
• Weight (with Package): About 1.3 kg

Package Includes

• 1 x RK6006-C Digital Power Supply
• 1 x AC Power Cable
• 1 x User Manual
