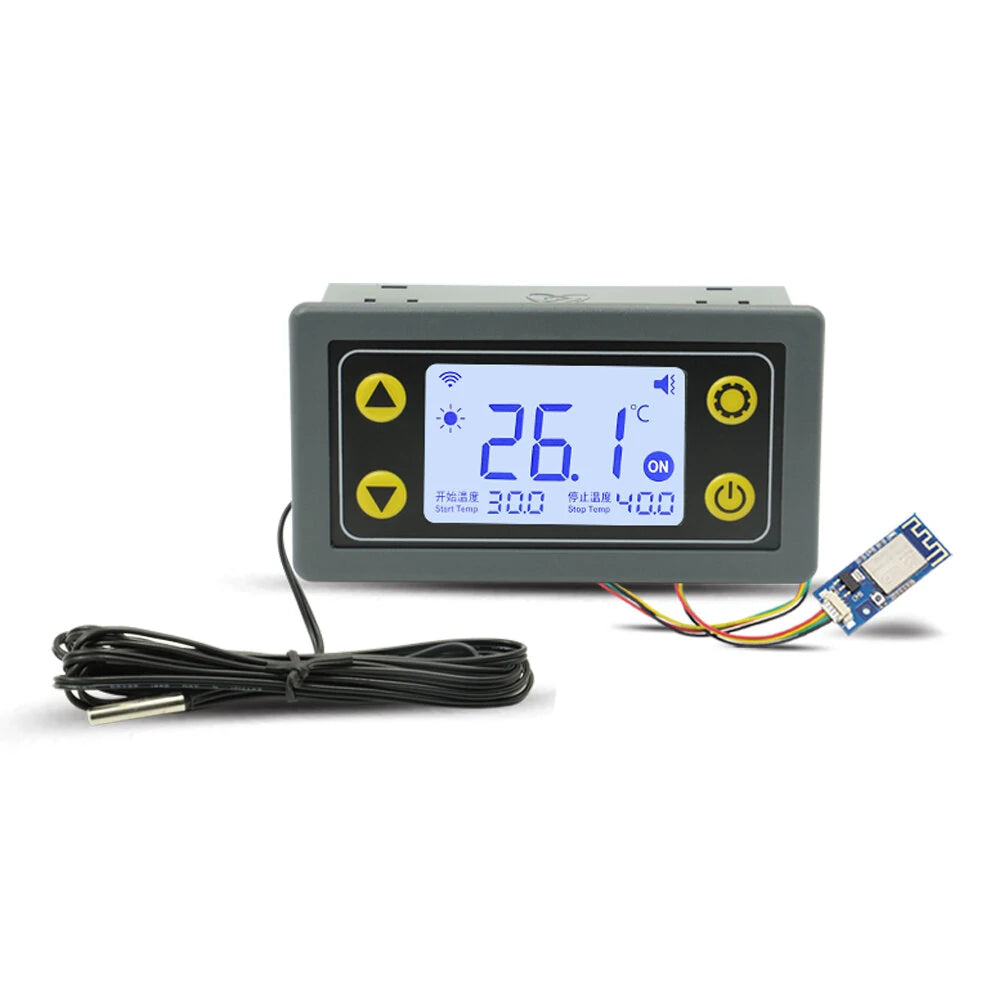

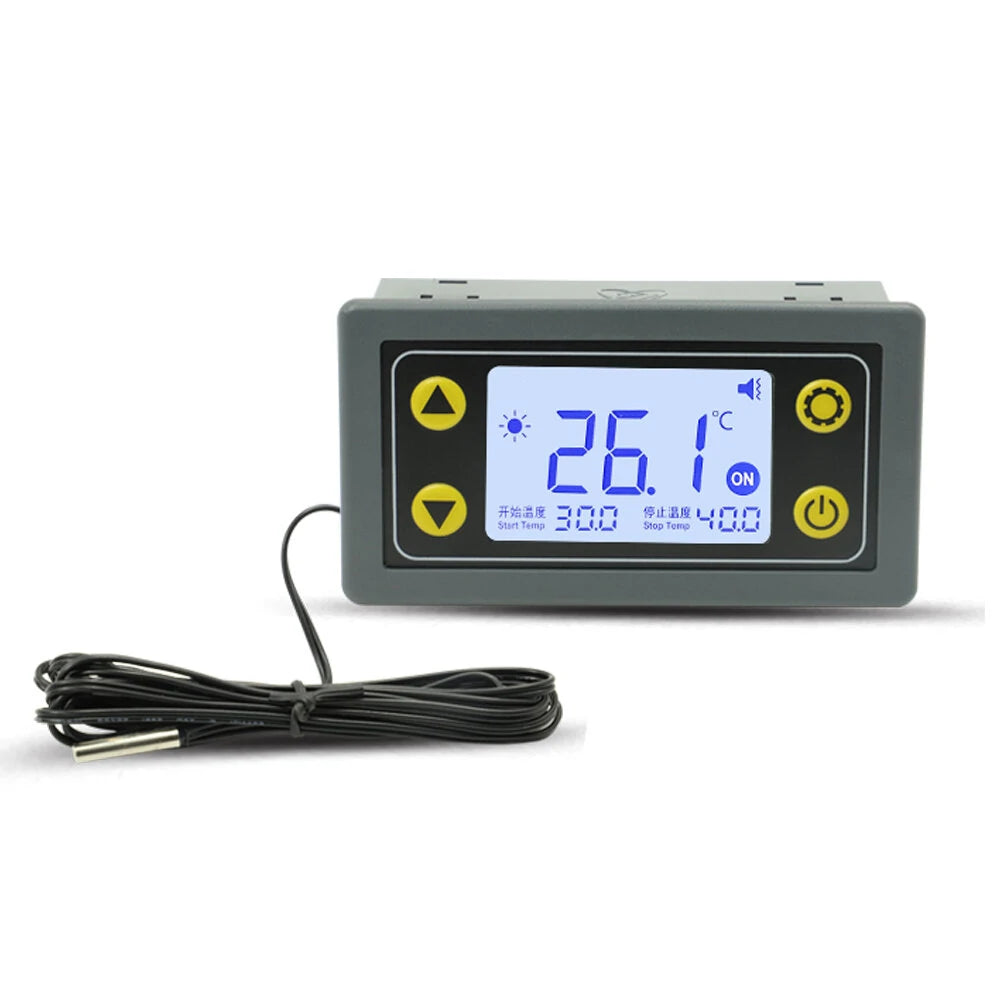

WiFi Thermostat Controller ST10/ST10-W DC6-30V 10A with Digital Display

WiFi Thermostat Controller ST10/ST10-W DC6-30V 10A with Digital Display

Regular price $7.99 USD
Regular price $0.00 USD Sale price $7.99 USD
Sale Sold out
Shipping calculated at checkout.
Size

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
WIFI Remote Intelligent Temperature Controller

WIFI Remote Intelligent Temperature Controller

Specifications:

  • Product Name: WIFI Remote Intelligent Temperature Controller
  • Product Model: ST10-W
  • Input Power Supply: DC 6-30V
  • Output Type: 1 Channel Relay Switch
  • Probe Model: 10K NTC 3950B
  • Probe Length: 2 Meters Waterproof Probe
  • Appearance Size: 79 x 43 x 25 MM
  • Product Net Weight: 72g
  • Maximum Control Current: 10A
  • Additional Features: Buzzer alert, backlight control
  • Temperature Control Range: -40~110°C
  • Temperature Control Accuracy: 0.1°C
  • Temperature Measurement Range: -40~110°C

Key Features:

  • LAN penetration with real-time communication for remote control over an unlimited distance.
  • One-key start and stop system for temperature pre-setting.
  • Digital display with one-screen-three-displays for clear visual performance adaptable to external environmental changes.
  • Comes with an app for remote control and a manual/automatic timer switch for on/off operations.
  • Highly accurate measurements within a broad range of applications.

Package Includes:

  • 1x Thermostat
  • 1x WiFi Module (Optional)

Attention:

  1. The product defaults with an NTC waterproof sensor, not with an 18B20 digital sensor.
  2. When using the 18B20 sensor, the temperature reading will automatically switch to the 18B20 test temperature.
  3. The relay acts as a switch and does not output power.

Operation Tips:

Q: How to set if the device should not work from 6:00 am to 5:00 pm?
A: Simply add an emergency stop timer: set it to turn off the emergency stop at 6 am and turn it on at 5 pm.

Q: Can heating be set to 30°C at 6:00 am and 50°C at 4:00 pm?
A: Yes, use the temperature appointment feature and add two appointments.

Q: Is it possible to only use temperature detection with timed control switches?
A: Yes, set the working mode to manual mode for intelligent switch temperature detection.

Q: Can the product send alarm notifications to a cellphone?
A: Yes, bind WeChat and follow the public account "Xinyi Yunlian" to receive notifications.

Q: Can temperature data be recorded and exported for analysis?
A: The device can store up to 15 days of data, with an upload rate of up to 1/second, and it can be exported anytime.
