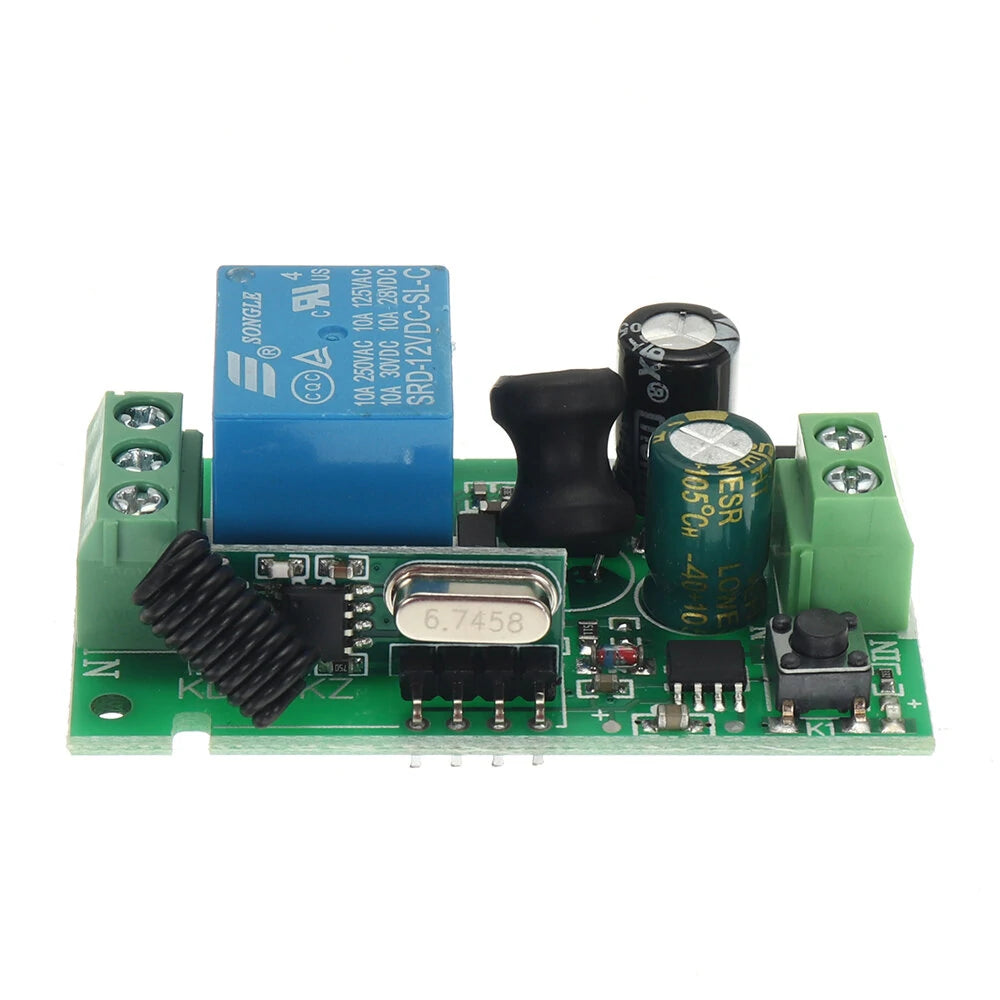

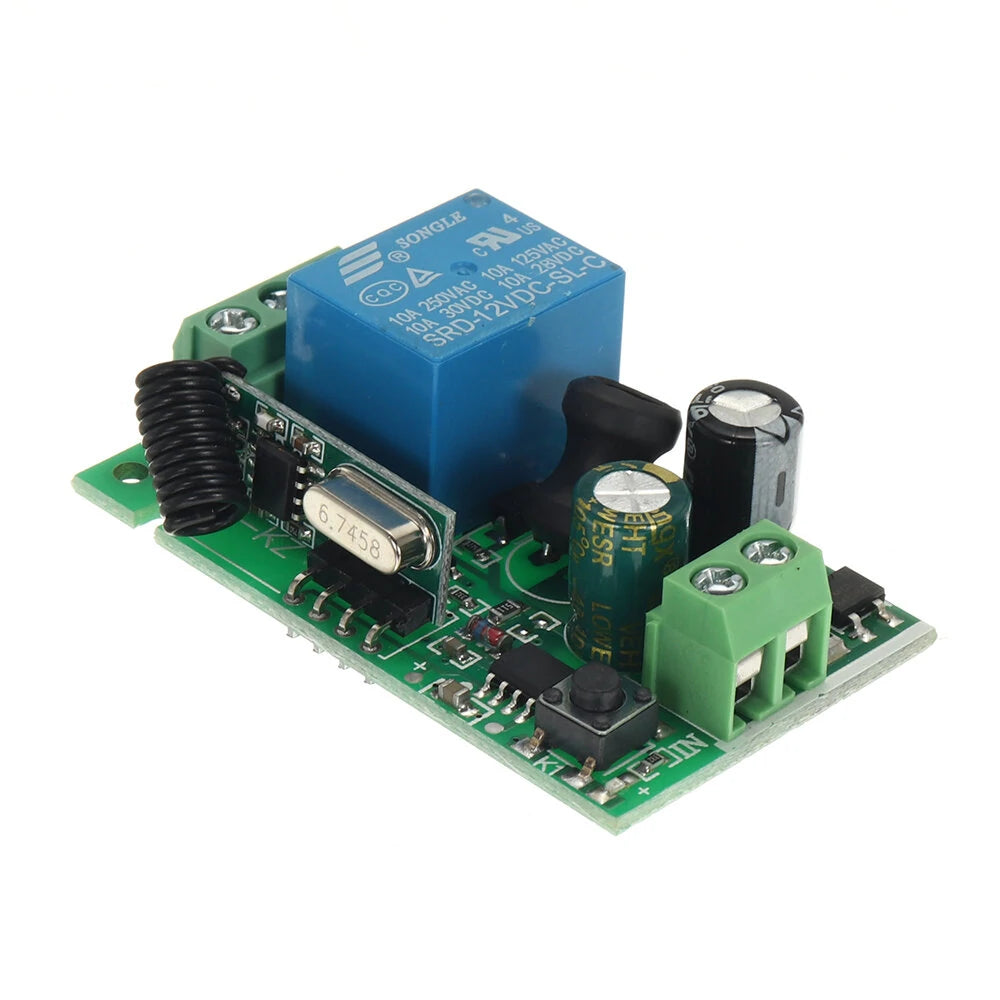

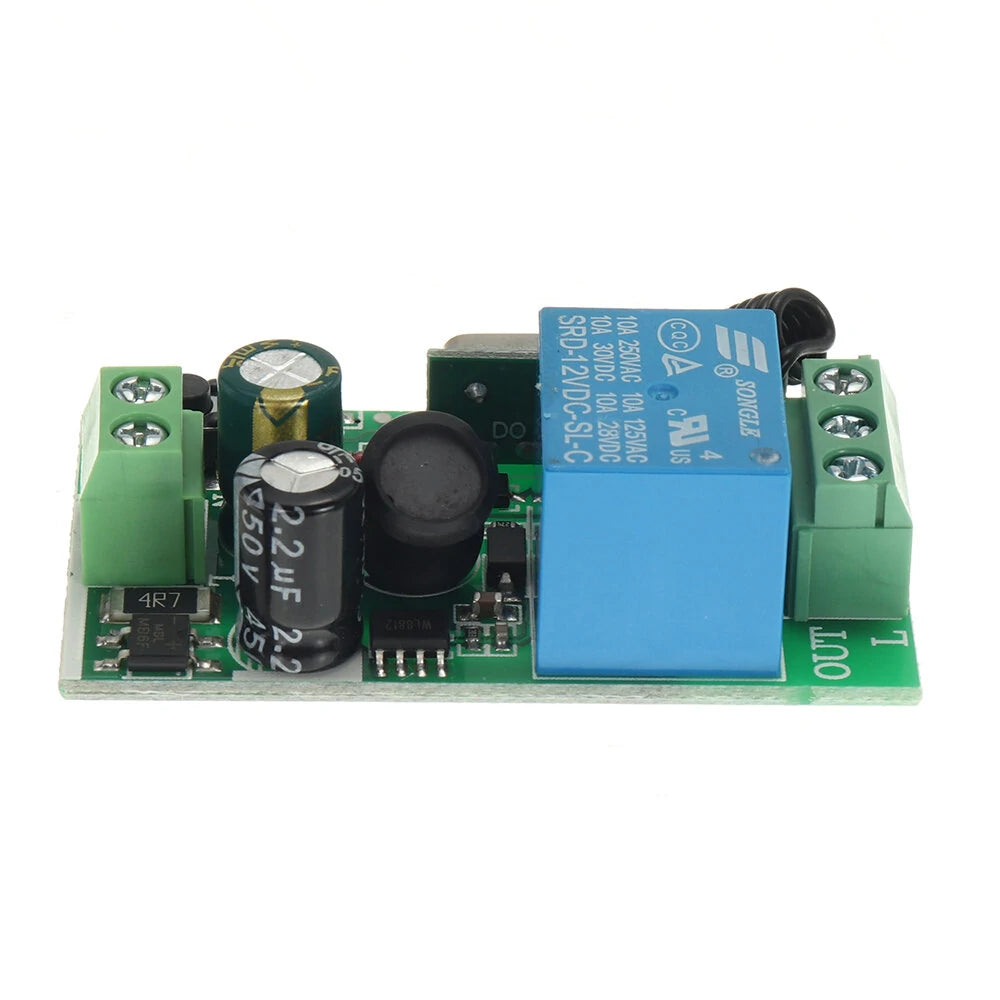

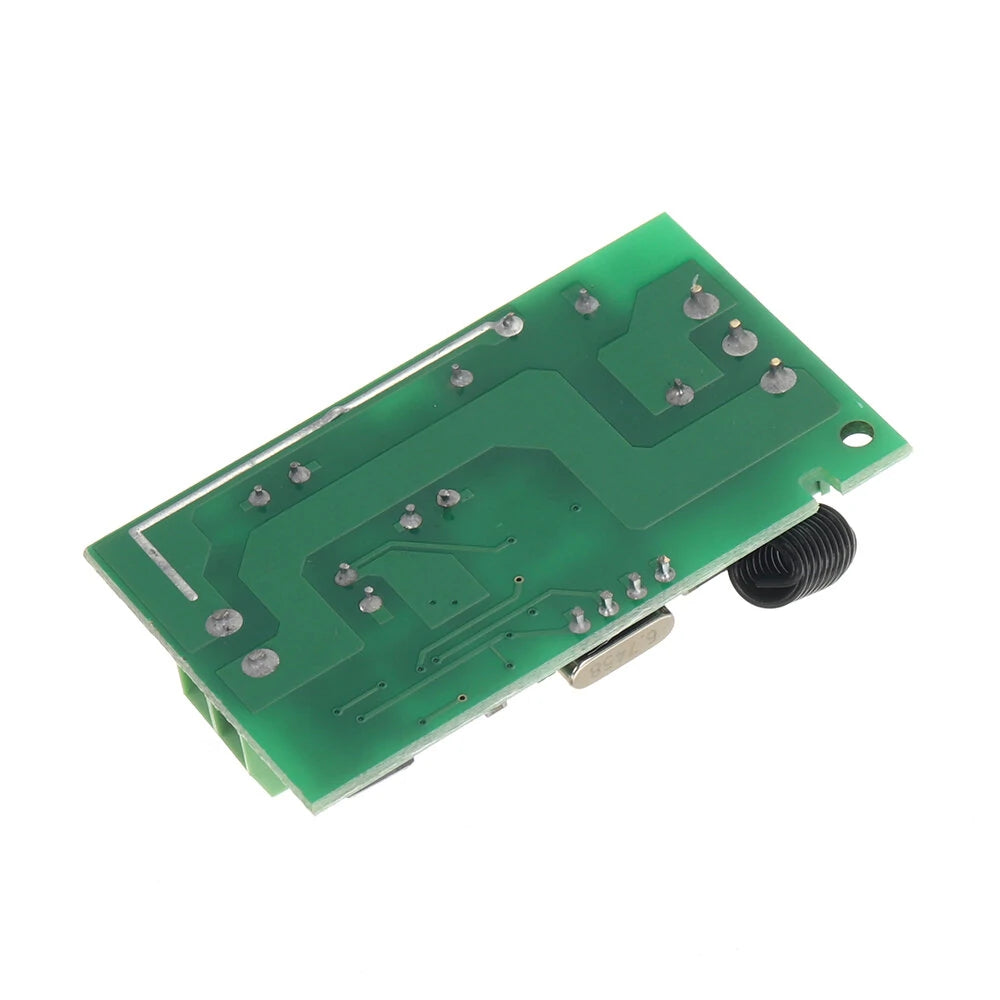

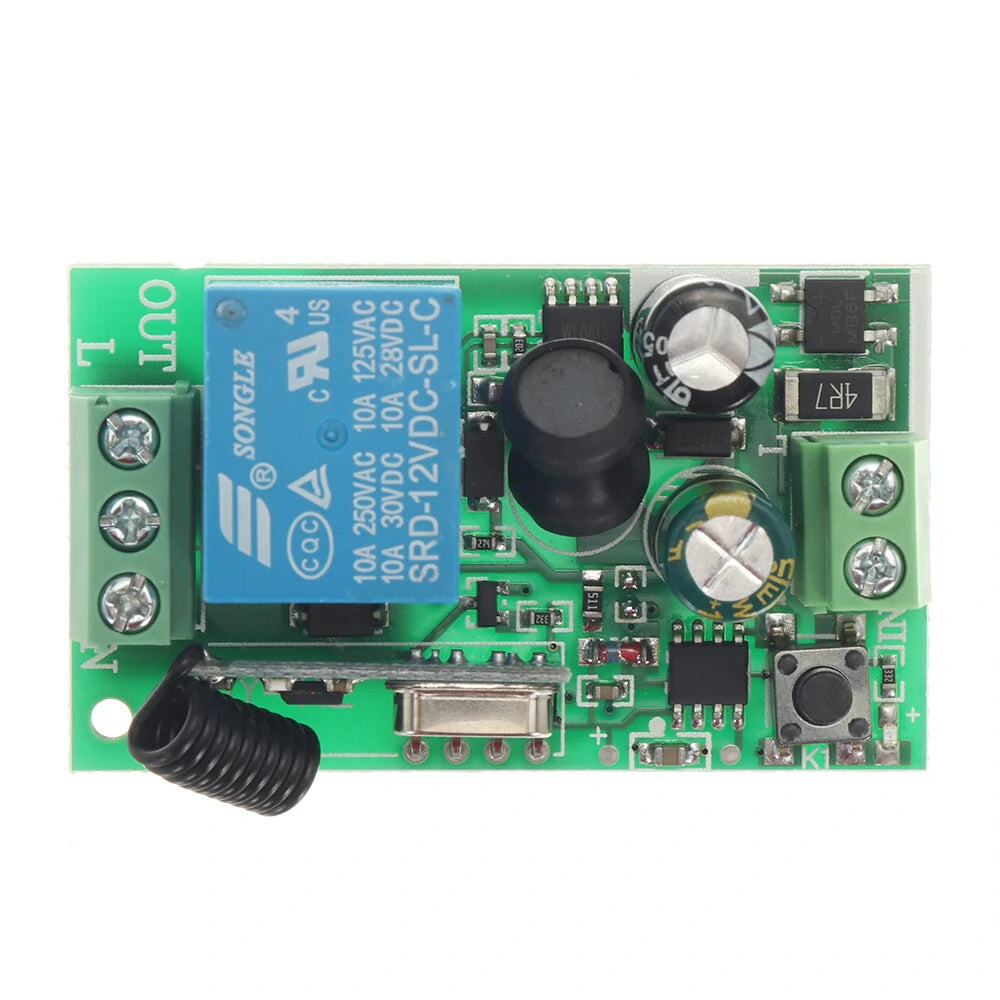

Wireless Relay Remote Control Switch Receiver 220V 10A 1CH 315/433MHz

Product Overview:

Introducing our advanced 220V 1 Channel Wireless Relay Switch, designed for reliable and efficient remote control over your electrical devices. Perfect for both professional and personal use.

Specifications:

• Input Voltage: AC85V-AC220V
• RF Frequency: 315/433MHZ
• RF Working Mode: Super heterodyne receiver
• Receiver Sensitivity: -107dBm
• Remote Control Distance: >100 meters in open environments
• Decoding Method: MCU software decoding
• Controller Memory: Capable of storing up to 32 remote controls
• Supported Remote Control Types: Fixed code, learning code
• Channel: 1CH
• Working Modes: Jog/Non-Latched, Inter-lock/Latched, Self-lock/Self-Latched
• Wiring Method: Fixed wiring terminal
• Rated Load: 10A 250VAC / 10A 125VAC, 10A 30VDC / 10A 28VDC
• Dimension: 5.4cm x 3.1cm x 1.4cm

Functionality:

• Jog/Non-Latched: Pressing a button turns the device ON; releasing it turns it OFF. Requires one remote control button for one channel switch.
• Self-lock/Self-Latched: Pressing the button once turns the device ON; pressing it again turns it OFF. Requires one remote control button for one channel switch.
• Inter-lock/Latched: Pressing one button turns the device ON, while pressing another turns it OFF. Requires two remote control buttons for one channel switch.

Code Management:

• Clear Function: Press the "KEY" button 8 times. The LED will turn off and clear all data from memory. The LED flashes five times to confirm completion.
• Learning Function: Press the "KEY" button to enter code learning mode. Press the desired button on the remote control. The LED blinks three times to confirm successful coding.
• LED Flash Indicators:
  • 1 Flash: Jogging Mode
  • 2 Flashes: Self-locking Mode
  • 3 Flashes: Interlock Mode

Note:

Please ensure to clear the factory code and remote control code before first use for optimal performance.

Package Includes:

• 1 x 220V 1 Channel Wireless Relay Switch
