16MP USB HD Industrial Microscope Camera for Biological & Stereo Microscopes

Specifications:

• Model: HY-5100
• Sensor: 24MP CMOS
• Optical Format: 1/2.9 inch
• Pixel Size: 2.85μm x 2.85μm

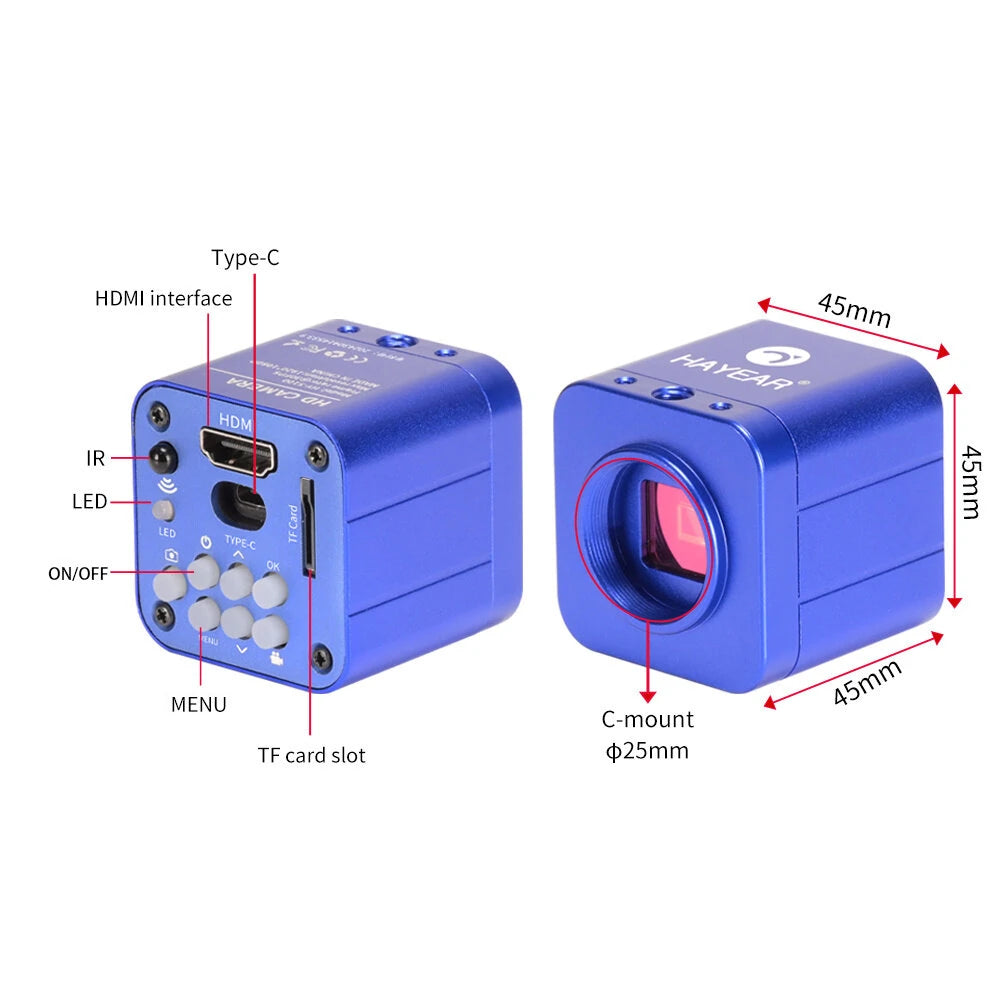

• Interface: HDMI (Type A), USB (Type B), Small Memory Card
• Photographic Image Resolution: 16MP (4K: 4680 x 3456)
• HDMI Resolution: 1920 x 1080P
• HDMI Scale: Support 4:3, 16:9, 16:10 screen
• USB 2.0 (Drive Free): 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 480 at 30FPS
• Small Memory Card: Up to 128GB (not included)
• AWB: Color correction/automatic/manual, independent R.G.B value setting
• Exposure: Automatic/manual, AE value can be set
• Cross Line: 8 lines, color, width, position can be set
• Scale Line: 2 lines
• Sharpness, Contrast, Color Gain: Support
• Mono Negative Film: Support
• Language: English, Simplified Chinese, French, Spanish, Japanese, German, and other languages
• Digital Zoom: Support
• Infrared Remote Control: Support
• Voltage Input: DC 12V
• Power Supply Voltage: Input: AC100-240V, Output: DC 12V
• Lens Interface: C/CS port
• Remote Control Battery: 1 x CR2025 button battery (delivered without battery)

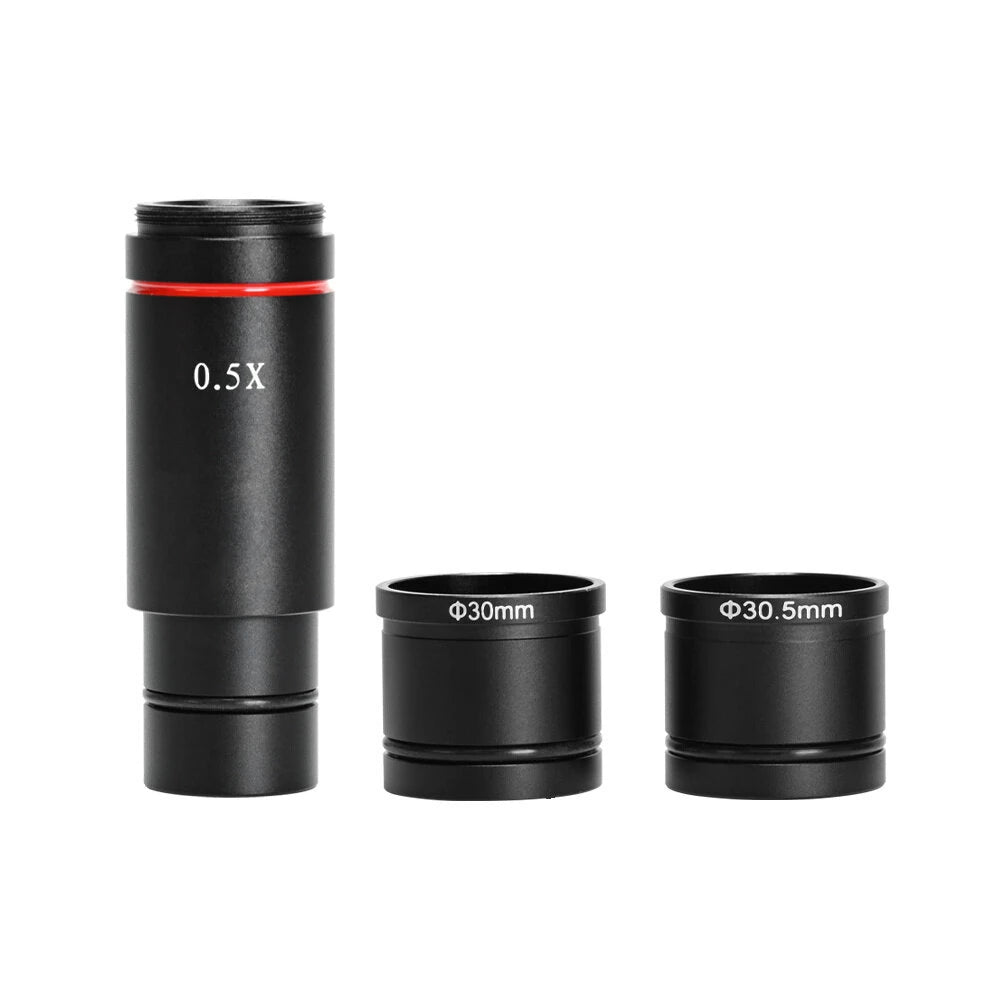

• Adapter: 0.5X Reducing Lens (23.2mm to 30mm, 30.5mm)

Features:

• High-Resolution Imaging: Equipped with a 24MP CMOS sensor, it captures detailed 16MP images (4K: 4680 x 3456) suitable for high-precision microscopy.
• Versatile Interface Options: Provides multiple connection options including HDMI (Type A), USB (Type B), and memory card support, making it adaptable for various setups.
• Advanced Image Controls: Supports AWB, exposure settings, sharpness, contrast, and color gain control for enhanced image customization.
• Digital Zoom and Cross Line Features: Offers digital zoom functionality and customizable cross and scale lines for precise measurements and analysis.
• Multilingual and Remote Controlled: Comes with support for various languages and an infrared remote control for ease of operation.

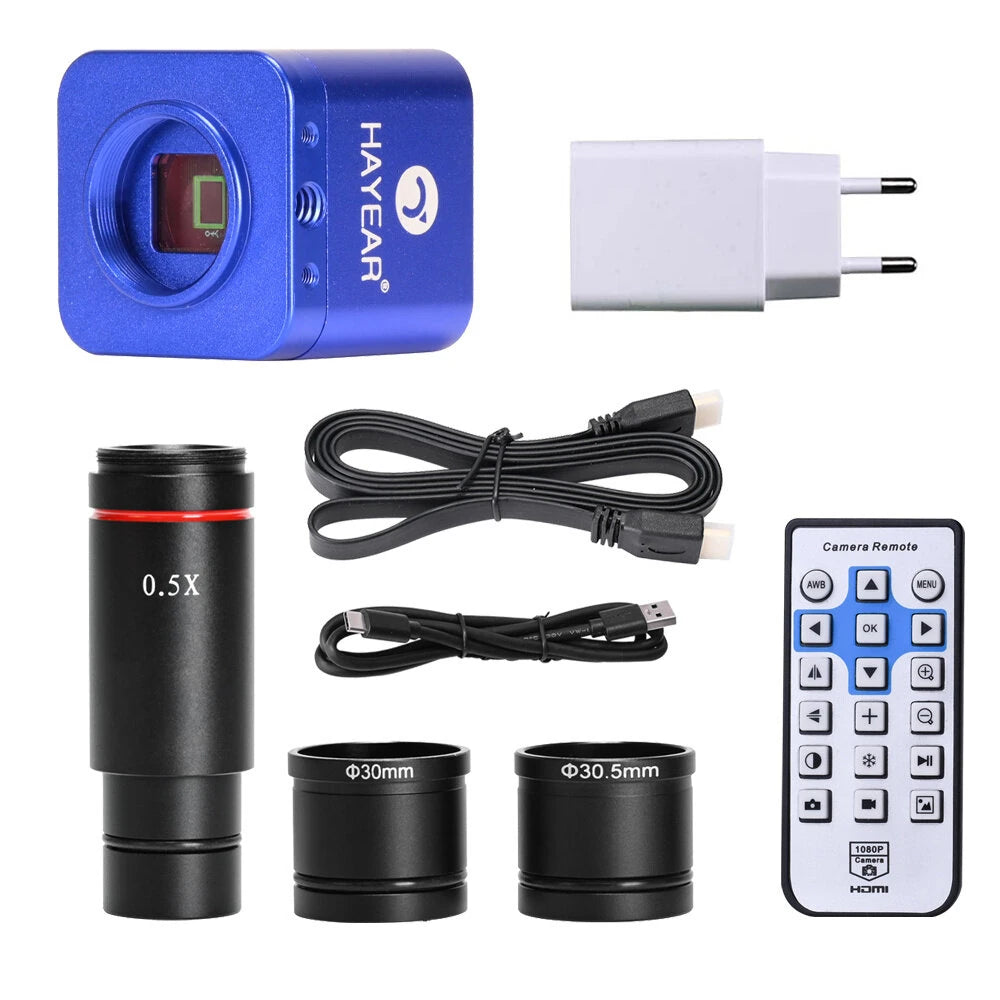

Package Included:

• 1 x Microscope Camera
• 1 x IR Remote Control
• 1 x Power Adapter
• 1 x Paper Manual
• 1 x HDMI Cable
• 1 x USB Cable
• 1 x 0.5X C-Mount Adapter
• 1 x 23.2mm to 30mm Adapter Ring
• 1 x 23.2mm to 30.5mm Adapter Ring
• 1 x Measurement Software (Online Download)
