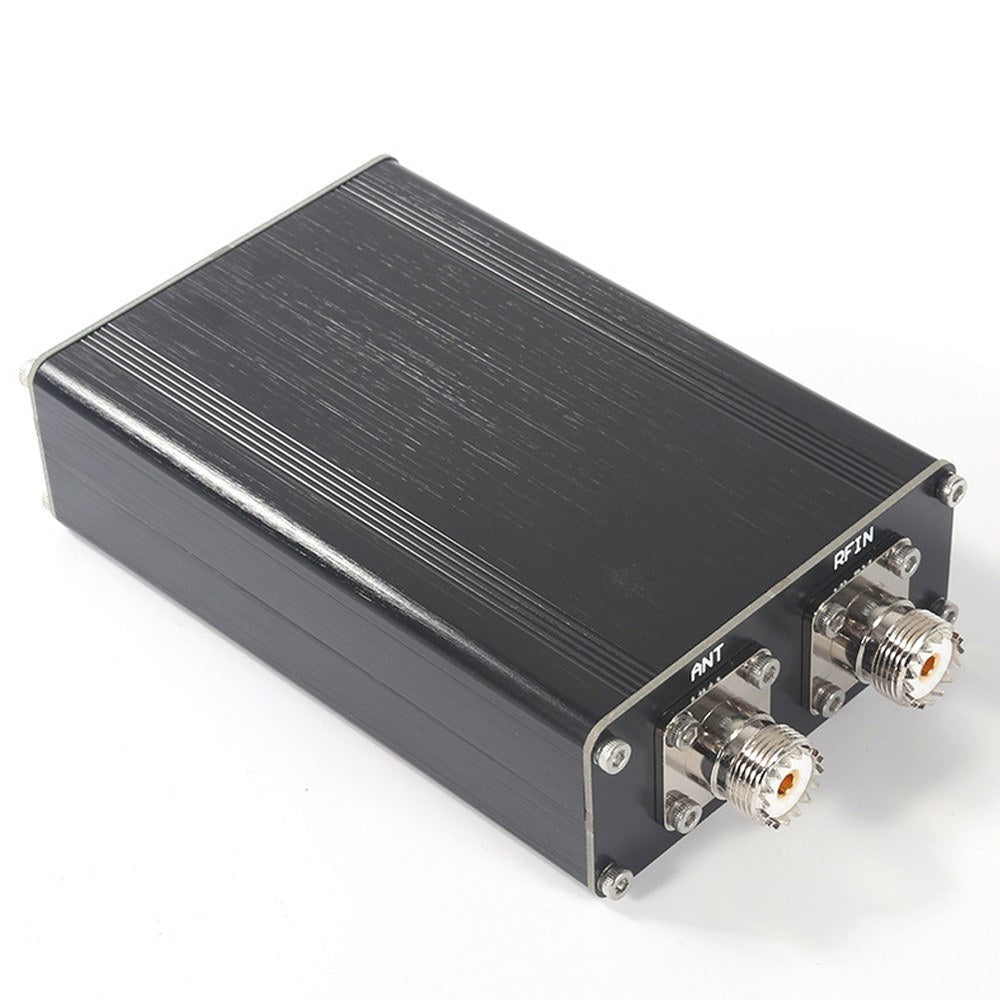

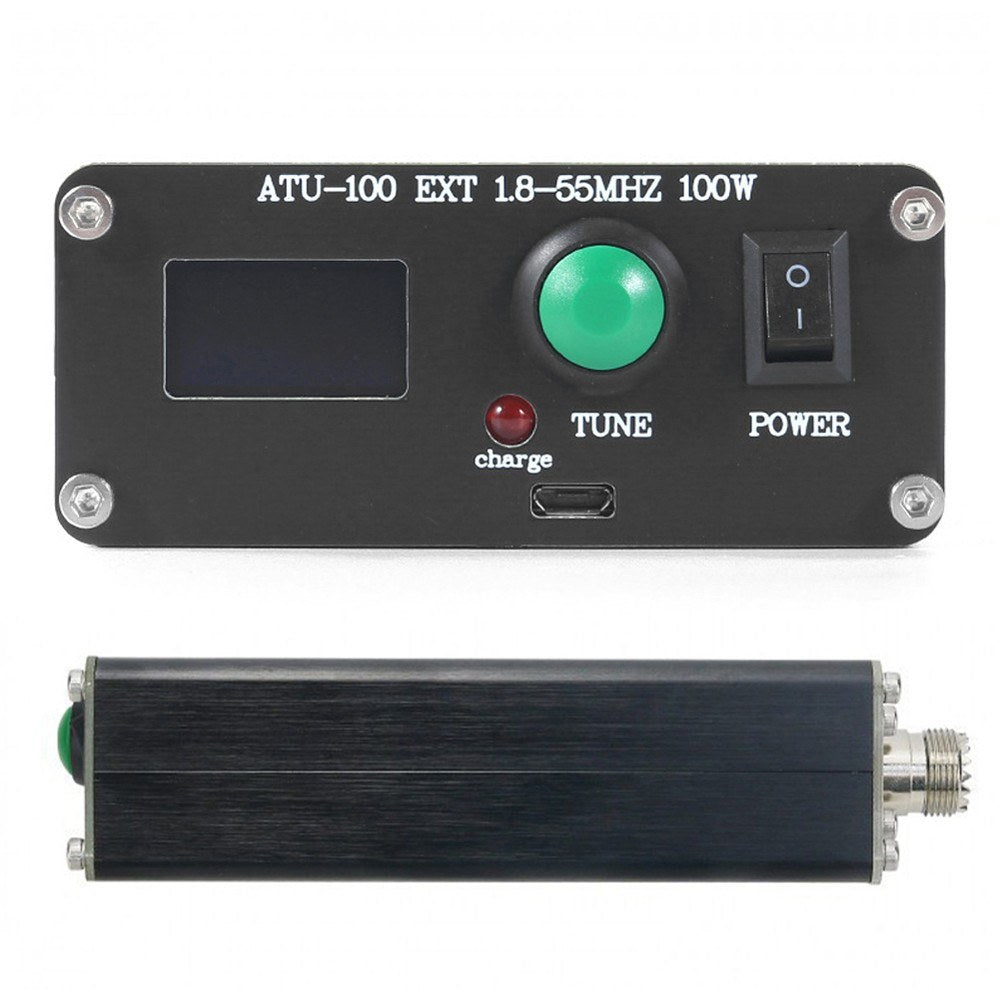

Automatic Antenna Tuner

Features

• Seamless auto-tuning without control wires for compatibility with most radio stations.
• Robust assembly using high-quality metal materials for stable performance.
• Professional-grade design with seven capacitors and inductors, supporting wideband frequencies from 1.8-55 MHz for amateur HF band communications.

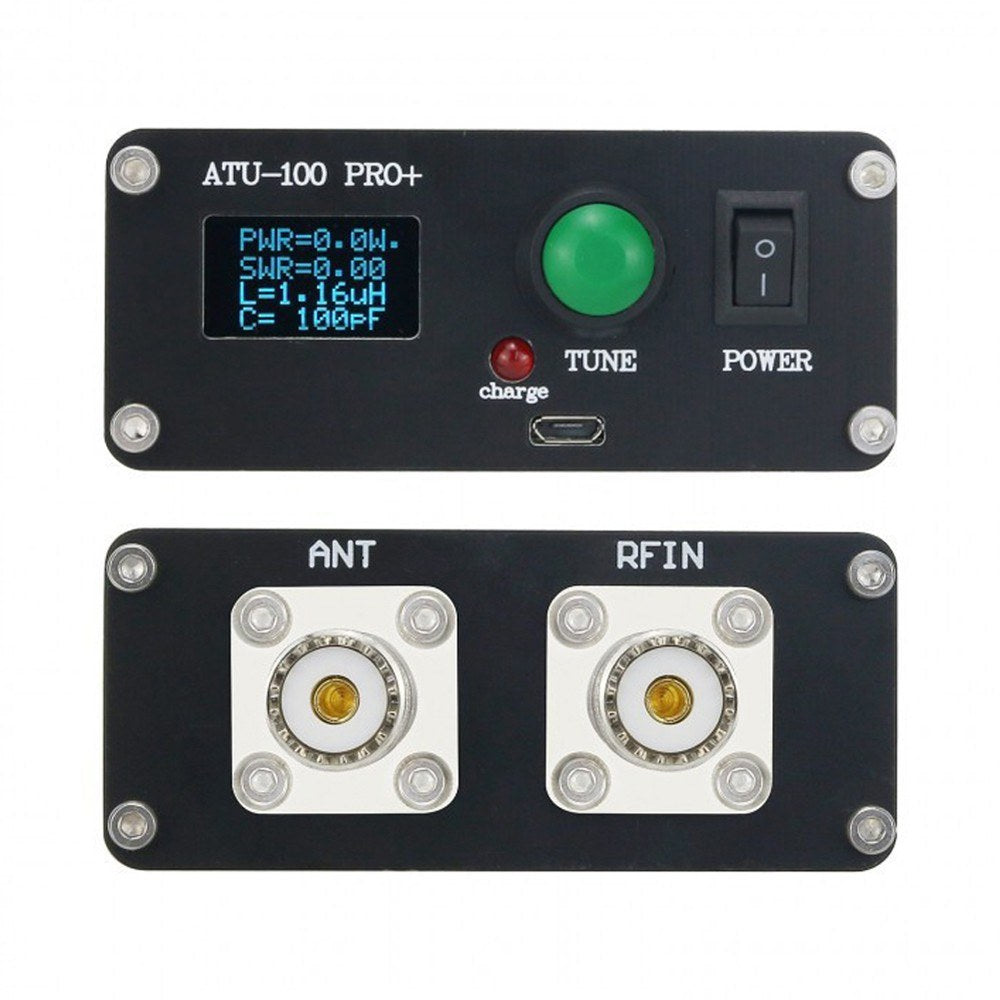

• Compact and durable with an elegant OLED display.

Specifications

• Main Color: Black
• Screen Size: 0.96 inches
• Working Frequency: 1.8-55 MHz
• USB Recharging Current: 1A
• Battery: 3.7V, 2000mAh
• Maximum Working Power: 100W
• Power Measurement Range: 0.1W to 150W
• Power Measurement Accuracy: 10%
• Maximum Inductance: 8.4 μH
• Maximum Capacity: 1870 pF capacitor
• Package Dimensions: 150 x 100 x 40 mm (5.9 x 3.9 x 1.6 inches)
• Package Weight: 300g (10.6 ounces)

Instructions

1. Connect your radio to the antenna tuner, and then connect the tuner to the antenna.
2. On first use, set the radio's output power between 20-30W. Avoid high-power tuning to prevent damage.
3. Set the radio to FM mode.
4. Select the desired antenna band and use 20-30W power in FM mode. Activate the radio PTT and monitor the tuner’s PWR and SWR values.

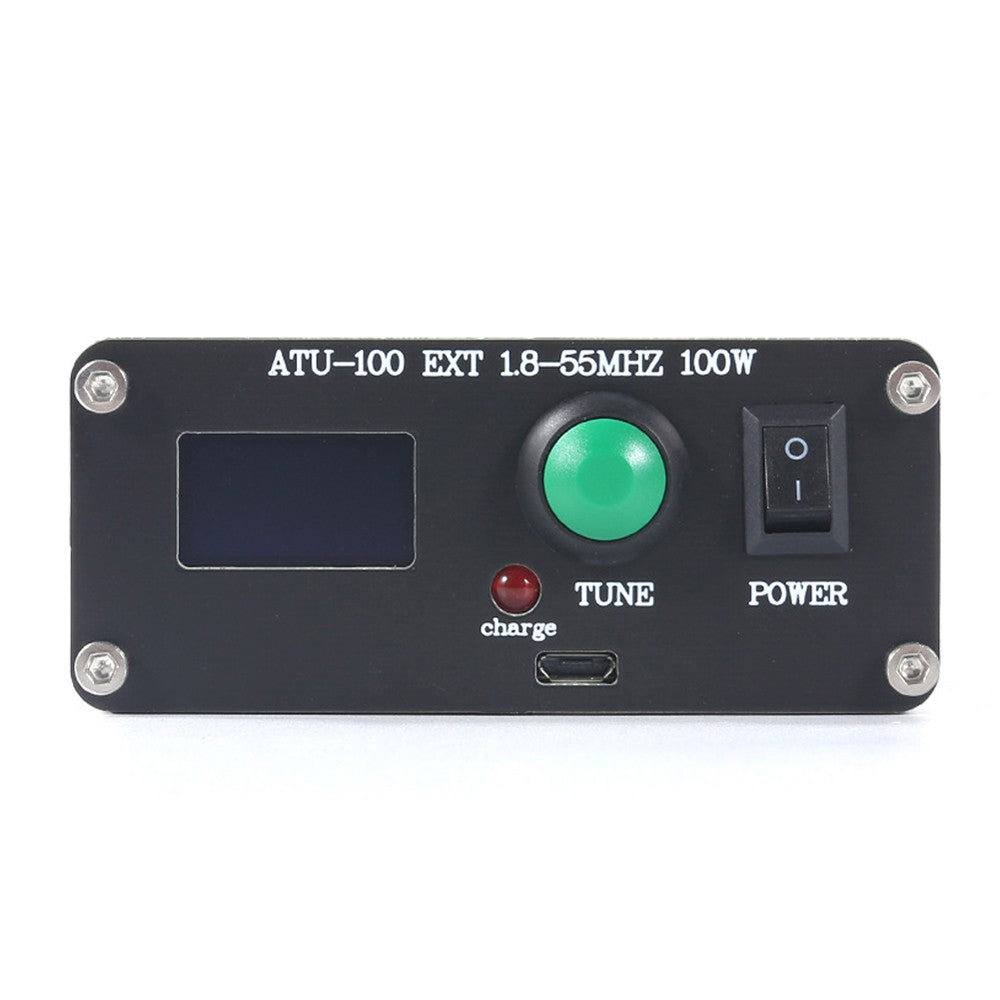

5. Use the ATU TUNE button: a short press (<1 second) resets, a long press (>1 second) initiates tuning.
6. If the SWR exceeds 2.0 during transmission, the antenna is detuned. Hold the ATU TUNE button to adjust and monitor SWR. If SWR is greater than 3.0, do not exceed 30W. If SWR is under 2.0 after tuning, transmission up to 100W is supported.

Packing List

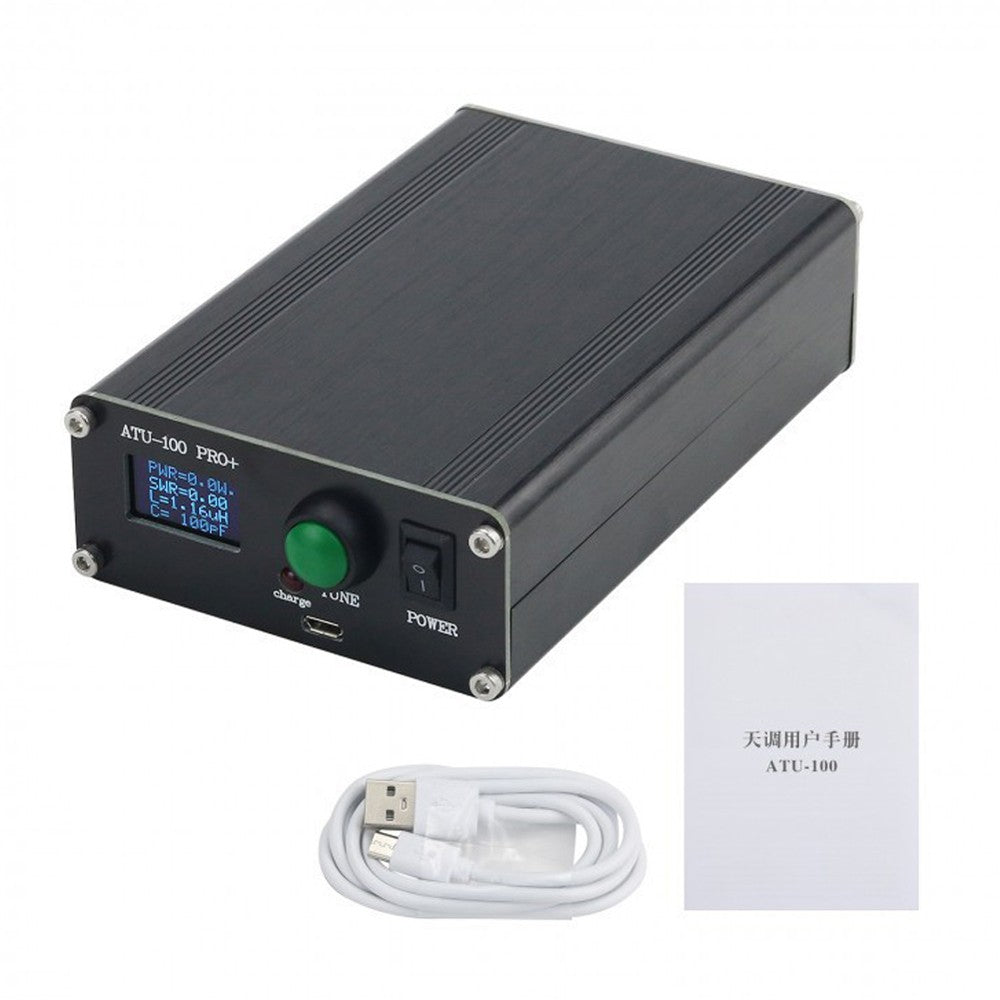

• 1 x Automatic Antenna Tuner
• 1 x USB Cable
• 1 x User Manual
