RF Amplifier

Features:

• Power Supply: 5V 70mA
• Battery: Built-in 600mAH large-capacity
• Frequency Range: 100K-6GHz
• Ultra-low Noise Figure: 0.4 dB NF at 1.95 GHz
• High Gain: 20 dB gain at 1.95 GHz
• High Linearity: +35 dBm output IP3
• High Input Power Ruggedness: +22 dBm CW
• Stable Performance
• Input/Output: 50 ohm
• Connector: SMA female

Dimensions:

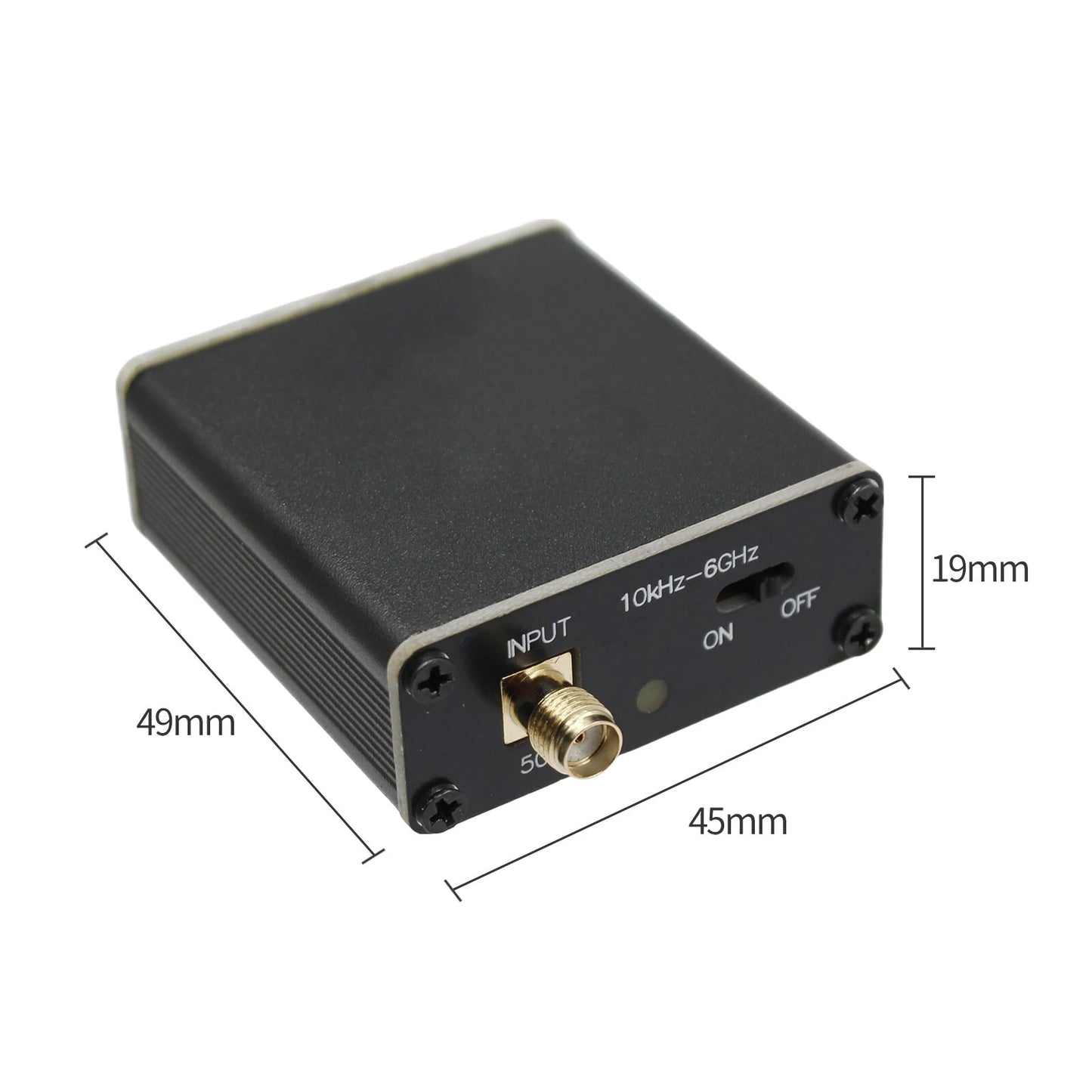

• Product Size: 49mm x 45mm x 19mm (excluding protruding parts)
• Product Net Weight: 57 grams
• Packaging Weight: 69 grams
• Packaging Size: 7.5cm x 7.5cm x 3cm

Package Includes:

• 1 x RF Amplifier
