Vector Network Analyzer

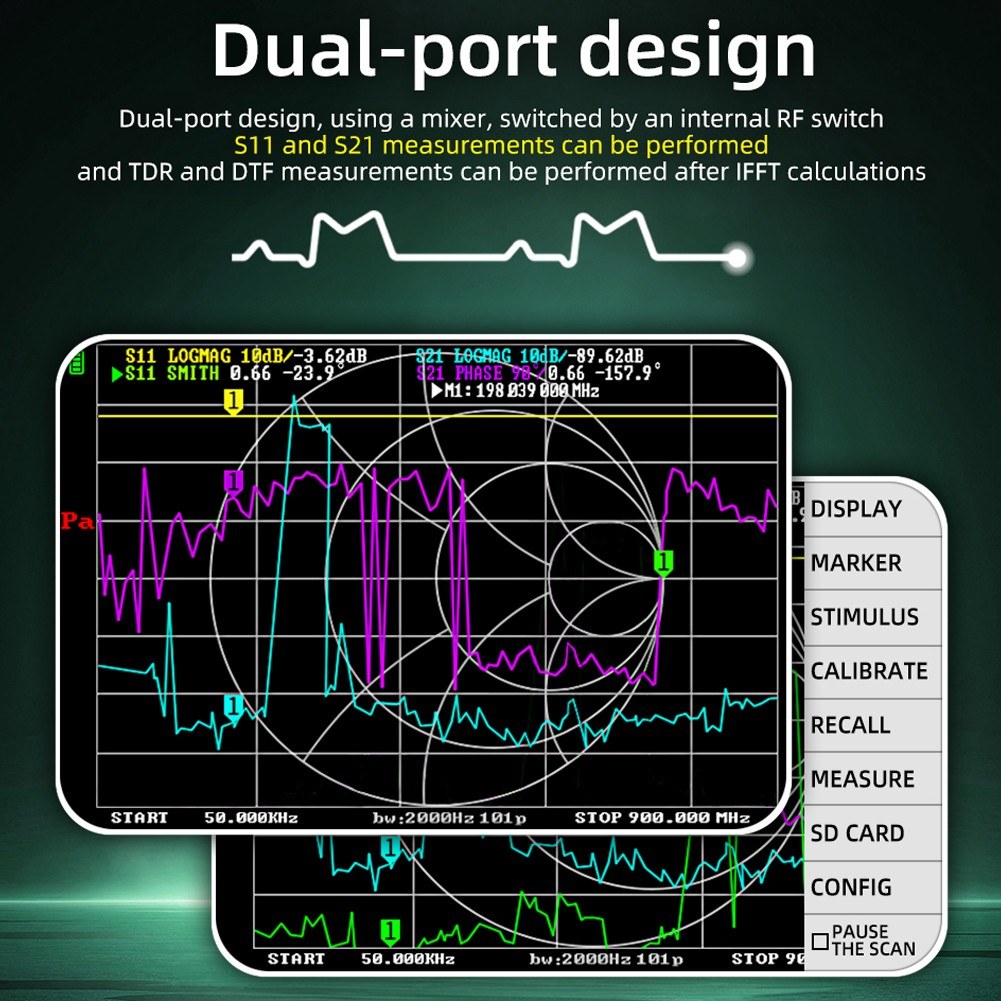

This advanced vector network analyzer boasts a 3.98-inch TFT touchscreen with a resolution of 320x480, delivering vibrant visuals and intuitive touch controls. It accurately measures frequencies from 10 kHz to 1.5 GHz, encompassing MF, HF, UHF, and SHF bands for precise analyses of antennas, filters, amplifiers, and other microwave components. Its dual-port design facilitates comprehensive S11 and S21 measurements, including TDR and DTF analyses via IFFT.

Features:

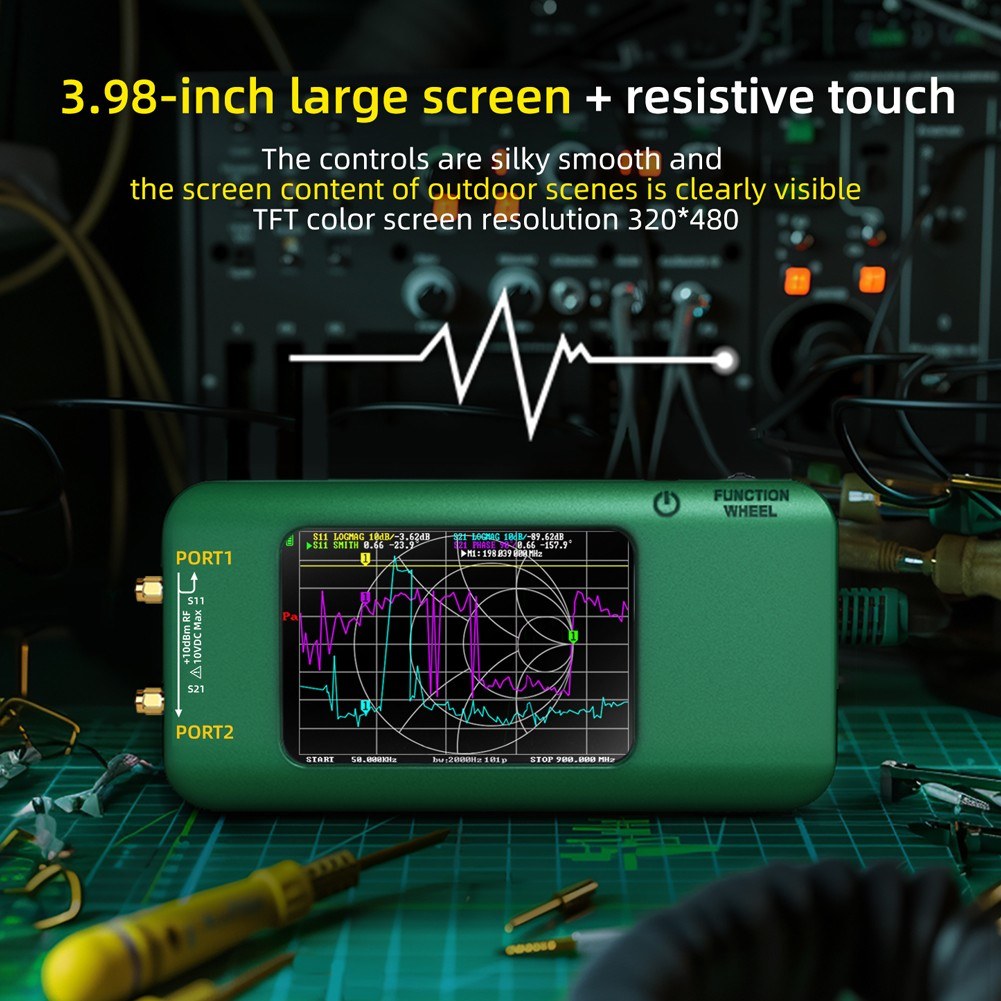

• Portable Design & Touchscreen Display: Protected by a durable silicone cover, it is lightweight, compact, and features a 3000mAh lithium-ion battery with quick charging, making it ideal for portable use.

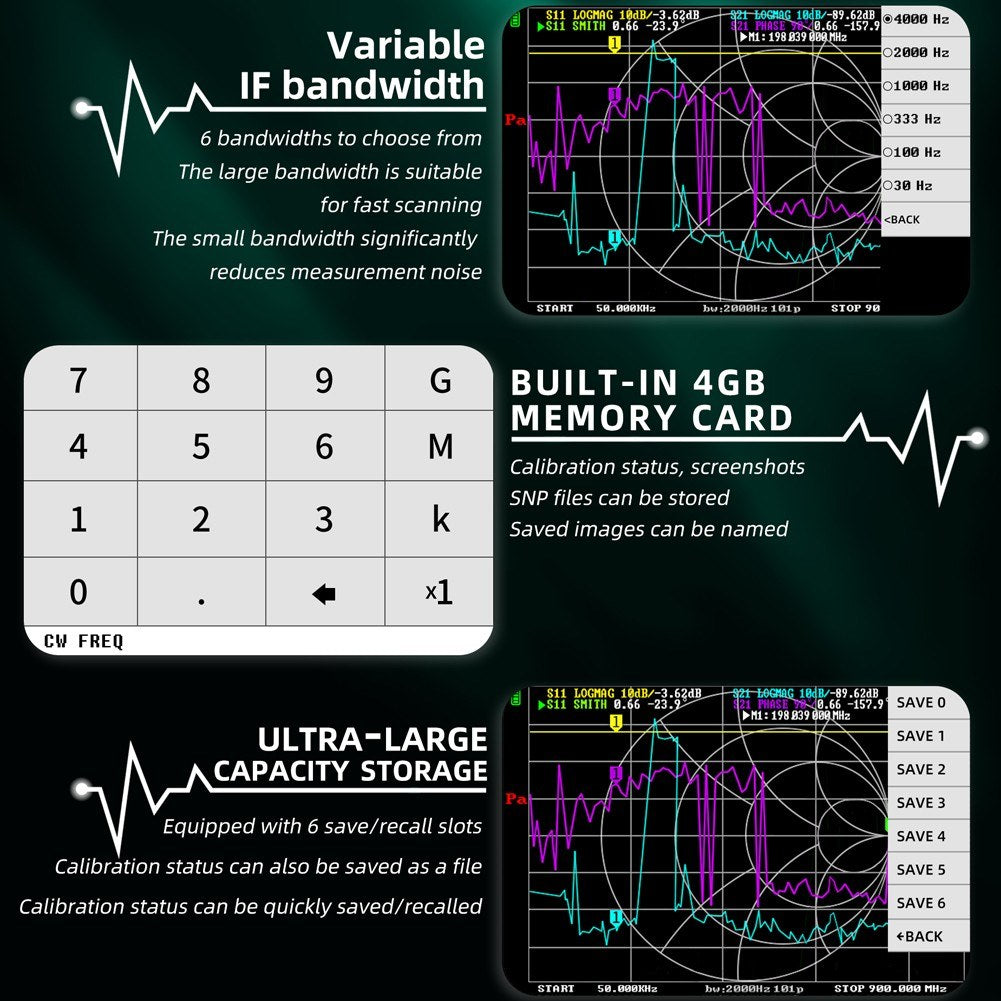

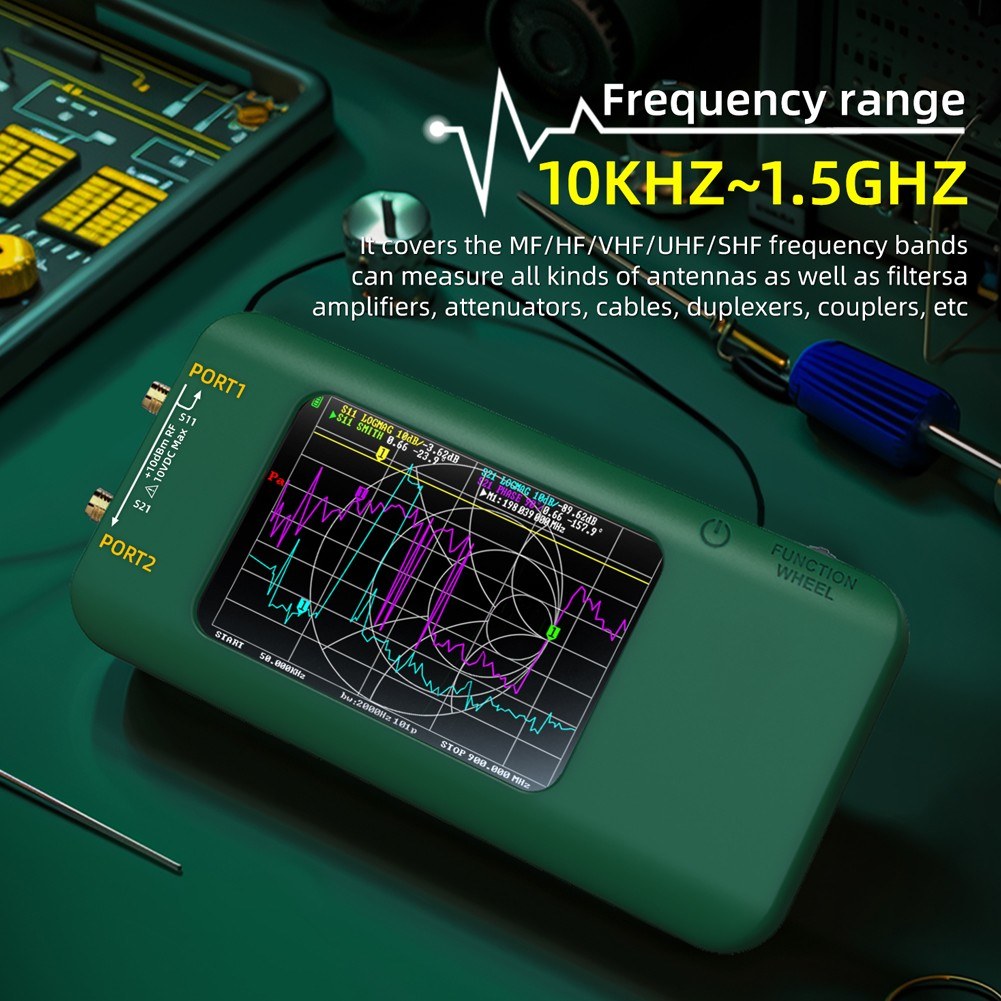

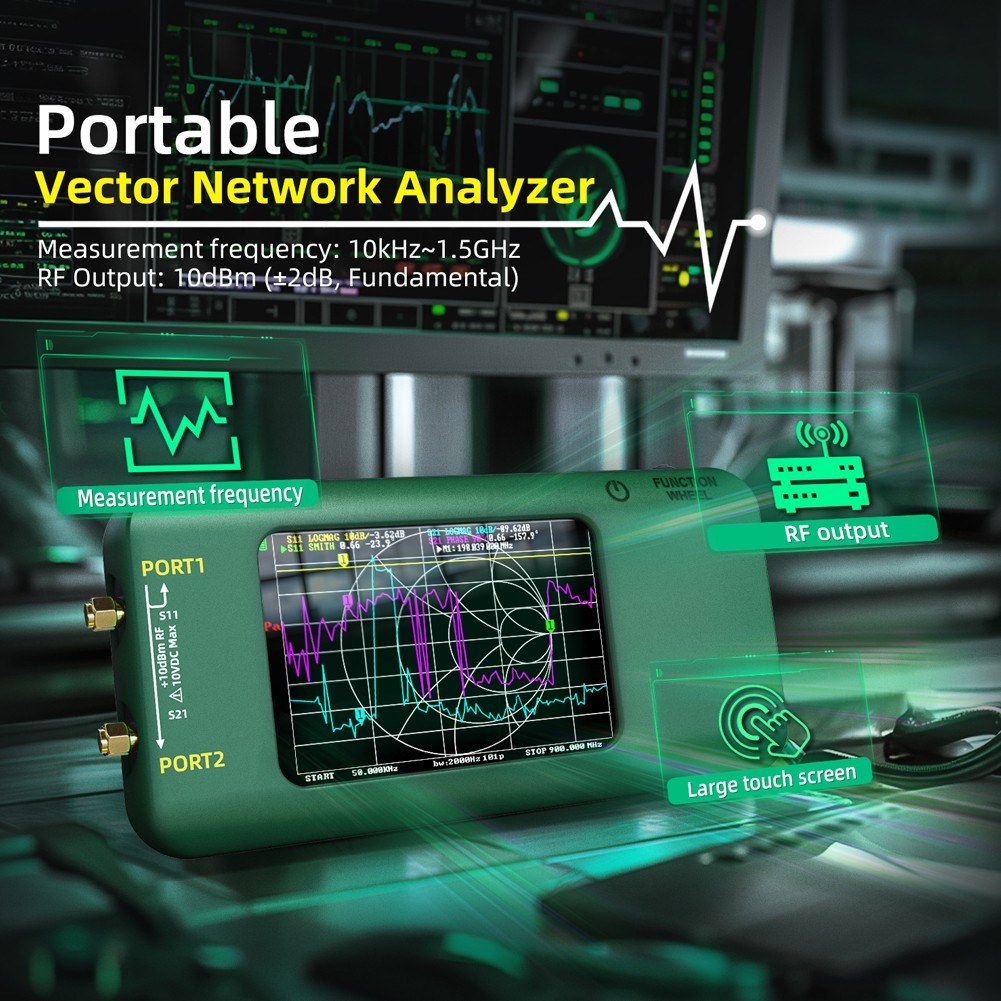

• Wide Frequency Measurement: Analyze a broad frequency range of 10 kHz to 1.5 GHz with variable IF bandwidth options for fast scanning and noise reduction.
• Dual-Port Design and Sophisticated Measurement Capabilities: Supports advanced measurements like TDR and DTF, providing in-depth performance insights.

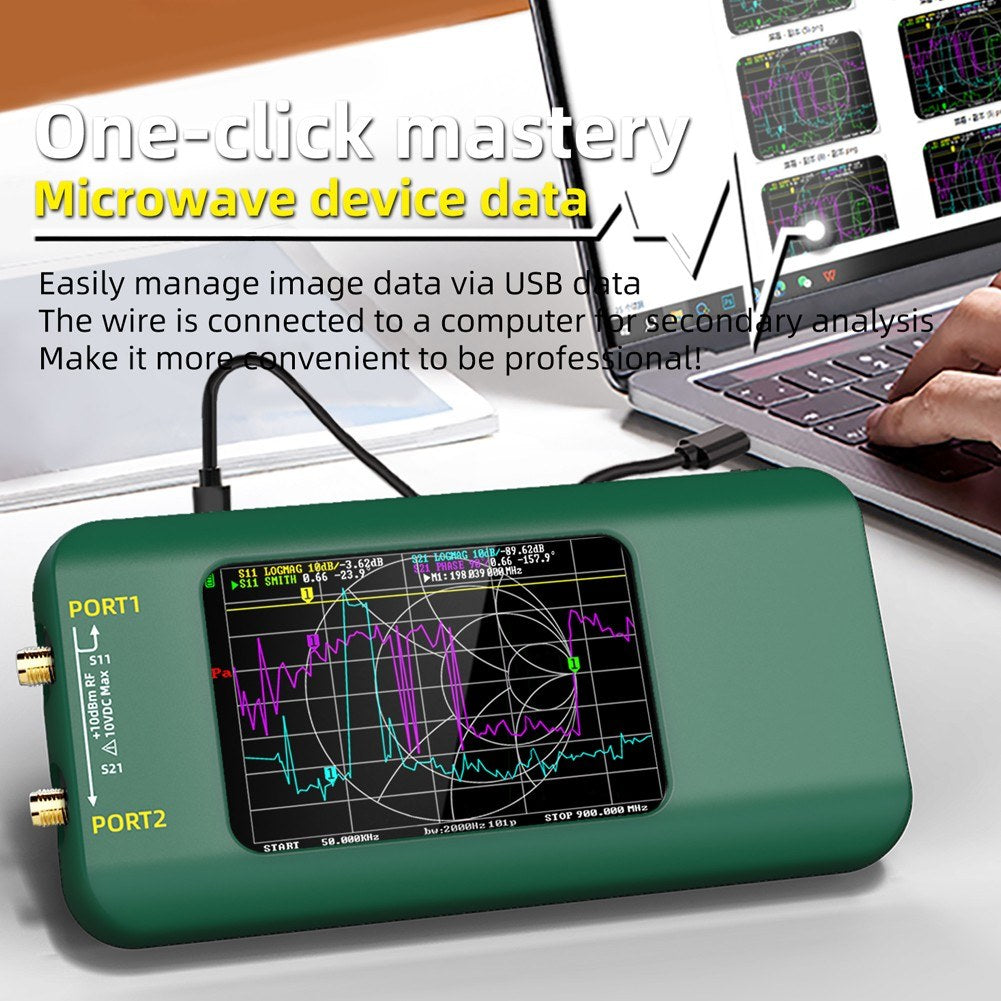

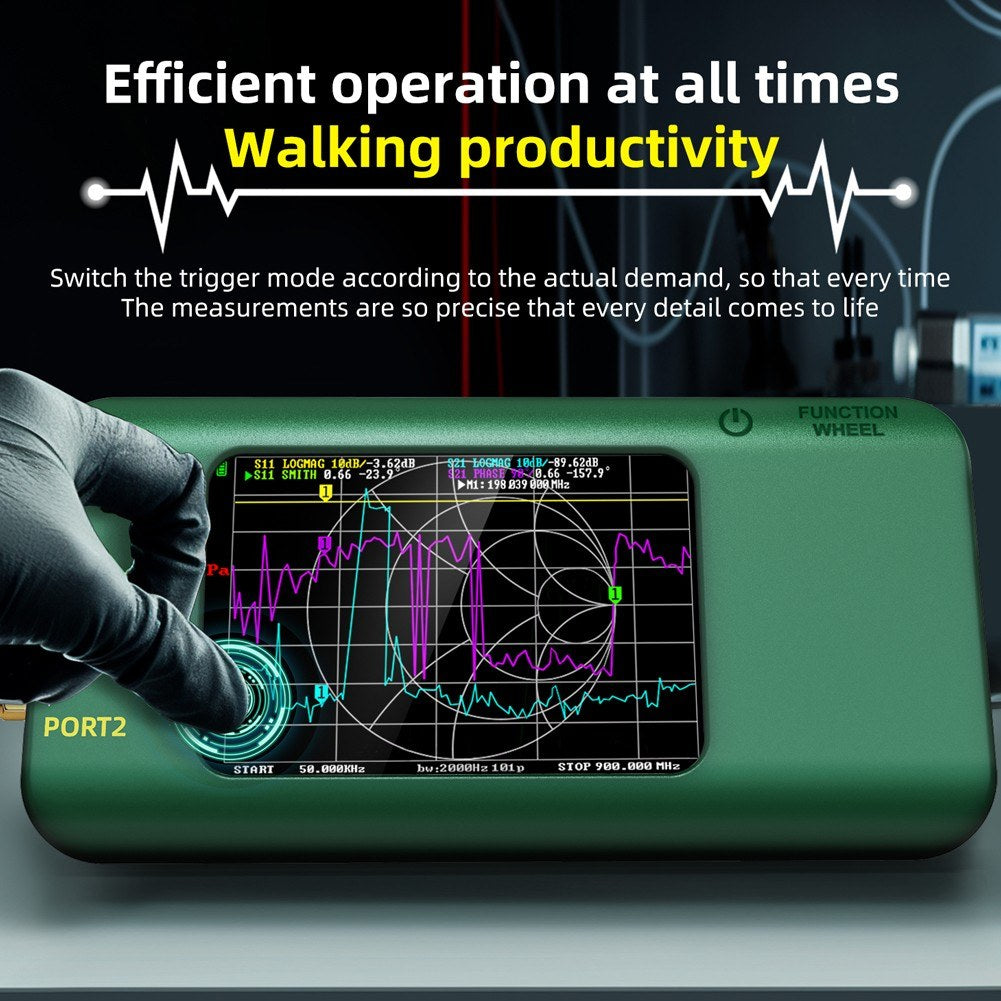

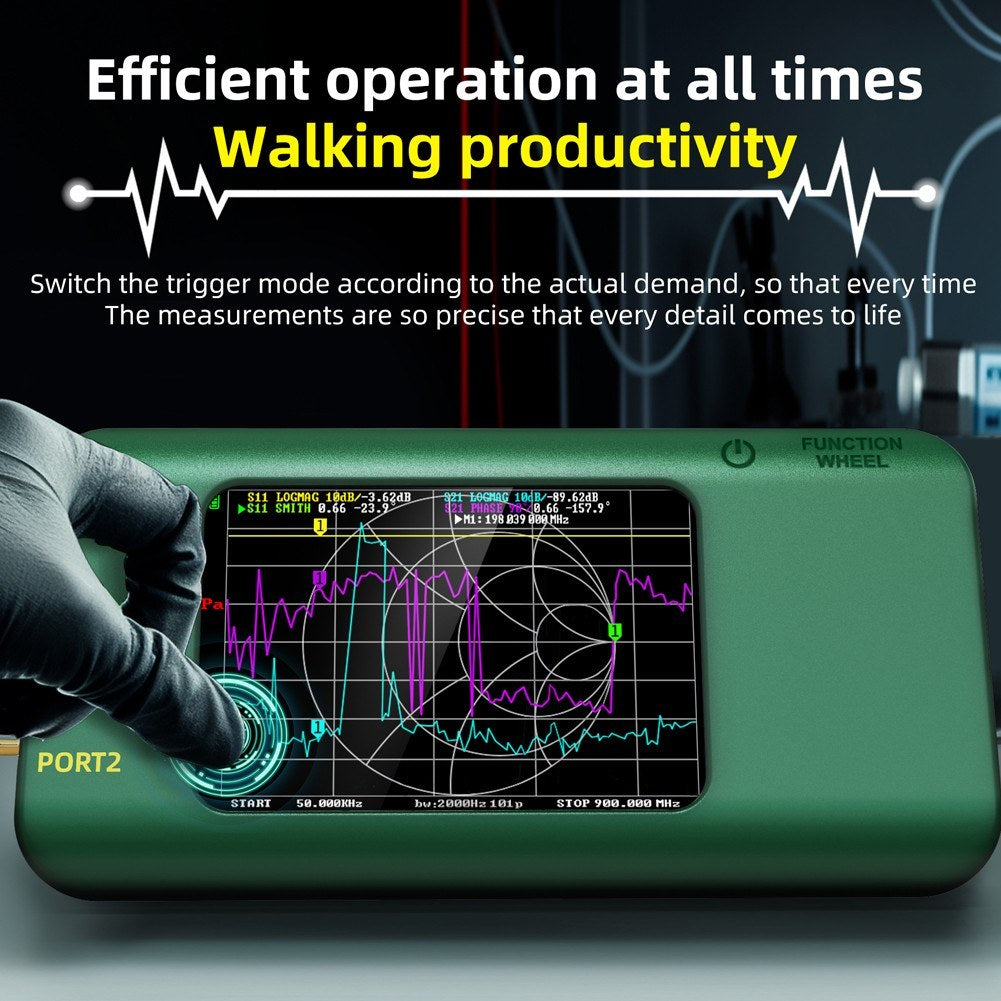

• Easy Operation & Secondary Analysis: User-friendly interface with quick PC connection for extended analysis; supports multiple display formats.
• Memory Function: Store extensive data with a 4GB memory card, utilizing multiple save/recall slots for easy calibration management.
• Wide Applications: Ideal for antenna system scanning, impedance matching, filter insertion loss evaluation, and more.

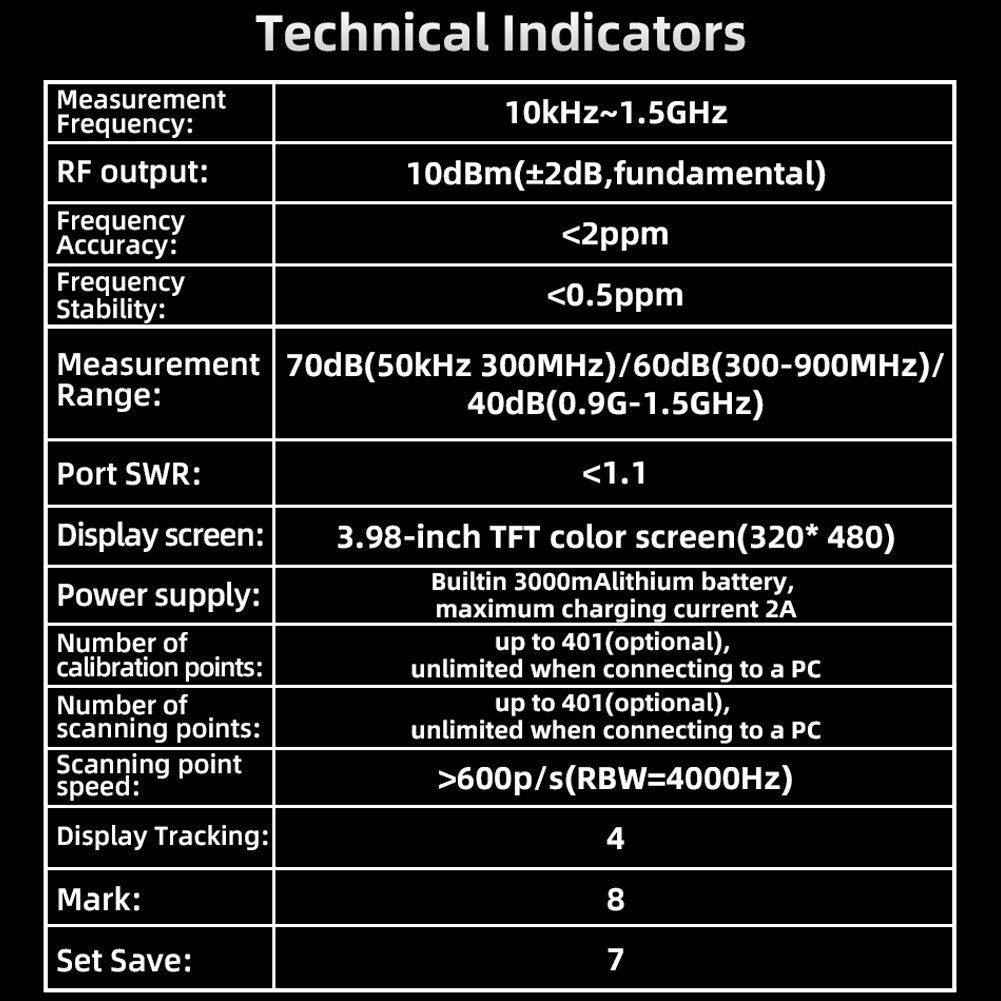

Specifications:

• Material: ABS + silicone
• Battery: Built-in 3000mAh lithium battery
• Measurement Frequency: 10 kHz - 1.5 GHz
• RF Output: 10 dBm (±2 dB, basewave)
• Frequency Accuracy: <2 ppm
• Frequency Stability: <0.5 ppm
• Measurement Ranges: 70 dB (50 kHz-300 MHz) / 60 dB (300-900 MHz) / 40 dB (0.9 GHz-1.5 GHz)
• Port SWR: <1.1
• Display: 3.98-inch TFT color screen (320x480)
• Maximum Charging Current: 2A
• Number of Calibration Points: Up to 401 (optional); no limit when connected to PC
• Number of Scanning Points: Up to 401 (optional); unlimited with PC connection
• Scanning Point Speed: >600 points/s (RBW=4000Hz)
• Display Tracking: 4
• Markers: 8
• Setting Save: 7 slots
• Item Size: 168 x 81 x 24mm / 6.38 x 3.19 x 0.94in
• Package Size: 183 x 98 x 48mm / 7.20 x 3.86 x 1.89in
• Package Weight: 381g / 13.44oz

Packing List:

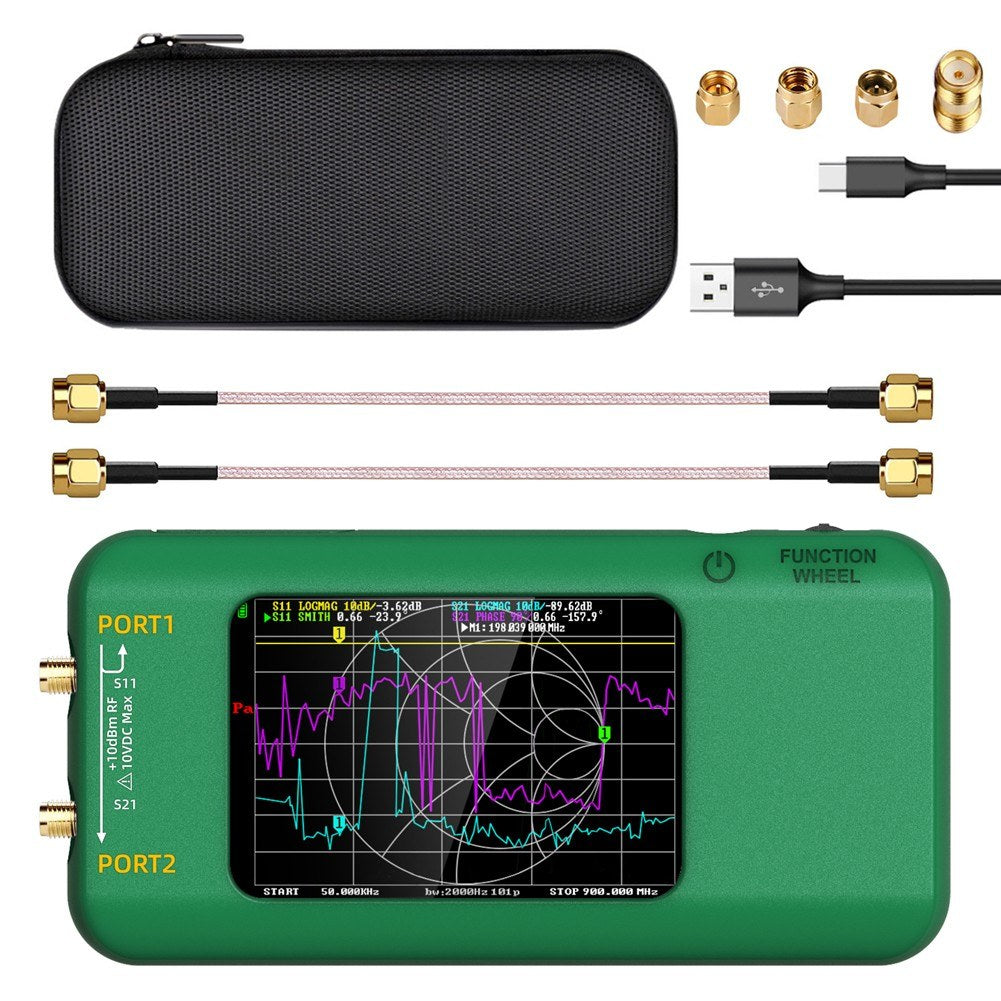

• 1 x Vector Network Analyzer
• 3 x Connector
• 2 x SMA Extension Cable
• 1 x Type-C Cable
• 1 x EVA Bag
