GPS Tamed Clock

The GPS Tamed Clock offers superior precision and reliability for all your high-accuracy timing needs. With advanced features and user-friendly design, it's the ideal choice for various applications.

Key Features

• High-Accuracy Synchronization: Provides unparalleled synchronization with UTC time, boasting a p-p frequency accuracy of 0.03Hz@10MHz and a frequency mean of 0.0001Hz@10MHz.

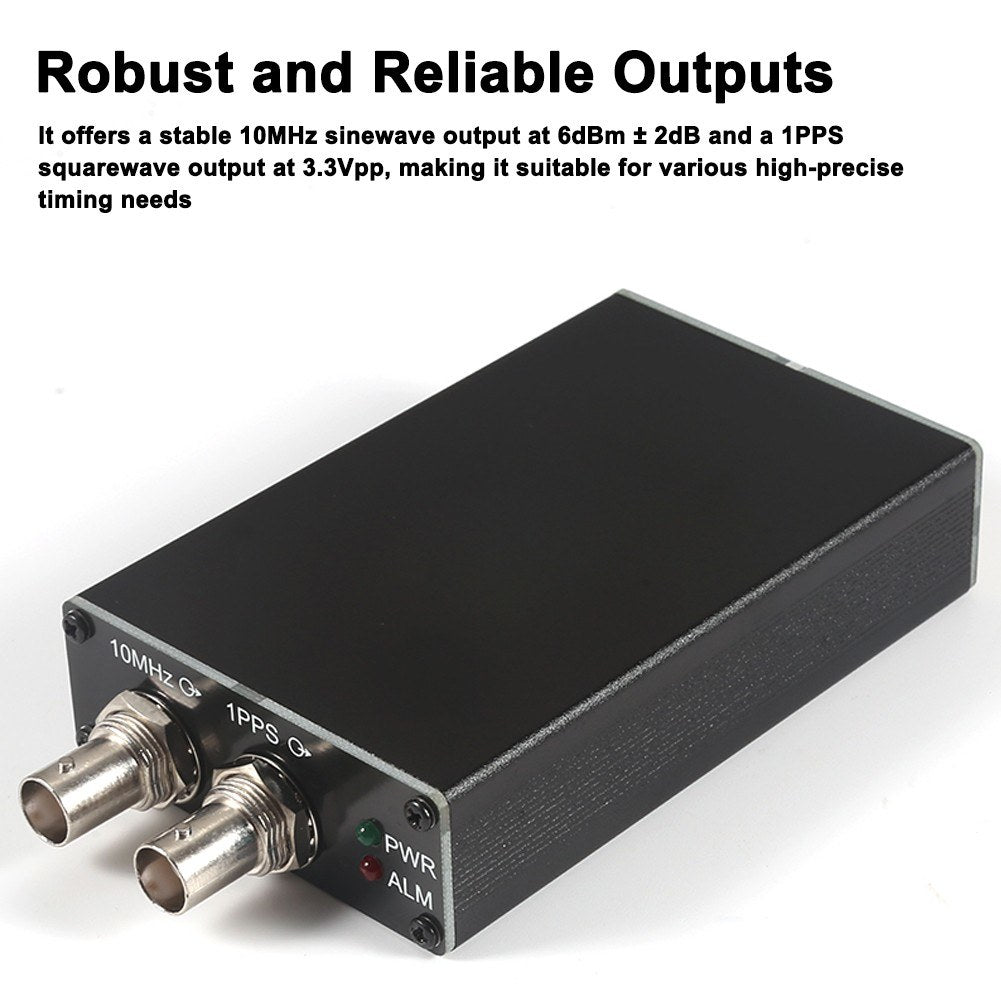

• Robust and Reliable Outputs: Stable 10MHz sinewave output at 6dBm ± 2dB and a 1PPS squarewave output at 3.3Vpp for precise timing.
• User-Friendly Front Panel: Clear indicators for power status, GPS lock, and alarm, ensuring straightforward operation and management.
• Versatile Rear Panel Connectivity: Features a direct current-IN connector, RS232 port for GPS NMEA signal, and GPS antenna input, ensuring easy integration with various systems.

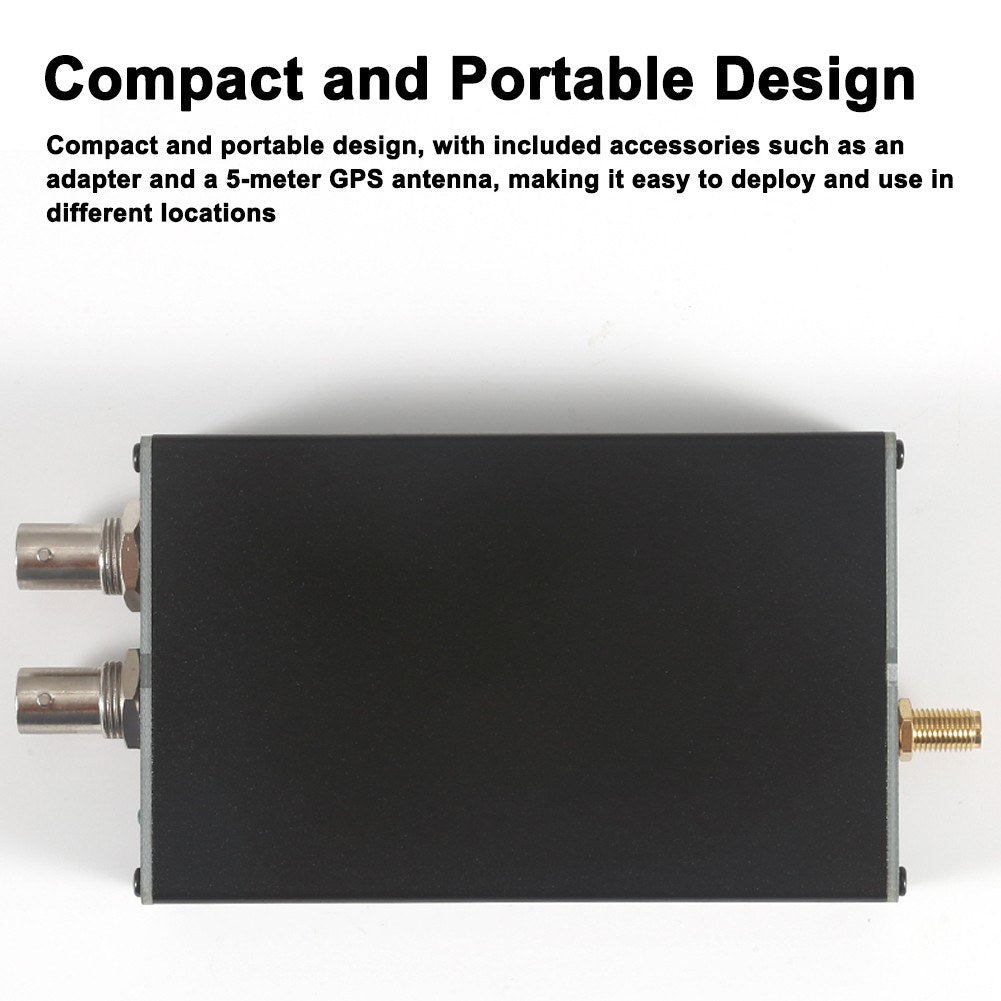

• Compact and Portable Design: Compact design and portable with included accessories like an adapter and a 5-meter GPS antenna.

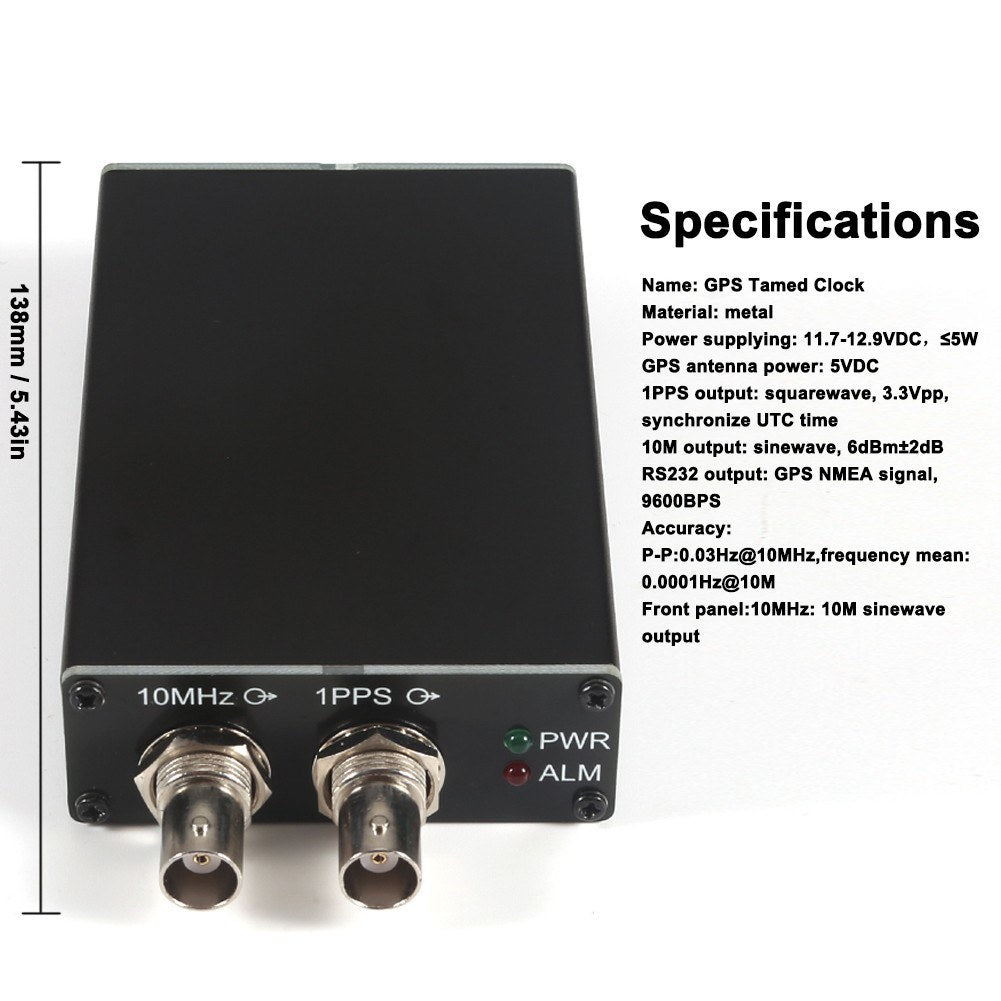

Specifications

• Name: GPS Tamed Clock
• Material: Metal
• Power Supply: 11.7-12.9VDC, ≤ 5W
• GPS Antenna Power: 5VDC
• 1PPS Output: Squarewave, 3.3Vpp, synchronized with UTC time
• 10M Output: Sinewave, 6dBm ± 2dB
• RS232 Output: GPS NMEA signal, 9600BPS
• Accuracy: P-P: 0.03Hz@10MHz, Frequency Mean: 0.0001Hz@10MHz
• Front Panel Indicators: 10MHz, 1PPS, PWR, ALM

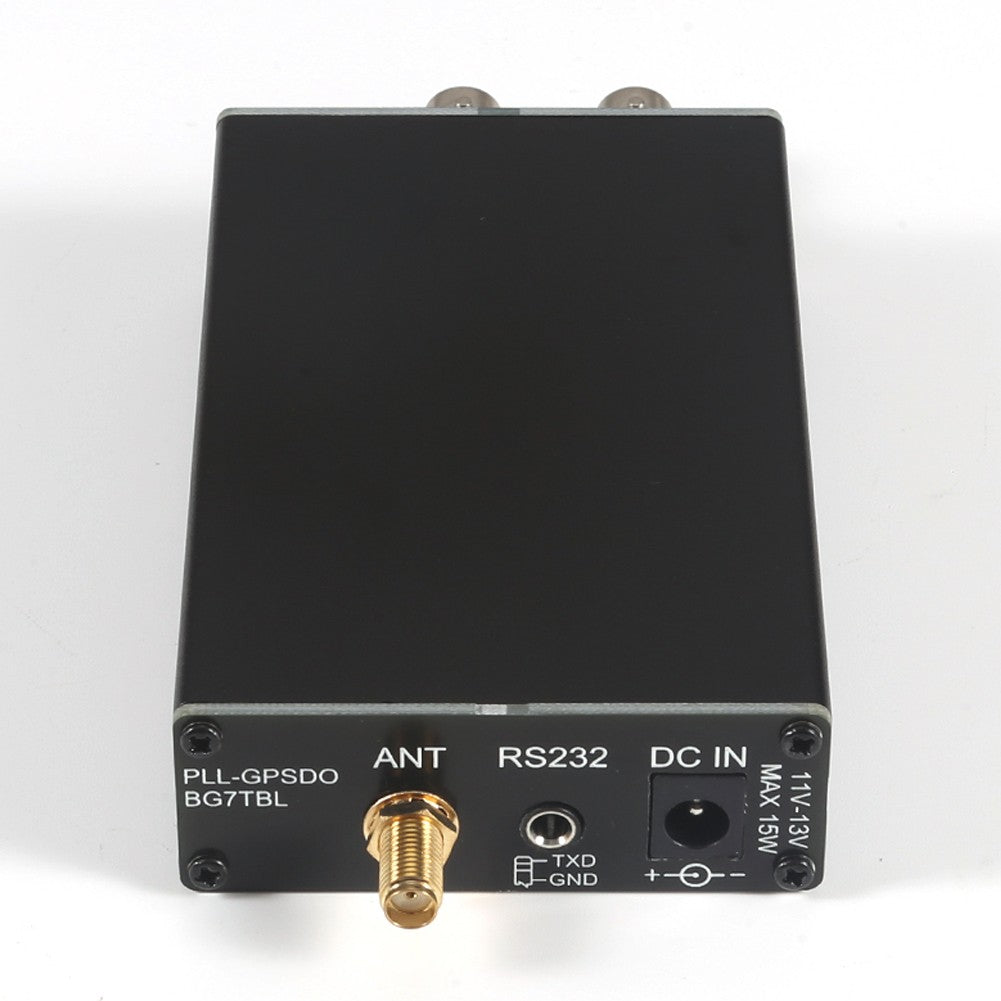

• Rear Panel: Direct current-IN, RS232, Antenna
• Dimensions: Item size: 138 x 25 x 65mm / 5.43 x 0.98 x 2.56in
• Weight: Item weight: 380g / 13.40oz
• Package Size: 147 x 105 x 87mm / 5.79 x 4.13 x 3.43in
• Package Weight: 393g / 13.86oz

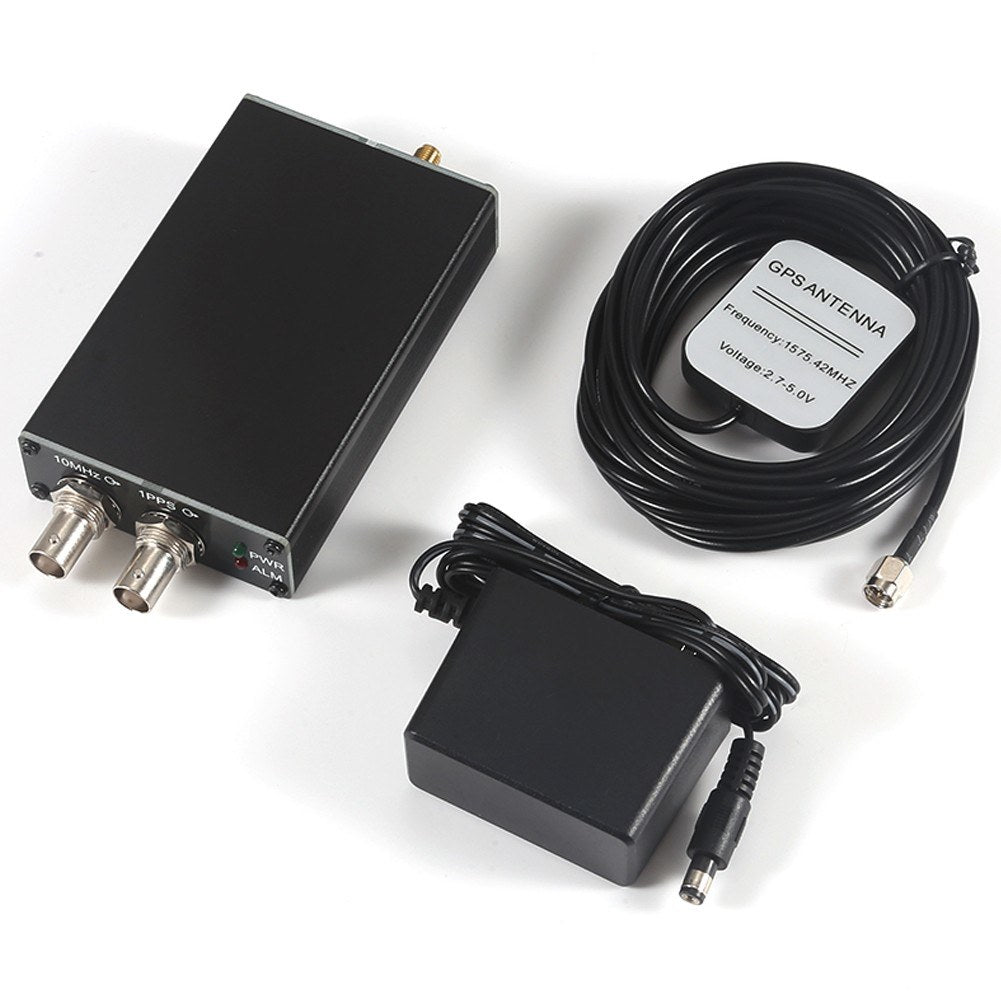

Packing List

• 1 x GPS Tamed Clock
• 1 x 5m GPS Antenna
• 1 x Adapter
