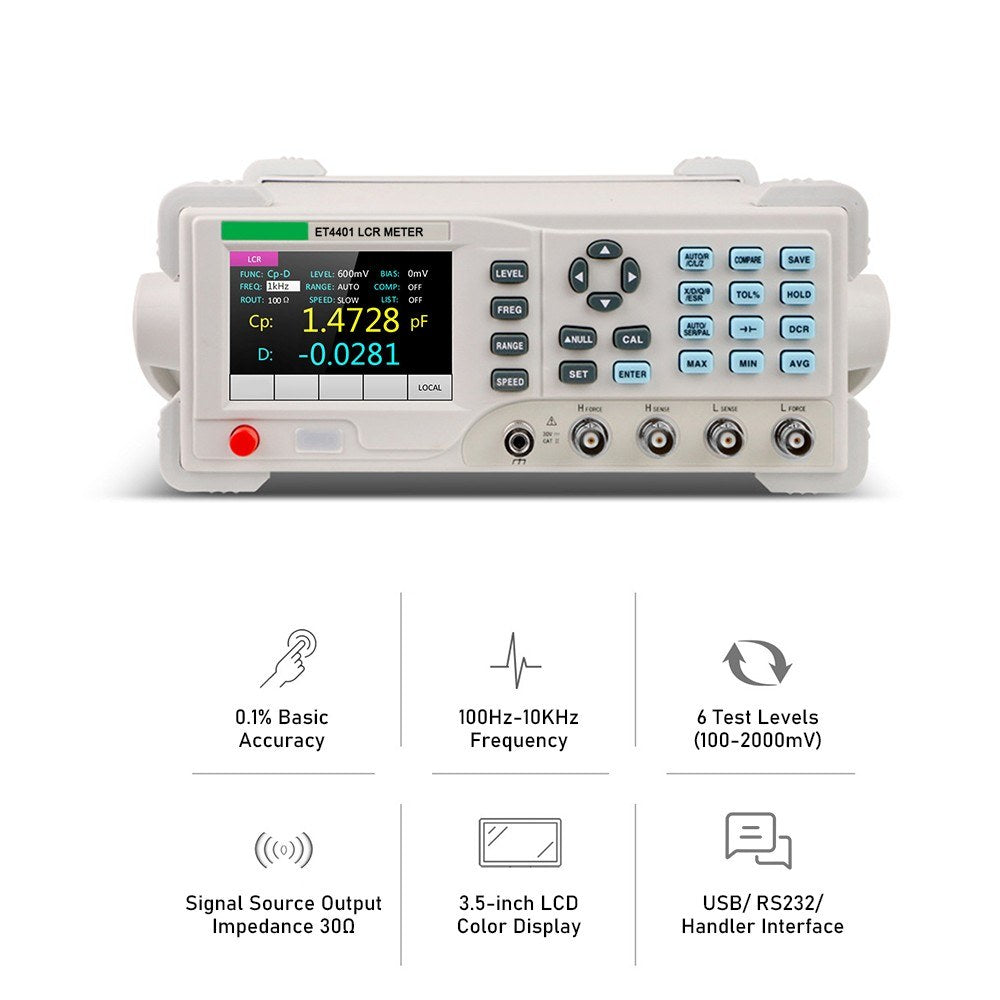

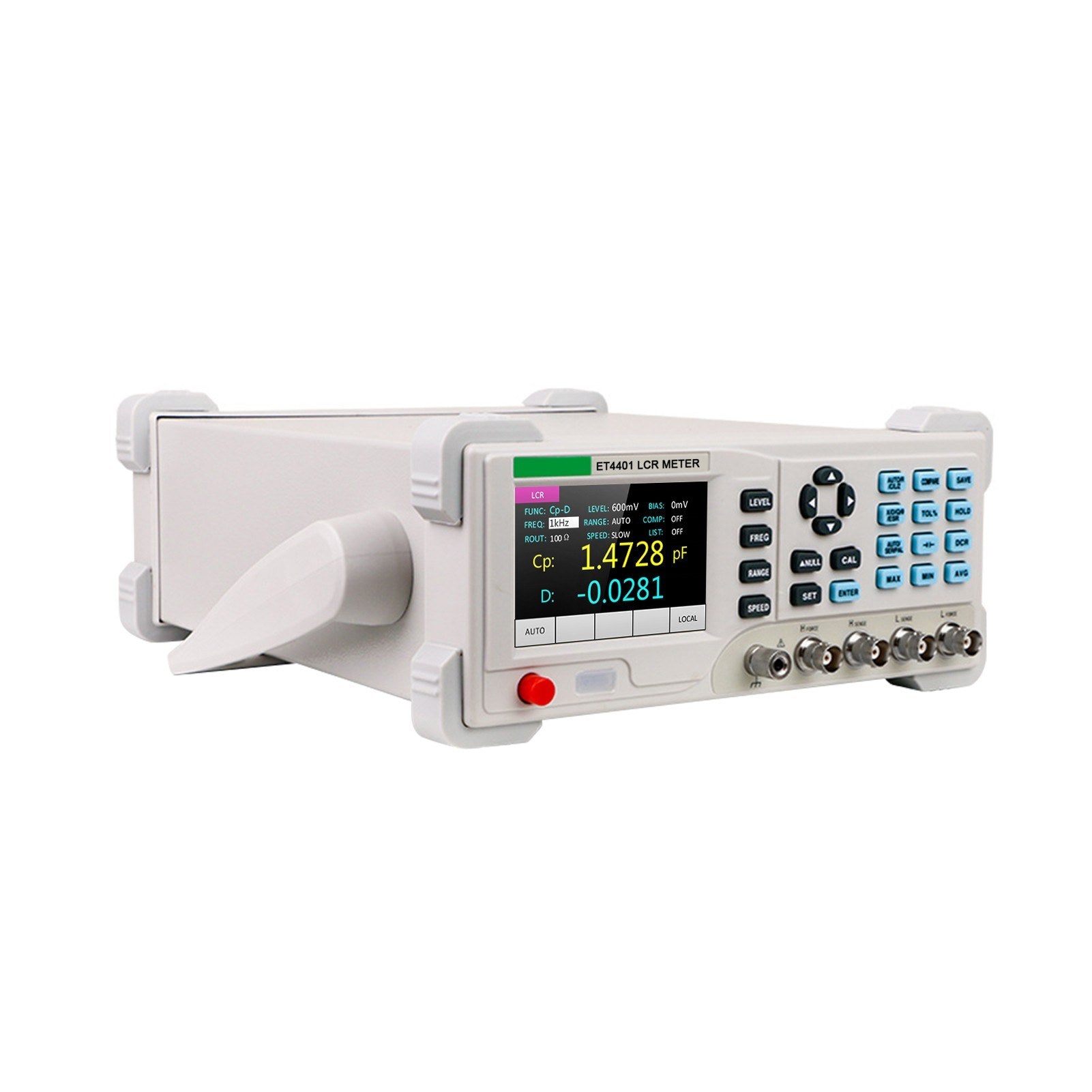

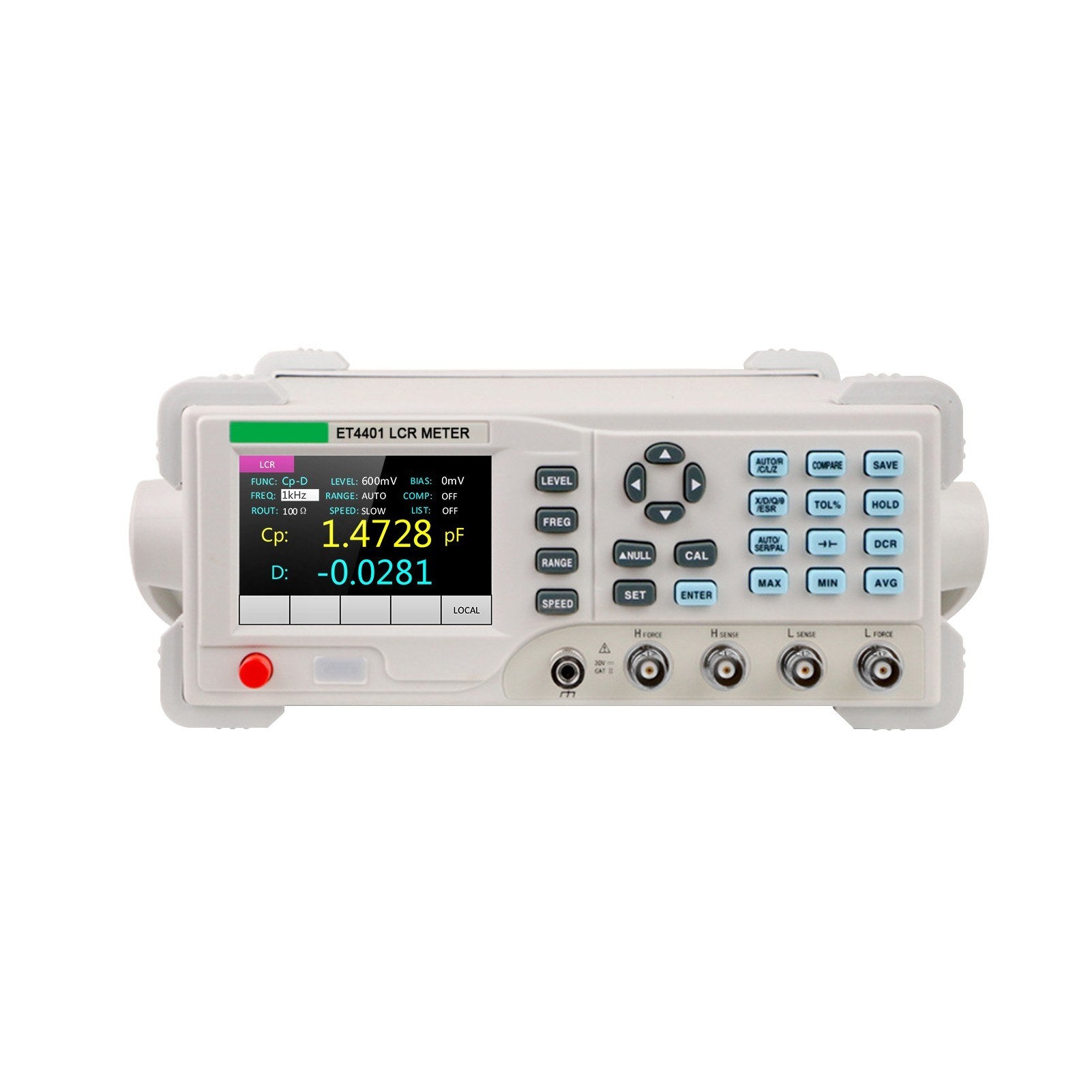

High Precision Benchtop Digital LCR Meter 100Hz-10KHz, 0.1% Accuracy with 3.5-inch LCD Display for Resistance, Inductance, Capacitance Testing

LCR Tester with 3.5-inch LCD Screen

Our advanced LCR tester features a 3.5-inch LCD screen with a user-friendly interface and a variety of measurement functions. It supports multiple test frequencies and levels, boasting a basic accuracy of up to 0.1%. Remote operation is enabled via USB and RS232. Its handler interface enhances the automatic sorting of components, making it ideal for professional use.

Key Features:

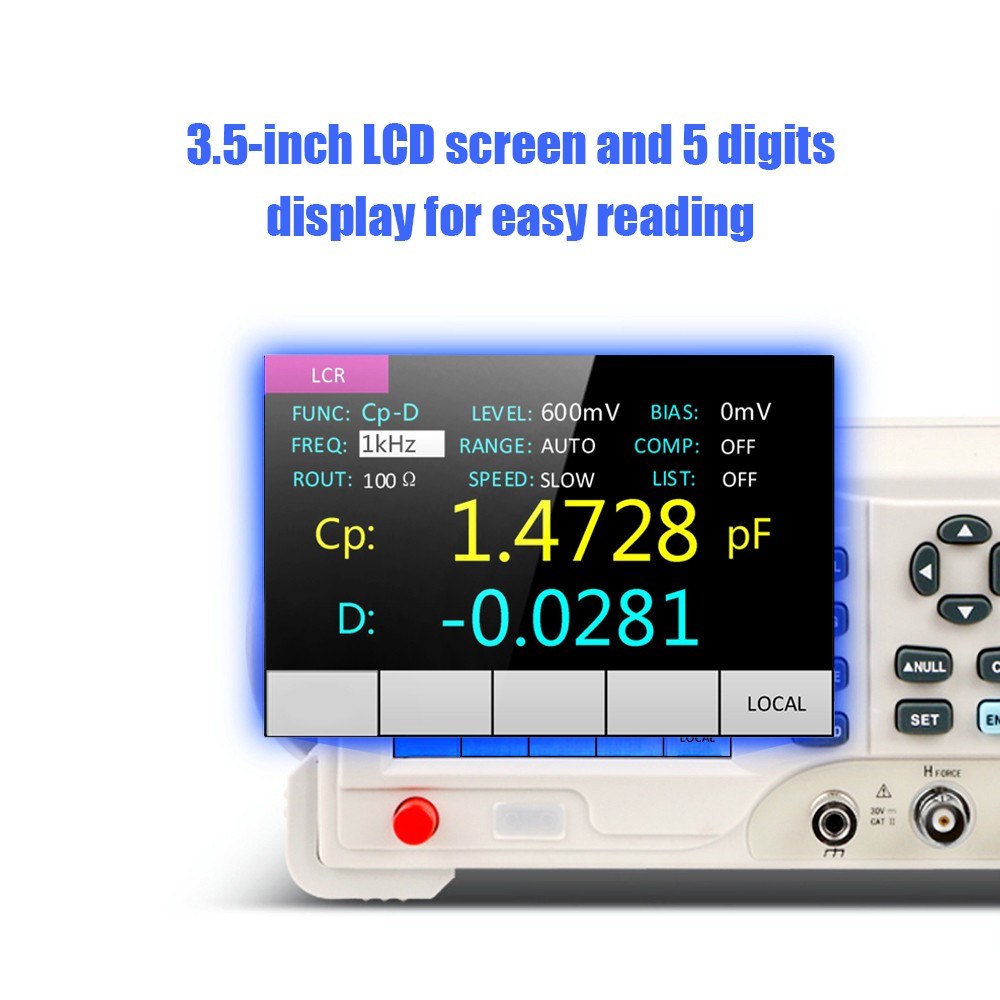

• Easy-to-read 5-digit display on a 3.5-inch LCD screen.
• Supports measuring frequencies up to 10KHz with level range from 100-2000 mVrms.
• Adjustable internal bias voltage from 0 to 1500mV, with 1mV stepping.
• Automatic component type identification and sorting capabilities.
• Selectable or lockable range options, ensuring accuracy of 0.1%.
• Measures DC resistance and electrolytic capacitance.
• Supports both open and short circuit calibration.

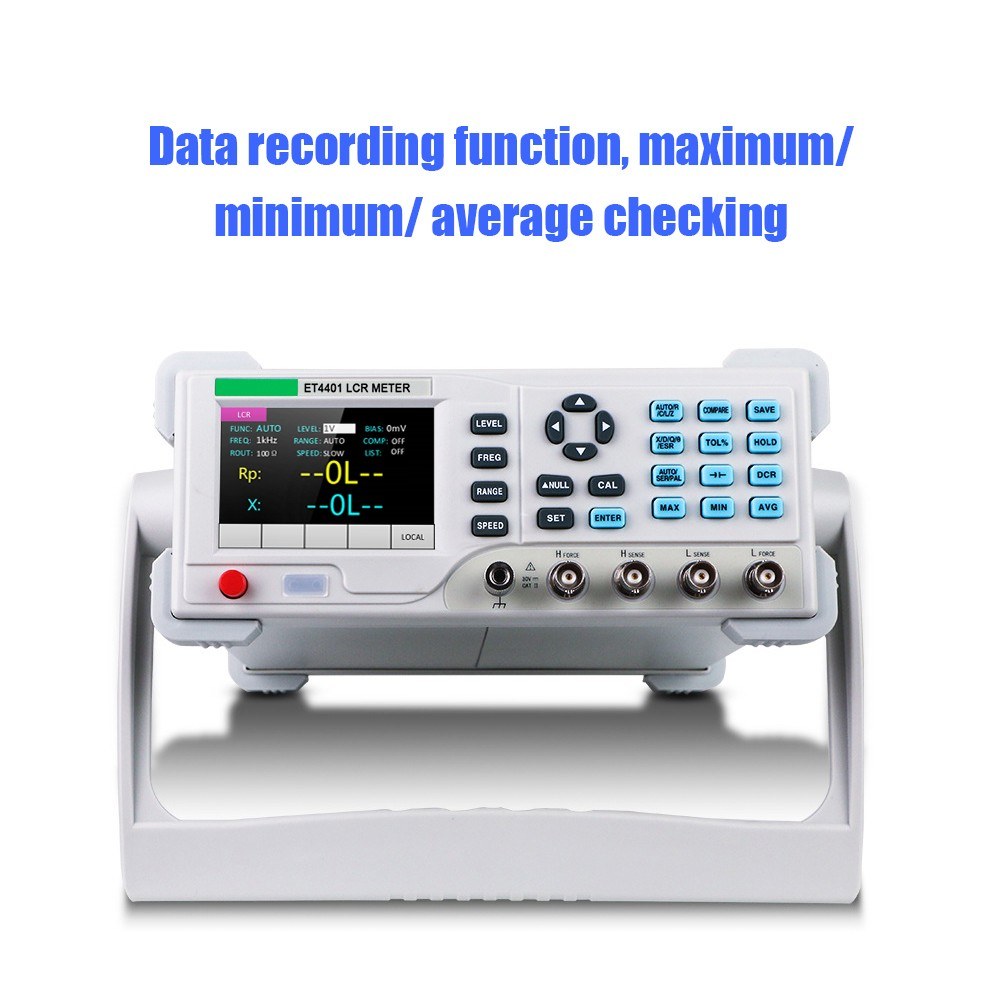

• Data recording ability with maximum, minimum, and average checking.
• Communicates via USB and RS232, compatible with SCPI protocol.
• Handler interface supports comparator sorting and list scans.

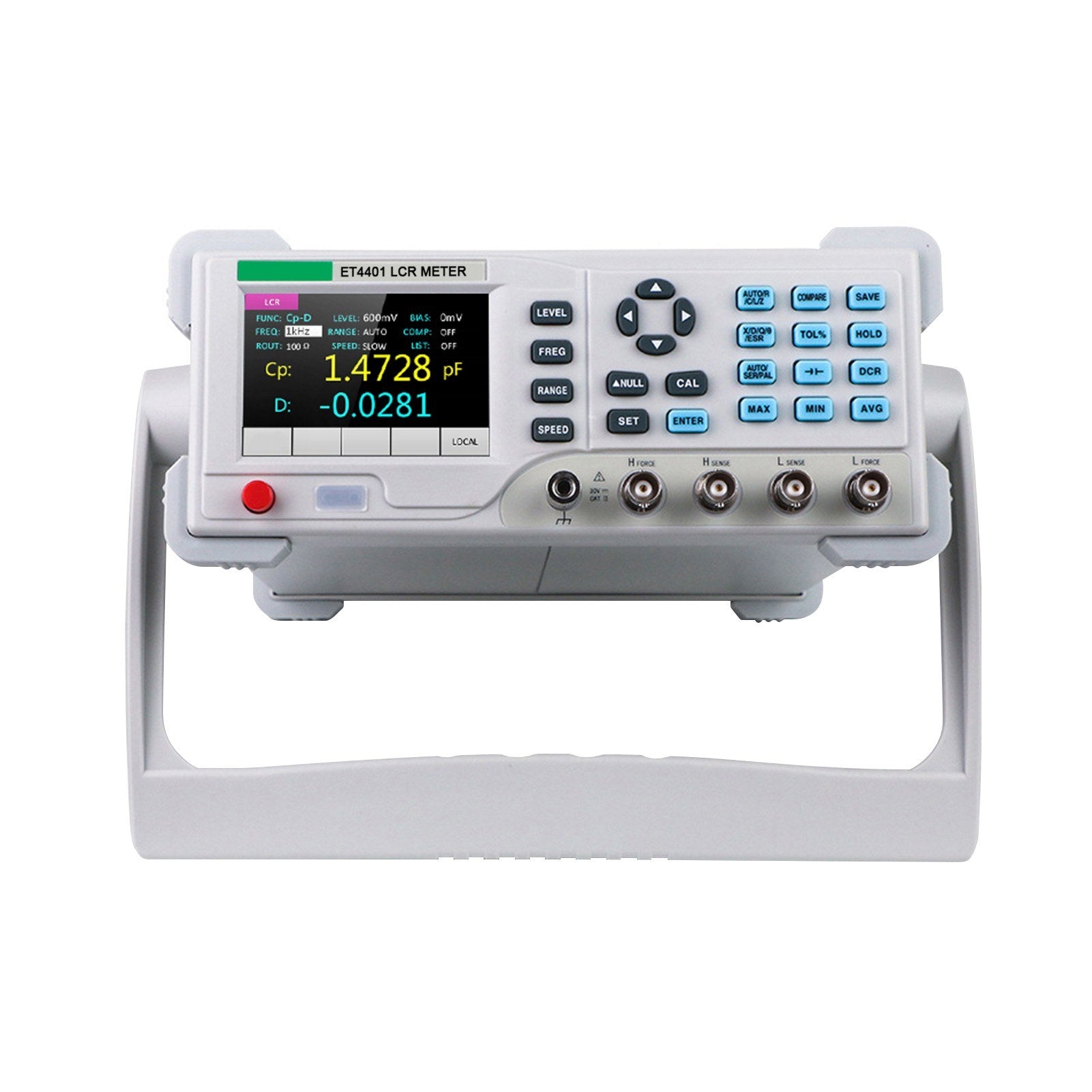

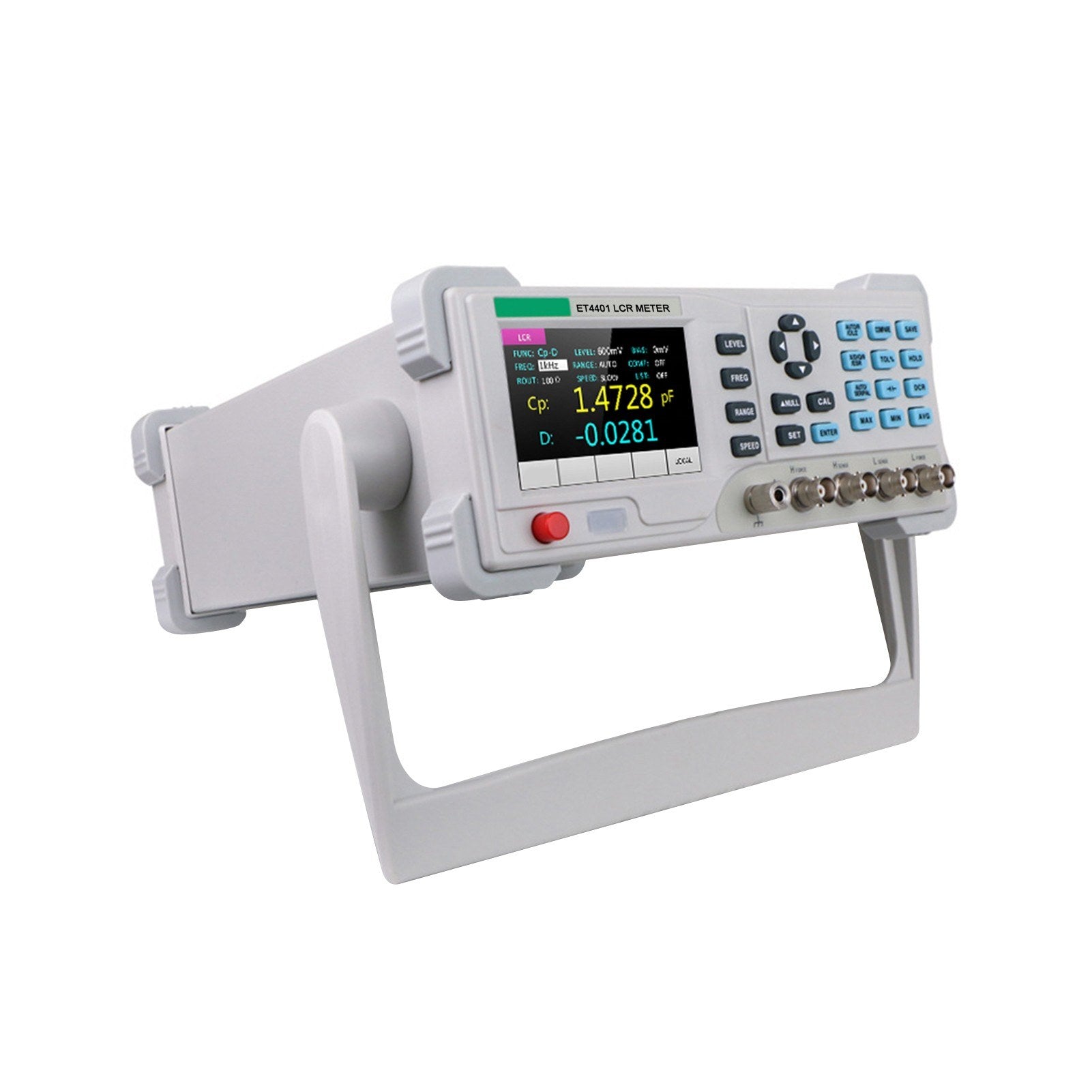

• Adjustable handle for flexible, user-friendly operation.
• Versatile applications in electronics, automotive, fire control, archaeology, agriculture, geology, energy, and more.

Specifications:

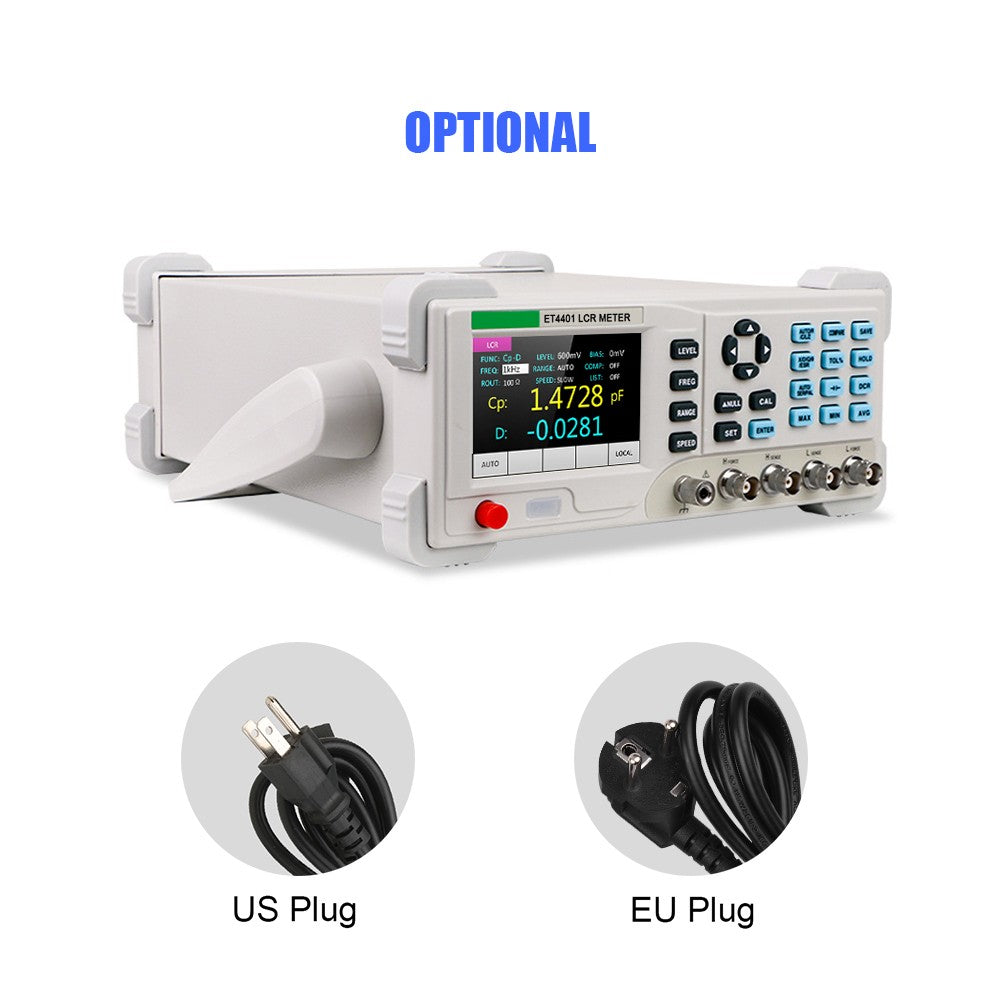

• Plug Type: EU/US (Optional)
• Voltage: AC 200-240V, 50/60Hz
• Color: Grey
• Material: Metal + ABS
• Excitation Source Frequency (Hz): 10 Points (100, 120, 200, 400, 800, 1K, 2K, 4K, 8K, 10K)
• Main Parameters: L/C/R/Z; Secondary Parameters: X/D/Q/θ/ESR
• Inductance Range: 0.001μH to 9999H
• Capacitance Range: 0.001pF to 9999μF
• Resistance Range: 0.0001Ω to 99.99MΩ
• Basic Accuracy: 0.1%
• Measurement Display Speed: 2/s (slow), 5/s (medium), 10/s (fast)
• Internal Bias: 0-1500mV Adjustable, 1mV Stepping
• Test Levels (Vrms): 100mV, 300mV, 600mV, 1000mV, 1500mV, 2000mV
• Correction Functionality: Open and Short Circuit Correction
• Screening Function: Tolerance Range -100% to 100%, with fixed points at 10%, 25%, and 50%
• Comparator Selection: 5 Gear Sorting, 3 Gear Qualified, 1 Gear Failed, 1 Gear Ancillary

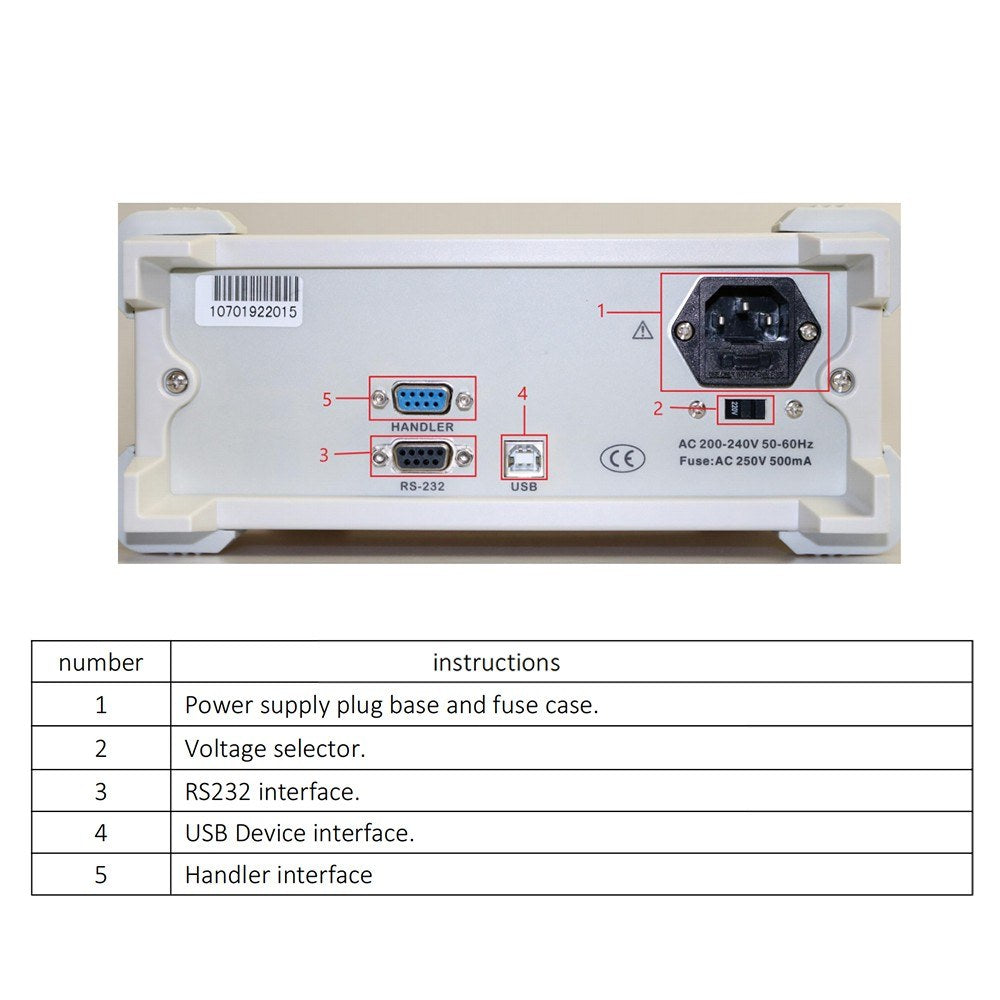

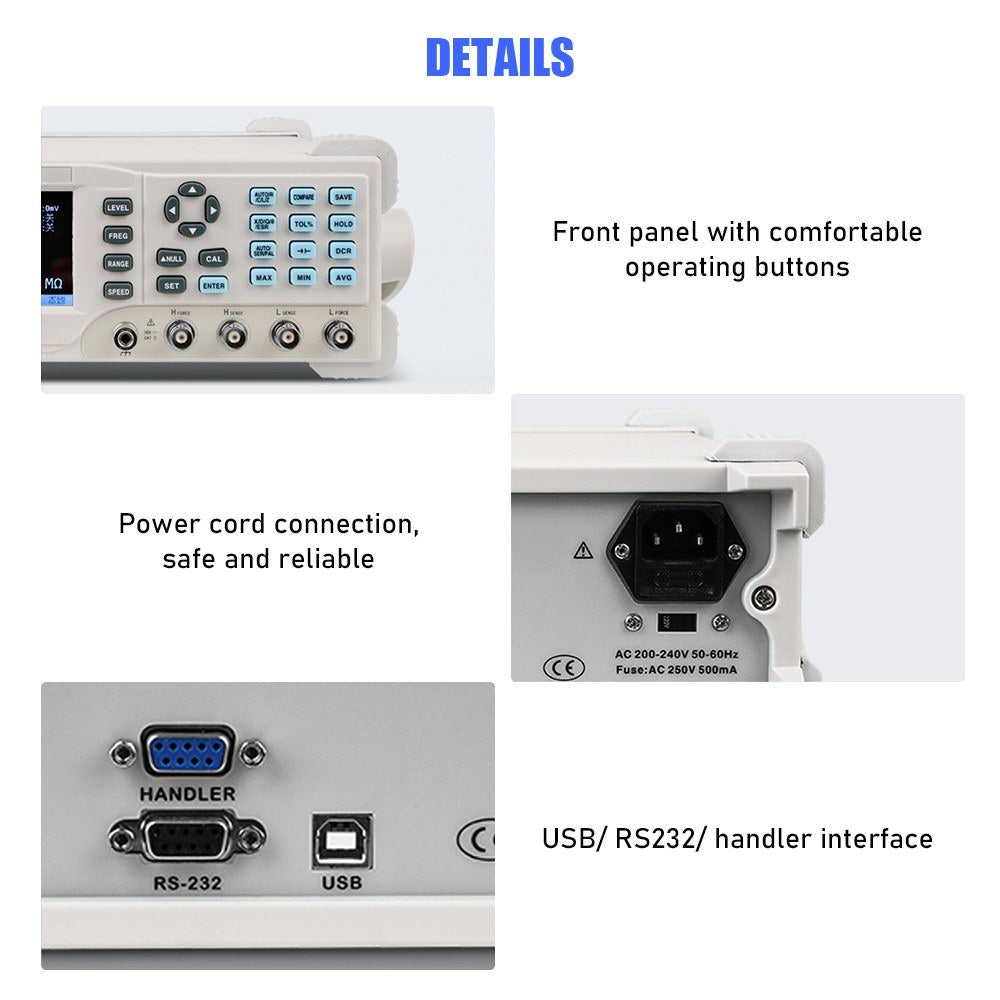

• Communication Interfaces: USB, RS232, Handler
• Operating Temperature: 0 to 40℃
• Operating Humidity: 15-85% RH

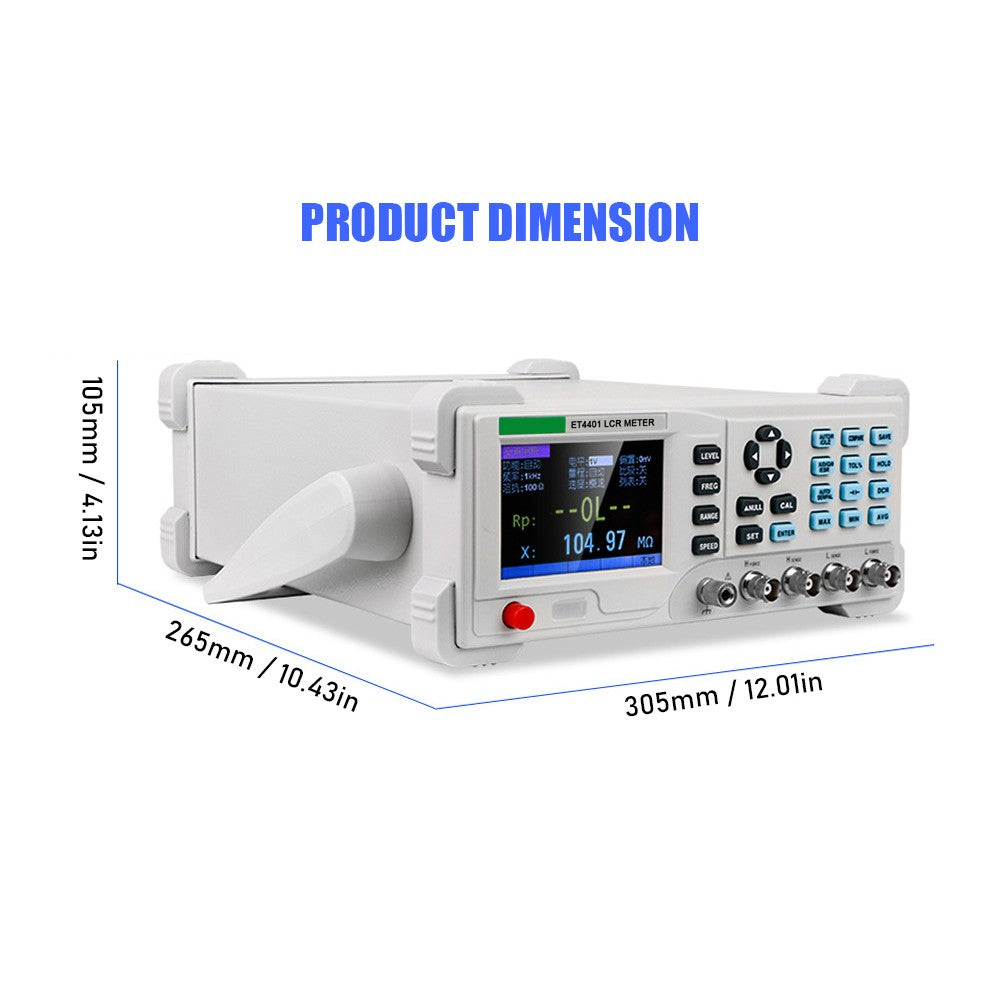

• Dimensions: 305 x 265 x 105mm / 12.01 x 10.43 x 4.13in
• Weight: 2111g / 4.65lbs
• Package Dimensions: 43 x 33 x 20.5cm / 16.93 x 12.99 x 8.07in
• Package Weight: 3265g / 7.20lbs

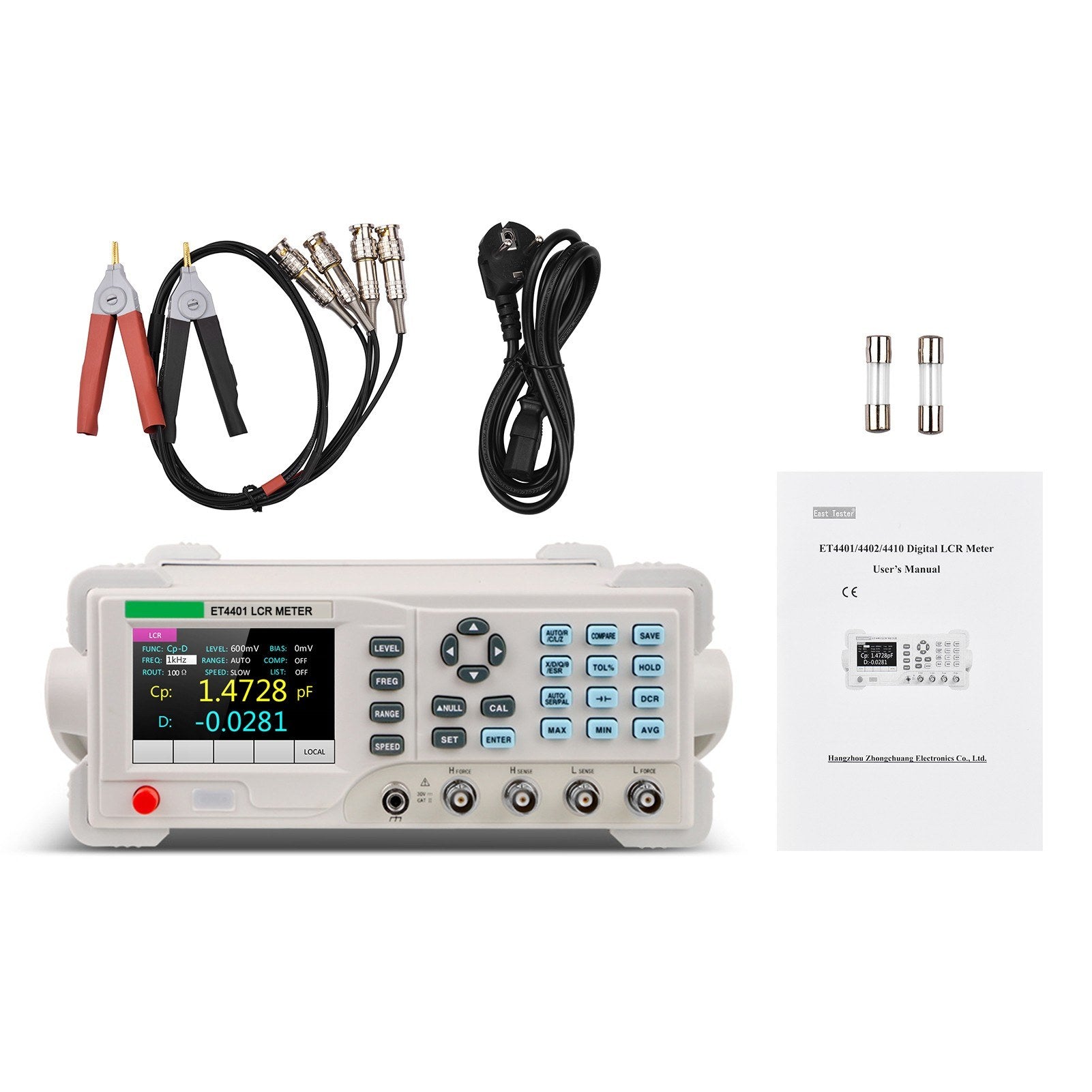

Package Includes:

• 1 x Benchtop Digital LCR Meter
• 1 x Kelvin Alligator Clip
• 2 x Fuse
• 1 x Power Cord
• 1 x User Manual (English)
