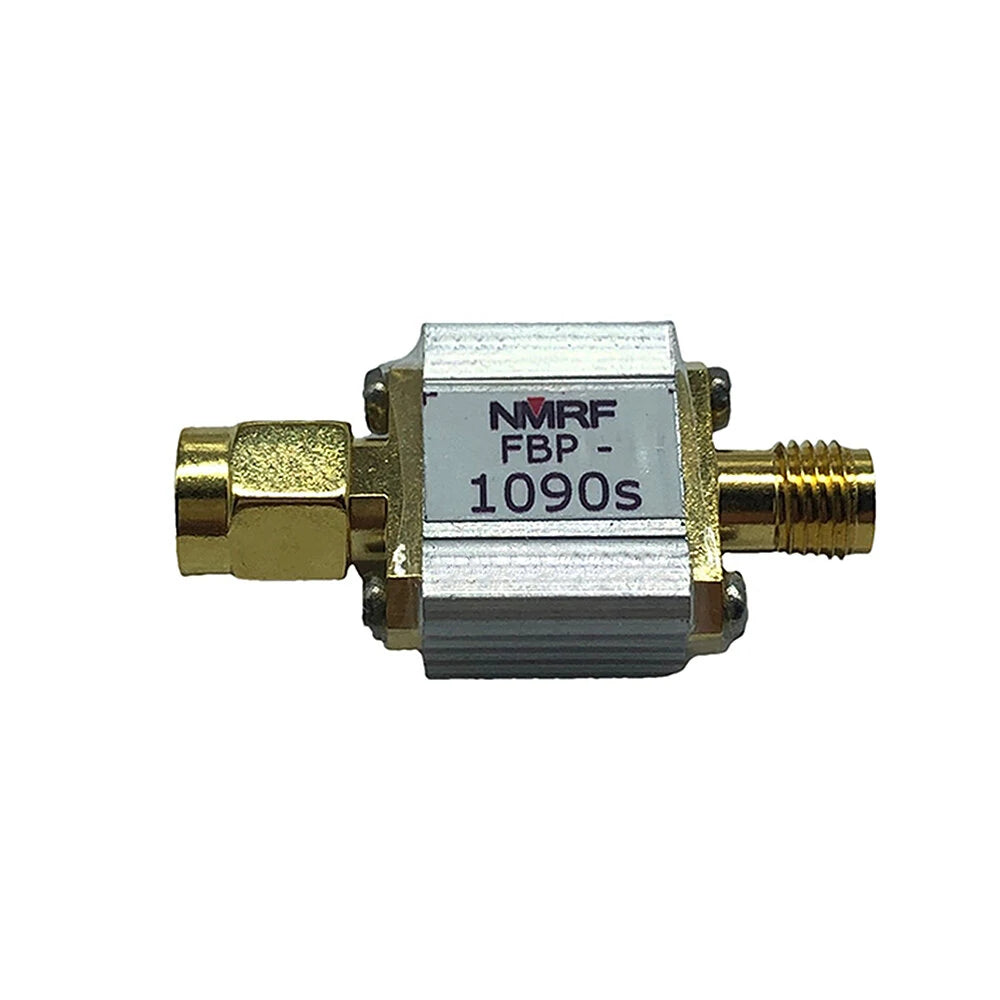

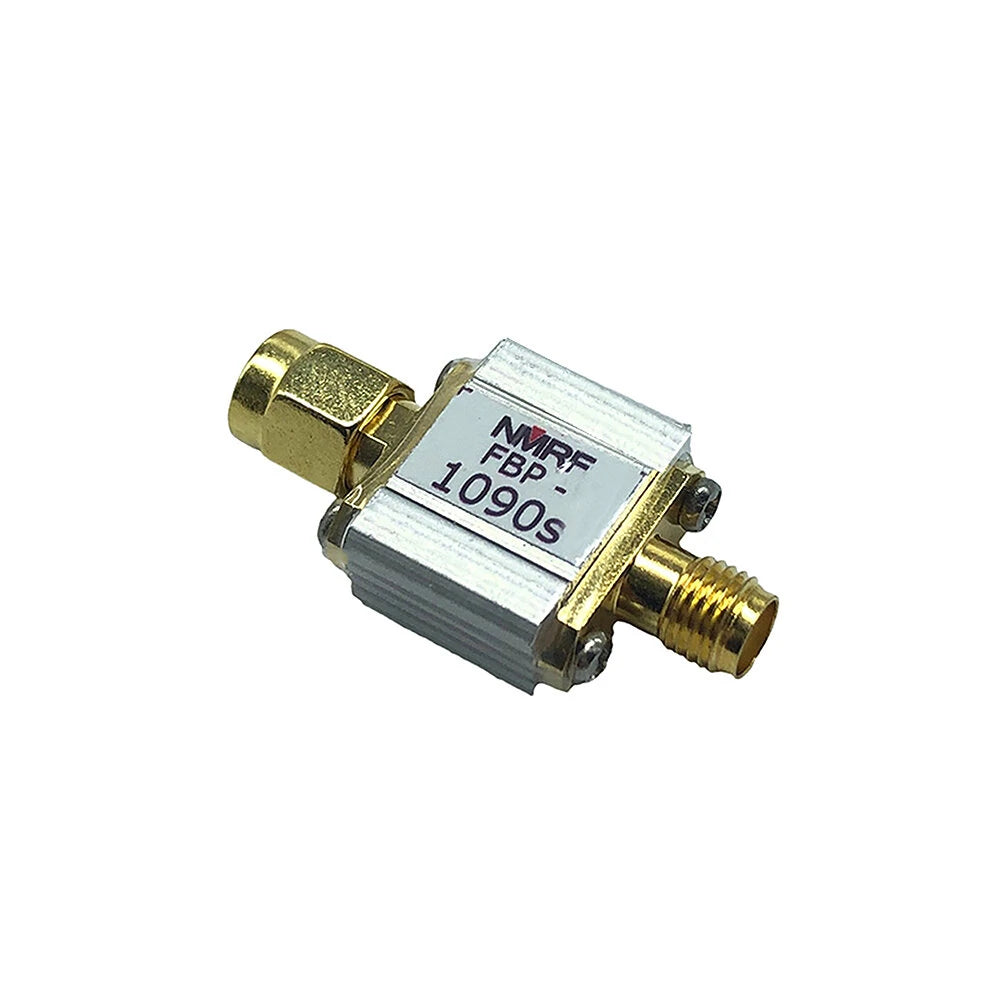

FBP-1090s Bandpass Filter

Optimize your ADS-B receivers with the FBP-1090s Bandpass Filter, designed to streamline signal processing at 1090 MHz. Experience a clear passband bandwidth of 30 MHz, minimal insertion loss, and a sharp cut-off for superior signal clarity.

Key Benefits:

• Enhances performance of ADS-B receivers by effectively filtering out out-of-band signals.
• Reduces noise and amplifies dynamic range for a better signal reception.
• Compact and user-friendly design for easy integration.

Specifications:

• Model: FBP-1090s
• Impedance: 50 Ohms
• Center frequency: 1090 MHz
• Passband (1 dB bandwidth): 30 MHz
• 30 dB bandwidth: Less than 80 MHz
• In-band insertion loss: 1.7 to 2.2 dB
• Maximum Carrying Power: 100 mW (20 dBm)
• Interface: SMA-M, SMA-F
• Material: Metal

Package Includes:

• 1 × FBP-1090s Bandpass Filter
