Portable Hantek PP-200 Digital Oscilloscope Probe, 200MHz Bandwidth, X1/X10 for Automotive Diagnostics

Product Compatibility

To ensure this part fits your vehicle, please enter your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with 0 vehicle(s).

Show all compatible vehicles

This part is compatible with 1 vehicle(s) matching your selection.

This part is not compatible with:

Recent Searches

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features

The Hantek PP-200 200 MHz Oscilloscope Probe Kit includes:

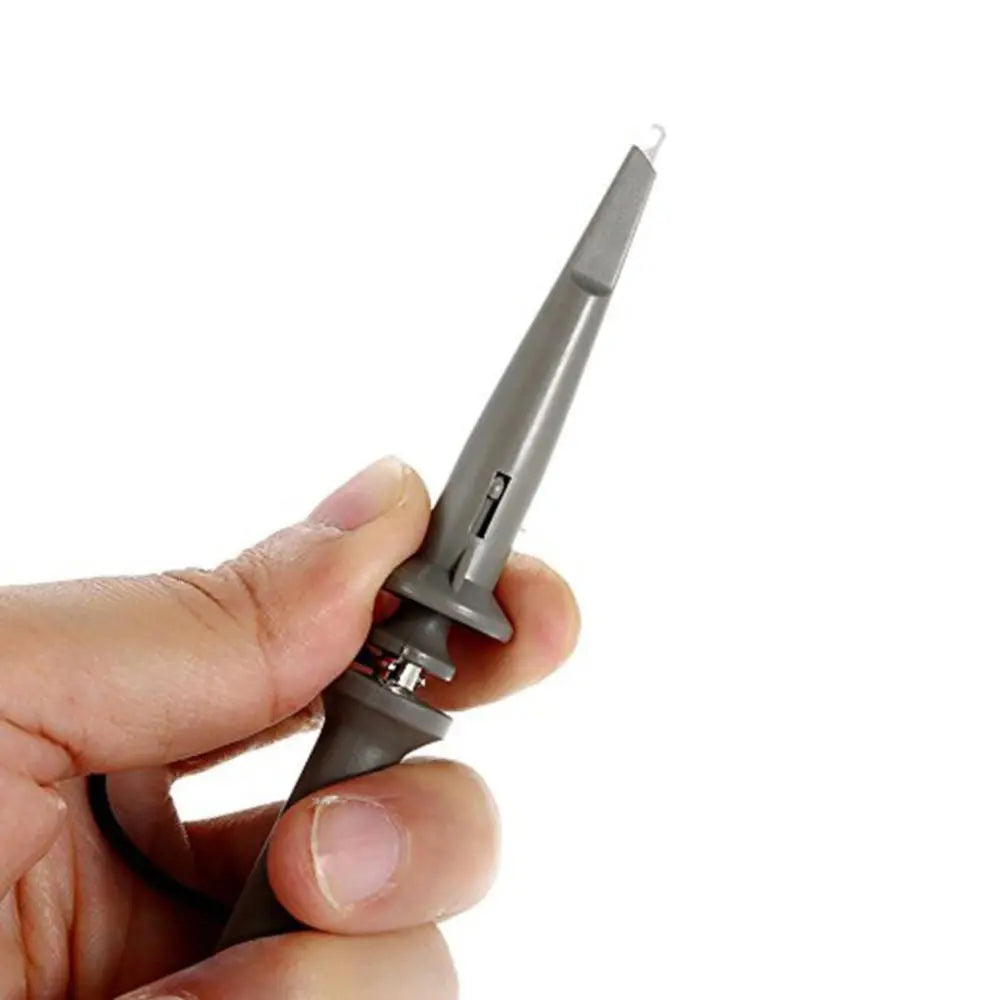

• Probe tip

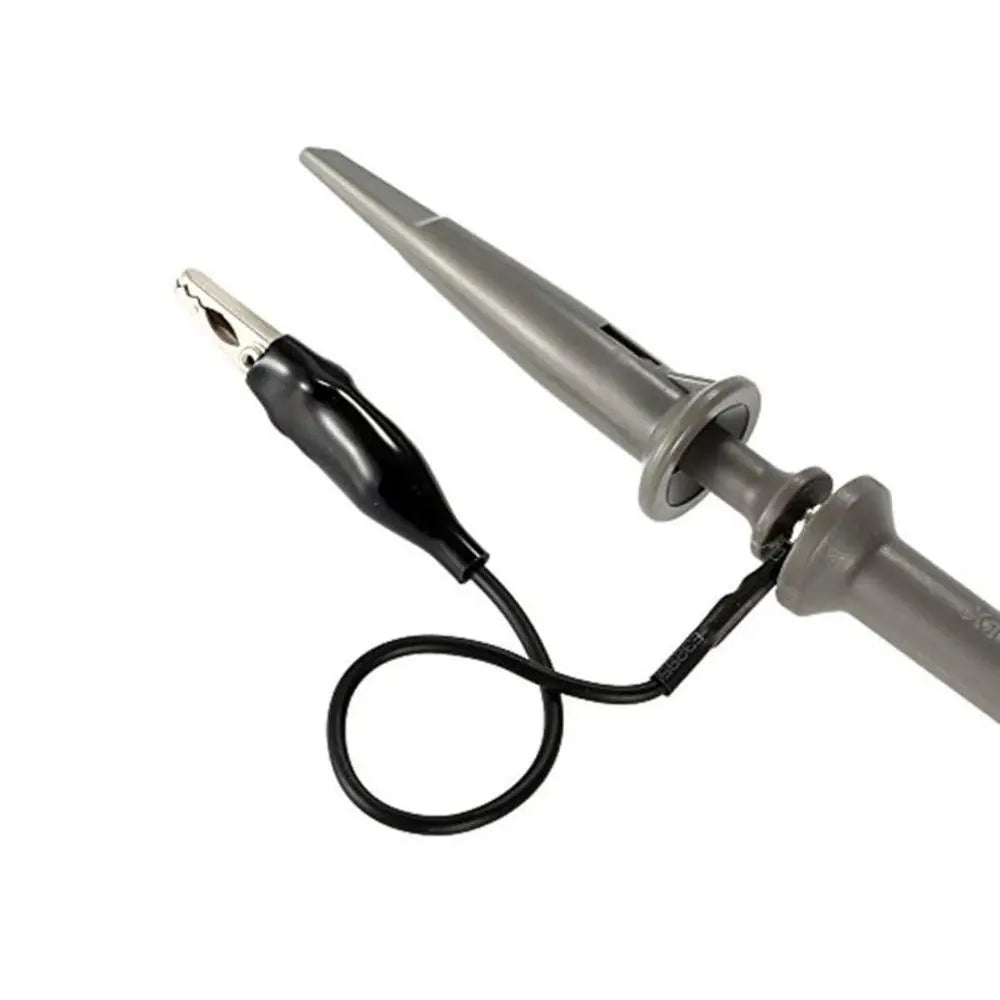

• Ground lead

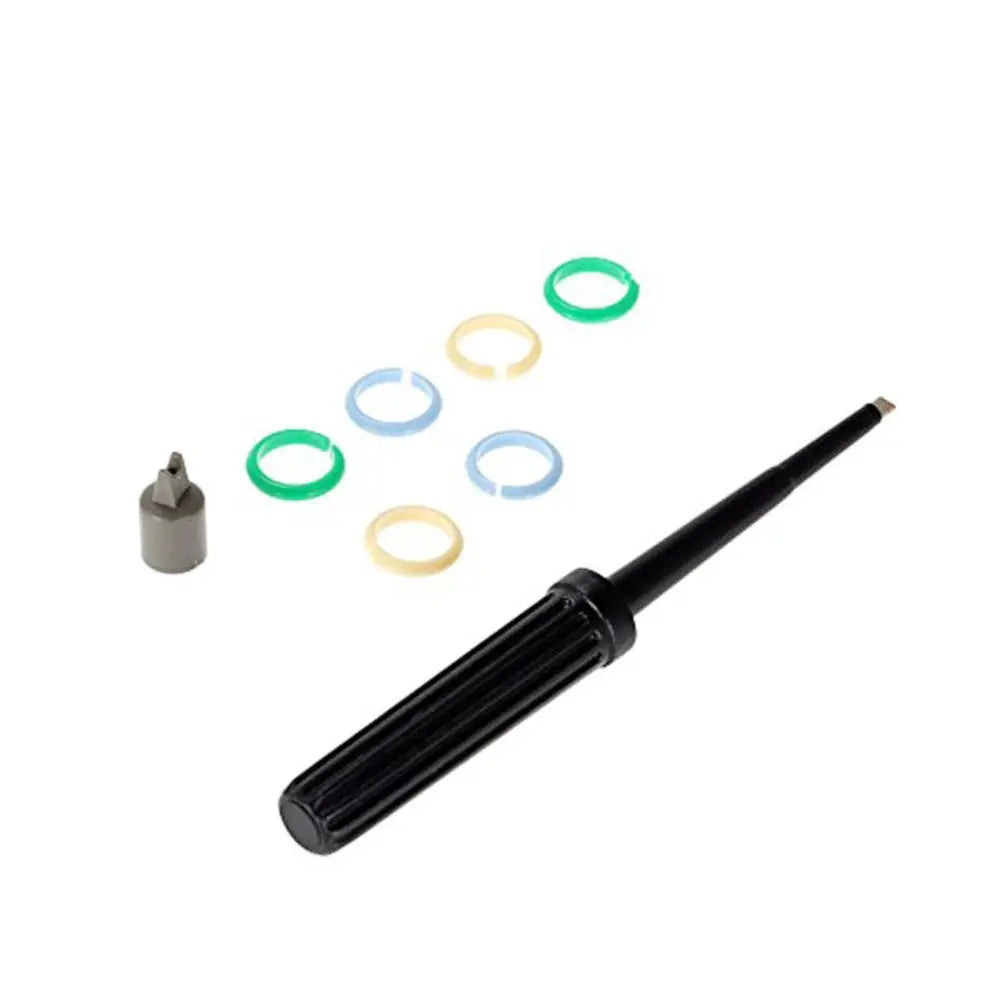

• Several marker rings
• Tip locating sleeve
• Adjustment tool

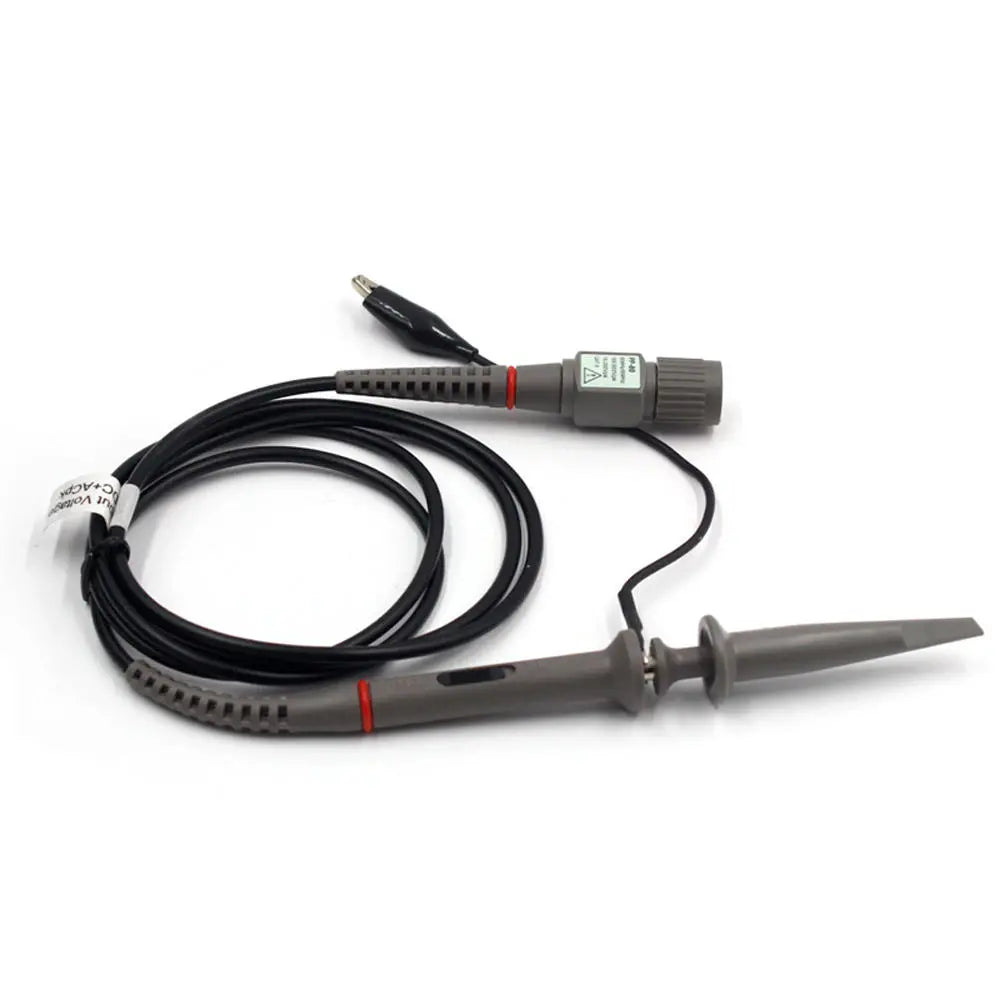

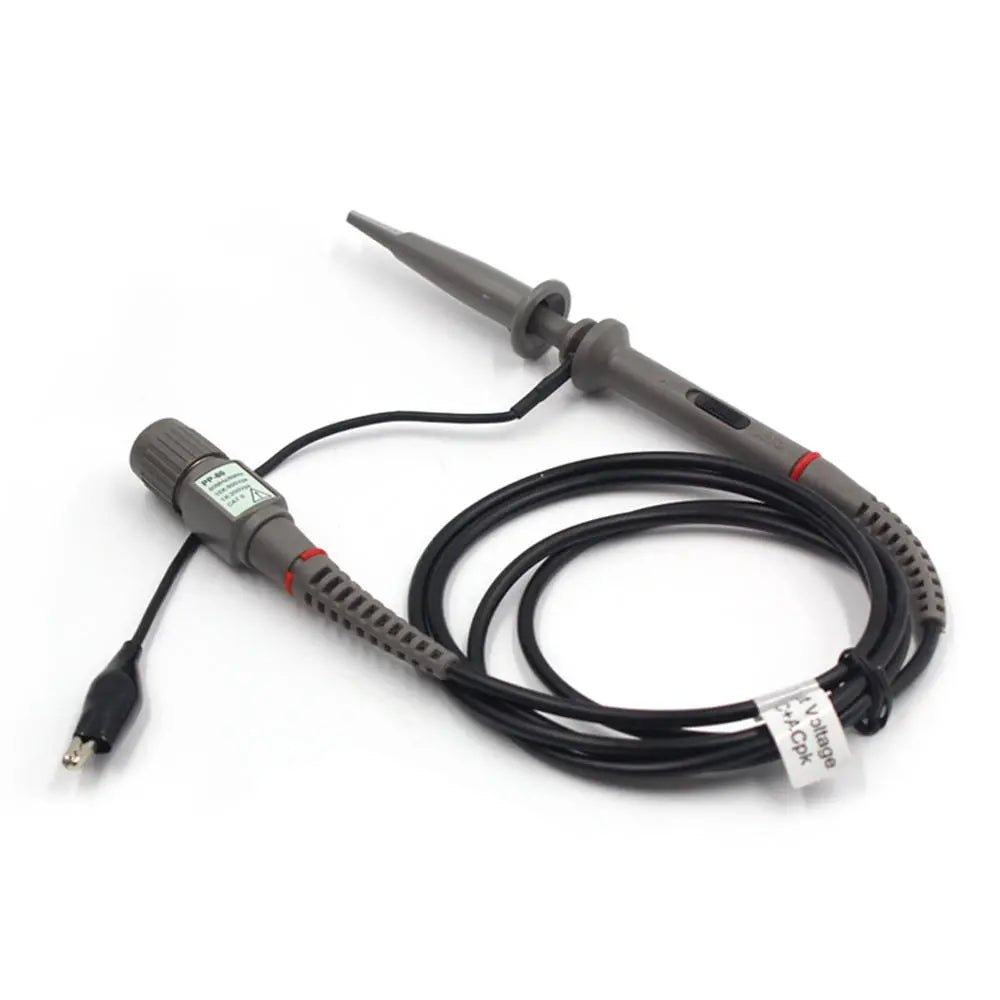

This passive, low-impedance attenuation probe is designed and calibrated for use on instruments with an input impedance of 1MΩ paralleled by 20pF. It can be recalibrated for instruments with an input capacitance of 15 to 40pF. A two-position (1X, 10X) slide switch is included in the compensating network with a cable length of 1.2 meters.

Specifications

• Temperature Range: -15°C to 70°C
• Attenuation: X1, X10
• Input Capacity: 85pF~115pF, 18.5pF~22.5pF
• Oscilloscope Input Capacity: 15pF~40pF
• Input Resistance: X1: 1MΩ±2% / X10: 10MΩ±2%
• Bandwidth: X1: DC-6MHz / X10: DC-60MHz/100MHz/200MHz
• Max Input Voltage: X1
• Probe Body Length: 95mm
• Coaxial Cable Length: 1200mm

Package Includes

• 1 x Probe Tip
• 1 x Ground Lead
• 2 x Marker Rings
• 1 x Tip Locating Sleeve
• 1 x Adjustment Tool
