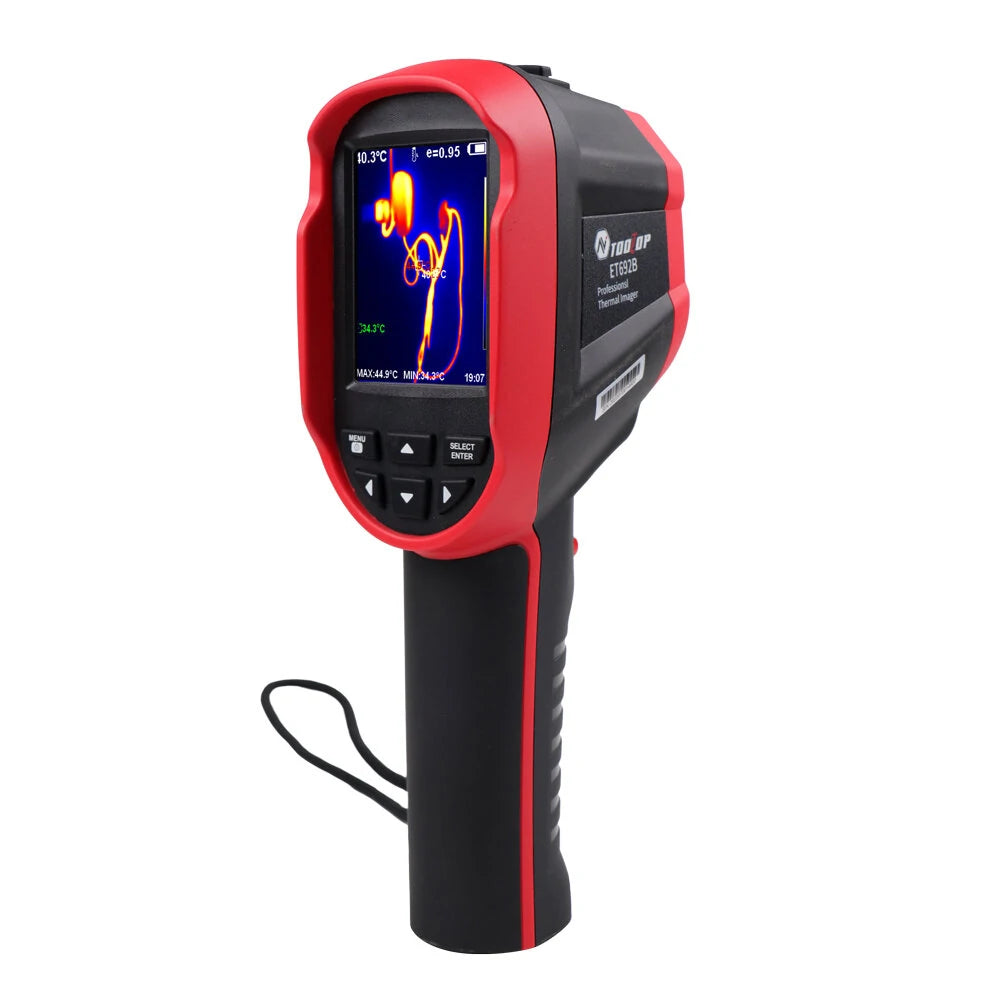

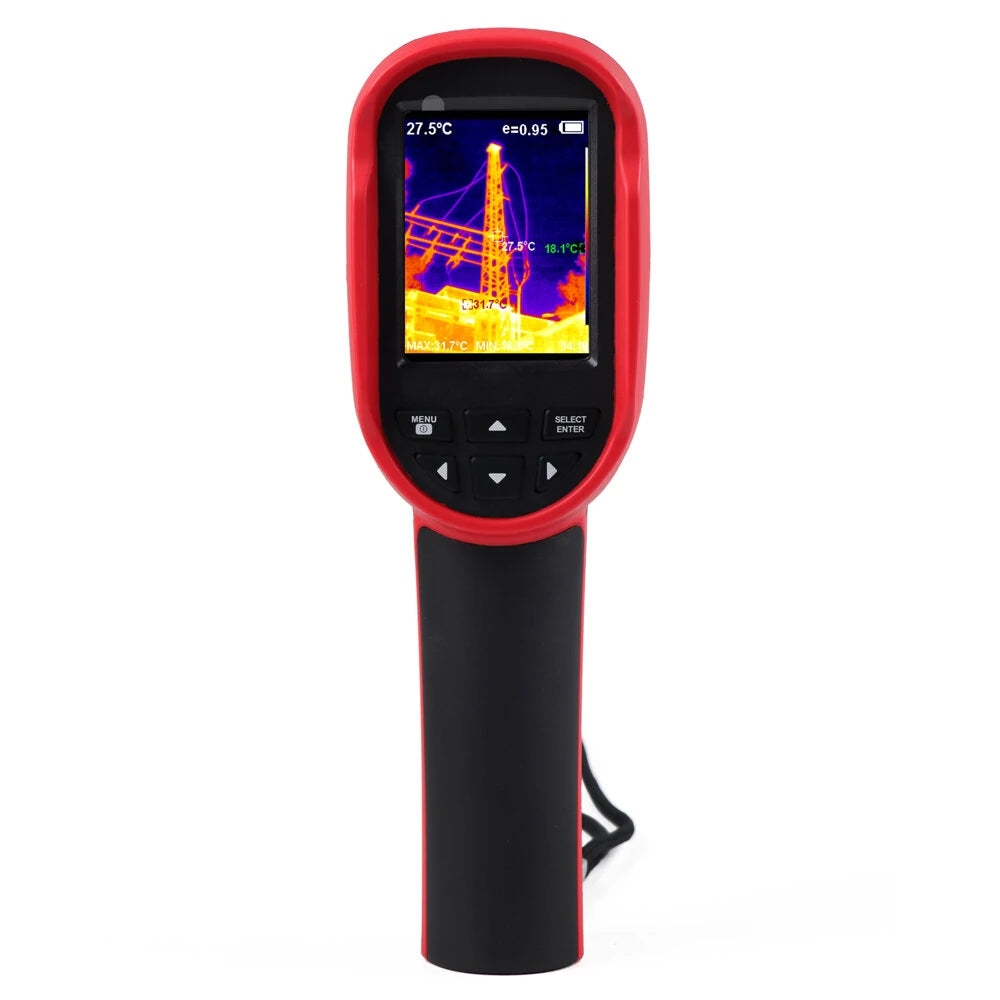

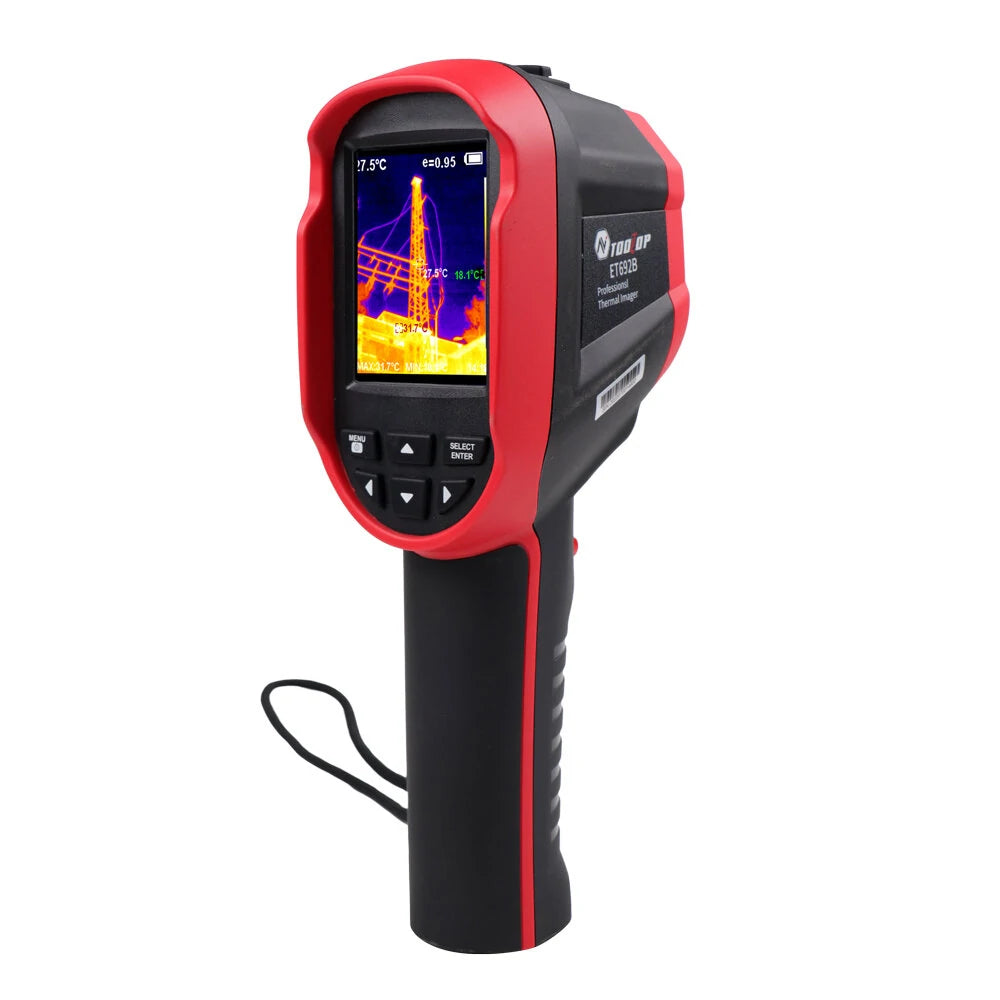

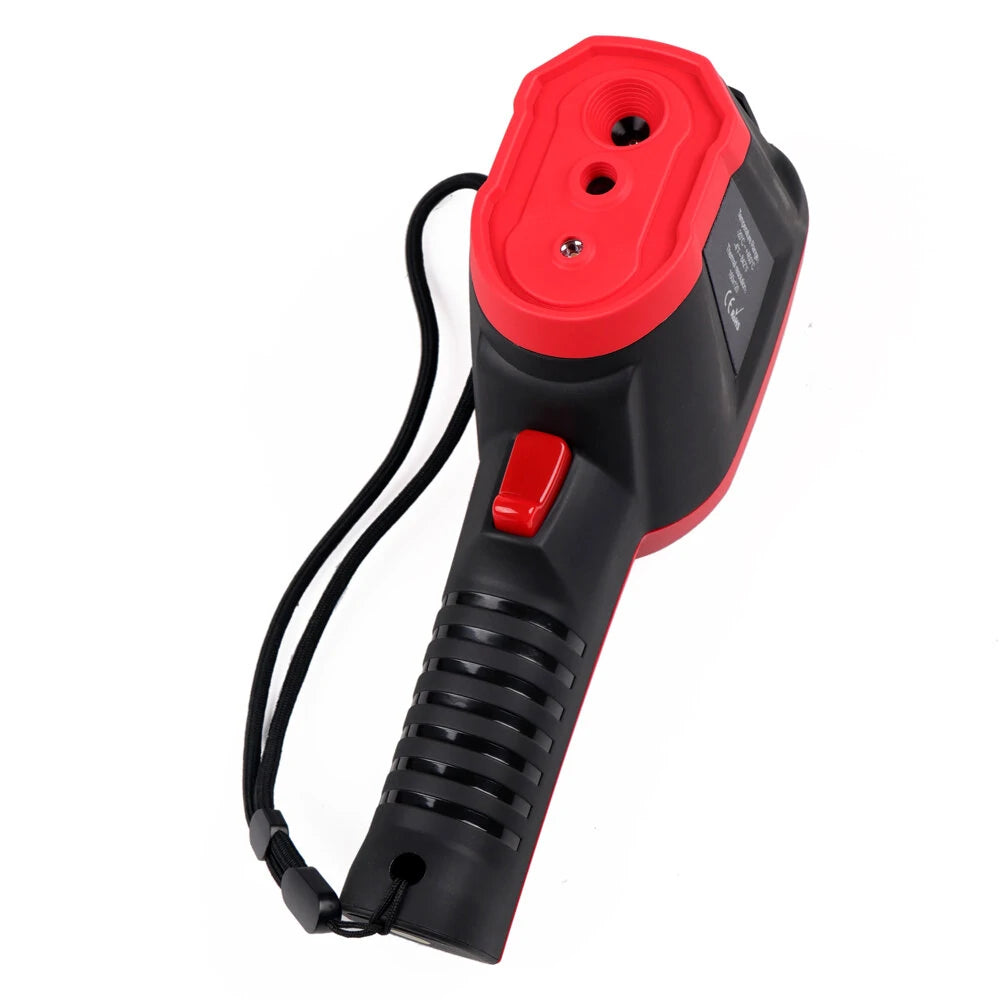

ET692B Thermal Imager

Features

• High-resolution 160 x 120 (19,200) thermal imaging pixels
• Wide temperature measurement range: -20℃ to 550℃ (-4℉ to 1022℉)
• 640 x 480 visible light lens for sharp visuals
• Thermal imaging frame rate up to ≤25Hz
• Comprehensive PC software analysis support
• Four language options: English, Italian, German, and Chinese

Specifications

Infrared Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane
Infrared Resolution	160 x 120
Infrared Response Band	8 to 14μm
Cell Size	12μm
NETD	≤50mK @25°C, @F/1.1
Lens Focal Length	3.2mm
IFOV	3.75mrad
Field Angle	35° x 27°
Focus Mode	Free focus
Measurement Accuracy	±2°C (35.6°F) or ±2%
Measurement Resolution	0.1°C
Temperature Measurement Modes	Center point, hot and cold spot tracking
Color Palette Options	Rainbow, Iron oxide red, Cold color, Black & white, White & black
Emissivity Setting	Adjustable from 0.01 to 1.00
Visible Light Resolution	640 x 480
Display Size	2.8-inch (240 x 320)
Image Display Modes	Infrared, Visible light, Dual light fusion
Lighting System	LED fill light
Device Storage	Built-in 4G eMMC (approx. 3G user available)
Storage Image/Video Format	JPG/MP4
Image/Video Export Method	USB connection to computer

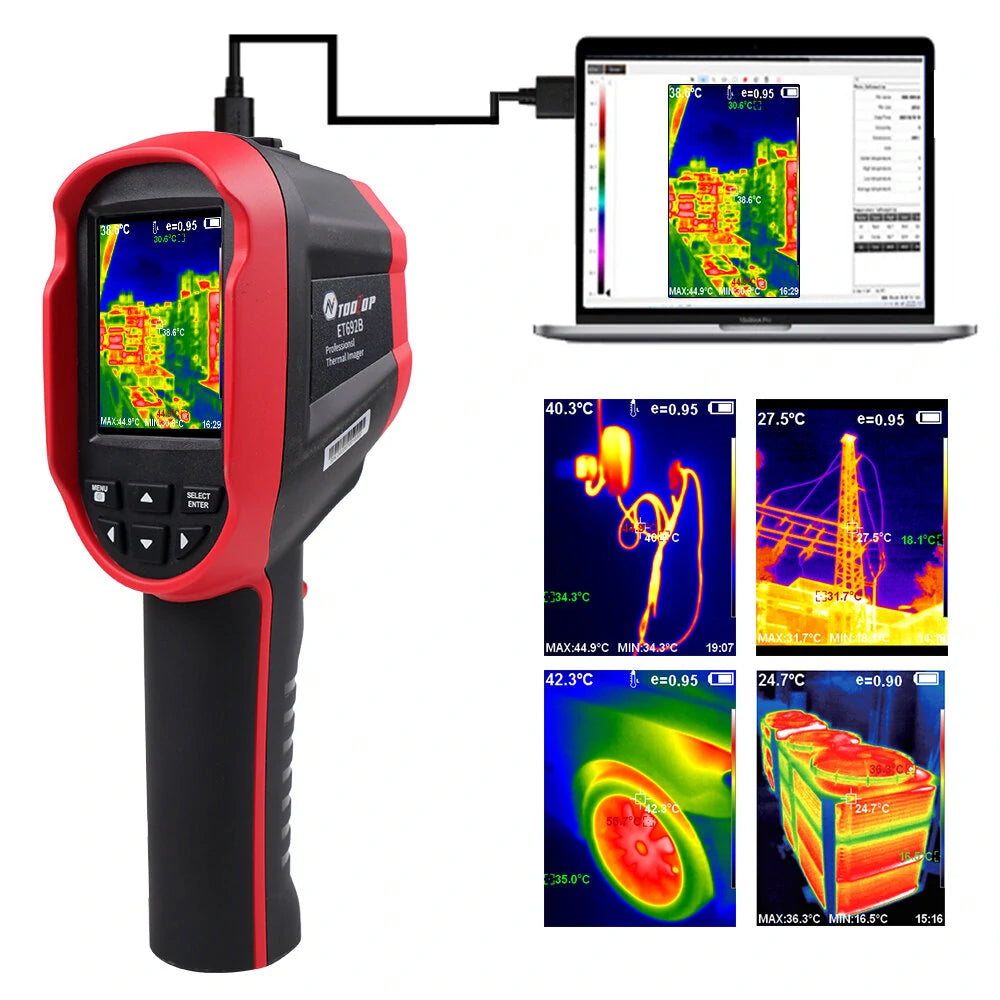

Image Analysis Function	Support offline analysis on PC
Menu Languages	English, Chinese, Italian, German
Battery Type	Removable Rechargeable Lithium Battery (18650)
Battery Capacity	2200mAh

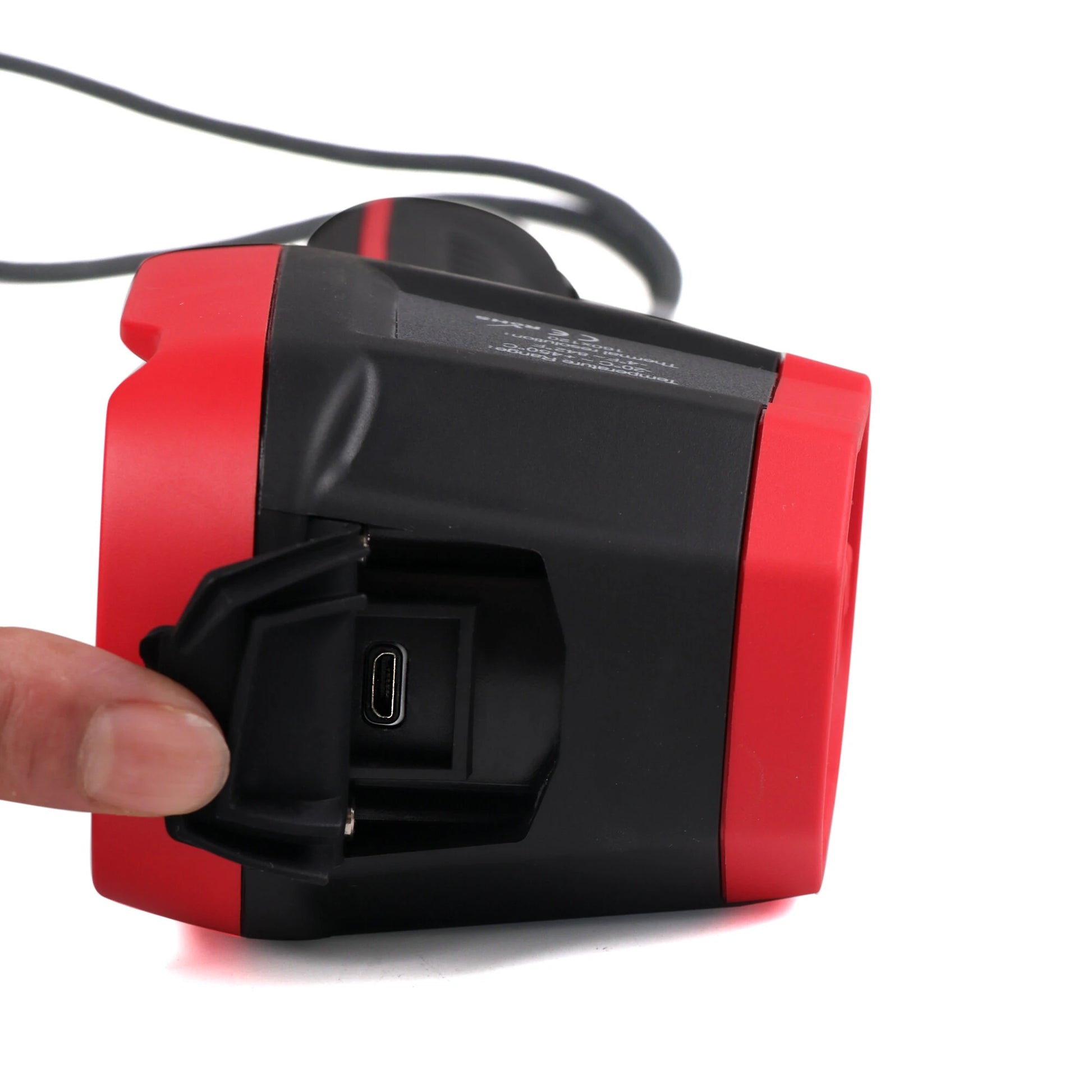

Power Interface	Micro USB
Power Configuration	5 minutes / 20 minutes / no automatic shutdown
Work Temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Relative Humidity	10% to 85%RH (non-condensing)
Product Weight	389g
Product Size	96mm x 72mm x 226mm

Package Includes

• 1 x ET692B Thermal Imager
• 1 x USB Cable
• 1 x English Manual
• 1 x Packing Box

Note: An appropriate adapter will be provided based on your country.
