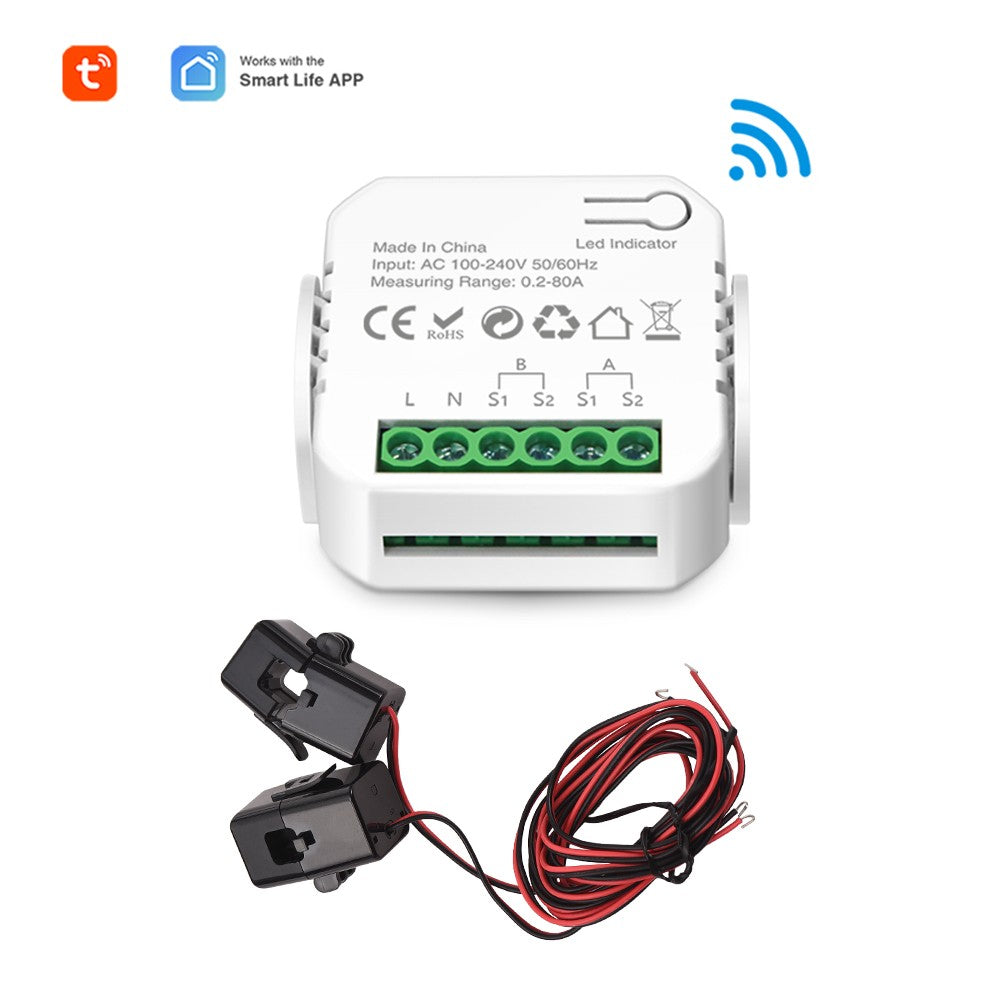

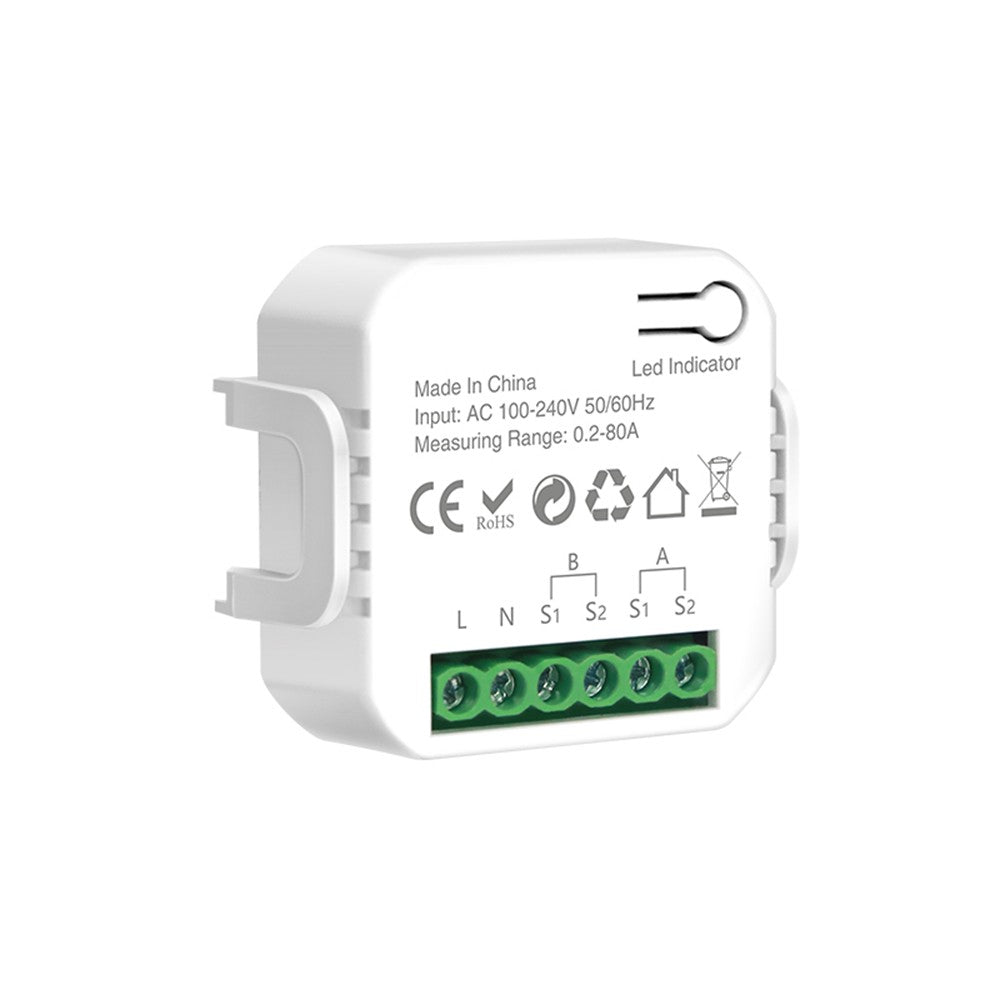

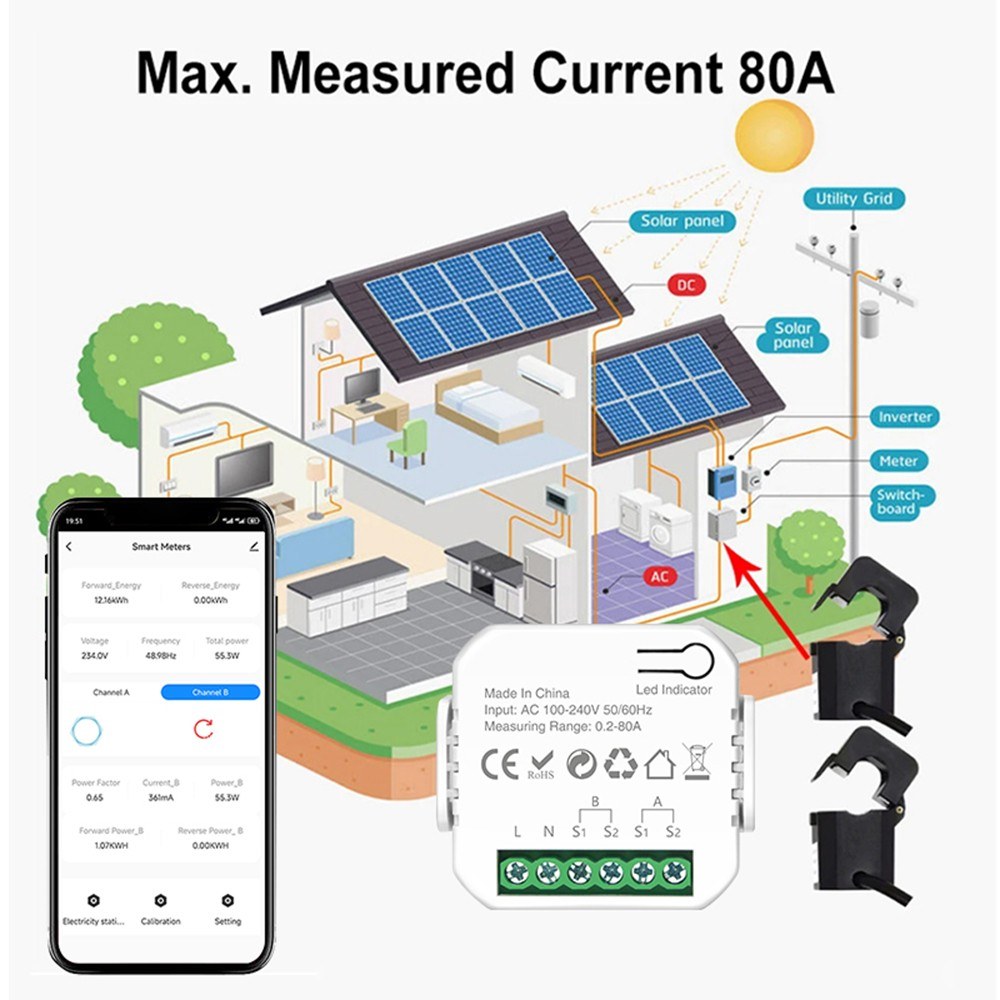

Smart Energy Meter TY with Dual 80A CT Clamps for Solar Power Monitoring and Electricity Usage Tracking

Smart Energy Meter Features

• Smart Energy Meter: A modern WIFI-enabled device offering real-time electricity consumption monitoring and fault detection in your solar photovoltaic system.
• Power Consumption Monitor: Track and manage electric current size and fluctuations to identify issues, protect electrical equipment, and prevent damage.
• Smart Home Energy Monitor: Equipped with dual 80A current transformer clamps for precise power measurement, providing real-time alerts for abnormal power usage.

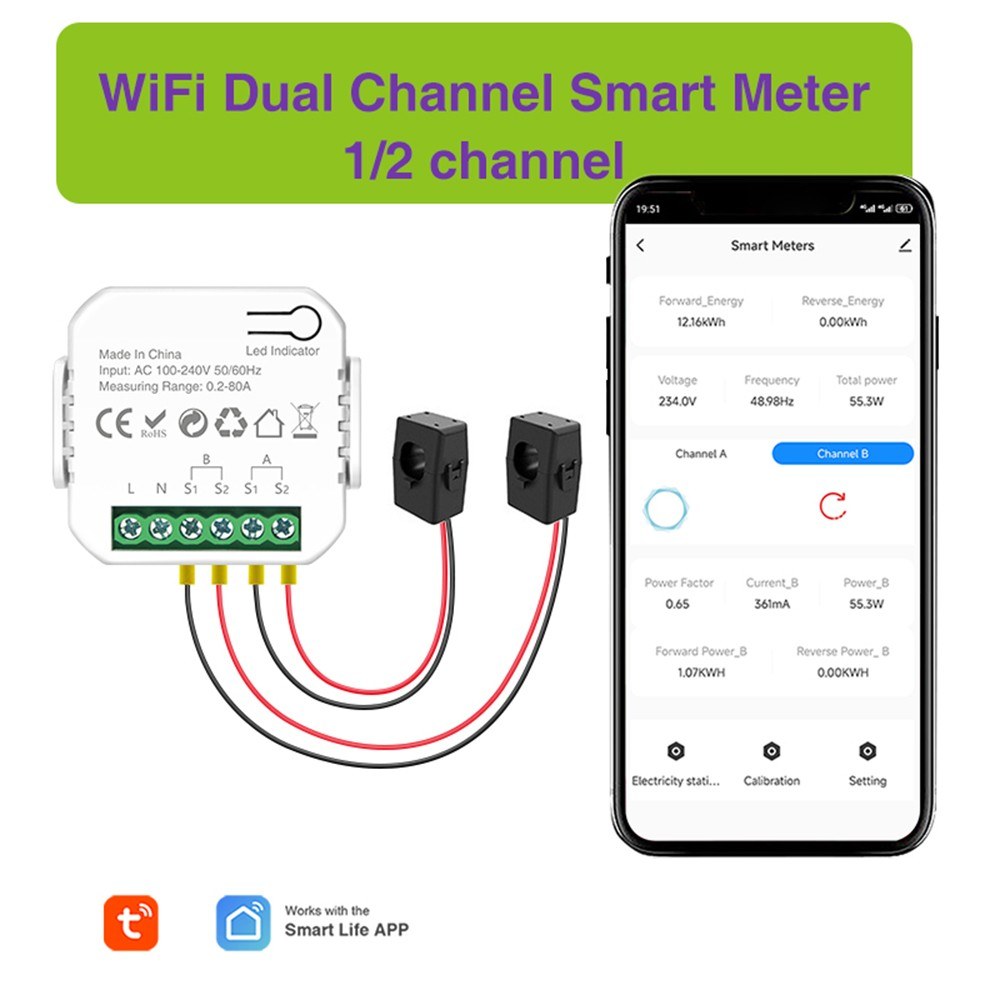

• Electricity Monitor: Set thresholds in the mobile app for power usage notifications. Easy installation with snap-on design and no wiring complications.
• Energy Meter & Transformer: Seamlessly integrates with your electrical system, offering accurate consumption measurement and convenient real-time monitoring.

Specifications

• Input Voltage: AC 100-240V 50/60Hz
• Communication Method: WiFi 2.4GHz
• Measurement Range: 0.2-80A
• Operating Frequency: 2.412-2.484GHz
• Measurement Accuracy: Level 1 (±2%)
• Data Encryption: AES-128 for secure transmission
• CT Grade: 10mm
• Working Temperature: -10℃ to +55℃
• Supported Platforms: TY Smart, Amazon Alexa, Google Assistant

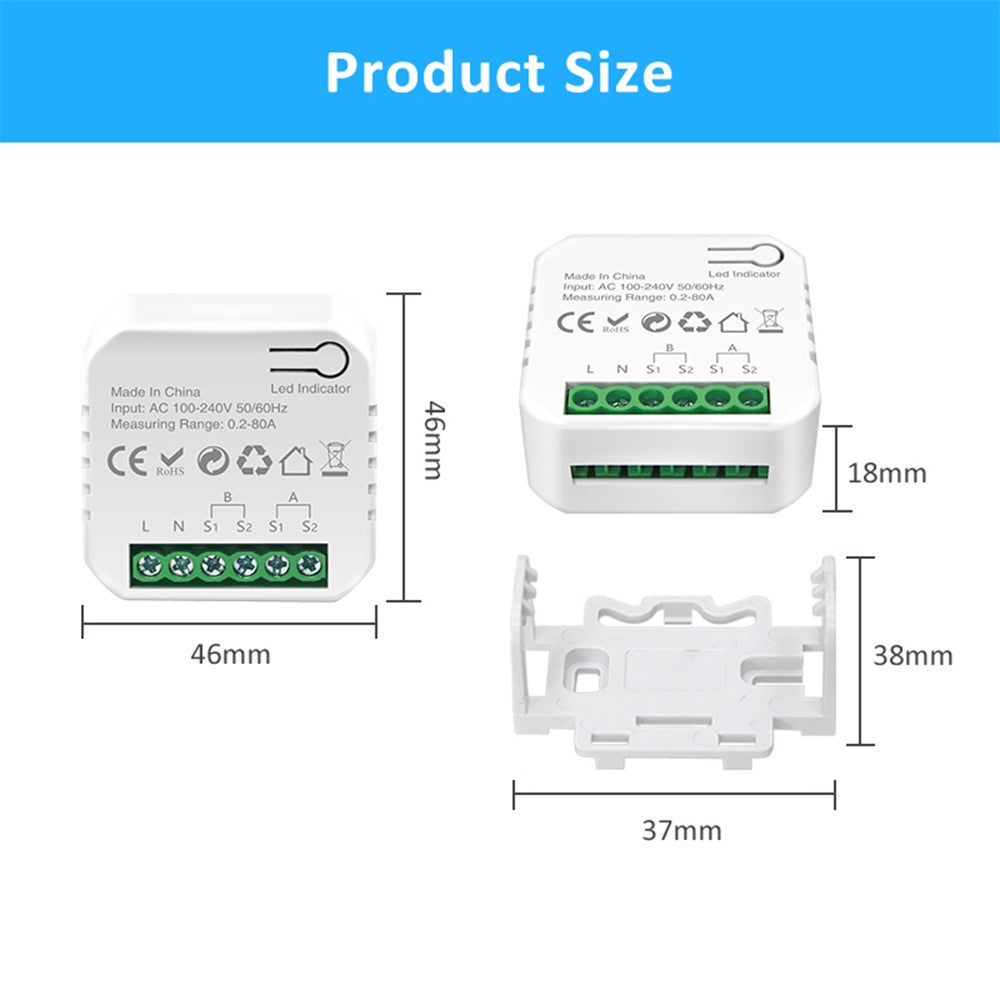

• Product Size: 46 x 46 x 19 mm (1.8 x 1.8 x 0.7 inches)

Note

• Color may vary slightly due to different monitor settings and lighting.
• Allow for a 1-2cm measurement deviation due to manual measurement.

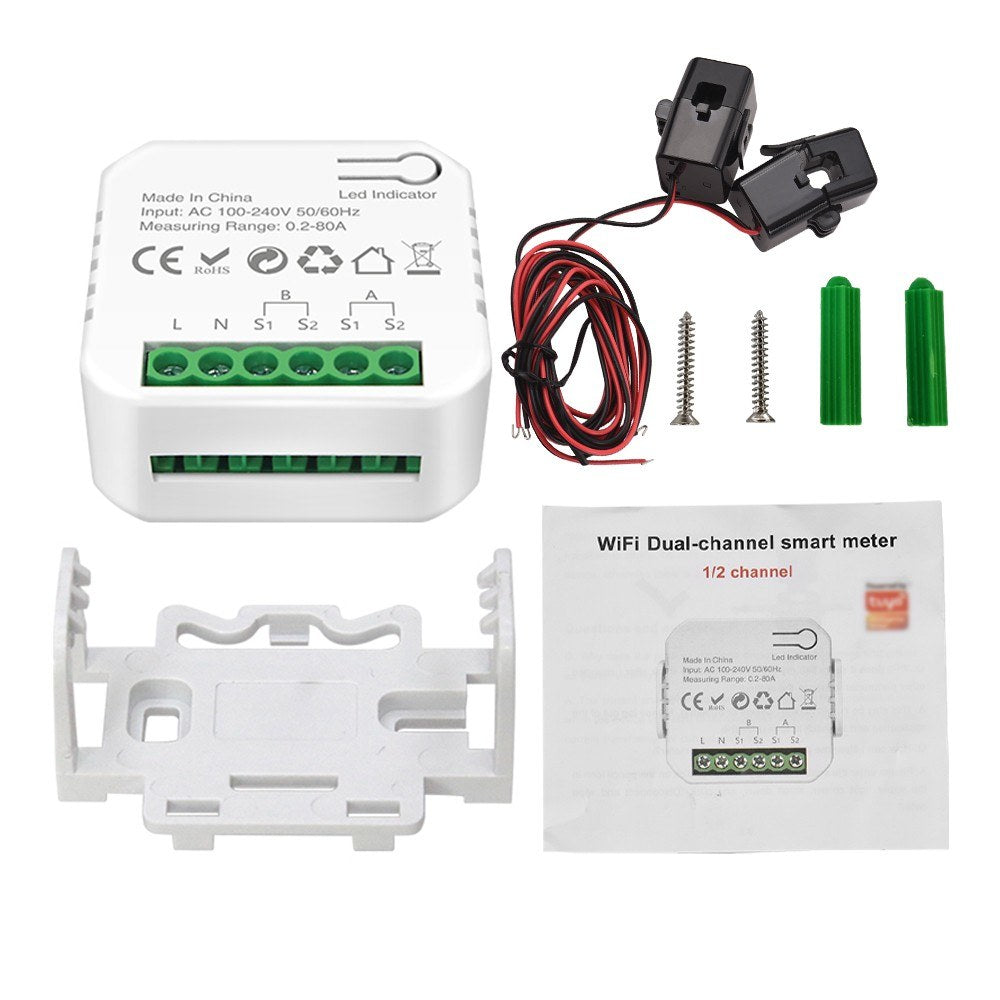

Package List

• 1 x Energy Monitor
• 1 x Instruction Manual
• 1 x Install Screw Kit
