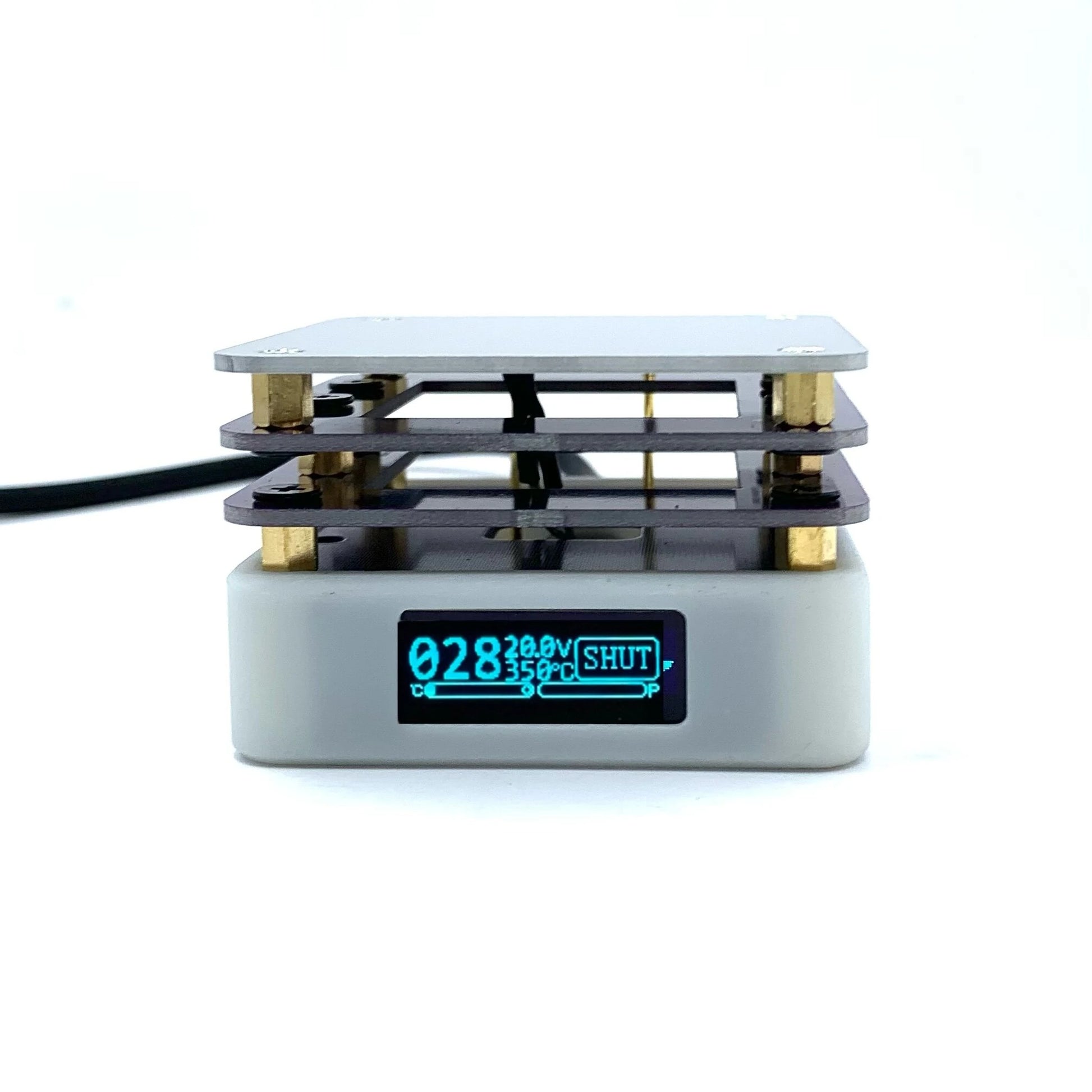

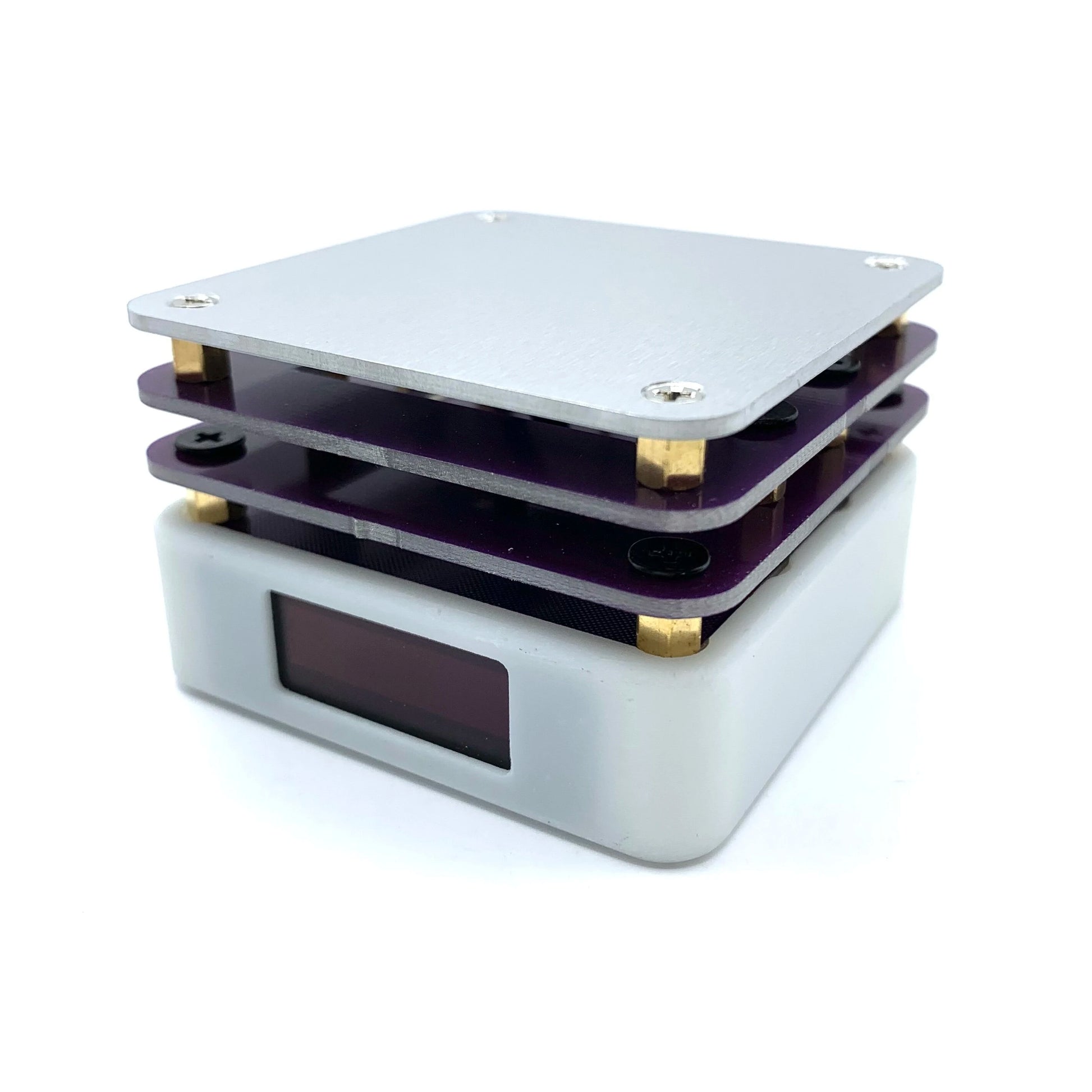

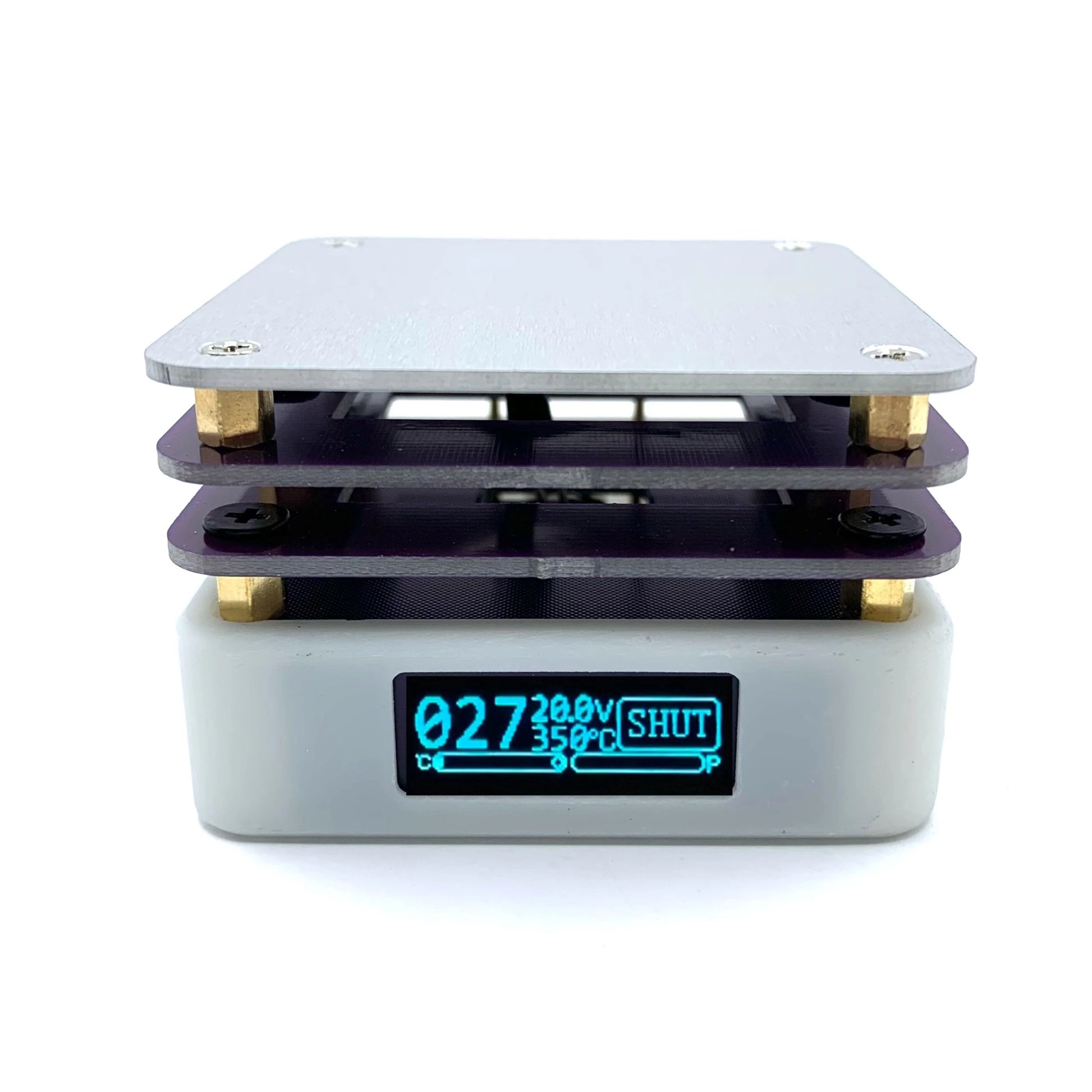

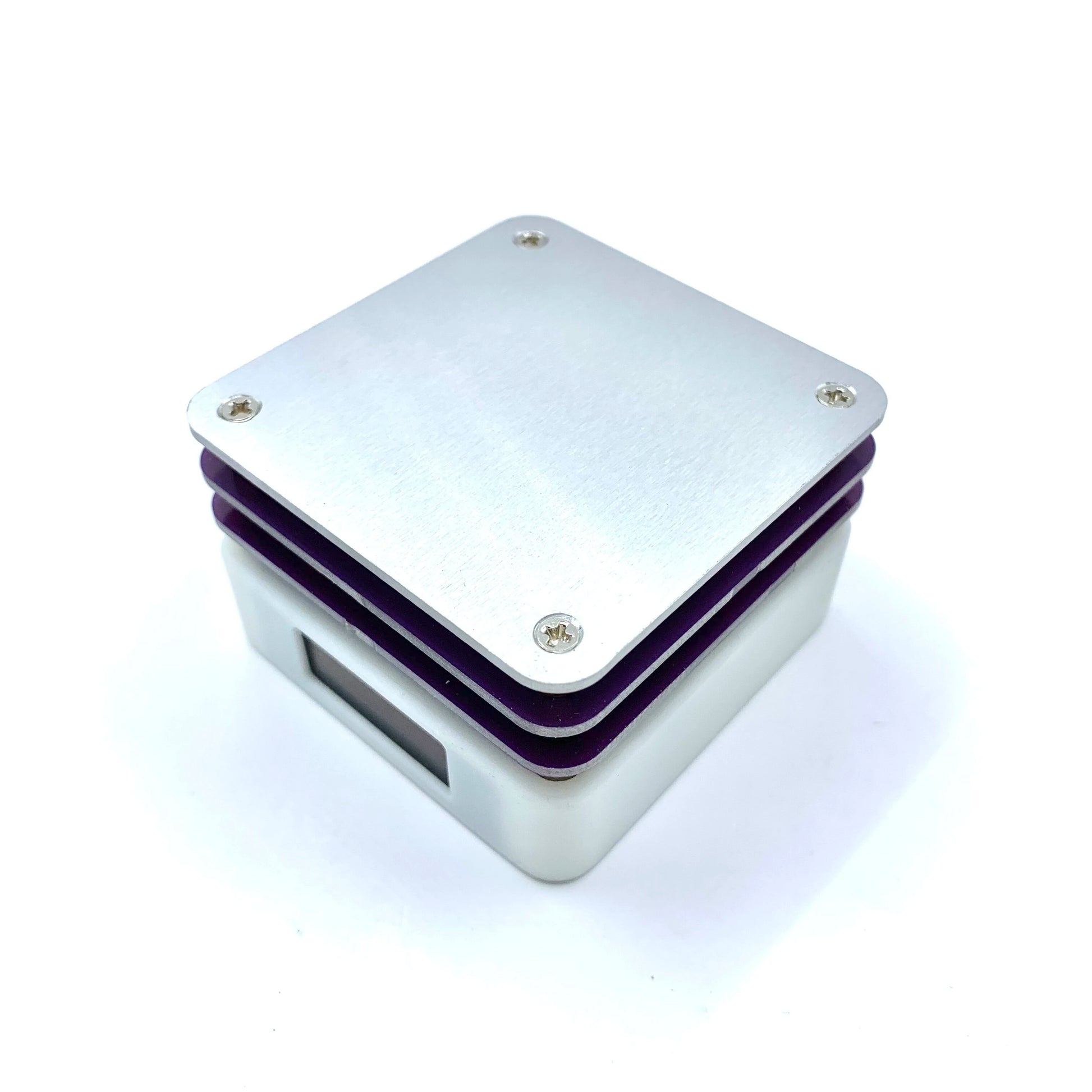

65W Mini Hot Plate Preheater with OLED Display for PCB Board Welding and Repair

Product Description

Ultra Mini Intelligent Heating Table

• Compact design with an efficient heating area, minimizing energy consumption and heating time.
• Wide range of applications with screen display for temperature control.
• Targets preheating on specific parts to reduce potential damage to nearby components.
• Features a USB Type-C interface with PD protocol for quicker heating.

Product Parameters

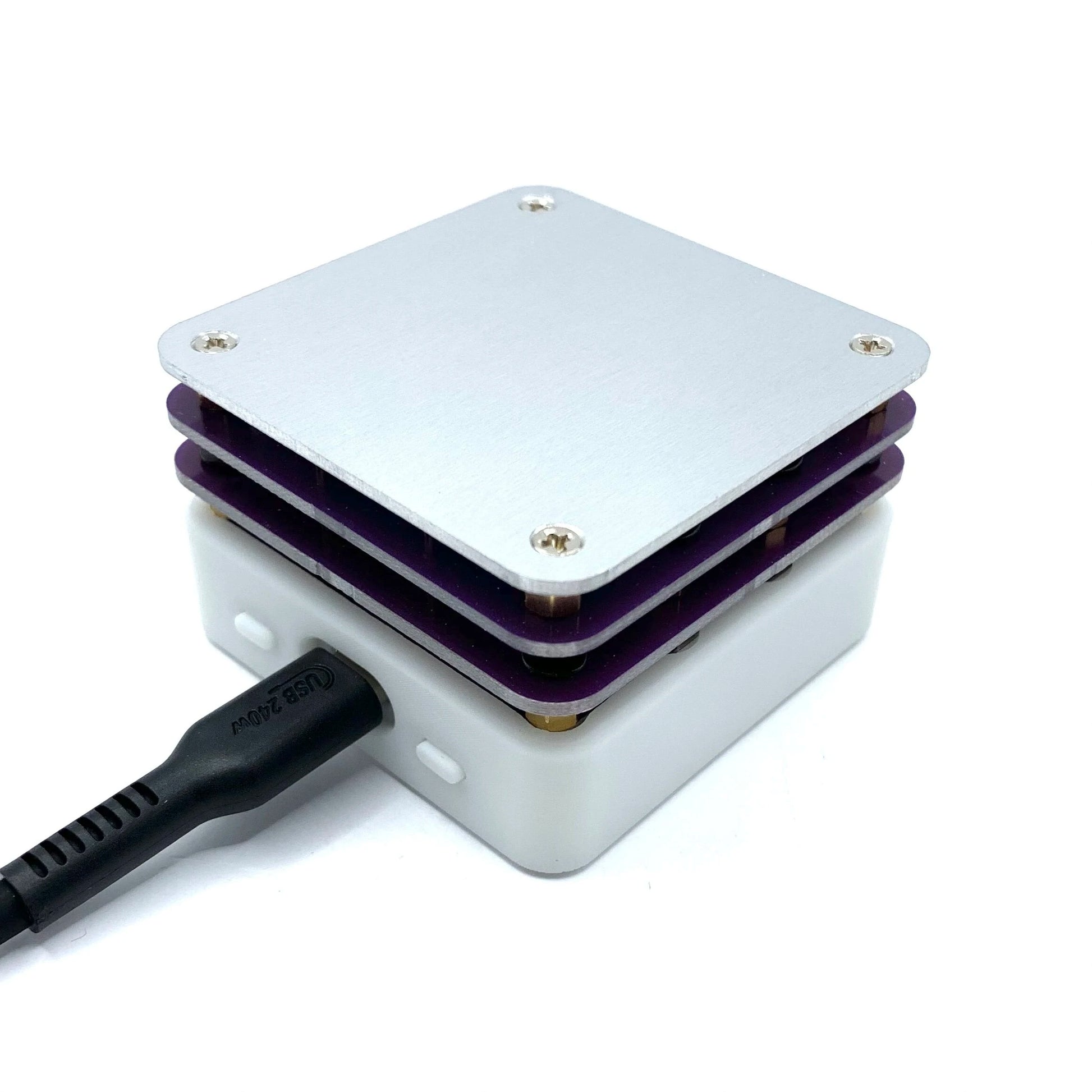

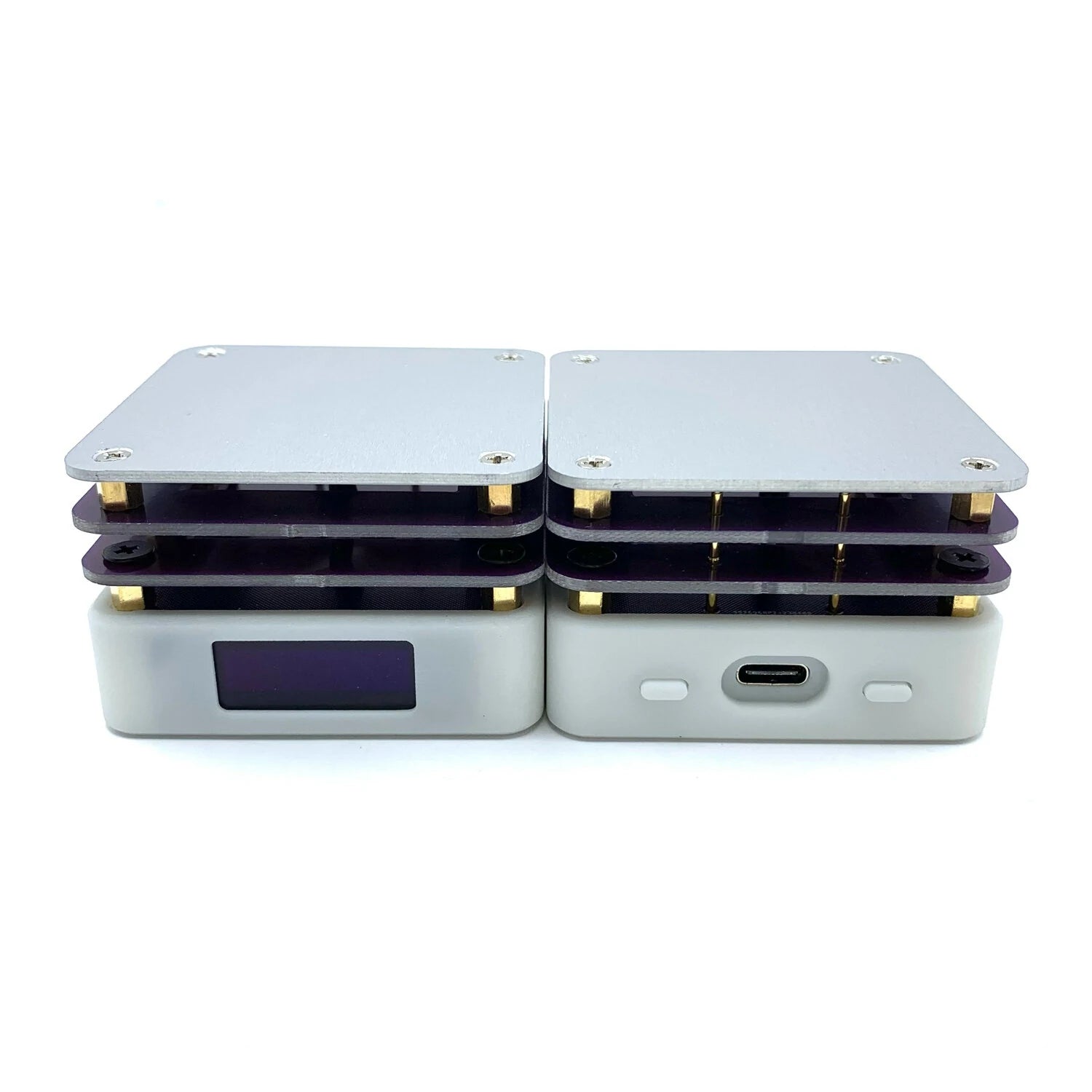

• Input Interface: Type-C
• Power Supply: PD 65W, 20V, 3.25A (PD65W recommended)
• Temperature Range: 0°C to 350°C (cannot lower below ambient temperature)
• Shell: High-quality 3D printed casing with no layering

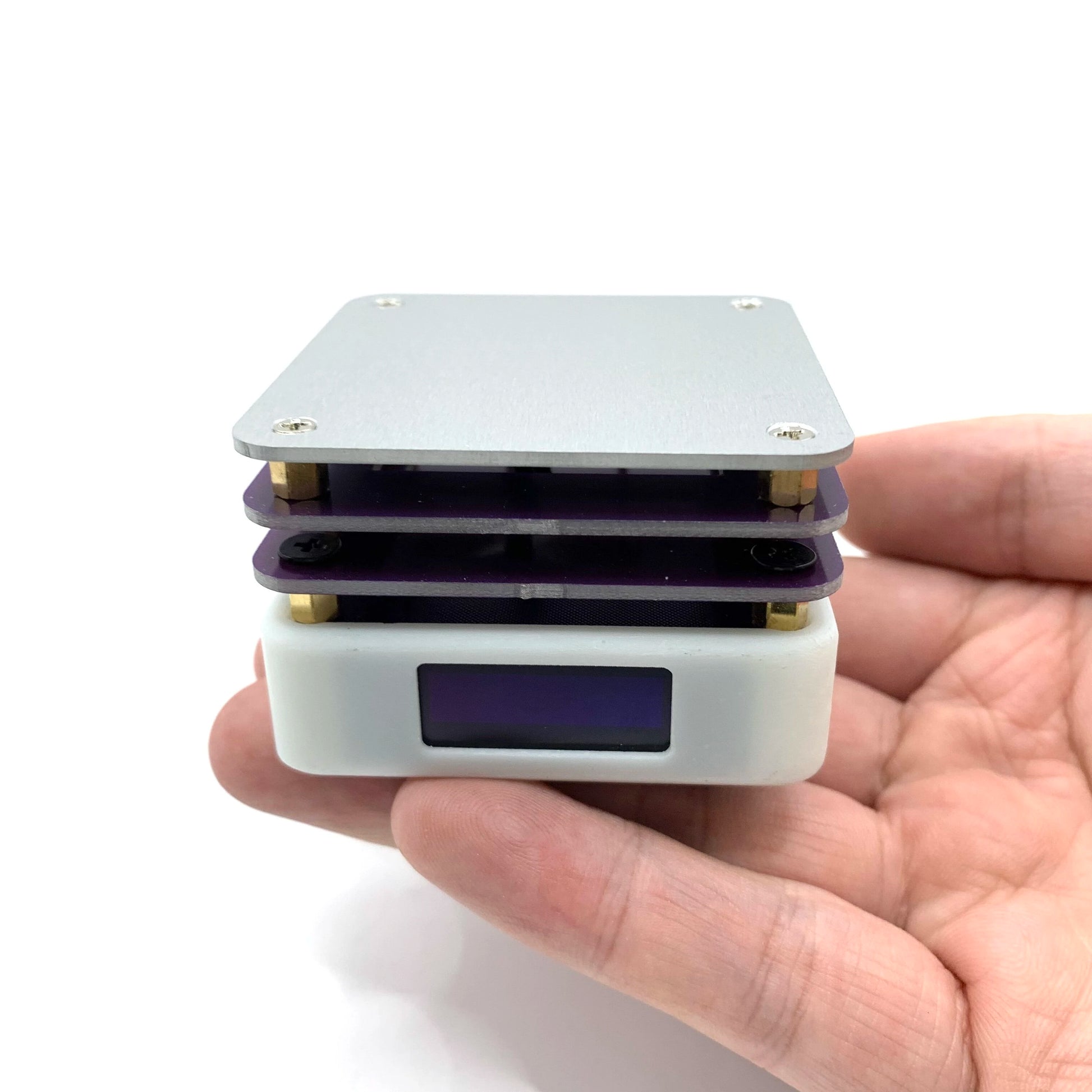

• Product Dimensions: Length: 5.6 cm, Width: 5.6 cm, Height: 3.5 cm

Operating Instructions

• Press both buttons simultaneously to start or stop heating.
• Long press both keys to enter or exit the menu interface.
• Press both keys to confirm a selection.

Note: Do not exceed a heating temperature of 250°C.

Package Includes

• 1 x Heating Table

Common Questions & Answers

Q: What voltage does the power supply require?
A: A charger supporting the PD protocol at 20V, 3.25A is required. It generally supports the PD protocol at 20V.

Q: Why does the heating start with a black screen and restart?
A: This issue may trigger the charger's protection. Try using a different charger or data cable, as the charger model might cause this problem.
