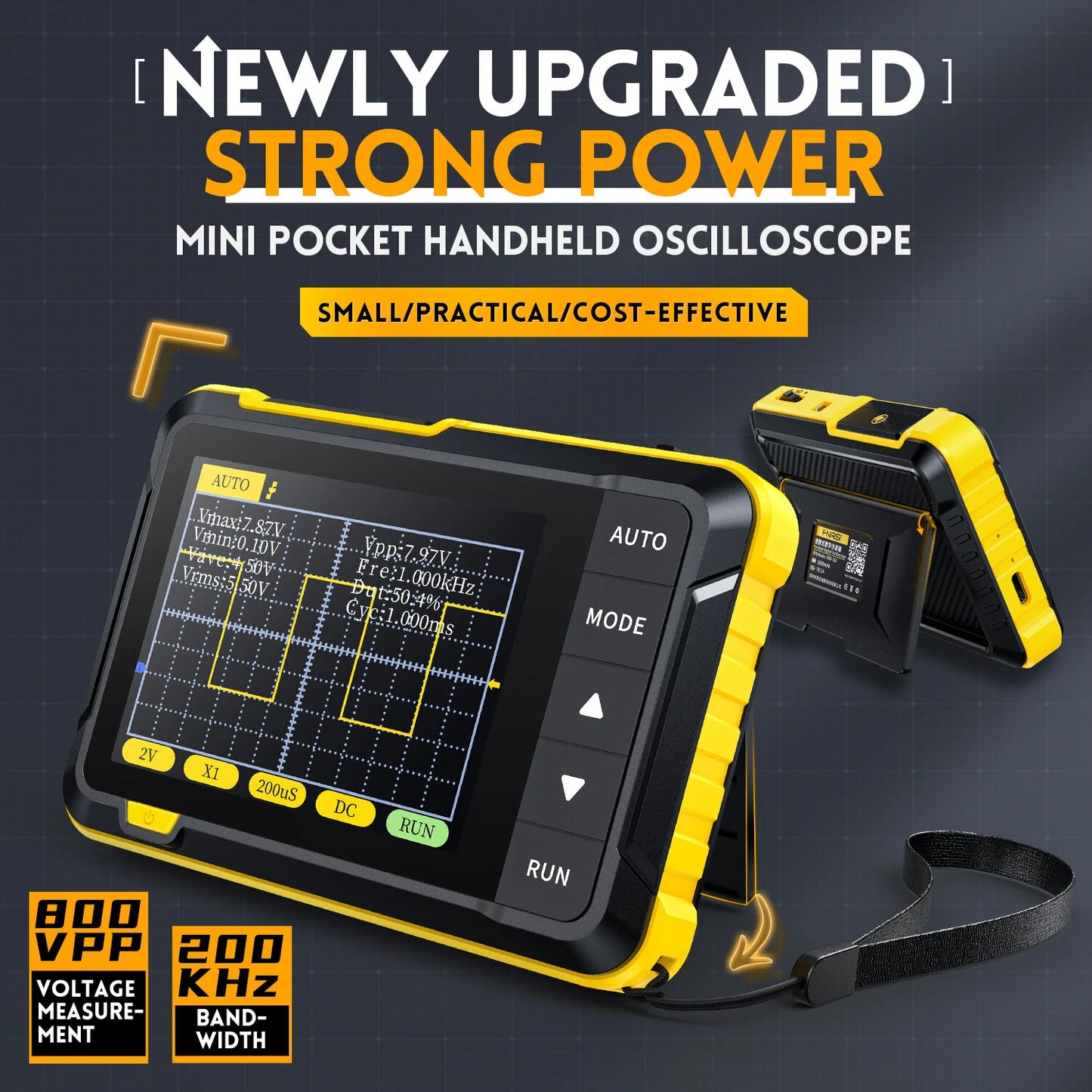

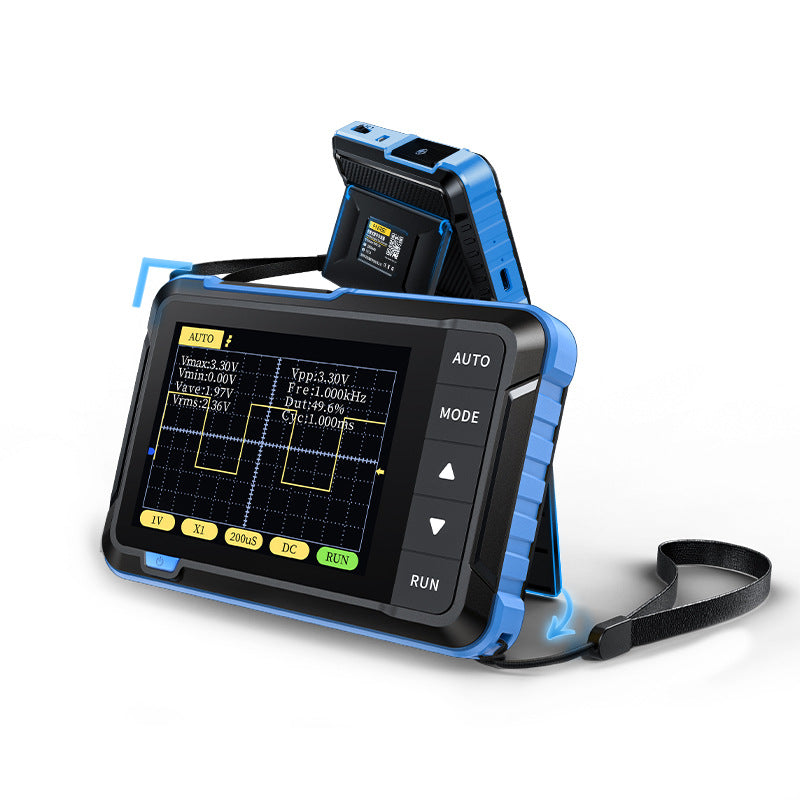

FNIRSI DSO152 2.5MSa/s Mini Handheld Digital Oscilloscope 200KHz Bandwidth with PWM Output

Download the DSO152 Product Manual
Description:
This compact digital oscilloscope features a 2.8-inch color display, offering a real-time sampling rate of 2.5MS/s and a 200kHz bandwidth. It includes complete trigger functions (single, normal, automatic) for use with both periodic analog and non-periodic digital signals. Easily switch between rising-edge and falling-edge trigger modes, and measure up to ±400V voltage signals. The device also provides waveform measurement display capabilities to meet your daily needs. With a 1KHz calibration SQW, a one-button automatic adjustment feature, and a Type-C port for firmware upgrades and charging, this oscilloscope is suitable for utility measurements, DIY learning, automobile repairing, home appliance repairing, research, teaching, and outdoor maintenance.
Features:

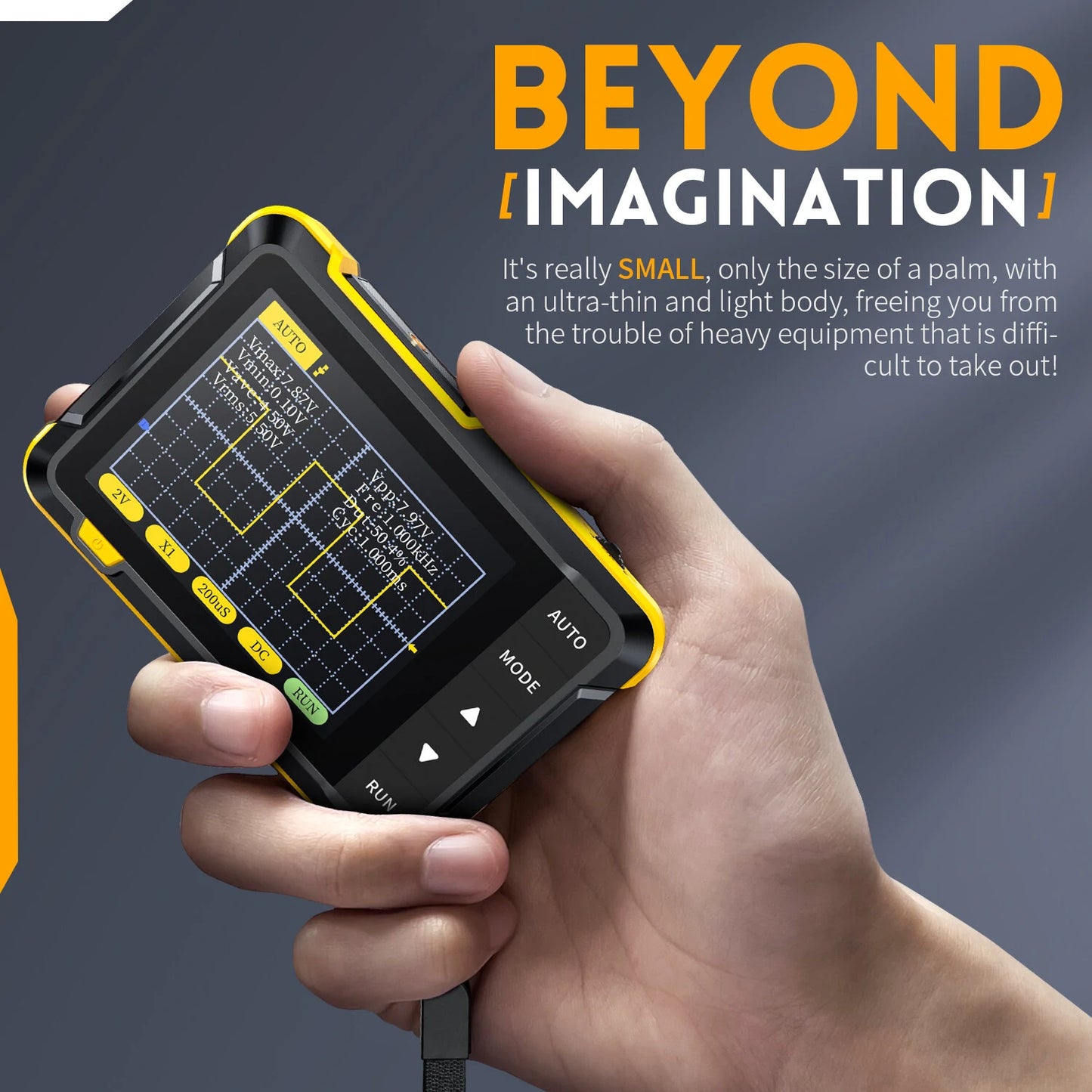

Compact Size: Lightweight and portable, it features a space-saving design, making it perfect for on-site debugging and utility maintenance.

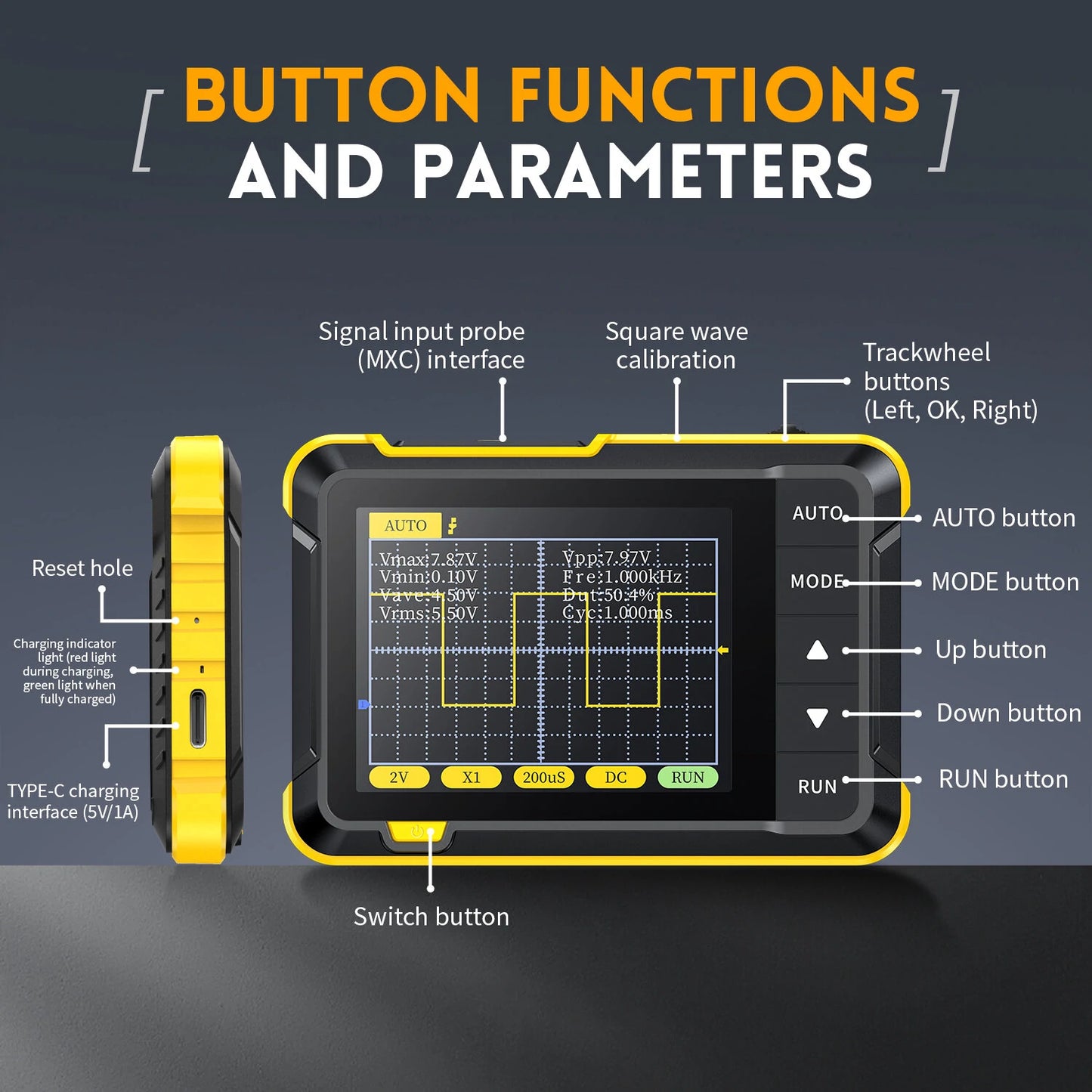

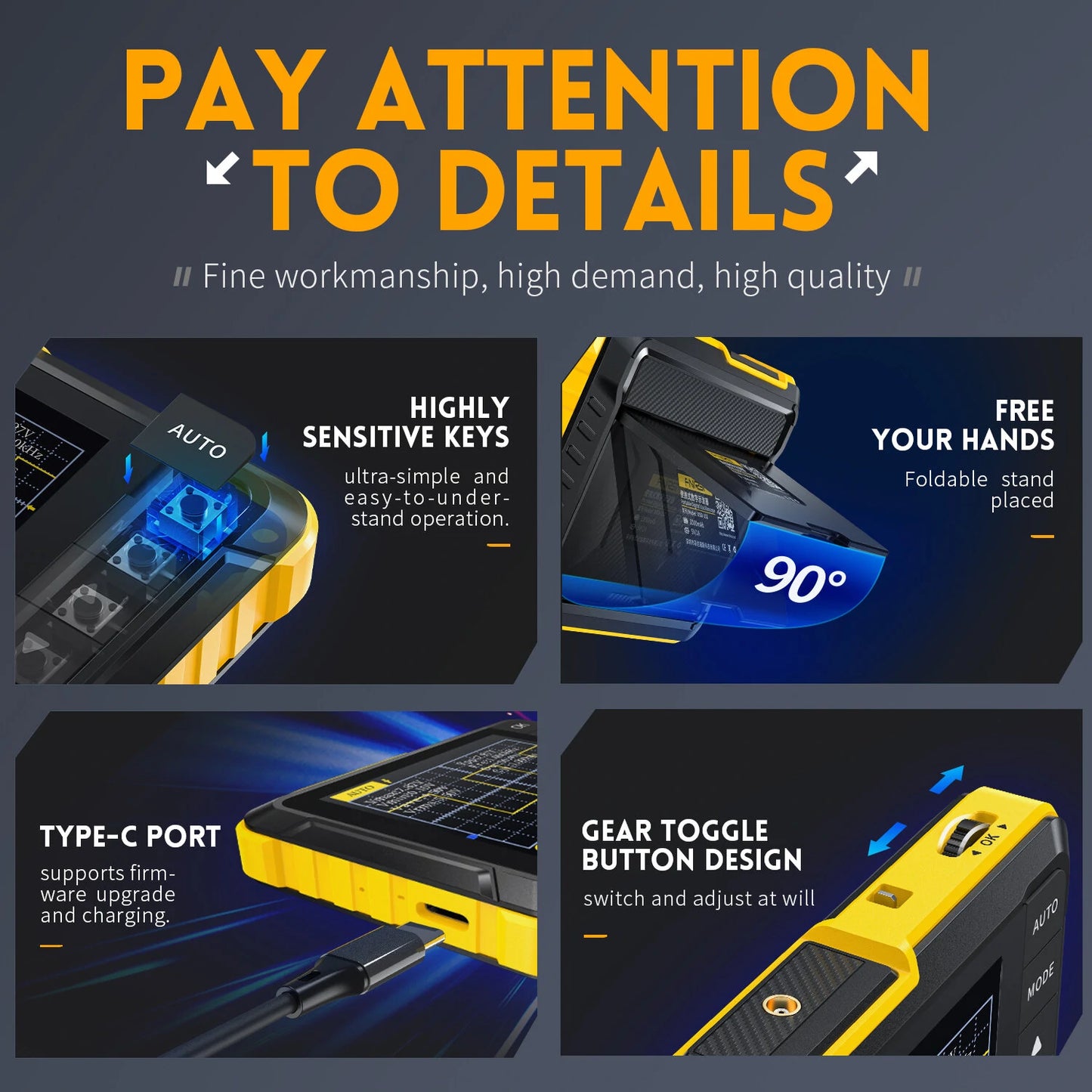

Fine Workmanship: High-sensitivity buttons and a Type-C port for firmware upgrades and charging, along with a folding bracket for convenient placement. Easily toggle settings with gear toggle buttons.

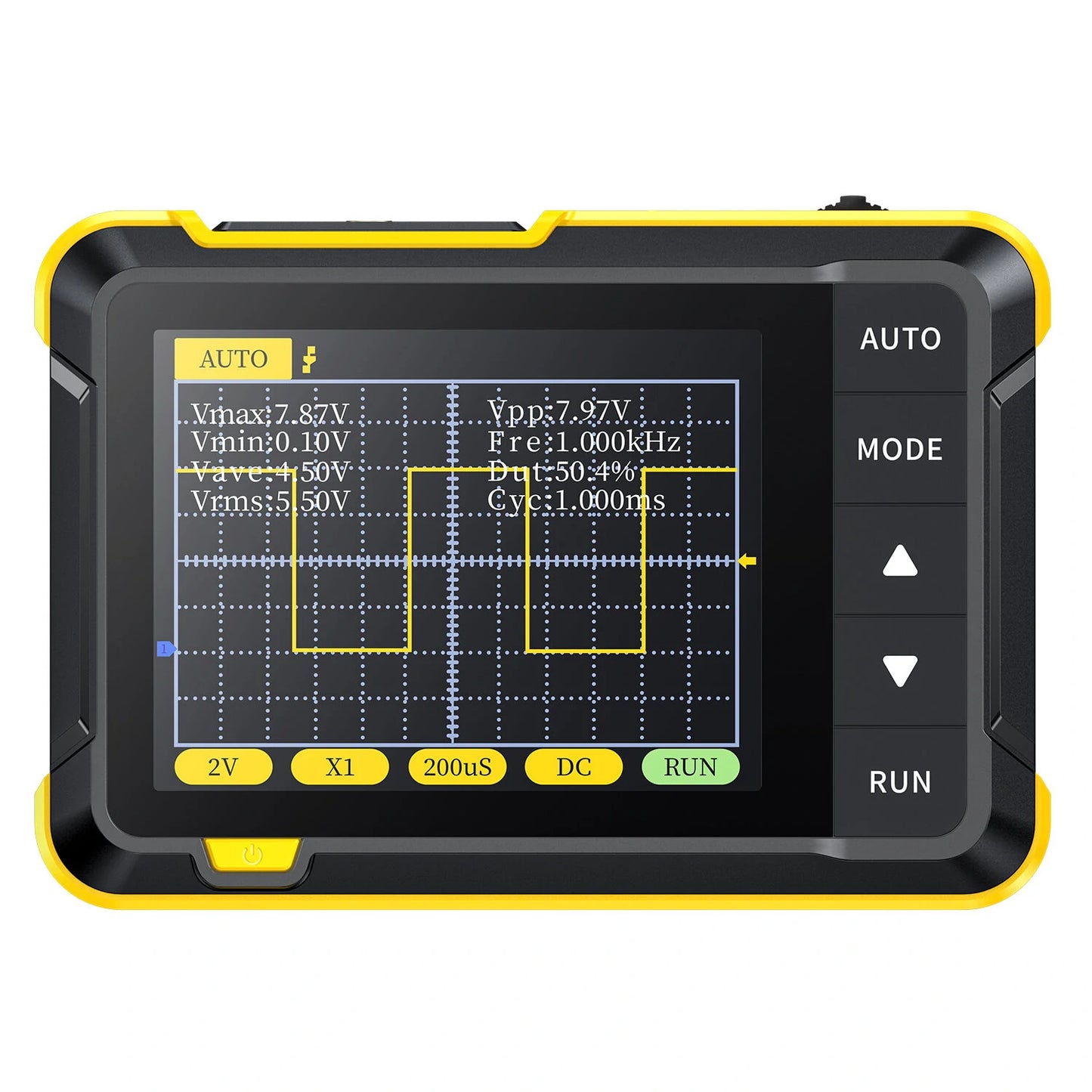

2.8-inch Digital Display: A 320x240 resolution color display with bright colors and high contrast ensures data is clearly visible.
Efficient and Accurate: The oscilloscope supports multiple parameter measurements with complete trigger functions and measurement capabilities for up to ±400V voltage signals.
1KHz Calibration SQW: Comes with a 1KHz calibration SQW for easy and convenient probe calibration.
One-button Automatic Adjustment: The one-button AUTO feature displays measured waveforms without the need for tedious adjustments, coupled with a variety of waveform measurements to fulfill daily requirements.
Wide Applications: With intelligent anti-burning capabilities, this oscilloscope is versatile enough for various applications such as utility measurements, DIY learning, automotive repair, home appliance repair, research, teaching, and outdoor maintenance.
Specifications:
Name: Digital Oscilloscope
Material: Plastic
Versions: Standard, Upgraded (optional)

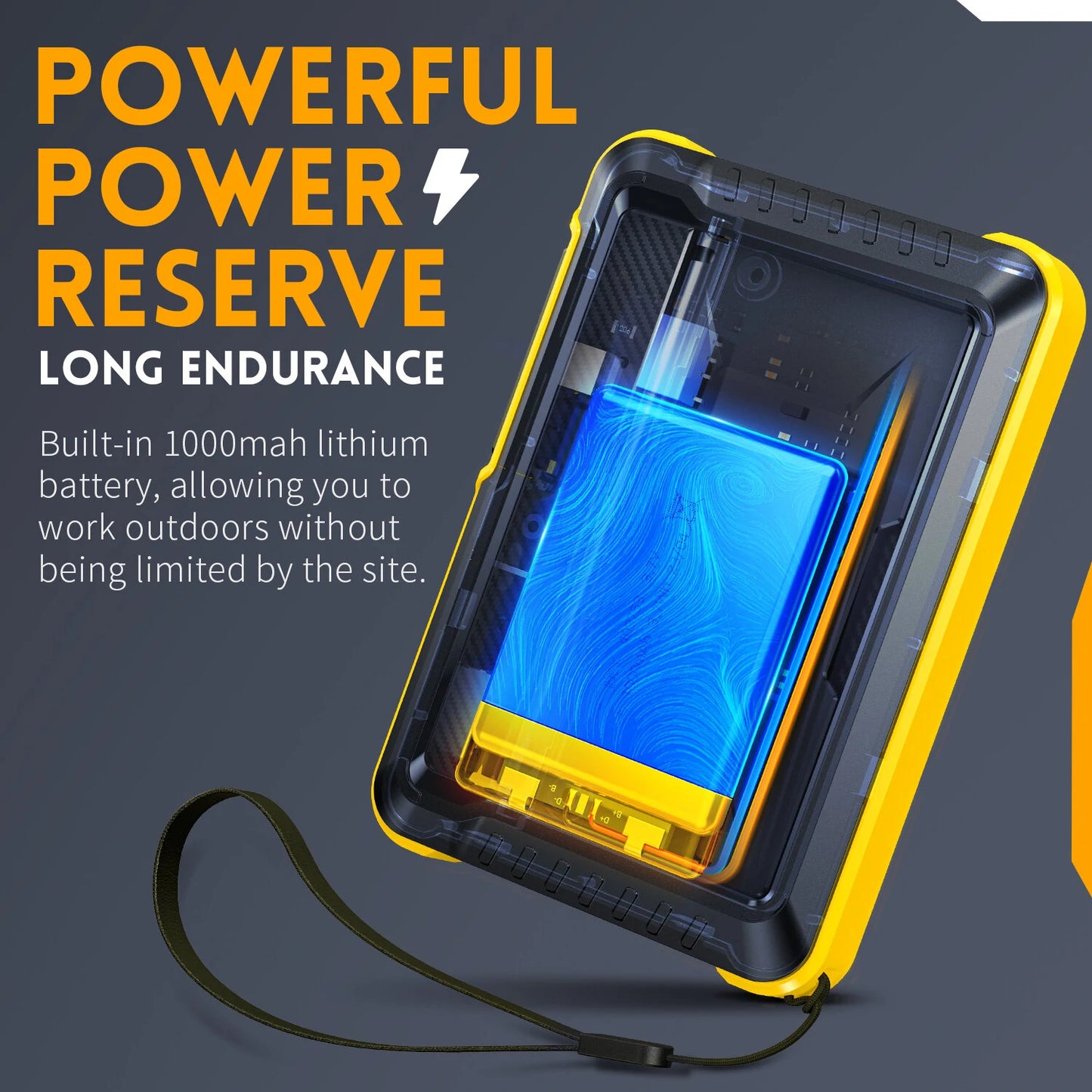

Battery: Built-in rechargeable 1000mAh lithium battery
USB Charging: 5V/1A
Display: 2.8-inch, 320x240 PPI
Bandwidth: 200kHz
Real-time Sampling Rate: 2.5MS/s
Vertical Sensitivity: 10mV/Div-20V/Div (in 1-2-5 increments)
Time Base Ranges: 10μs/Div-50s/Div (in 1-2-5 increments)
Calibration SQW Frequency: 1K
Duty Cycle: 50%
Voltage Ranges: X1: ±40V (Vpp: 80V); X10: ±400V (Vpp: 800V)
Trigger Mode: Automatic/Regular/Single
Item Size: 99 x 68 x 20mm / 3.90 x 2.68 x 0.79in
Item Weight: 100g / 3.53 oz
Package Size: Standard Version: 125 x 85 x 40mm / 4.92 x 3.35 x 1.57in; Upgraded Version: 210 x 150 x 50mm / 8.27 x 5.91 x 1.97in
Package Weight: Standard Version: 168g; Upgraded Version: 243g

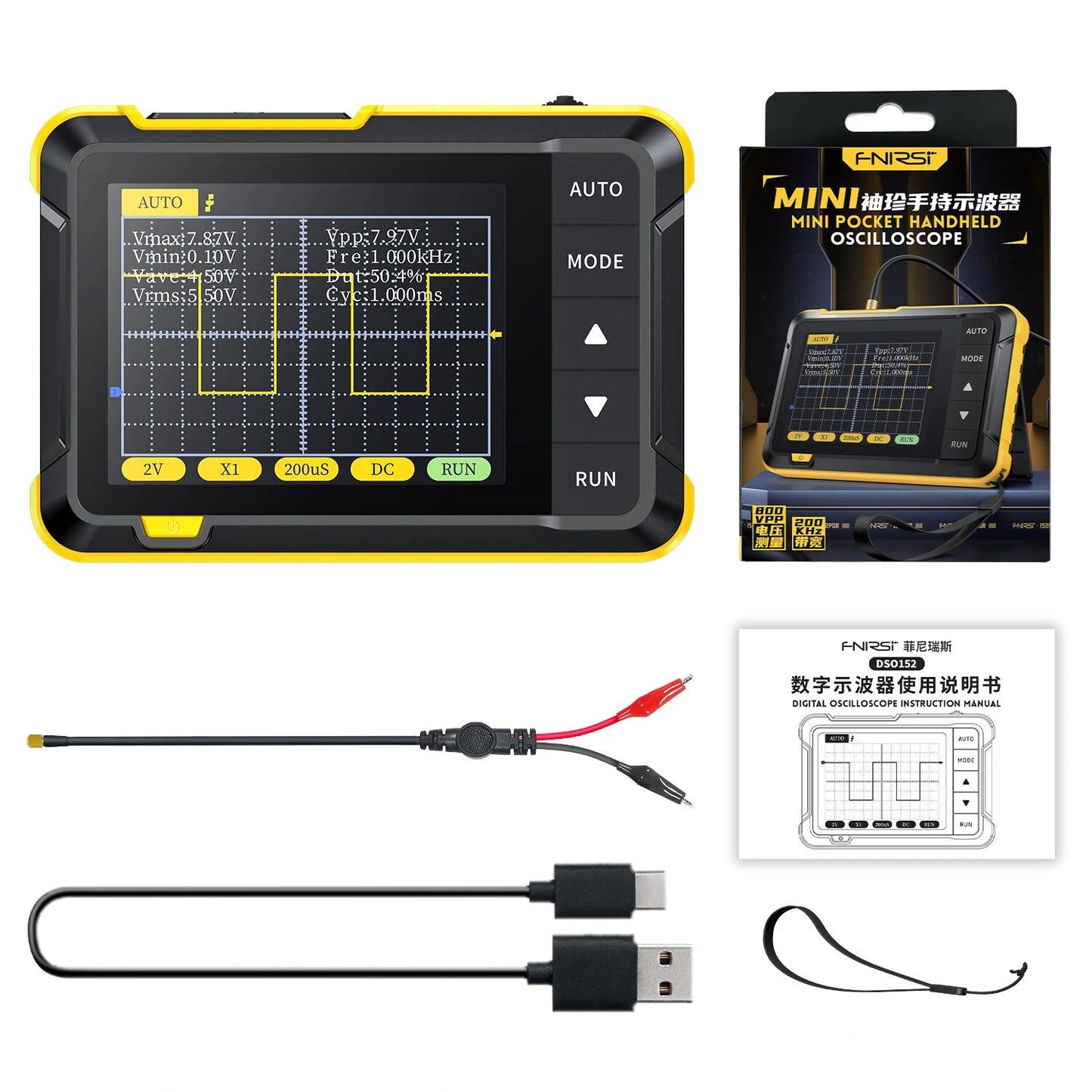

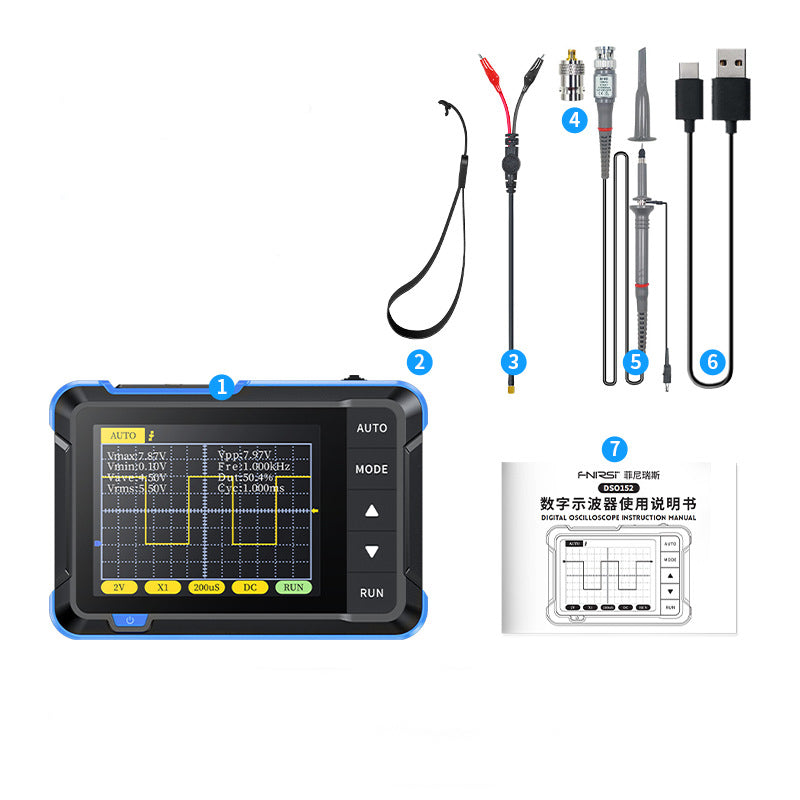

Package Includes:
(Standard)
- 1 x Digital Oscilloscope
- 1 x Type-C Cable
- 1 x General Probe
- 1 x Guideline

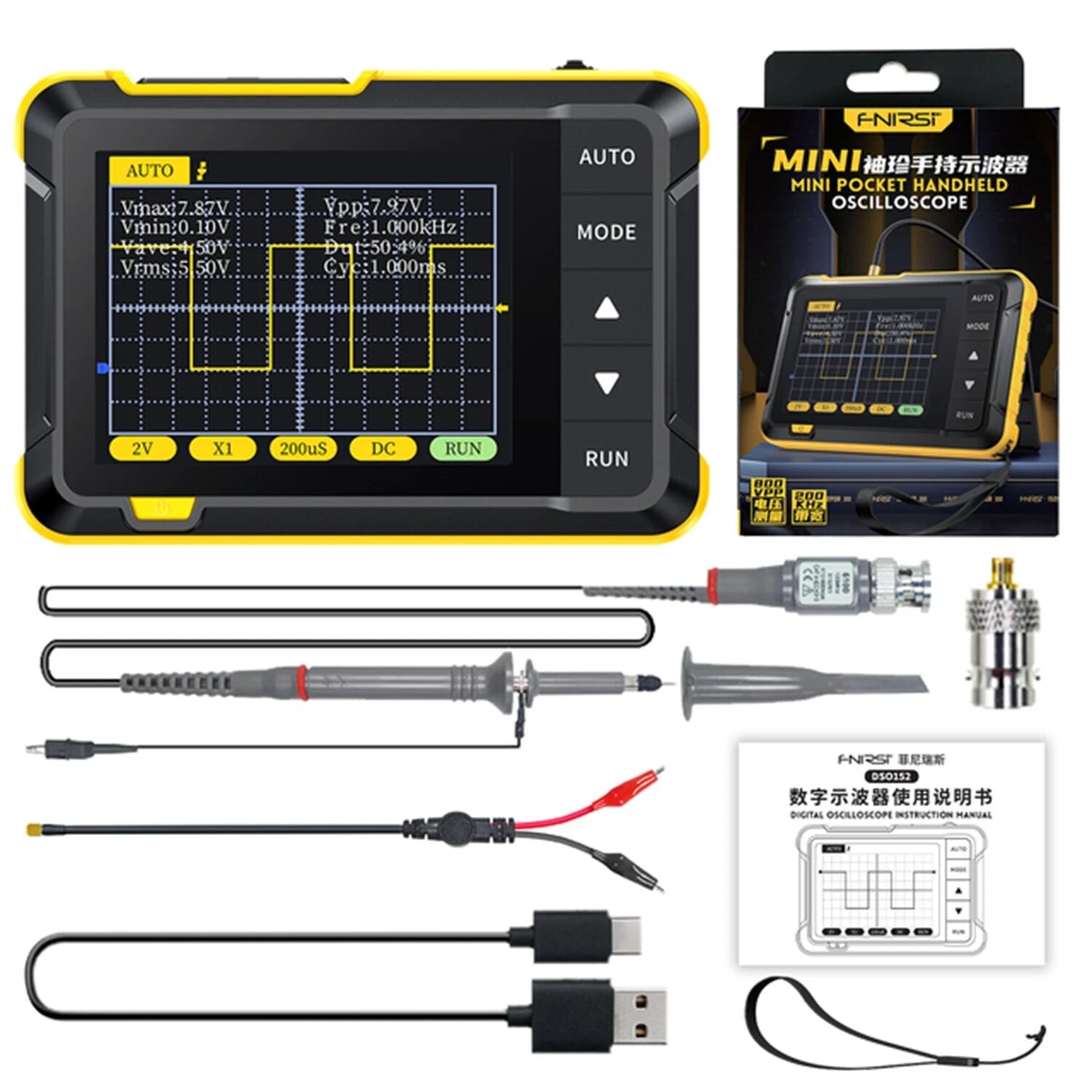

(Upgraded)
- 1 x Digital Oscilloscope
- 1 x Type-C Cable
- 1 x General Probe
- 1 x P6100 High Pressure Probe
- 1 x Adapter
- 1 x Guideline
