Tuya ZigBee Smart Curtain Module – Remote Control via Mobile App, Alexa & Google Home Compatible, Requires Gateway

Curtain Module (Optional)

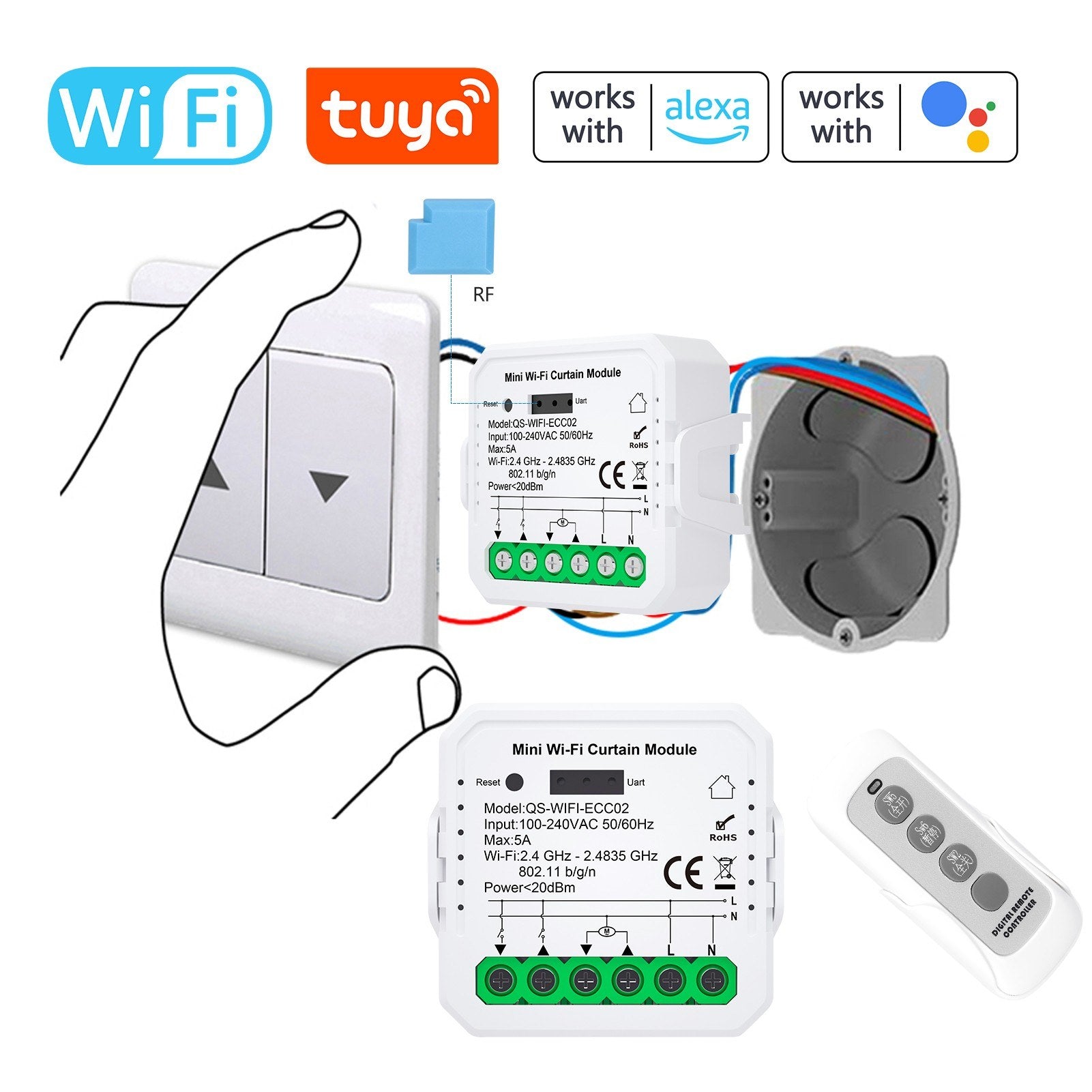

Our Curtain Module is constructed from premium PC material, with a compact design allowing for quick and easy installation without taking up much space. Once connected to the Tuya app, you can control your smart curtain devices remotely from anywhere. The module also supports remote operation to open/close curtains and includes a timer for scheduled operations.

Remote Controller + RF (Optional)

The remote controller is made from durable, high-quality plastic that is wear-resistant and drop-resistant, ensuring long-lasting use. The rough surface with anti-slip texture allows for quick battery replacement and provides a comfortable grip. It uses a 12V, 23A A23 alkaline battery (included) and features a bracket for easy wall or table-side installation. Additionally, it includes an RF module for enhanced functionality.

Features

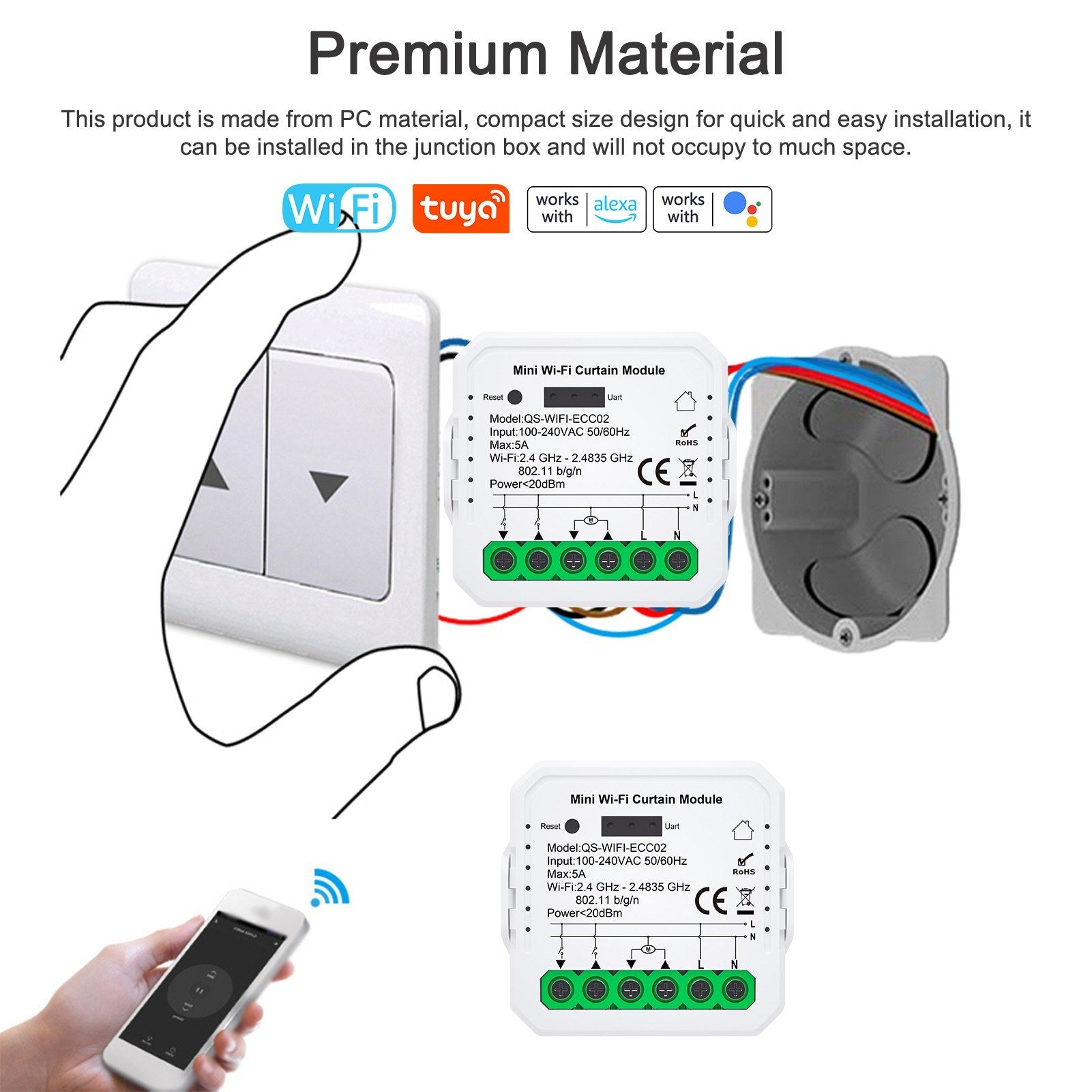

• Premium Material: Compact design made from PC material, perfect for easy installation in limited spaces.

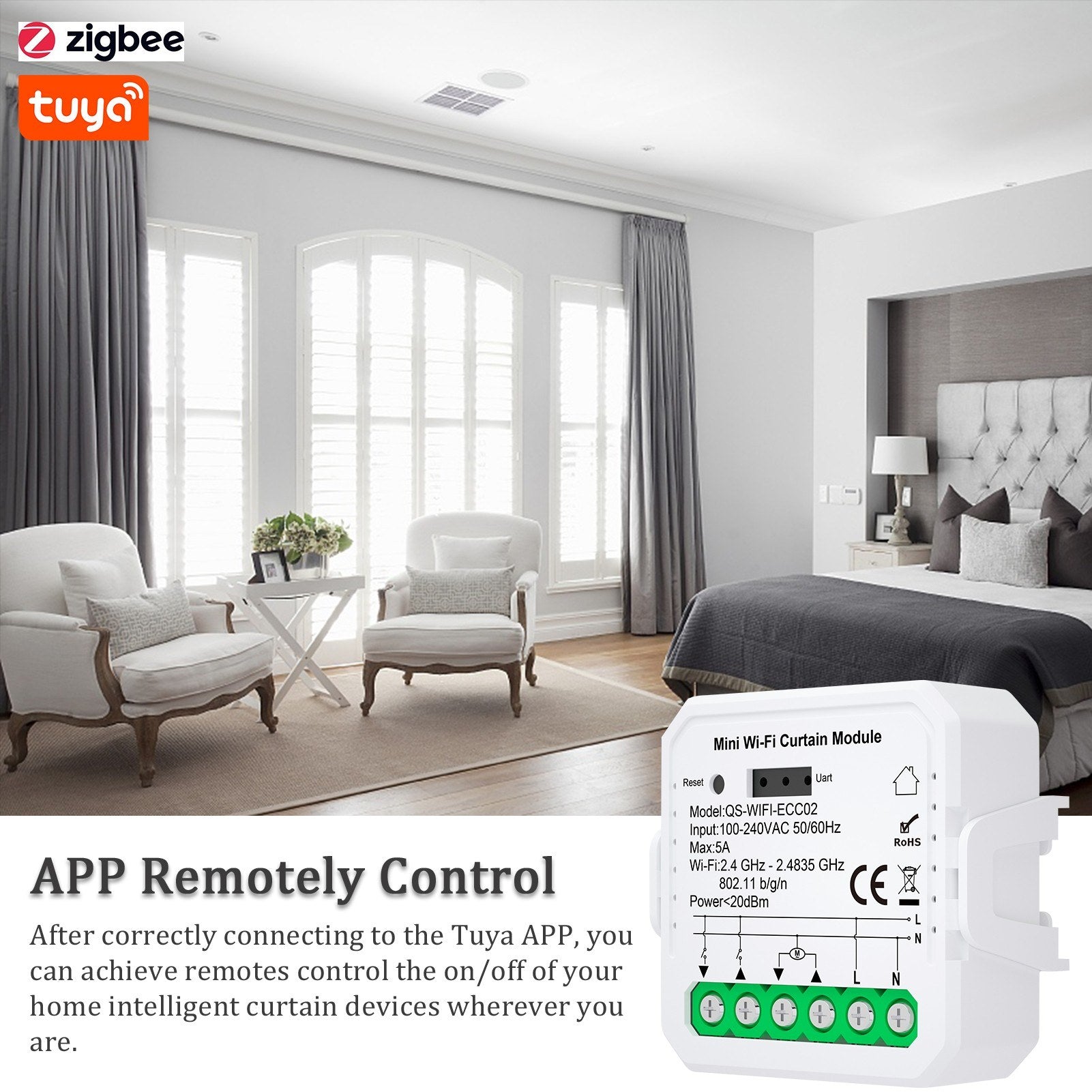

• APP Remotely Control: Connects with the Tuya app for seamless remote control of curtain devices.
• Timing Function: Utilize automatic on/off scheduling with countdown and calendar options.
• Family Sharing Function: Share device access with family members for collaborative control.
• Hands-free Voice Control: Compatible with Alexa and Google Home for convenient voice commands.

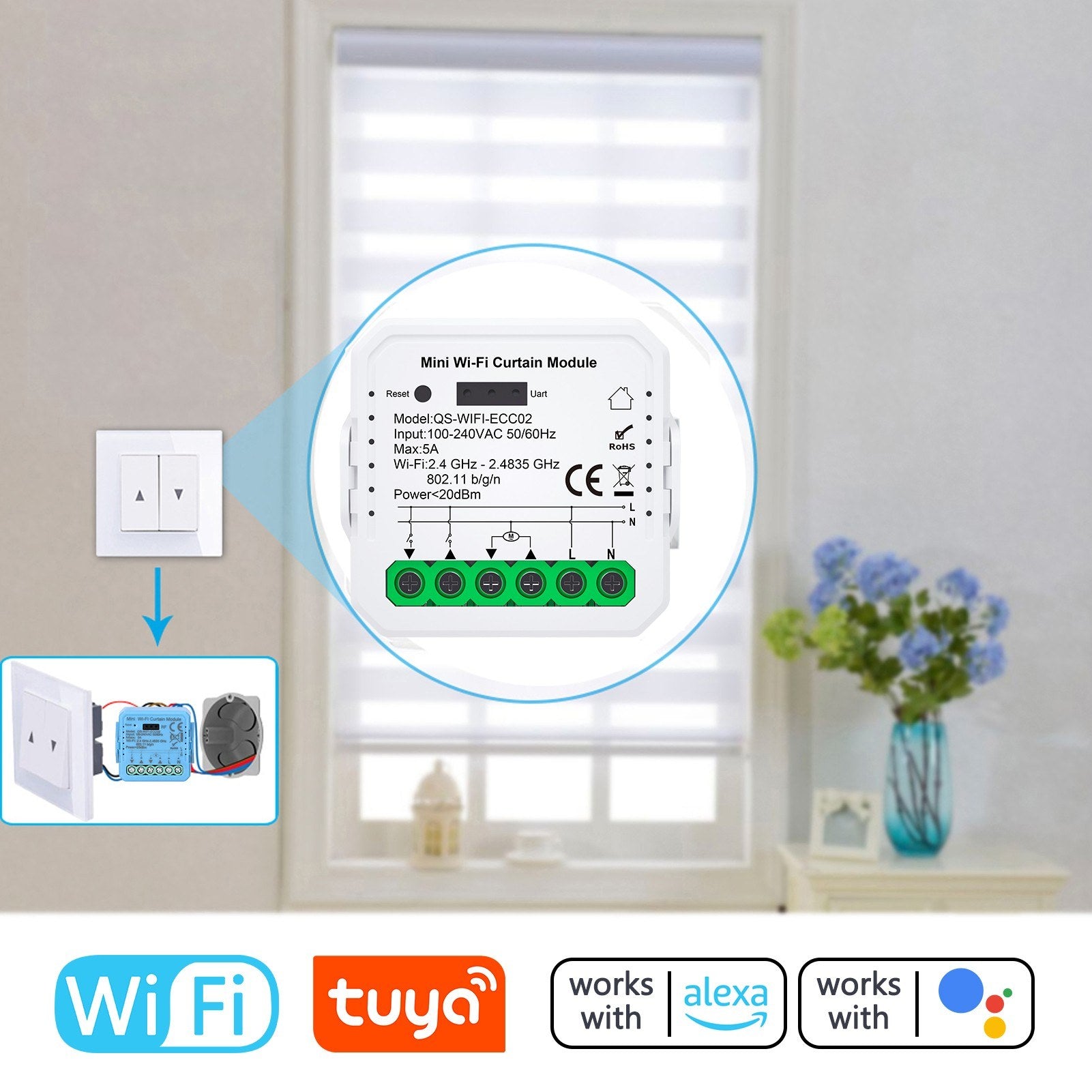

• Wide Applications: Ideal for use in homes, offices, hotels, and more.
• Two Models Available: Choose between QS-WIFI-ECC02 (no gateway needed) or QS-Zigbee-ECC02 (requires gateway).

Specifications

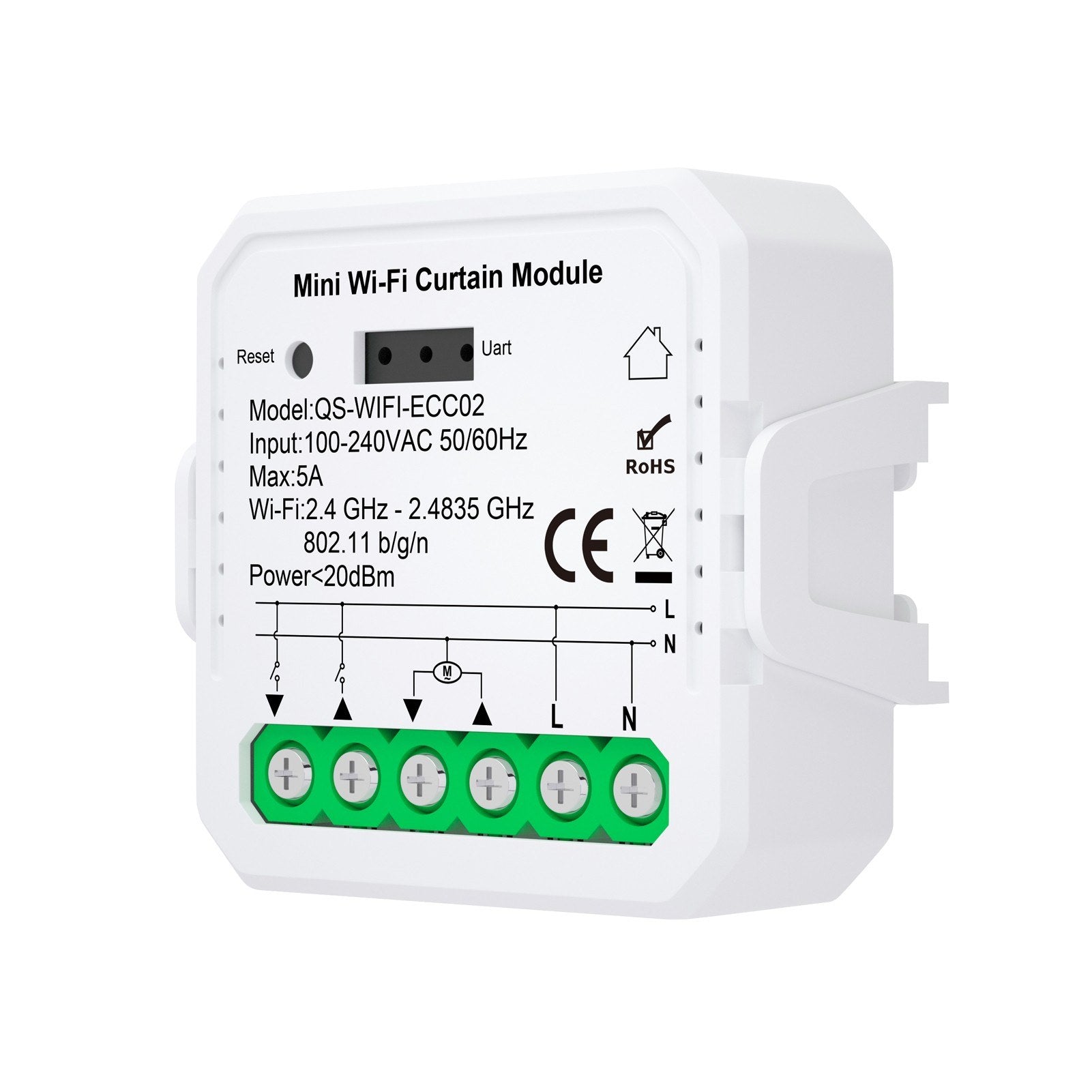

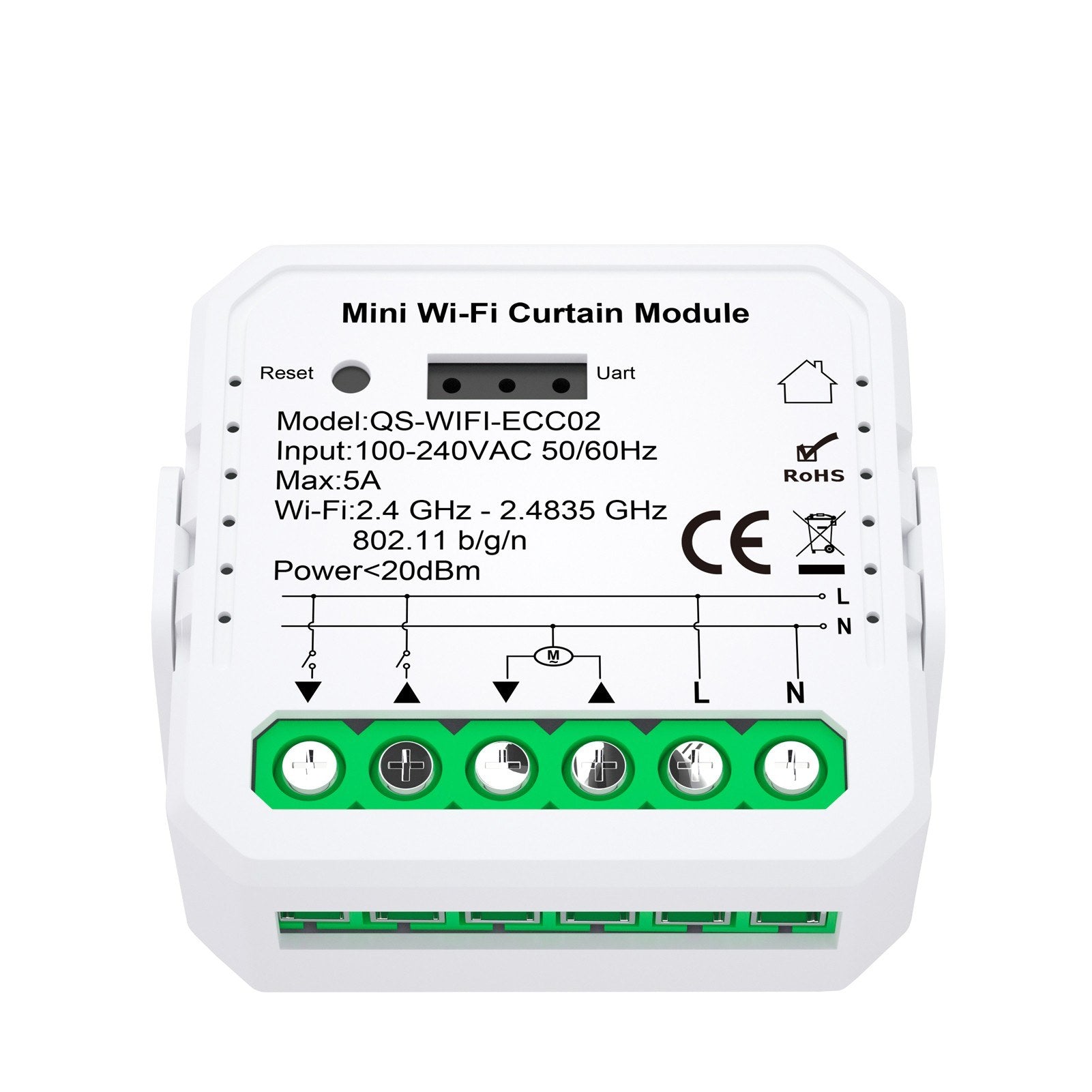

Curtain Module

• Material: ABS+PC
• Types: QS-WIFI-ECC02, QS-Zigbee-ECC02

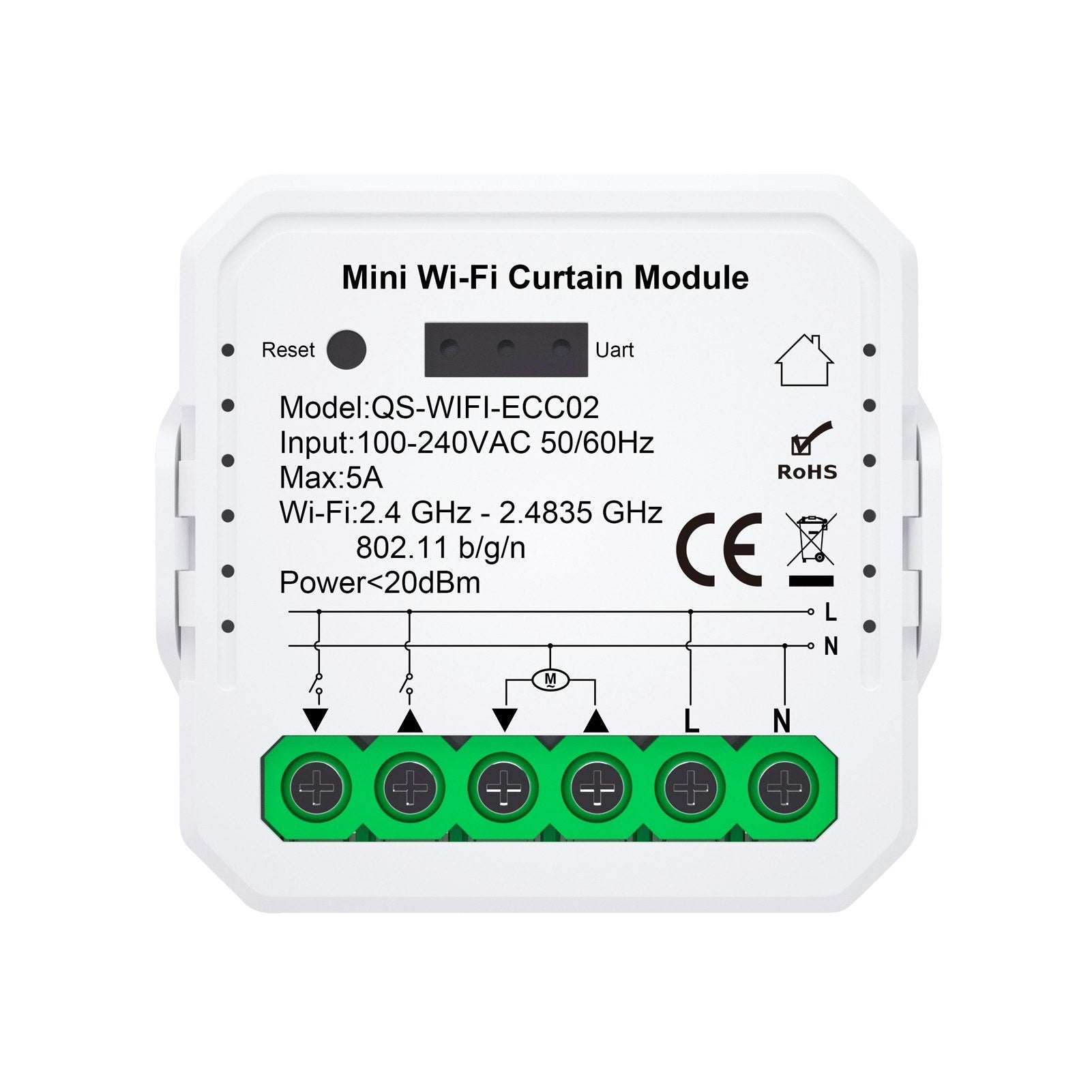

QS-WIFI-ECC02

• Input: 100-250VAC, 50/60Hz
• Current: 3A
• Operation Frequency: 2.4GHz-2.4835GHz WiFi 802.11 b/g/n
• Operation Temperature: -10℃ to +40℃
• Operation Range: ≤ 200m
• IP Rating: IP20

QS-Zigbee-ECC02

• Input: 100-250VAC, 50/60Hz
• Current: 3A
• Operation Frequency: 2.4GHz-2.484GHz IEEE 802.15.4
• Operation Temperature: -10℃ to +40℃
• Operation Range: ≤ 200m
• IP Rating: IP20

Remote Controller + RF

• Battery: 1 * A23 alkaline battery, 12 V, 23A (included)

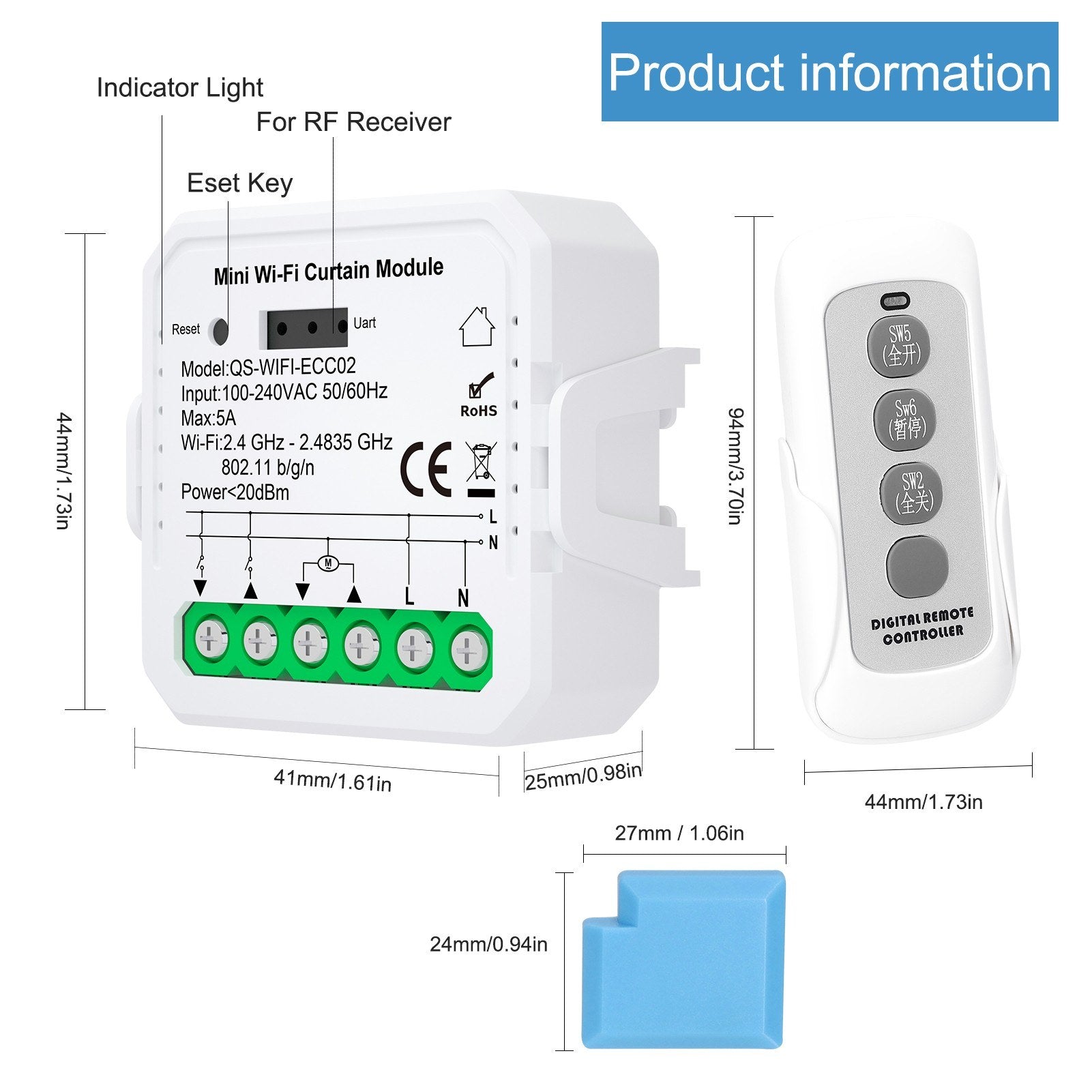

Dimensions and Weight

• Curtain Module Size: 44 x 41 x 25mm / 1.73 x 1.61 x 0.98in
• Curtain Module Weight: 33g / 1.16 ounce
• Remote Controller Size: 94 x 44 x 19mm / 3.70 x 1.73 x 0.75in
• RF Size: 27 x 24 x 11mm / 1.06 x 0.94 x 0.43in
• Remote Controller + RF Weight: 39g / 1.38 ounce

Packages

Packing List (QS-WIFI-ECC02, QS-Zigbee-ECC02):
1 * Curtain Module

Packing List (Remote Controller + RF):
1 * Remote Controller
1 * RF Module
