Zeenko BM Series USB Low Noise RF Amplifier 100KHz-10GHz 20dB Gain with Built-in Battery

Specifications:

• Model: Zeenko BM Series Low Noise Amplifier (LNA)
• Frequency Range: 100KHz-6GHz/10GHz
• Gain: 20dB
• Interface: USB Type-C
• Power Supply: Built-in rechargeable battery
• Current Consumption: 210mA
• Battery Life: 5-12 hours (depending on model)
• Output Power: Up to 18dBm
• Noise Figure: Low noise figure for enhanced signal quality
• Compatibility: Compatible with various measuring equipment
• Optional Model: ZK05-BM/ZK06-BM/ZK09-BM

Features:

• Wide Frequency Range: Supports a broad range from 100KHz to 6GHz, or up to 10GHz, enhancing high-frequency sensitivity.
• USB Powered with Built-in Battery: Convenient USB Type-C power supply with a built-in high PSRR LDO reduces power noise, ensuring stable operation.
• Compact and Portable: Designed for portability with reduced power consumption, smaller size, and longer battery life compared to other modules.
• Advanced Noise Reduction: Lower background noise than most USB directly fed modules, ensuring clearer signal reception and measurement.
• High and Consistent Gain: Provides a stable gain of 20dB with flatter consistency, improving signal strength across a wide frequency range.

Package Included:

• Type A:

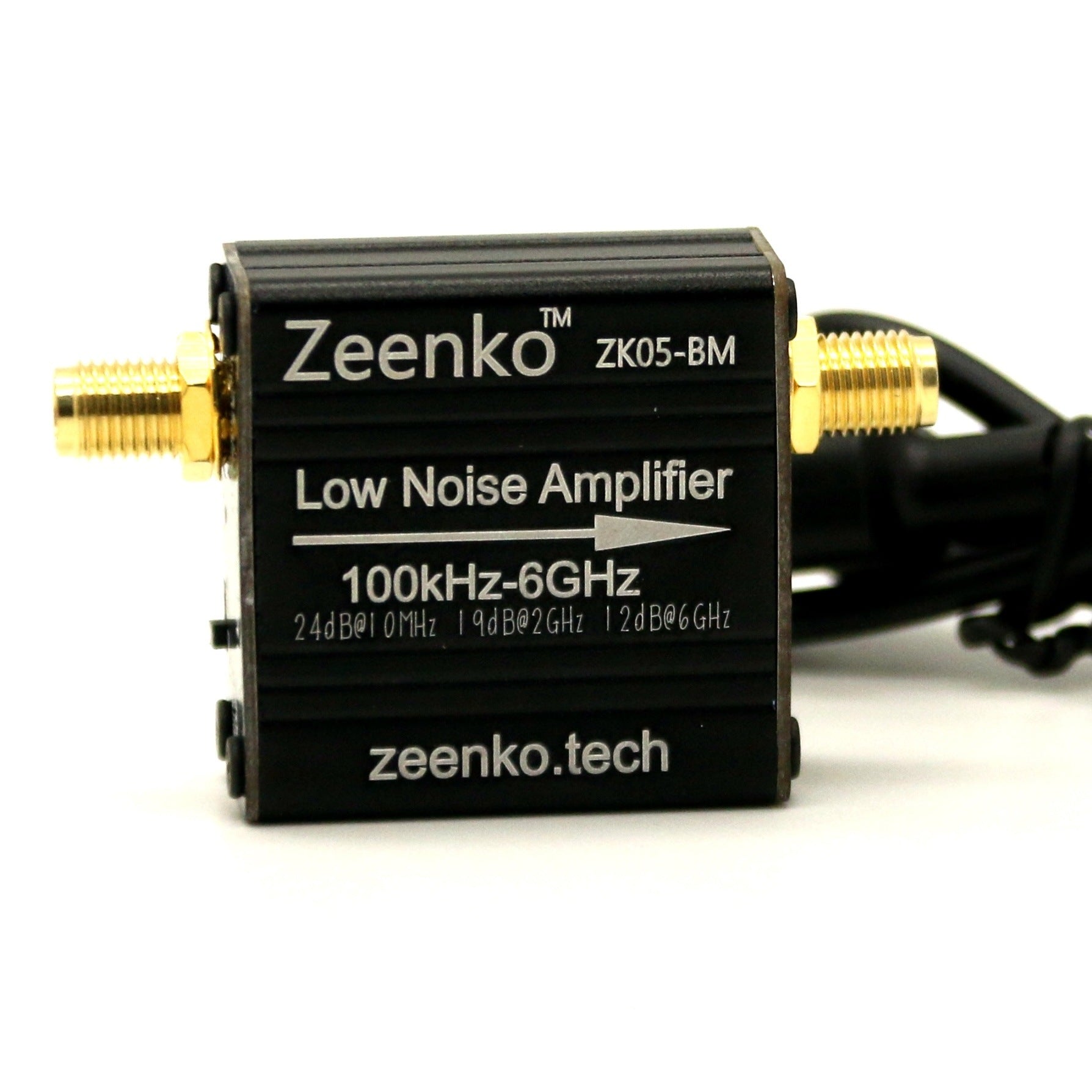

  • 1 x Low Noise Amplifier (ZK05-BM)
  • 1 x USB Cable
• Type B:

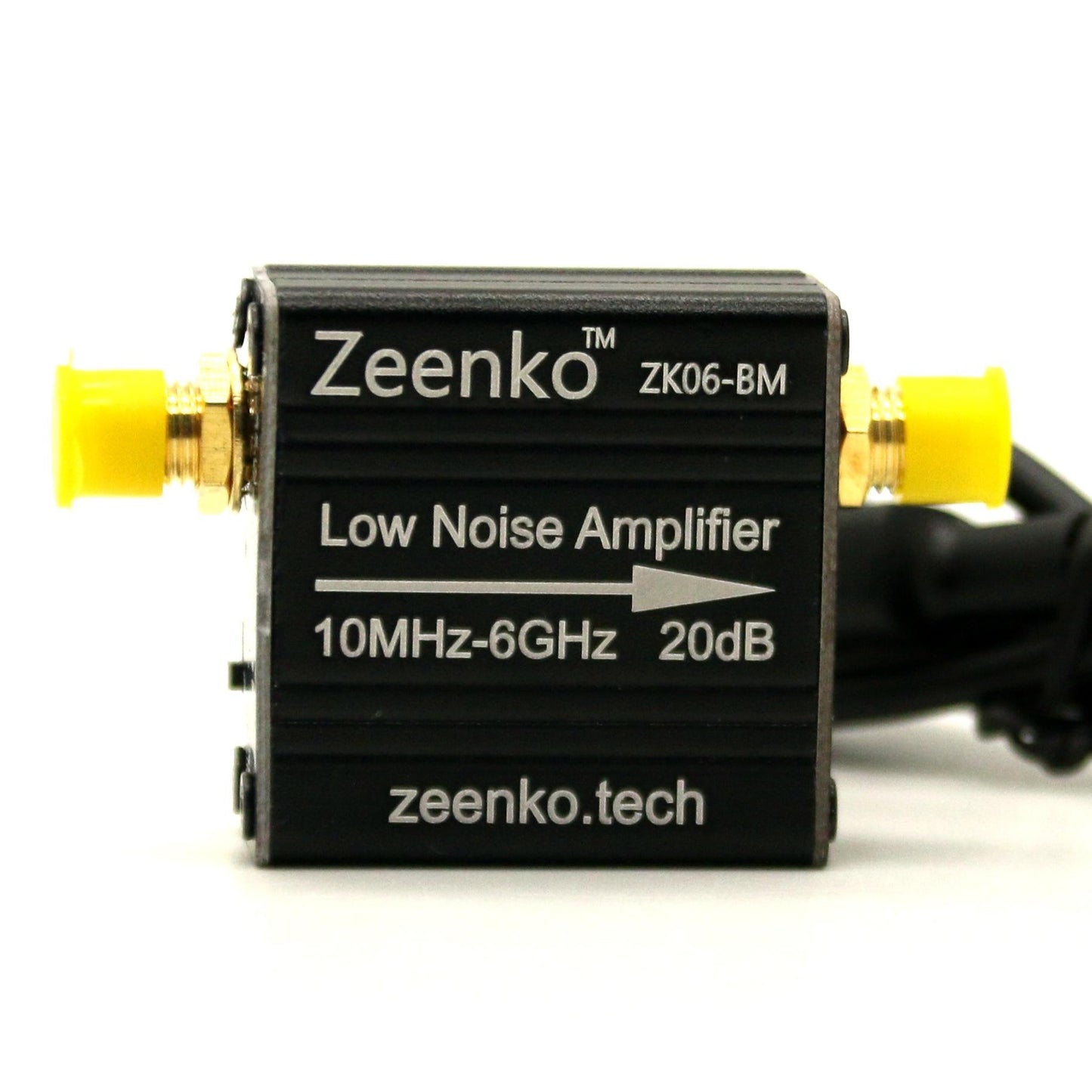

  • 1 x Low Noise Amplifier (ZK06-BM)
  • 1 x USB Cable
• Type C:

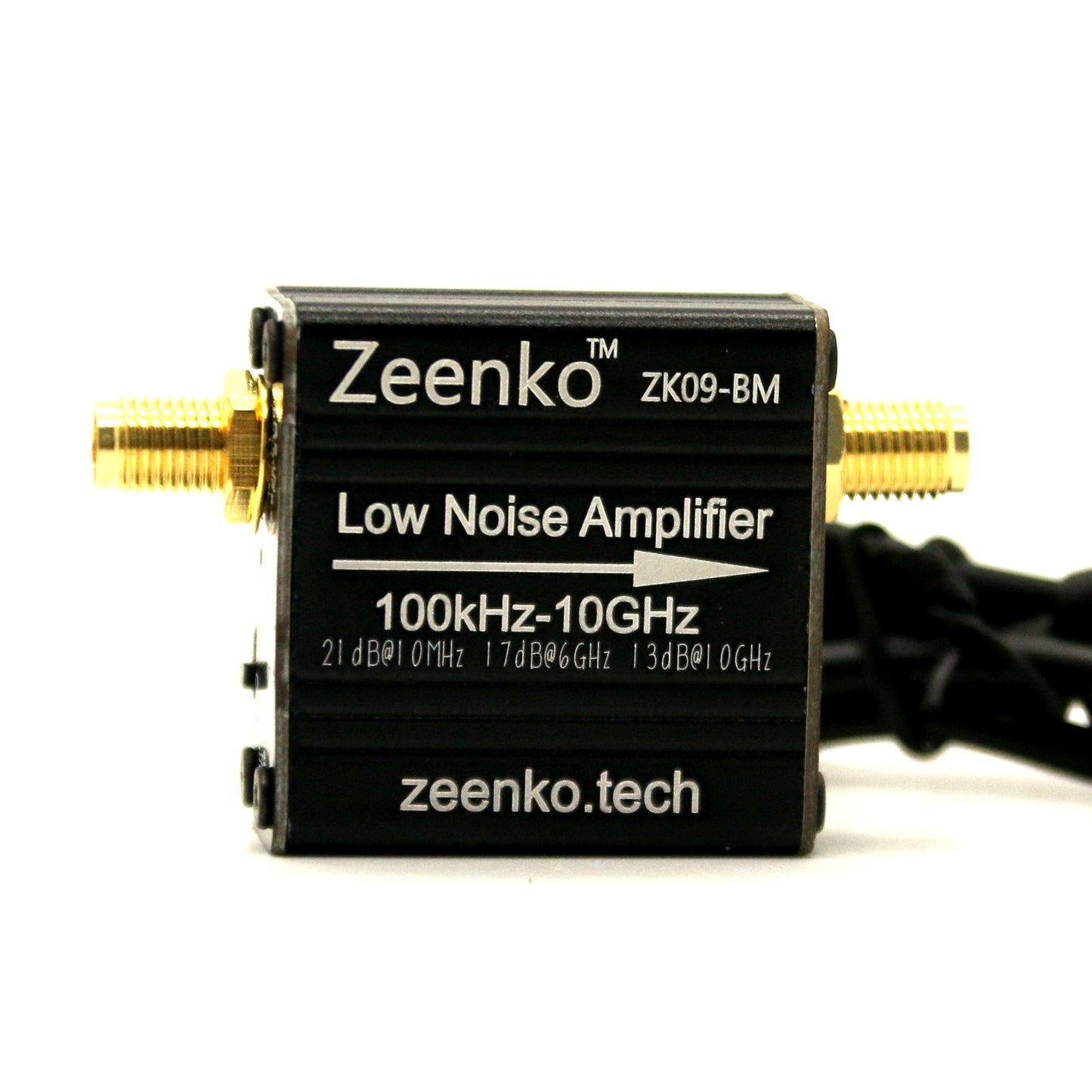

  • 1 x Low Noise Amplifier (ZK09-BM)
  • 1 x USB Cable
