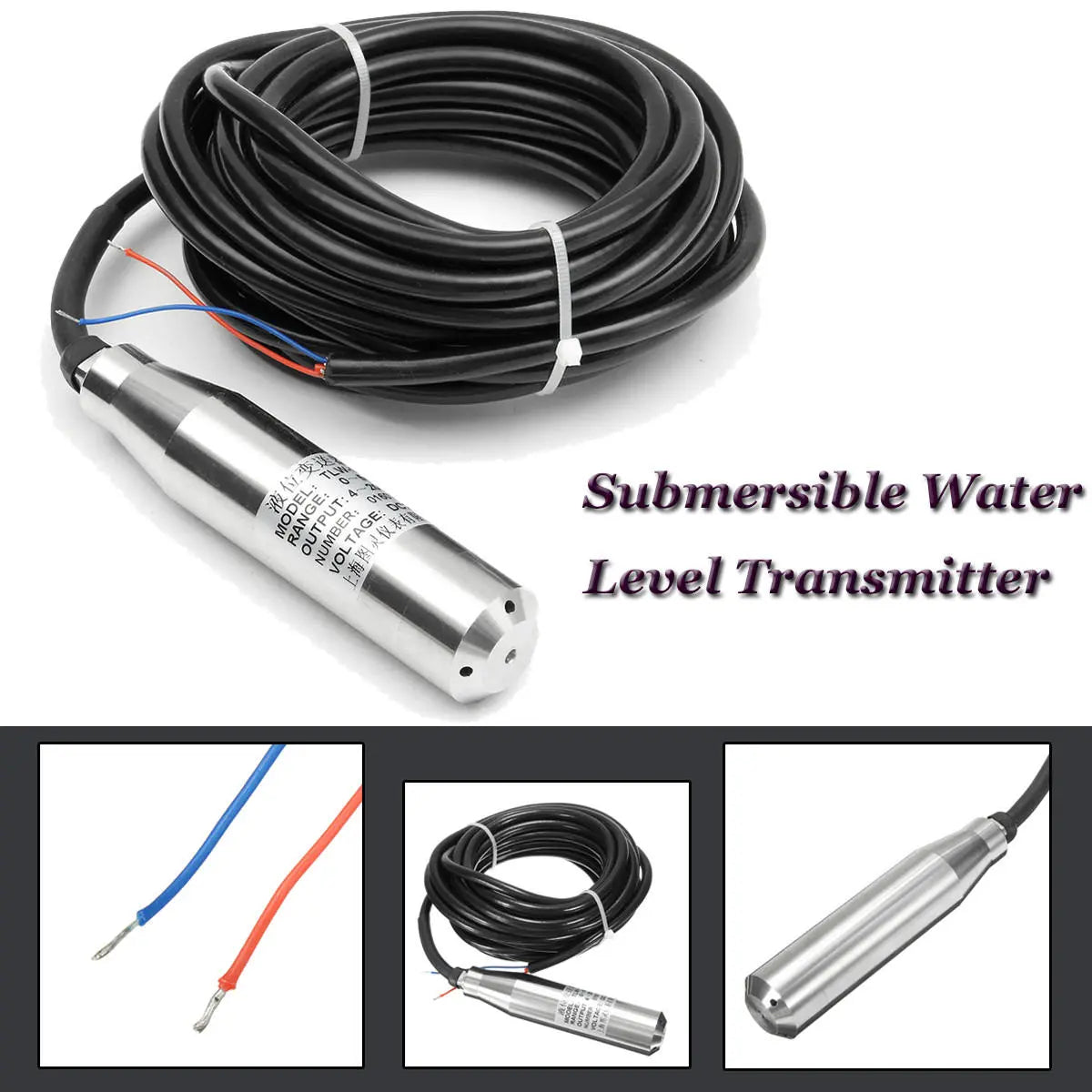

6m Cable Submersible Water Level Sensor Transmitter 0-5mH2O

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with: 0 vehicle(s).

Show all compatible vehicles.

This part is compatible with: 1 vehicle(s) matching.

This part is not compatible with:

Recent Searches

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features

• Prevents surge voltage, over-voltage, and over-current, along with protection against reversed polarity.
• Tested for overload resistance and shock resistance to ensure precise overload capacity.
• Implemented electromagnetic interference resistance for stable performance in complex electromagnetic environments.
• Utilizes imported OEM parts for all sensitive chips to maintain long-term stability.

Specifications

• Measurement Range: 0-5mH₂O/50kPa
• Cable Length: 6 meters to ensure adequate length
• Measurement Medium: Water
• Power Supply: 24VDC
• Output Signal: 4-20mA
• Accuracy: ±0.5%FS
• Overload Capacity: Two times full-scale pressure
• Using Temperature: -20°C to 120°C
• Compensation Temperature Range: -10°C to 80°C
• ZTC (typical): ±0.02%FS/°C
• STC (typical): ±0.02%FS/°C
• Long-term Stability (typical): ±0.1%FS/year
• Waterproof Class: IP68
• Load Resistance: Less than (U-10)/0.02Ω

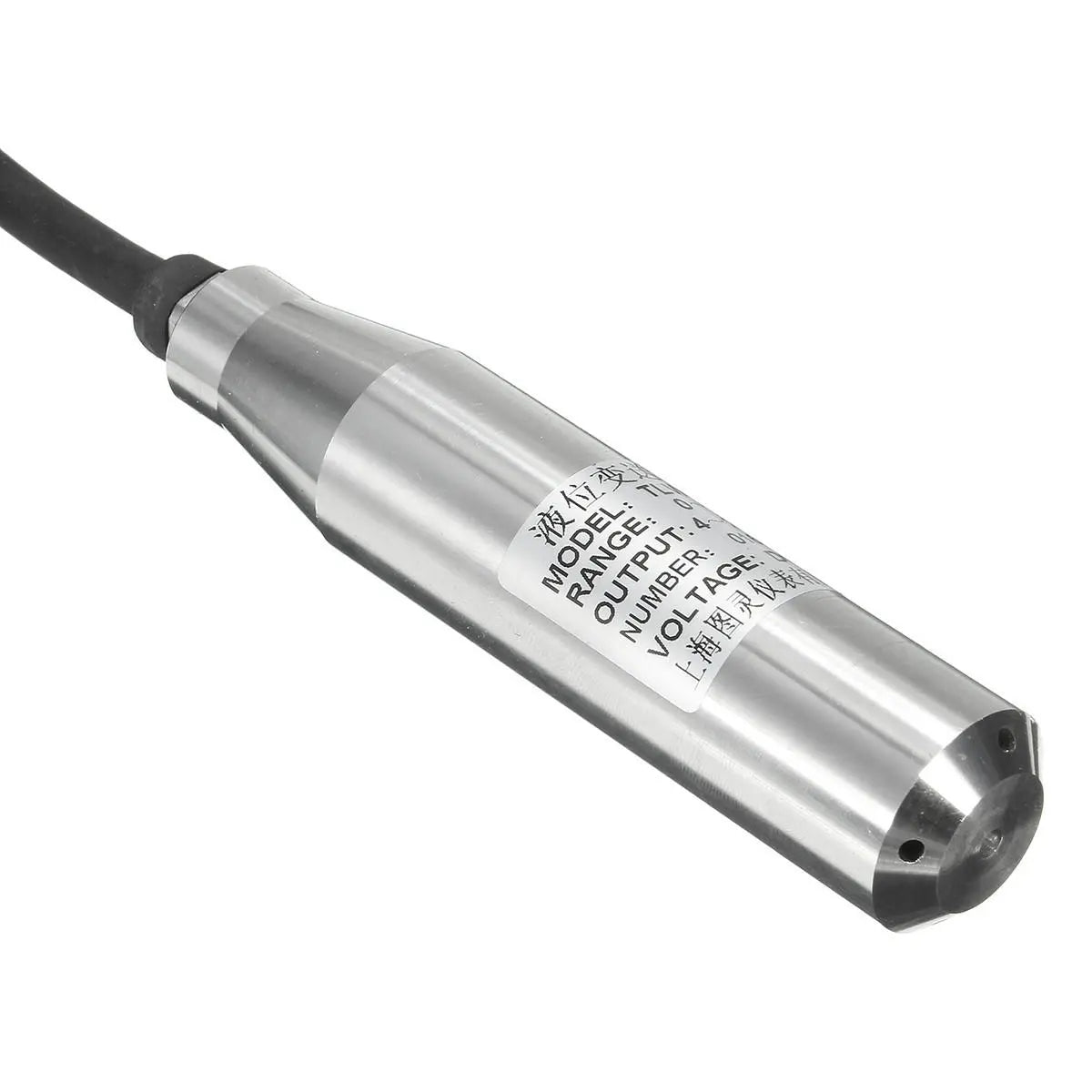

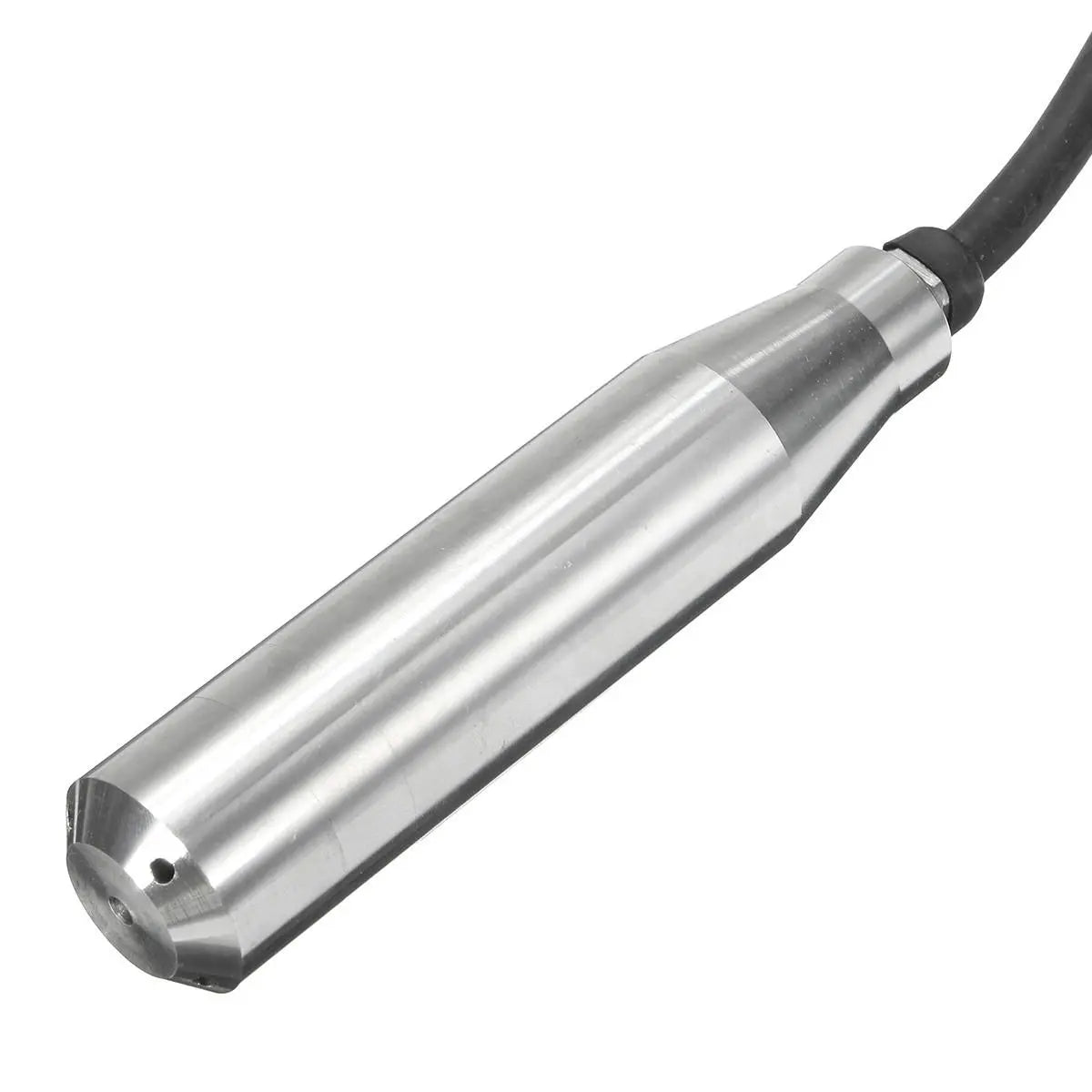

• Shell Material: 316L stainless steel
• Explosion-proof Type: Exia II CT6

Package Includes

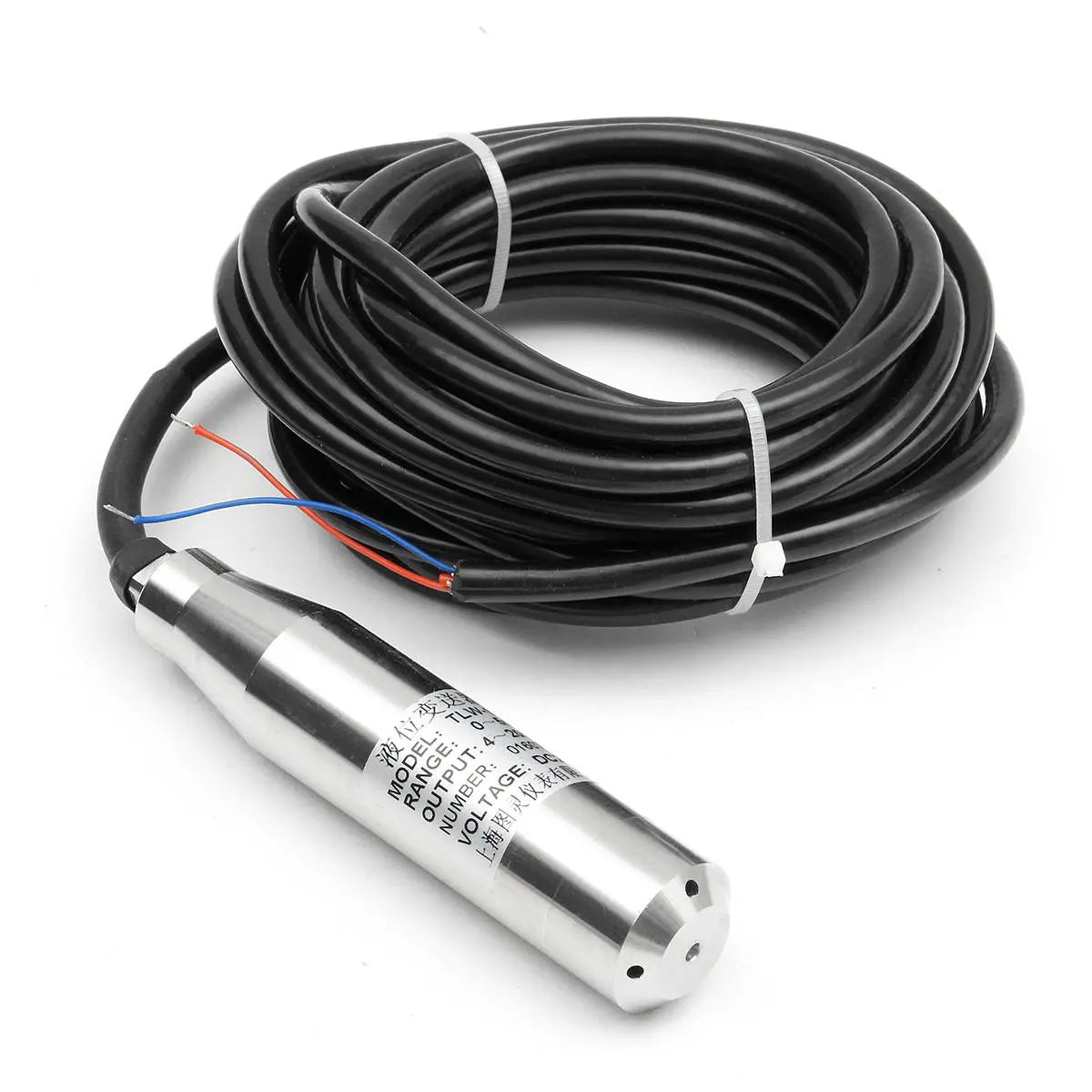

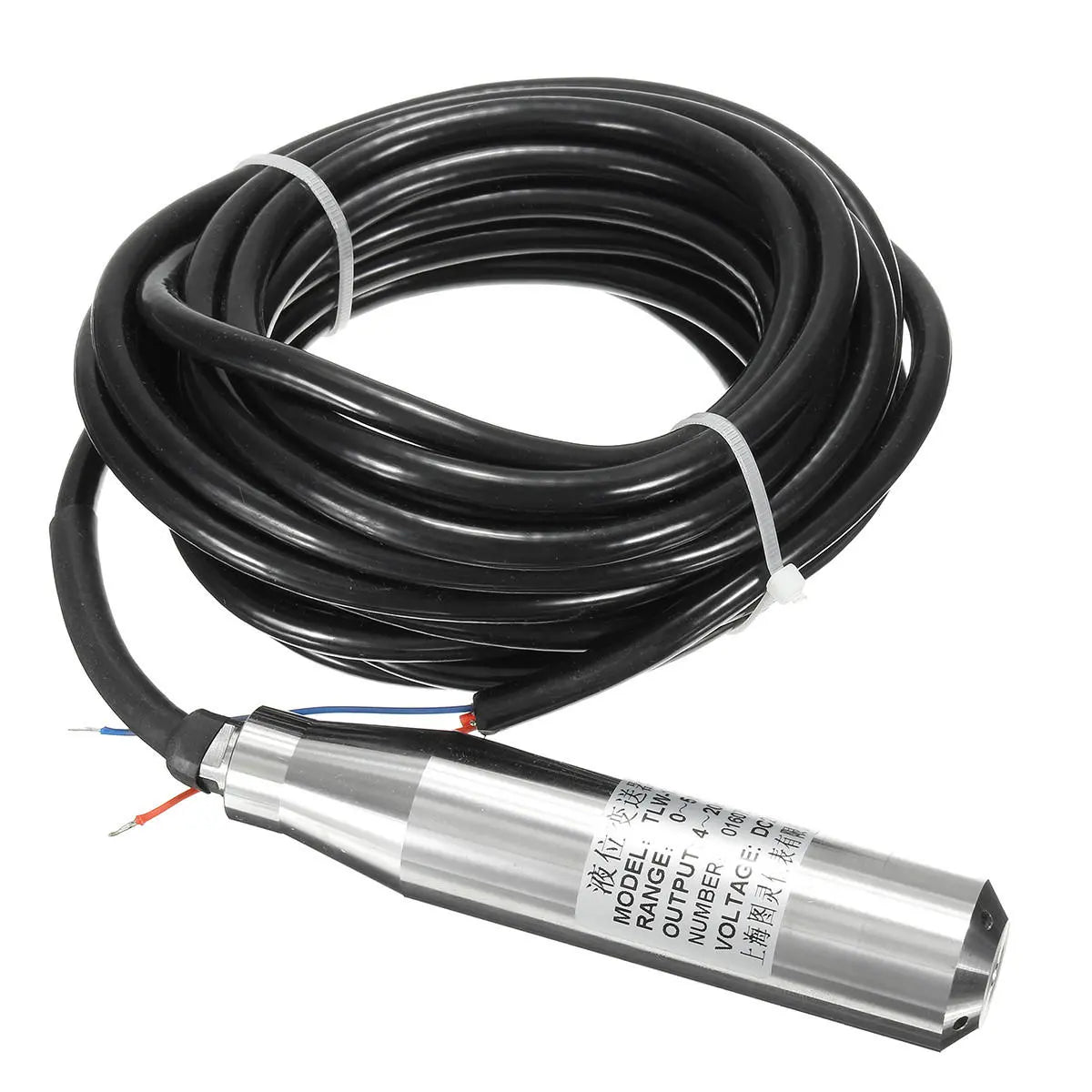

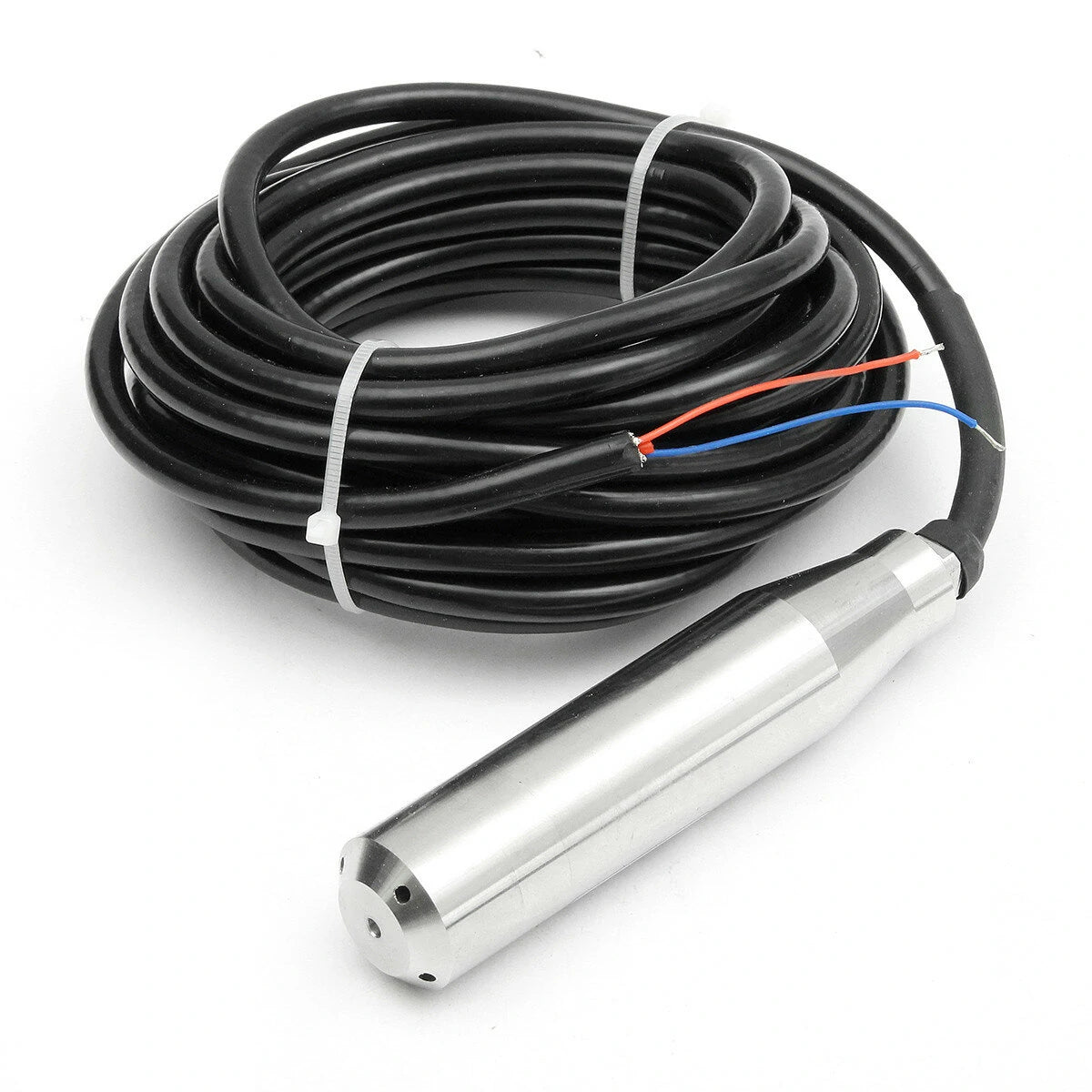

• 1 x Submersible Water Level Transmitter With 6m Cable
