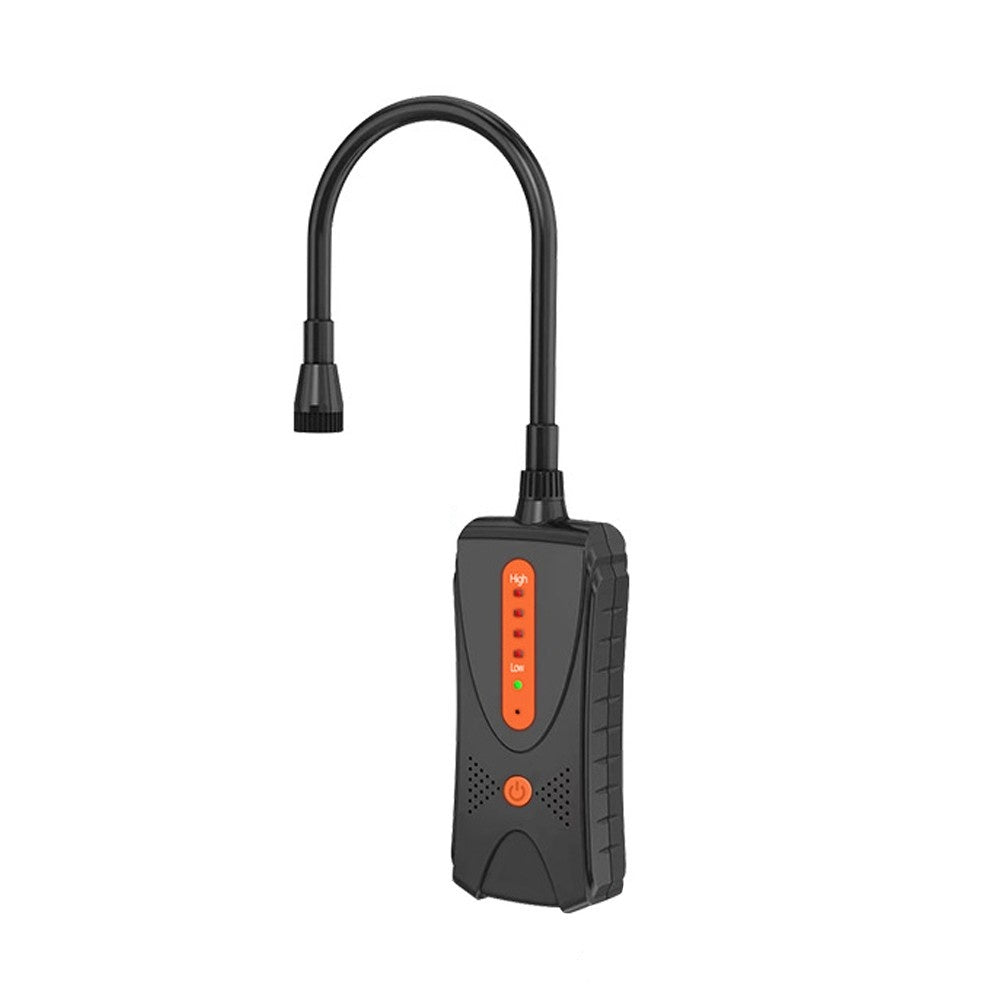

Combustible Gases Leak Detector

Our Combustible Gases Leak Detector offers intelligent gas detection and alarm functionality, utilizing advanced digital technology for unmatched stability, reliability, and ease of use. This device is essential for high-reliability industrial field safety monitoring, meeting the unique needs of industries such as petroleum, chemical, metallurgy, and gas transmission.

Key Features

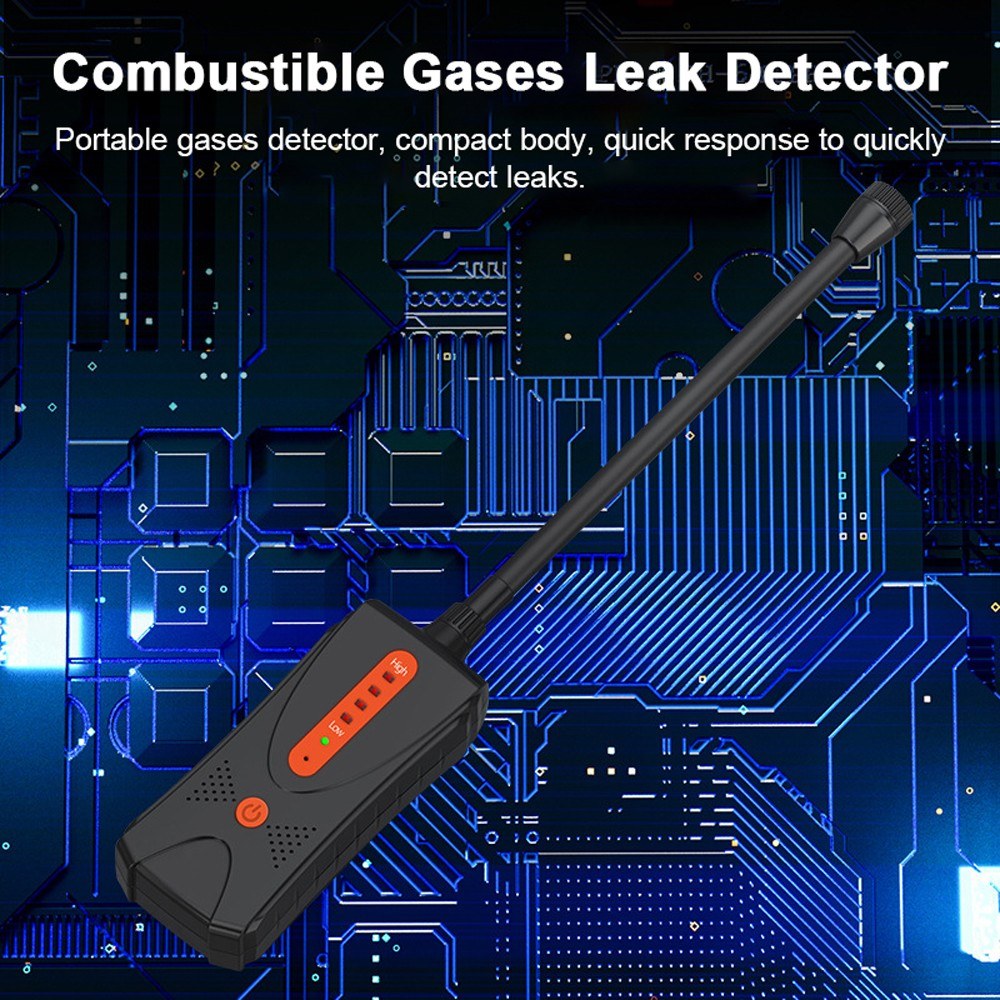

• Portable and Compact: Quick response for efficient leak detection in various environments.

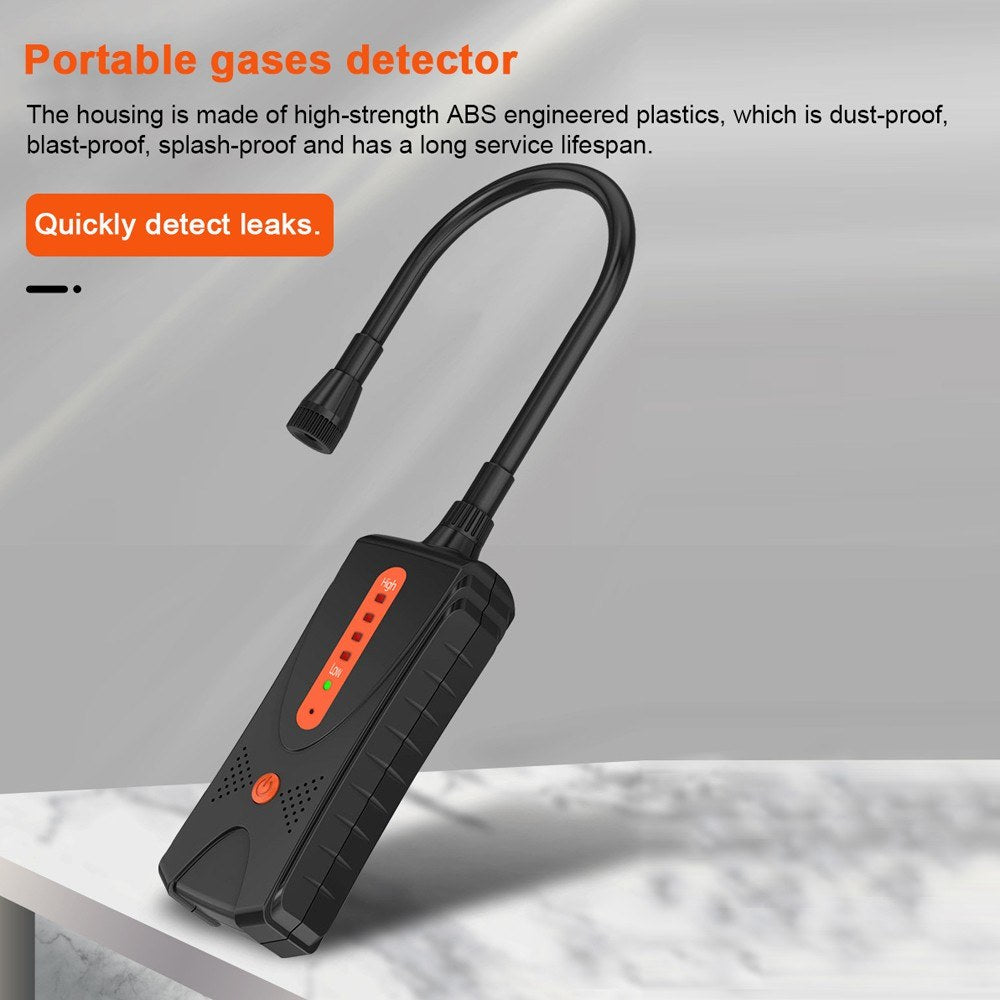

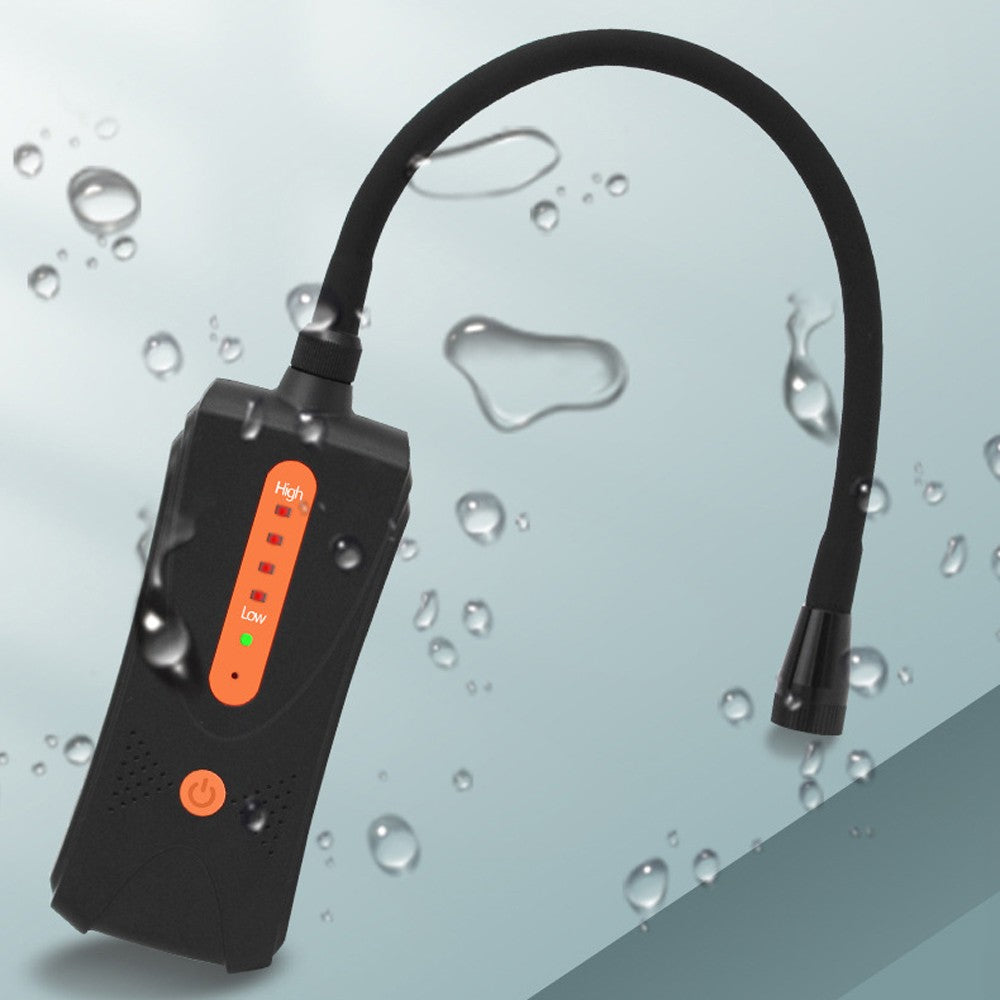

• Durable Construction: High-strength ABS engineered plastic housing is dust-proof, blast-proof, and splash-proof to ensure long service life.

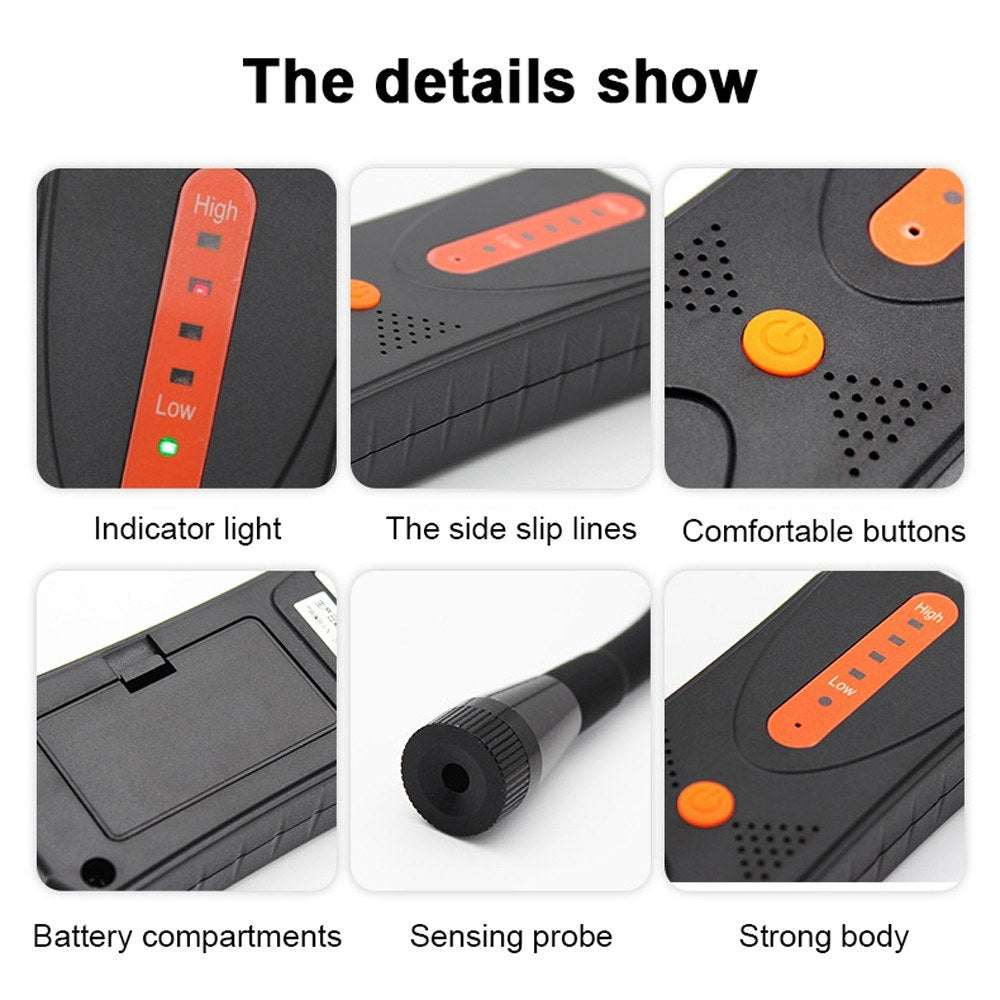

• Ergonomic Design: Non-slip texture, user-friendly buttons, and heat-emitting holes for added comfort and functionality.
• High-Quality Sensors: Equipped with high-sensitivity sensors featuring built-in temperature compensation and calibration for high accuracy and rapid response recovery.
• Flexible Probe: Adjustable probe suitable for diverse scenarios.
• Calibration Programs: Built-in calibration, automatic zeroing, and compensation functions for reliable performance.

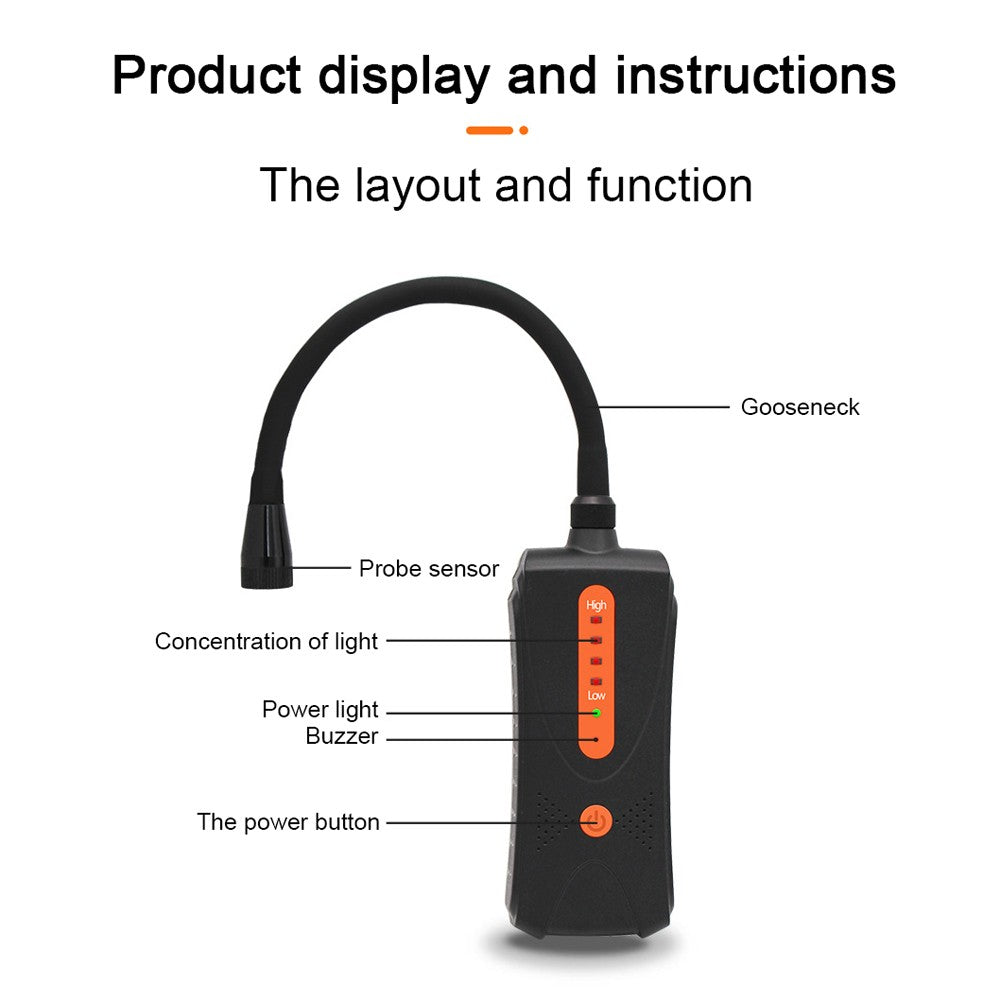

• Indicator System: Four concentration indicators reflect detection values with a bright LED display for power and battery status alerts.

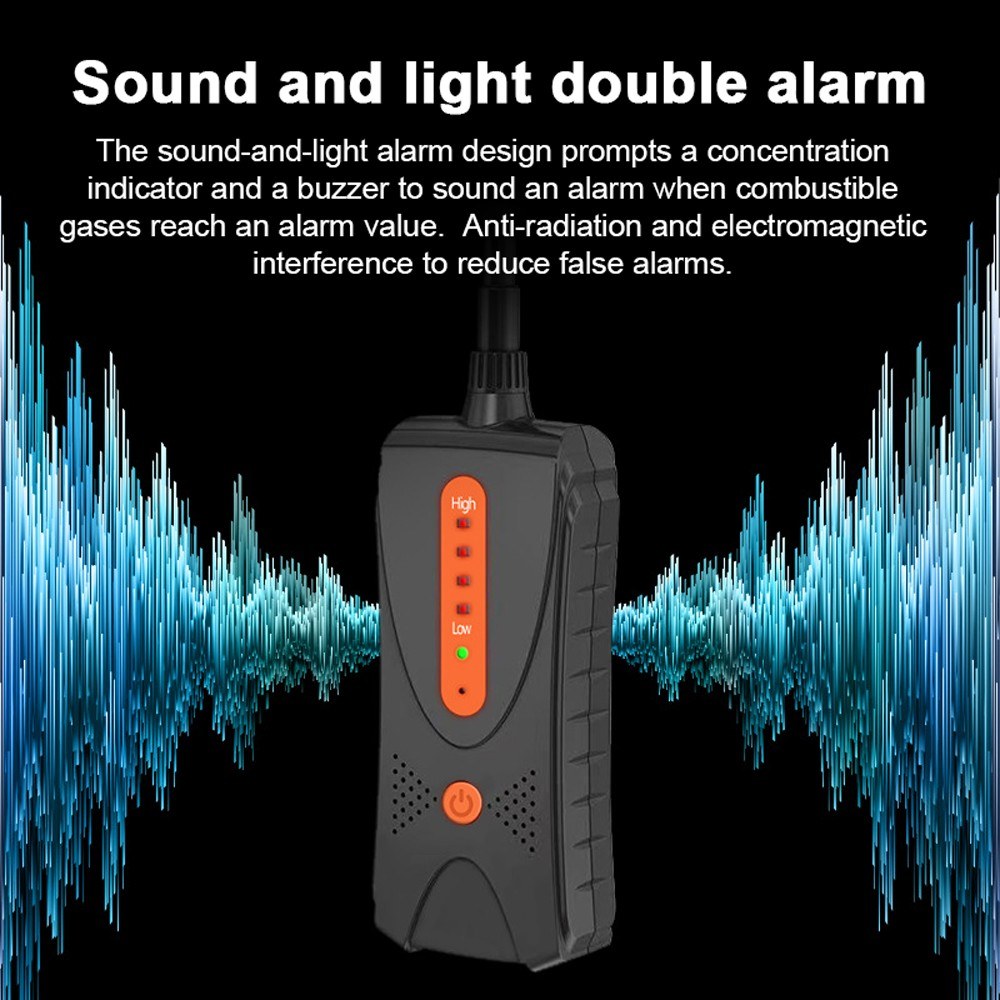

• Sound and Light Alarms: Alerts with a buzzer and indicators when gas levels reach critical thresholds, minimizing false alarms through radiation resistance and electromagnetic interference mitigation.

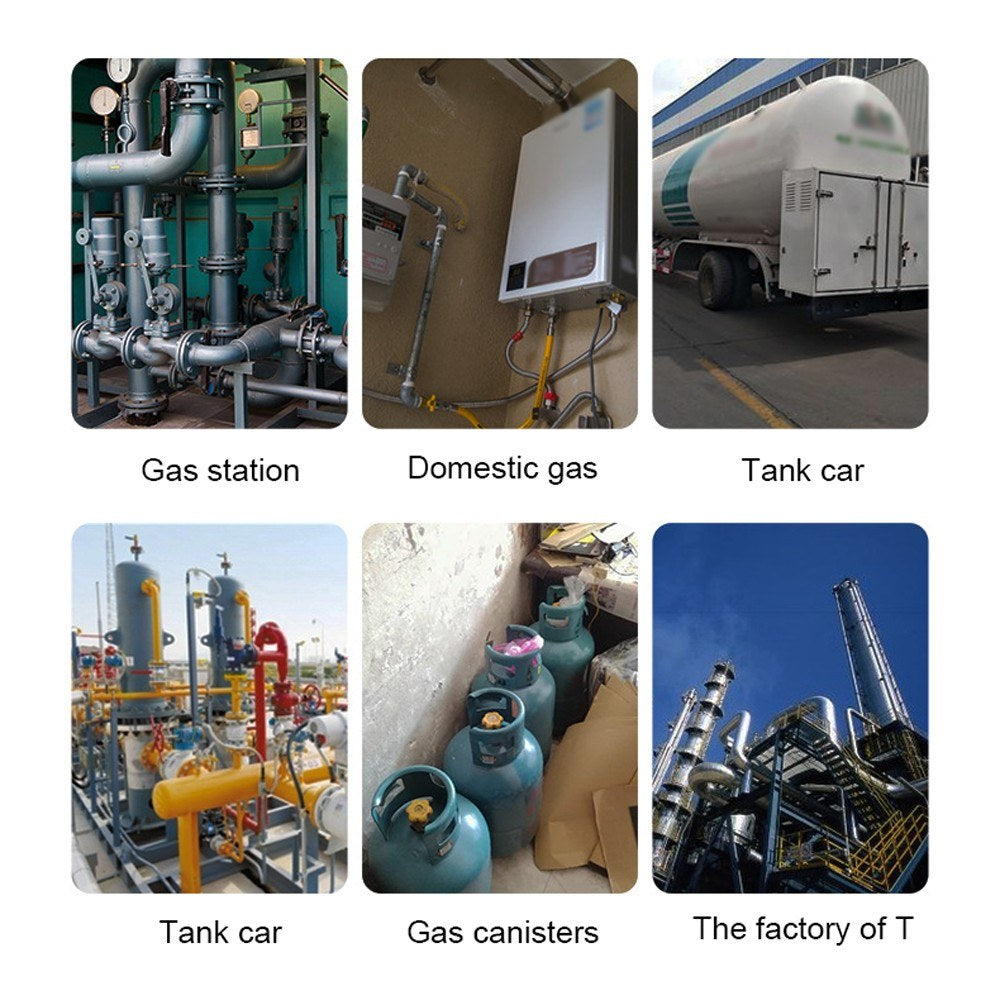

• Wide Application Range: Ideal for use in petroleum, natural gas, pipeline detection, kitchens, restaurants, chemical plants, and more.

Specifications

• Name: Combustible Gases Leak Detector
• Material: ABS
• Battery: 2 x 1.5V AAA batteries (not included)
• Detection Range: 0-10000PPM
• Alarm Values: Low: 2000PPM, High: 4000PPM
• Tracer Gas: Combustion Methane
• Response Time: 20-30 seconds (varies with gas type)
• Preheating Time: Stability achieved in under 2 minutes

Electrical Characteristics

• Display: Five LED indicators (power, concentration)
• Working Voltage: DC 3V
• Current Consumption: <90mA in monitoring, 130mA max
• Standby Time: Approximately 2 hours with two #7 batteries
• Operating Conditions:
  • Humidity: Up to 95%RH at 40 ±2℃
  • Storage Temperature: -40℃ to 85℃
  • Operating Temperature: -40℃ to 70℃ (varies with gas type)

Product Dimensions

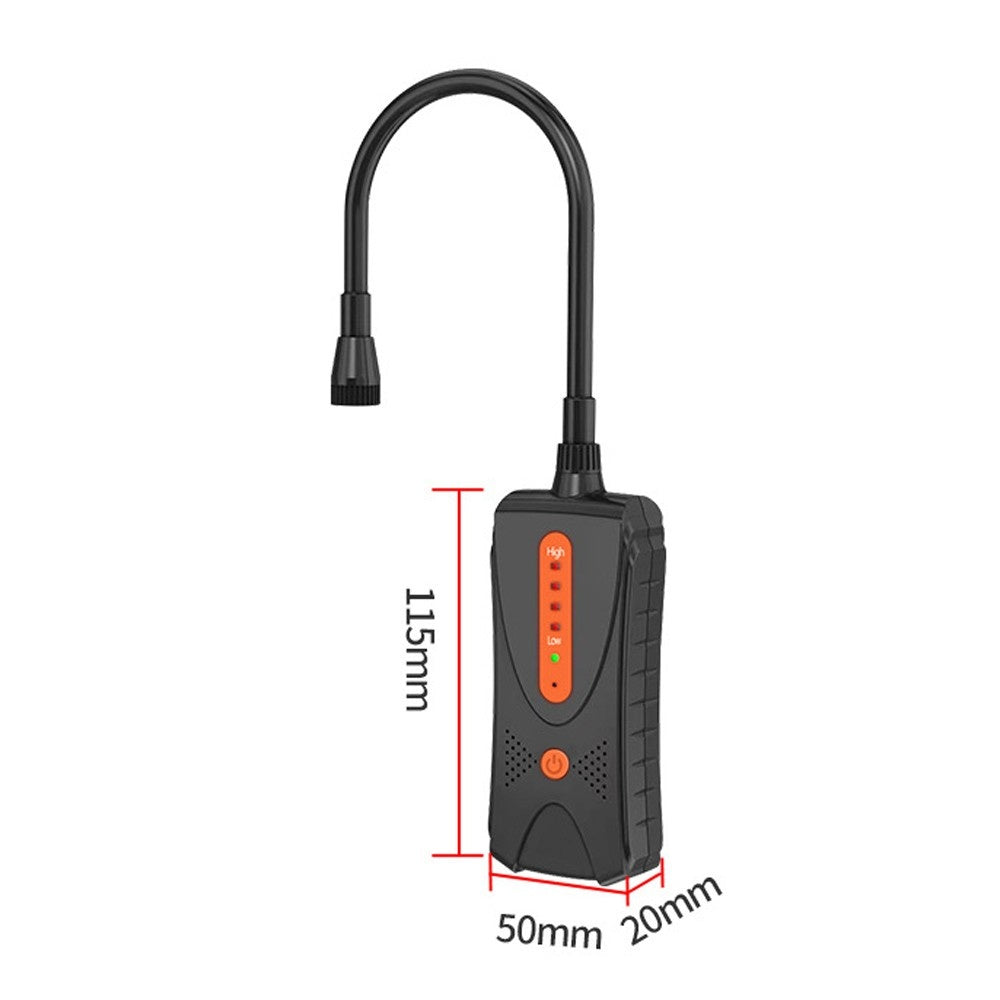

• Item Size: 115 x 50 x 20 mm / 4.53 x 1.97 x 0.79 in
• Item Weight: 139 g / 4.90 ounces
• Package Size: 150 x 60 x 25 mm / 5.91 x 2.36 x 0.98 in
• Package Weight: 152 g / 5.36 ounces

Packing List

• 1 x Combustible Gases Leak Detector
• 1 x User Guideline
