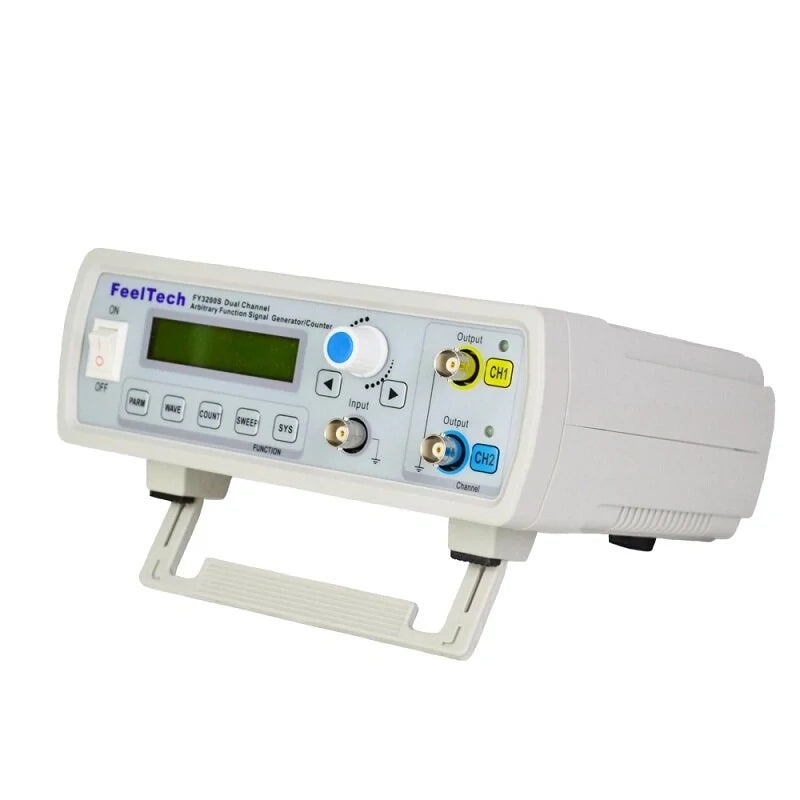

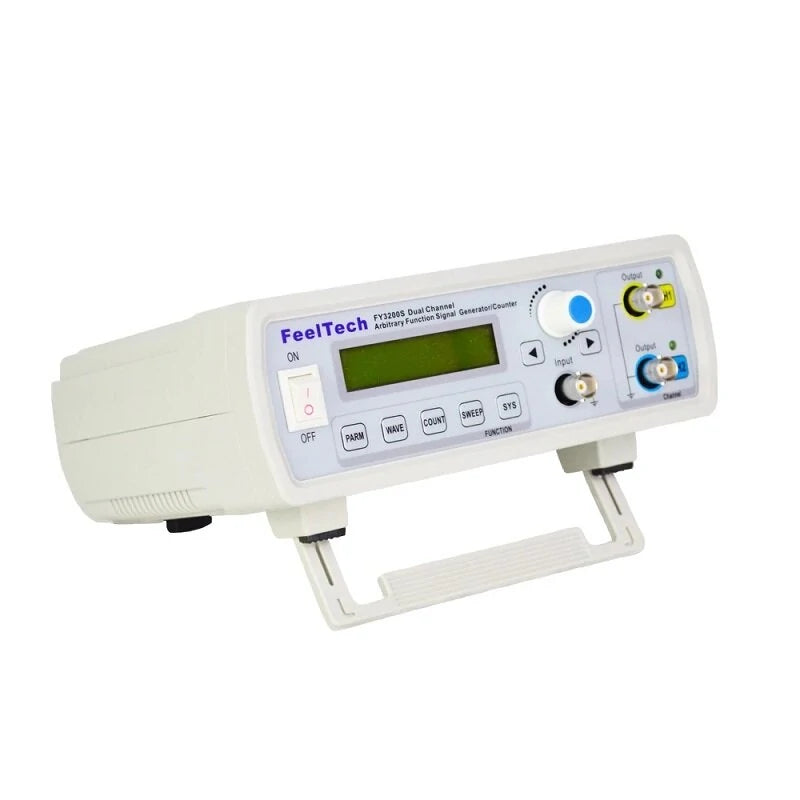

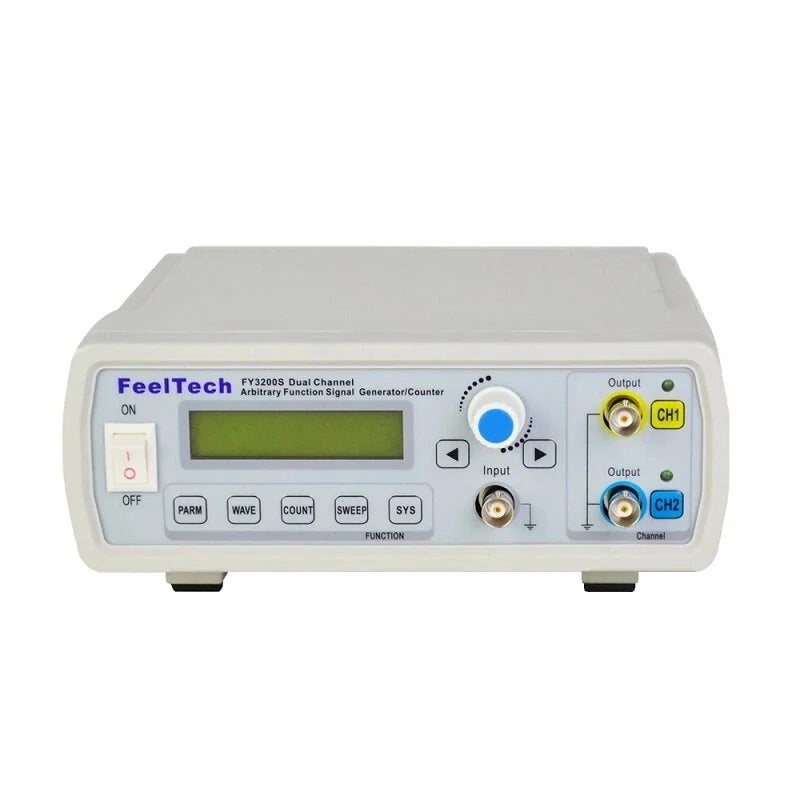

24MHz Dual-Channel DDS Function Signal Generator FY3224S Sine/Square Wave Sweep Counter

24MHz Dual-Channel DDS Function Signal Generator FY3224S Sine/Square Wave Sweep Counter

Regular price $62.99 USD
Regular price $0.00 USD Sale price $62.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Description

The FY3224S is a 24MHz dual-channel arbitrary waveform DDS function signal generator offering sine, square wave, sweep, and counter functionalities for precision applications.

Features

  • High frequency accuracy and outstanding stability.
  • Signal amplitude up to 20Vpp ensures powerful outputs.
  • User-friendly instrument with programmable function parameters.
  • Built-in frequency meter and counter for versatile use.
  • Diverse waveform outputs including sine, square, triangle, pulse, and more.
  • Adjustable pulse width precision for tailored performance.

Functions

  • Utilizes DDS technology for precise, stable, and low distortion signals.
  • CH1 and CH2 are fully symmetrical with independent parameter settings.
  • Supports user-defined waveforms: 2048 x 12bits memory depth, 250MSa/s sampling rate.
  • Offers burst output with manual, internal, and external trigger modes up to 1,048,575 bursts.
  • Comes with a 100MHz frequency counter and pulse counter functions.
  • 12-bit wide waveform generation for refined output.
  • Full CNC with digital adjustments for amplitude, phase, frequency, and more.
  • PC connectivity for control and waveform editing.
  • Open communication protocol suitable for secondary development.
  • High frequency accuracy and resolution.
  • Built-in tracking for ease of use.
  • Frequency linear and logarithmic sweep with adjustable start and end points.
  • Stores up to 20 user-defined instrument states.
  • Operated via responsive key interface with LCD1602 English display.
  • Wide AC input protection: AC85V to AC240V.
  • Short circuit protection for reliable operation.

Technical Specifications

Power Supply: Built-in switching, AC85V-AC260V

Interface: USB

Signal Output

  • Output Amplitude: ≥20Vp-p (no load).
  • Output Impedance: 50Ω ± 10%.
  • DC Polarization: ±10V.
  • Frequency Range: 0Hz - 24MHz (other: 0Hz - 6MHz).

Counter

  • Count Range: 0-4,294,967,295.
  • Measurement Frequency Range: 1Hz - 100MHz.
  • Input Amplitude: 1Vp-p - 20Vp-p.

Scan Function

  • Scanning Mode: Linear sweep, logarithmic sweep.
  • Scans with adjustable frequency range and rate.

Additional Features

  • Stores and transfers multiple instrument states.
  • Compact dimensions: 200mm (L) x 190mm (W) x 90mm (H).
  • Programmable beeper settings.
  • Operates in temperature ranges from 0 - 40℃.

Package Includes

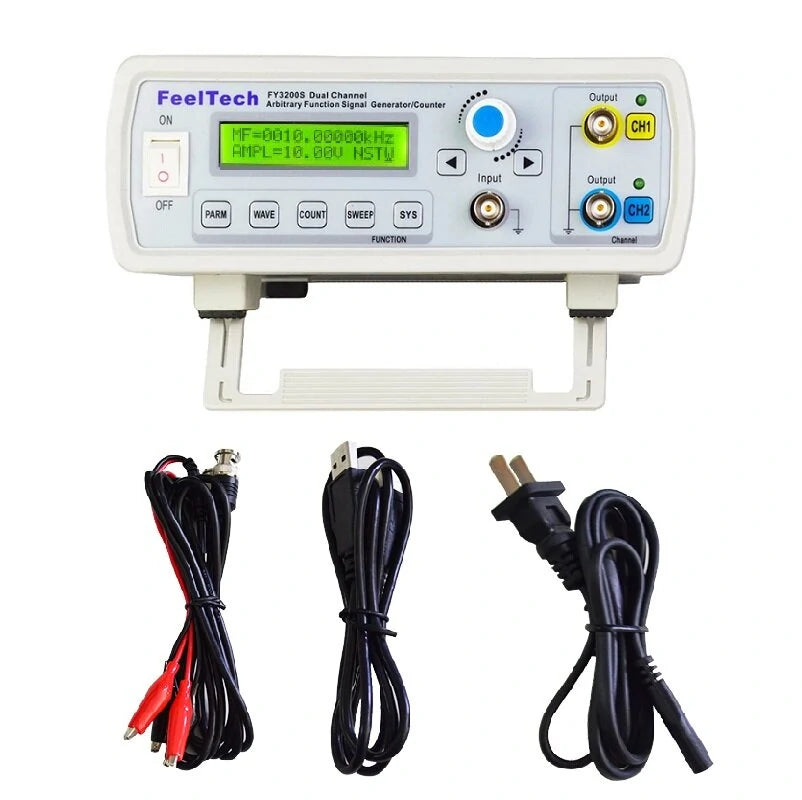

  • 1 x FY3224S 24MHz Dual Channel DDS Function Signal Generator
  • 1 x 1M Power Cable
  • 1 x 1.25M USB Cable
  • 2 x 1.1M Q9 Cables
  • US plug type with appropriate plug adapter for your country
