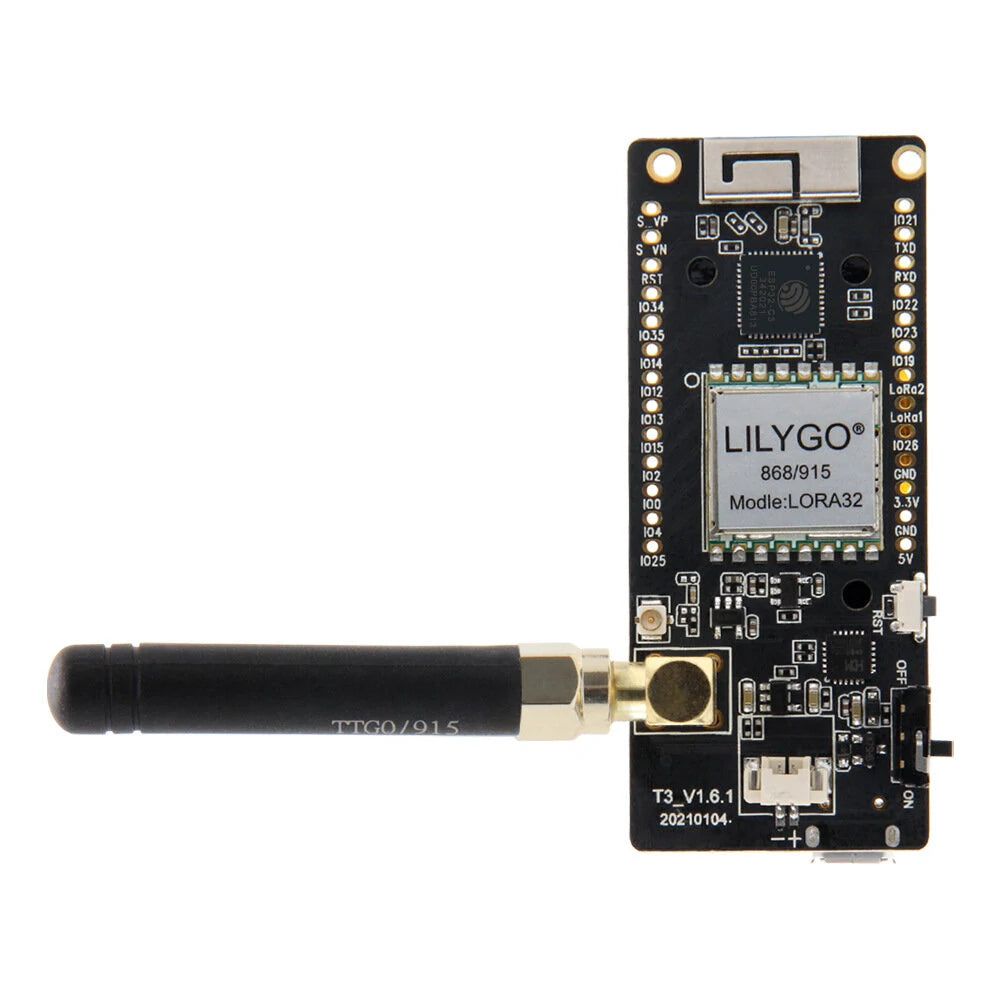

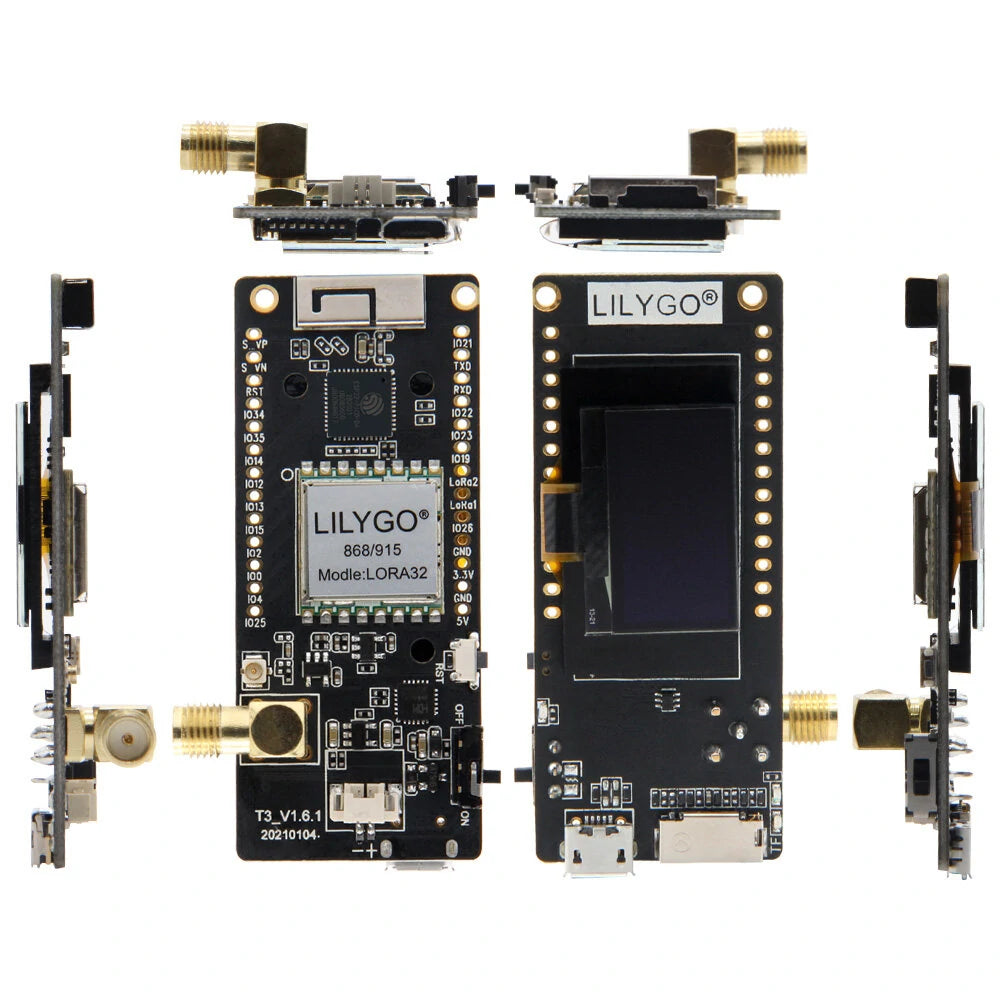

ESP32 LoRa32 V2.1 Development Board - LILYGO® Paxcounter/Disaster-Radio with 0.96-inch OLED, Bluetooth, WiFi, SMA

Product Features:

Specifications:

• Microcontroller Unit (MCU): ESP32
• Flash Memory: 4MB
• PSRAM: 8MB
• Wireless Connectivity:
• Wi-Fi 802.11
• Bluetooth V4.2 + Bluetooth LE
• Programming Platforms: Arduino IDE, Micropython
• Onboard Functions:
• TF Card Slot
• USB or 3.7V Lipo Battery Power Supply
• Battery Switch
• Onboard Button: Reset, Boot

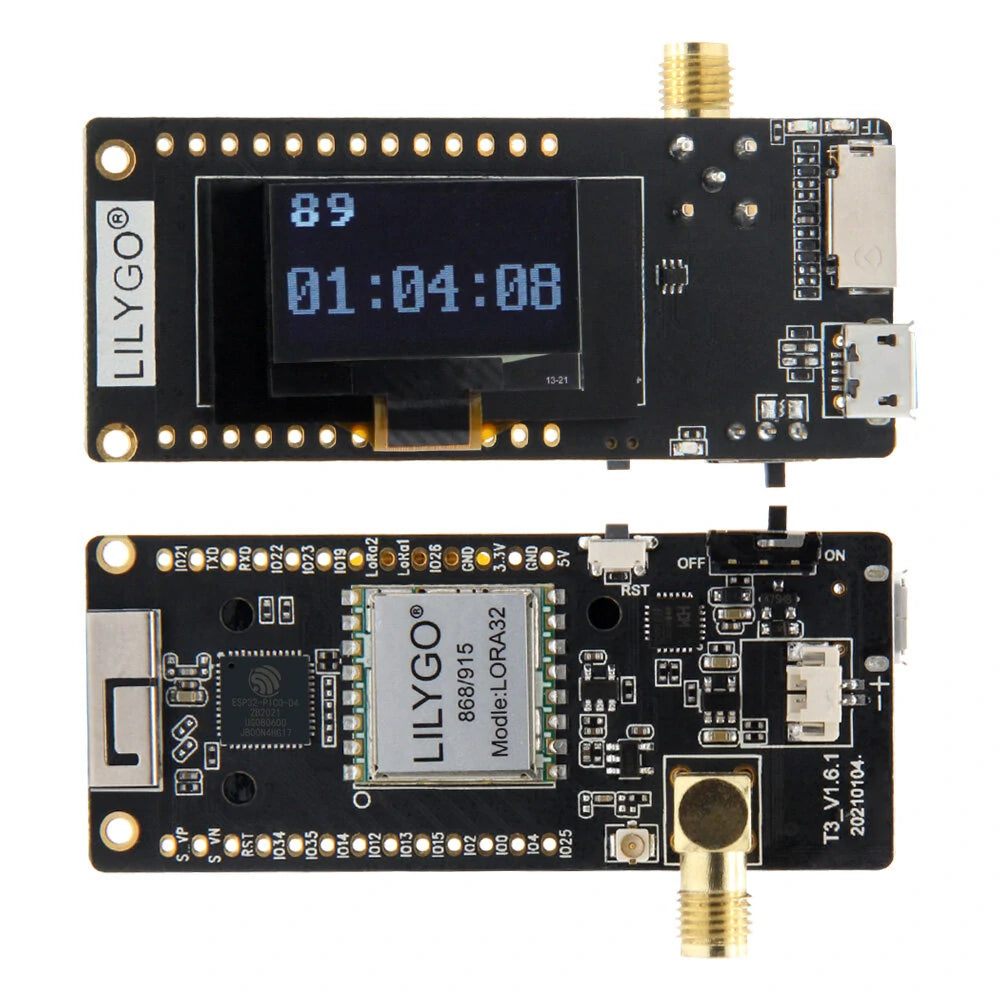

Screen Specifications:

• Type: OLED
• Driver: SSD1306
• Interface: I2C
• Text Color: White
• Resolution: 128 x 64
• Size: 0.96-inch Diagonal
• I2C Interface: SDA--IO21, SCL--IO22
• Background Color: Blue

Low Power LoRa Transceiver:

• LoRa Module: SX1276/SX1278
• Frequency Bands: 868/915/923MHz and 433MHz
• High-efficiency PA: 14dBm
• Low RX Current: 9.9mA

Additional Information:

• Visit our GitHub repositories for more information: LILYGO-LoRa-Series, Paxcounter, Disaster Radio

Important Notices:

• The shipping package does not include a battery or SD card.

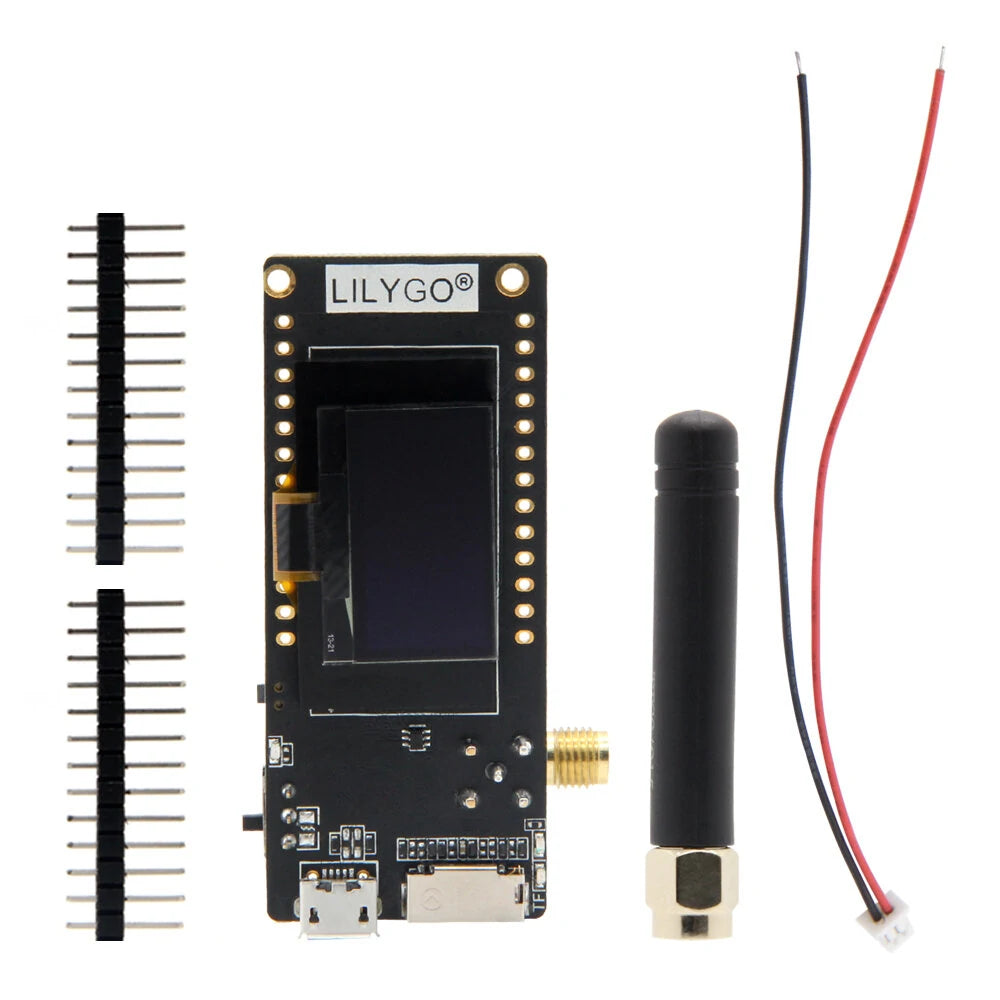

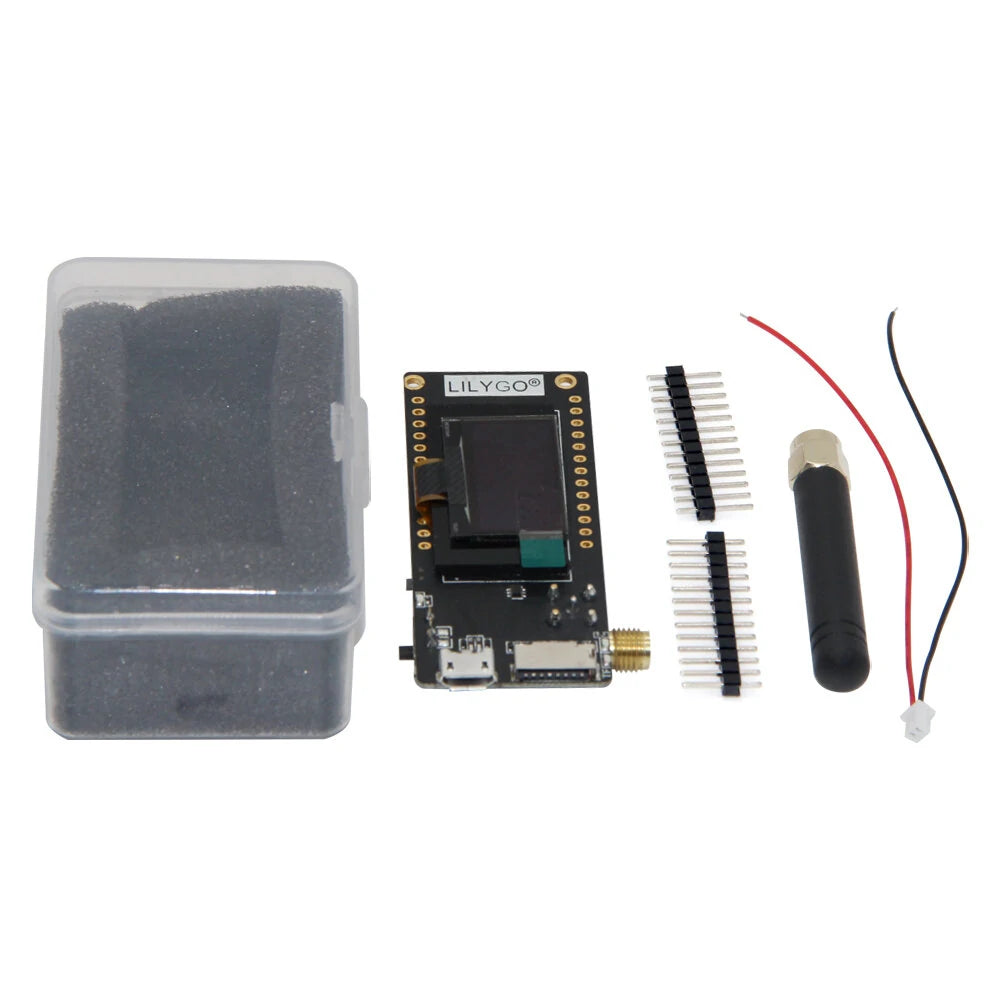

Package Includes:

• 1 x LoRa32 Module
• 1 x LoRa Antenna
• 2 x Pins
• 1 x Power Cable (JST 2pin 1.25mm)
