Adjustable DC-DC Buck Boost Converter 0-36V 120W 6A Power Supply Module Regulated Voltage Regulator

Precise Details

Specifications

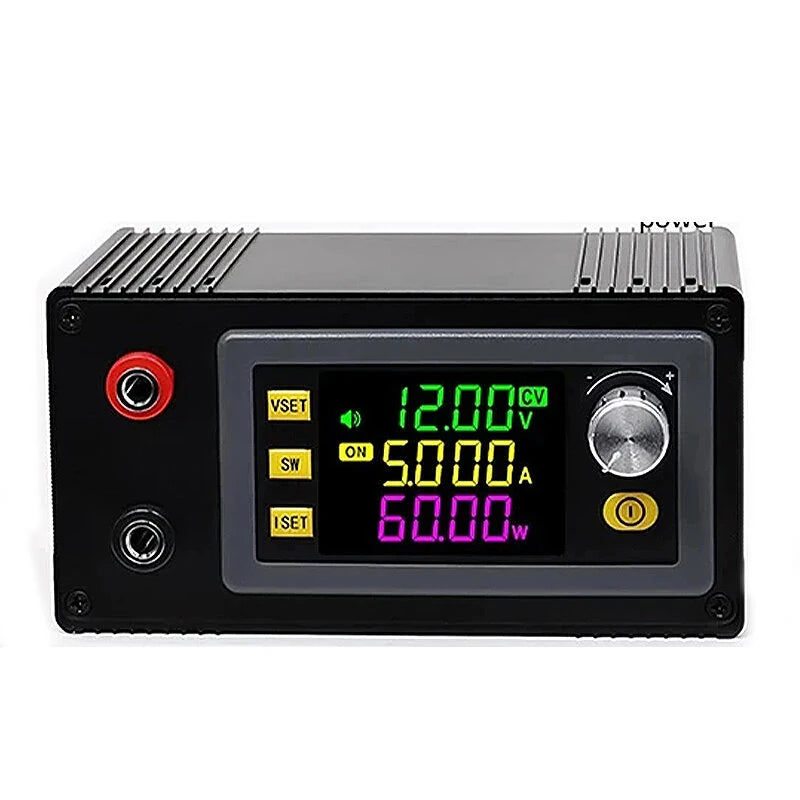

XY-SK60 Parameters:

• Input Voltage: 6.0~36V
• Output Current: 0~5.000A
• Output Power: 60W
• Voltage Resolution: 0.01V
• Conversion Efficiency: Approximately 88%
• Output Voltage: 0~36V
• Voltage Accuracy: ±0.5% + 1 word
• Current Accuracy: ±0.5% + 3 words
• Current Resolution: 0.01A
• Storage Data Group: 10 groups
• MPPT Function: Supports MPPT solar energy
• Charging Buzzer: Yes
• Soft Start: Yes

Protection Mechanism:

• Input Anti-Reverse Connection: Yes
• Output Anti-Reverse: Yes
• Input Undervoltage Protection: 5.5-36V adjustable, default 5.5V
• Output Over-Voltage Protection: 0-38V adjustable, default 38V
• Output Overcurrent Protection: 0-5.2A adjustable, default 5.2A
• Output Over Power Protection: 0-80W adjustable, default 65W
• Over-Temperature Protection: 0-110°C adjustable, default 95°C
• Timeout Protection: 0-100H adjustable, default off
• Over Capacity Protection: 0~9999AH adjustable, default off
• Super Energy Protection: 0~4200KWH adjustable, default off

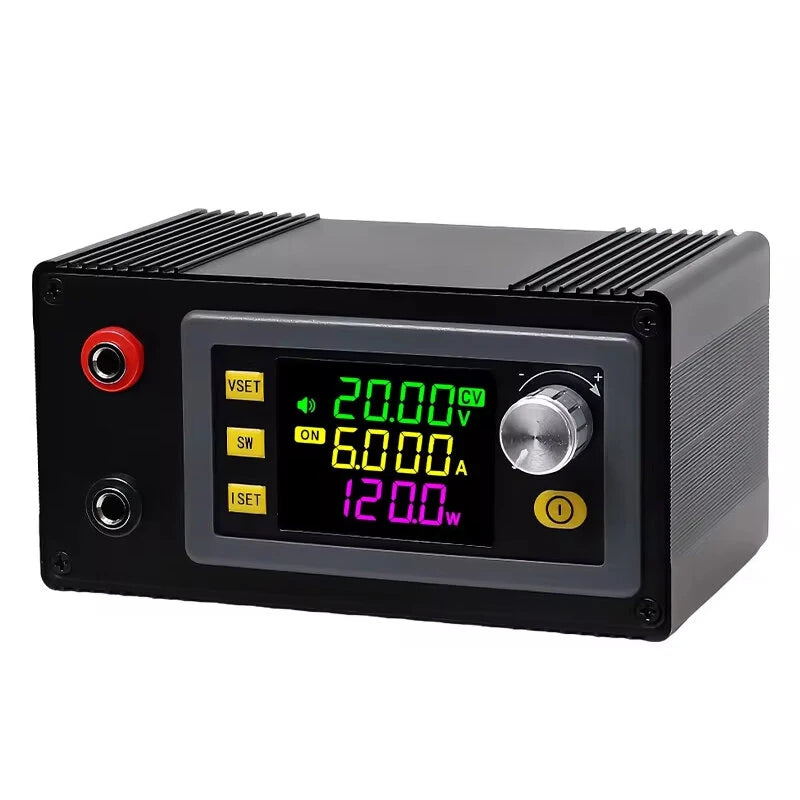

XY-SK120 Parameters:

• Input Voltage: 6.0~36V
• Output Current: 0~6.000A
• Output Power: 120W
• Voltage Resolution: 0.01V
• Conversion Efficiency: Approximately 88%
• Output Voltage: 0~36V
• Voltage Accuracy: ±0.5% + 1 word
• Current Accuracy: ±0.5% + 3 words
• Current Resolution: 0.001A
• Storage Data Group: 10 groups
• MPPT Function: Supports MPPT solar charging
• Buzzer: Yes
• Soft Start: Yes

Protection Mechanism:

• Input Anti-Reverse Connection: Yes
• Output Anti-Reverse: Yes
• Input Undervoltage Protection: 5.5-36V adjustable, default 5.5V
• Output Over-Voltage Protection: 0-38V adjustable, default 38V
• Output Overcurrent Protection: 0-6.2A adjustable, default 6.2A
• Output Over Power Protection: 0-150W adjustable, default 125W
• Over-Temperature Protection: 0-110°C adjustable, default 95°C
• Timeout Protection: 0-100H adjustable, default off
• Over Capacity Protection: 0~9999AH adjustable, default off
• Super Energy Protection: 0~9999KWH adjustable, default off

Features

• High-quality PCB materials enhance product service life.
• LCD screen with a clear layout and large, rounded fonts for ease of use.
• Built-in buzzer for key and alarm prompts, ensuring safer use.
• Upgraded plug-in terminals for easy disassembly and replacement.
• Wide range of applications, with MPPT solar charging support and an external temperature probe for over-temperature protection.

Package Includes

1x Adjustable Boost and Buck Module
