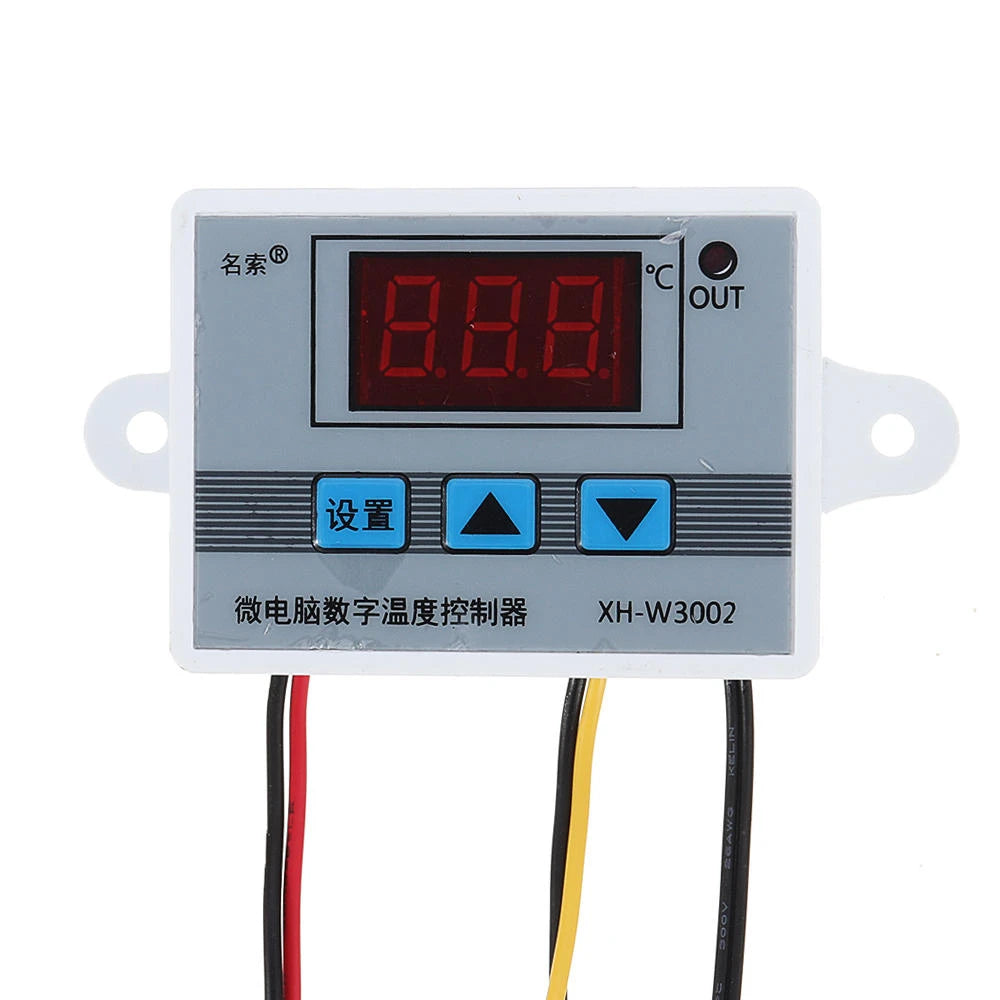

Microcomputer Temperature Controller

Introducing the XH-W3002 Microcomputer Temperature Controller, your reliable partner in precise temperature management. With its advanced features and easy-to-use design, this controller is perfect for a variety of applications.

Features

• Product Name: Microcomputer Temperature Controller
• Model: XH-W3002
• Temperature Range: -50 to 110°C
• Temperature Control Range: -50 to 110°C
• Measurement Accuracy: ±0.2°C
• Control Accuracy: ±0.1°C

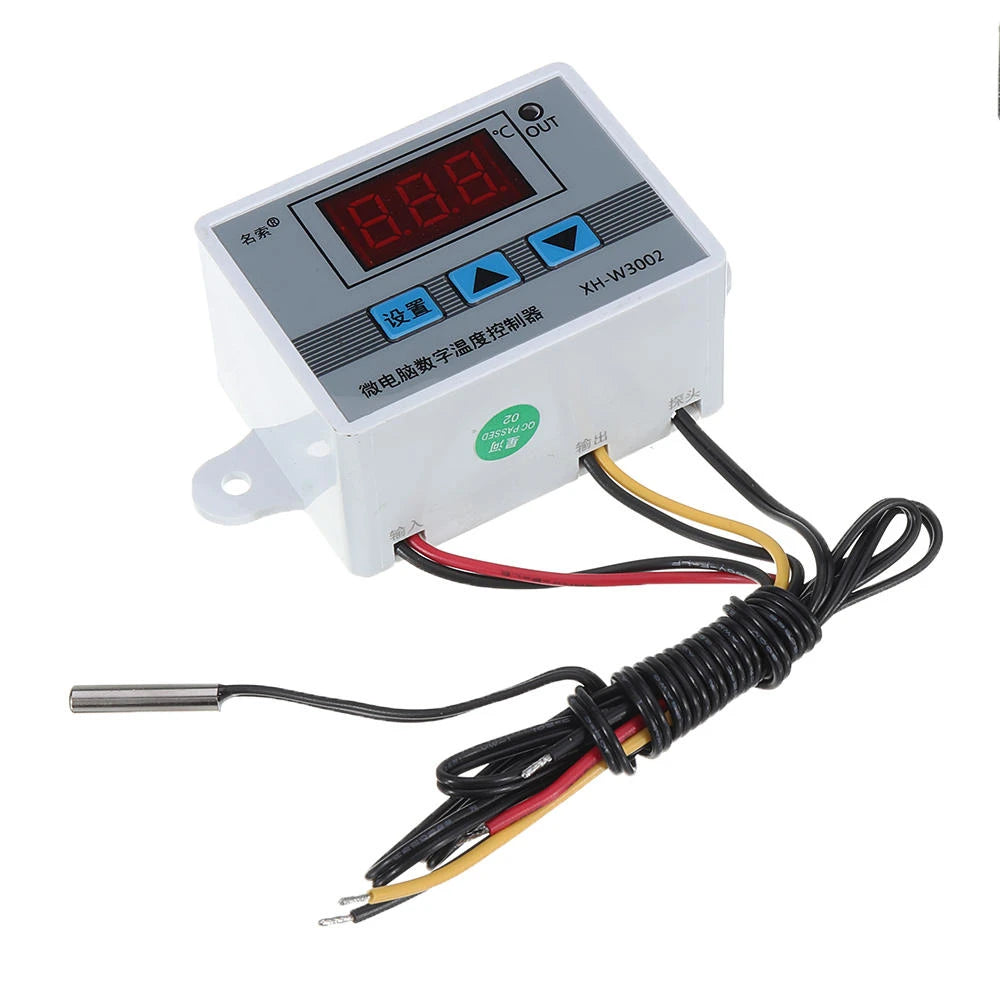

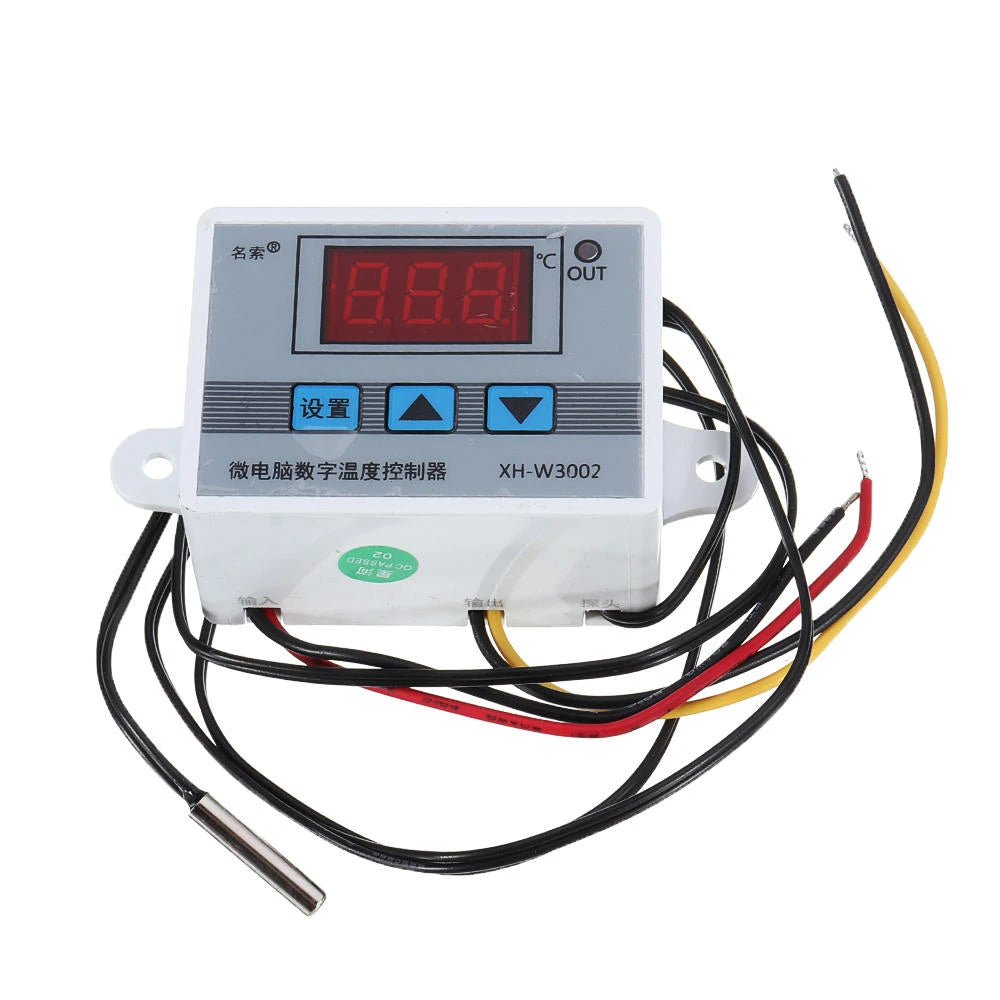

• Temperature Probe: NTC10K (B3950) 1 meter waterproof probe
• Supply Voltage: DC12V/DC24V/AC220V
• Output Power: AC220V: 1500W
• Output Type: Direct output
• Dimensions: 60 x 45 x 31mm
• Mounting Size: 73mm (aperture 4mm)

Package Includes:

• 3 x Microcomputer Temperature Controller

Wiring Instructions

Follow the instructions below for wiring and setting your temperature controller:

Key Descriptions:

• Up Key: Short press to display the starting temperature, long press to set it.
• Down Button: Short press to display the stop temperature, long press to set it.
• Shutdown Button: Press to turn off the thermostat, press again to turn it on.

Code Settings

Code	Description	Setting Range	Factory Setting
P0	Starting Temperature	-50 to 110°C	25°C
P1	Stop Temperature	-50 to 110°C	40°C
P2	Temperature Correction	-10 to 10°C	0°C
P3	Delayed Start	0 to 10 minutes	0

Setting Instructions:

1. Set the Startup Temperature (P0): Press the Setup button and set the desired startup temperature using the Up and Down keys.
2. Set the Stop Temperature (P1): Access the menu, switch to P1, and set the required stop temperature.
3. Set Temperature Correction (P2): Access the menu, switch to P2, and adjust the calibration temperature as needed.
4. Set Delay Start (P3): Access the menu, switch to P3, and set the delay time in minutes.

Operational Instructions:

1. Connect the Power: Ensure correct wiring and power connections.
2. Set Temperatures: Use the keys to set both startup and stop temperatures.
3. Restore Factory Settings: Hold the Up and Down keys for 5 seconds until "888" appears.
4. Power Off: Use the Shutdown button to turn the thermostat off and on.

Troubleshooting Tips:

• "888" Display: Indicates successful restoration of factory settings.
• "LLL" Display: Sensor is open-circuit; repair or replace the sensor.
• "HHH" Display: Sensor is short-circuit.
