Daly BMS LiFePO4 Smart Board - Iron Lithium Battery Protection with Balance, Bluetooth, RS485, CAN, M-type (4-24 Series) & Parallel Module 3.65V
Daly BMS LiFePO4 Smart Board - Iron Lithium Battery Protection with Balance, Bluetooth, RS485, CAN, M-type (4-24 Series) & Parallel Module 3.65V
No reviews
Regular price
$84.99 USD
Regular price
$0.00 USD
Sale price
$84.99 USD
Unit price
/
per
Estimated Delivery: -

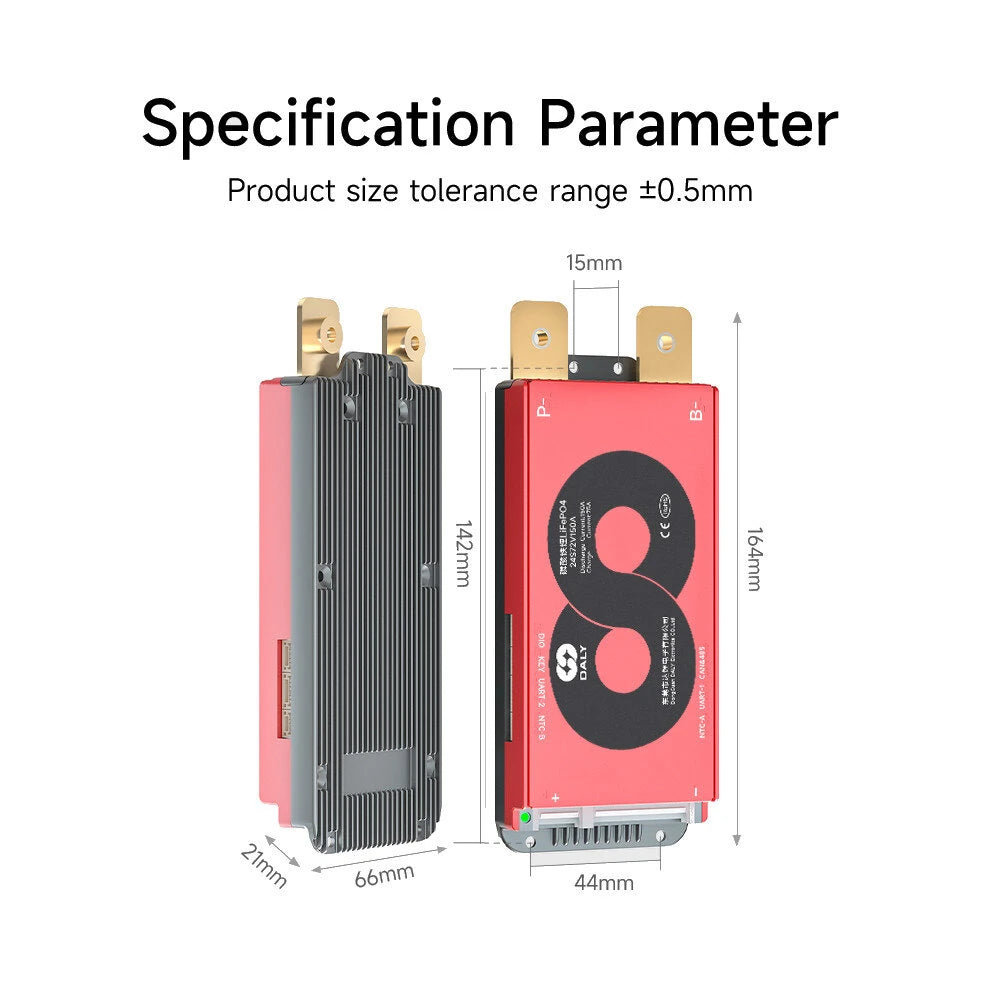

Product Specifications
- Charging Voltage (V): LiFePO4: N (Battery string) * 3.65V
- Discharge Current (A): 150-200
- Discharge Overcurrent Protection Value (A): 225-300
- Charging Current (A): 150-200
- Charge Overcurrent Protection Value (A): 225-300
- Main Circuit On-Resistance (mΩ): Passive equalization function (100±15mA)
- Equalization Turn-On Voltage (V): LiFePO4: 3.4 (Adjustable)
- Equalize Opening Differential Pressure (mV): 50 (Adjustable)
- Balance Current (mA): LiFePO4: 100±30
Protection Features
- Short Circuit Protection Conditions: External Load Short Circuit
- Protection Delay (µS): 10-500 (Actual test based on customer's battery)
- Released by: Load removal
- Single Cell Over-Charge Protection Voltage (V): LiFePO4: 3.75±0.05 (Adjustable)
- Protection Delay (S): 1±0.8
- Recovery Voltage (V): LiFePO4: 3.65±0.05
- Single Cell Over-Discharge Protection Voltage (V): LiFePO4: 2.2±0.05 (Adjustable)
- Protection Delay (S): 1±0.8
- Recovery Voltage (V): LiFePO4: 2.3±0.05
- Charge/Discharge Over-Current Protection Delay (S): 1±0.8
- Release Condition: Load removal
Additional Features
- Temperature Protection (℃): Operating temperature for charging: -35~75, discharge: -35~75 (Adjustable)
- Storage Temperature (℃): -40~85
- Resting Current (uA) & Sleep Time (S): 3600
- Data based on DALY laboratory tests, for reference only.
Installation and Wiring in 3 Easy Steps
- Solder the Sampling Cables: Connect the black cable to the negative battery terminal, then connect the subsequent red cables to the positive terminals of each battery string sequentially.
- Check the Cables: Measure the voltage between two adjacent cables starting from the header to ensure correct connections.
- Connect the Output Wires: Attach the B- wire of the BMS to the total negative terminal of the battery pack. Plug the sampling cable into the BMS and verify voltage consistency between B+ & B- and P+ & P-.
Activating the BMS
The BMS activates automatically upon first use. For reactivation, ensure all connections, including the NTC, are correct. Activation methods include:
- Using a key switch
- Pressing buttons on the Bluetooth module or SOC indicator
- Connecting via CAN/RS485 communication or Bluetooth to a Mobile App
- Charging or discharging the battery
Package Includes
- 1 x Smart BMS M-Type
- 1 x Cable
- 1 x Bluetooth Module
- 1 x NTC
- 1 x CAN/485 5-pin Connector
- 1 x B-P-Output Line
If you require customized services, please contact customer service for assistance.
